Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#72515) — 302 parça

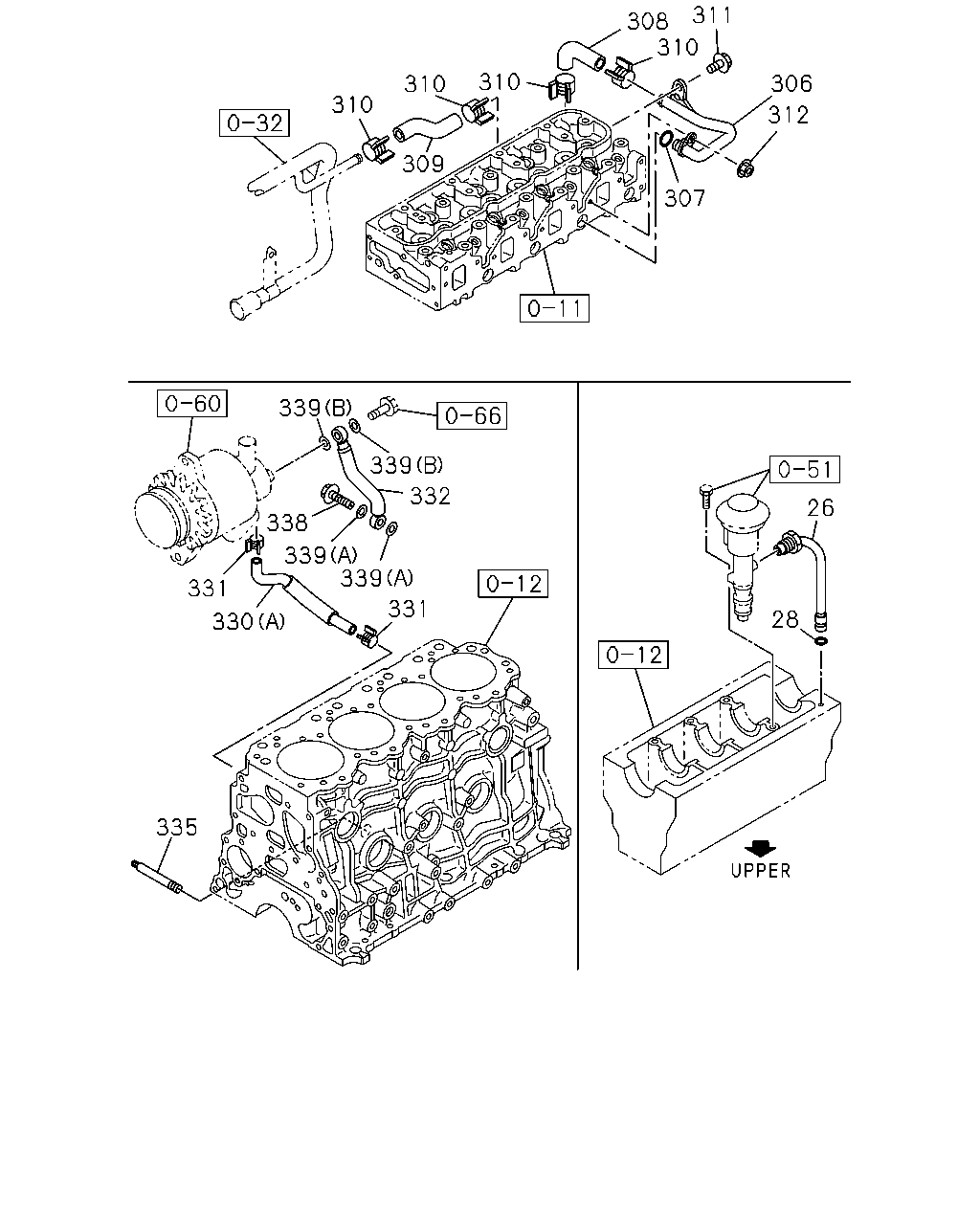

311 308 310 310 306 310 310 312 309 307 339 339 332 26 338 339 339 331 331 28 330 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	9704-0308	●
26	PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0309-0801	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0802-1111	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1112-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9704-1111	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1112-	●	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97169-754-1	01	1	9704-0209	●
306	PIPE ASM; CYL HD TO OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97169-754-1	01	1	0210-	●
306	PIPE ASM; CYL HD TO OIL COOLER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94450-627-0	01	1	0210-1005	●
306	PIPE ASM; CYL HD TO OIL COOLER EXC. TURBOCHARGER<K51>	8-94450-627-1	01	1	1006-	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1112-		●
307	GASKET; WATER PIPE	8-97124-640-0	01	1	9704-0105	●
307	GASKET; WATER PIPE	8-97264-168-0	01	1	0106-1111	●
307	GASKET; WATER PIPE	8-97264-168-0	01	1	1112-	●	●
308	HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9704-9705	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	9706-1111	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1112-	●	●
309	HOSE; OIL COOLER RETURN	8-97176-138-0	01	1	9704-0209	●
309	HOSE; OIL COOLER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-138-1	01	1	0210-	●
309	HOSE; OIL COOLER RETURN GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-97022-314-1	01	1	0210-1005	●
309	HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>	8-97022-314-1	01	1	1006-	●
309	HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	1112-		●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	9704-1111	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	1112-	●	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	9704-1111	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	1112-	●	●
312	NUT; PIPE FIX M8 FLANGE	5-09440-005-0	01	1	9704-0805	●
312	NUT; PIPE FIX M8 FLANGE	8-97581-233-0	01	1	0806-1111	●
312	NUT; PIPE FIX M8 FLANGE	8-97581-233-0	01	1	1112-	●	●
330	HOSE; VAC PUMP,RETURN (B)	8-98204-694-0	01	1	1112-		●
330	HOSE; VAC PUMP,RETURN (A)	8-94310-391-0	01	1	9704-9805	●
330	HOSE; VAC PUMP,RETURN (A)	8-97207-067-0	01	1	9806-1005	●
330	HOSE; VAC PUMP,RETURN GENERATOR DENSO(7KH) EXC. ISUZU BRAND<7WL> (A)	8-97207-067-0	01	1	1006-	●
330	HOSE; VAC PUMP,RETURN ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH) (A)	8-97073-920-2	01	1	1006-	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9704-1111	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1112-	●	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94310-221-1	01	1	9704-1005	●
332	PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) EXC. ISUZU BRAND<7WL>	8-94310-221-1	01	1	1006-	●
332	PIPE; OIL,C/BL TO VAC PUMP ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH)	8-94443-644-1	01	1	1006-1111	●
332	PIPE; OIL,C/BL TO VAC PUMP ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH)	8-94443-644-1	01	1	1112-	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	1112-		●
335	STOPPER; OIL PIPE	8-94310-702-0	01	1	9704-9804	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	9805-1111	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	1112-	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9704-1111	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9704-1111	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1112-	●	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9704-1111	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-	●	●

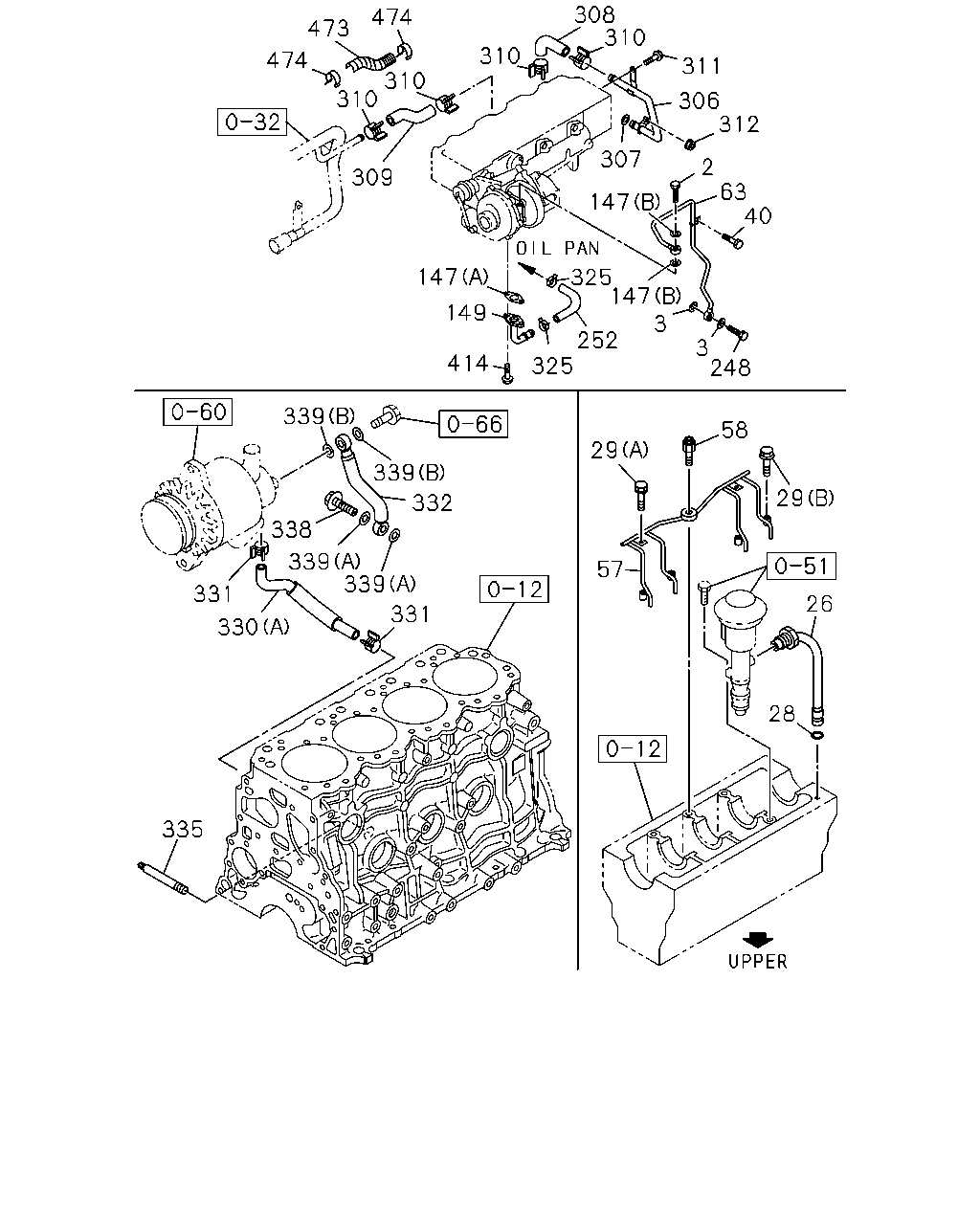

308 310 474 473 310 311 474 310 310 306 312 307 2 63 40 309 147 147 325 147 3 149 252 325 3 248 414 339 58 29 339 29 332 338 339 339 57 331 26 331 330 28 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE M10X23 FLANGE	8-94332-831-1	01	1	9704-0209	●
2	BOLT; EYE,OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X23 FLANGE	8-94332-831-1	01	1	0210-1111	●
2	BOLT; EYE,OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X23 FLANGE	8-94332-831-1	01	1	1112-	●
2	BOLT; EYE,OIL PIPE M10X23 FLANGE	8-94332-831-1	01	1	1112-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9704-0209	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=14.2 OD=20.0	9-09571-414-0	02	1	0210-1111	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51>. ID=14.2 OD=20.0	9-09571-414-0	02	1	1112-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	1112-		●
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	9704-0308	●
26	PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0309-0801	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0802-1111	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1112-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9704-1111	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1112-	●	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9704-9804	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-0202	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0209	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X10 FLANGE	0-28080-810-0	01	1	0210-0512	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-1111	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X10 FLANGE	0-28050-810-0	01	1	1112-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	1112-		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9704-0209	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0210-0512	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0601-1111	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1112-	●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1112-		●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	9704-0209	●
40	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X10 FLANGE	0-28080-610-0	01	1	0210-0512	●
40	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X10 FLANGE	0-28050-610-0	01	1	0601-1111	●
40	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X10 FLANGE	0-28050-610-0	01	1	1112-	●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28050-610-0	01	1	1112-		●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	9704-0209	●
57	PIPE; OIL,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94469-709-3	01	1	0210-1111	●
57	PIPE; OIL,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94469-709-3	01	1	1112-	●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	1112-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97145-612-0	01	1	9704-0104	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-0	01	1	0105-0209	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97311-976-1	01	1	0210-1111	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97311-976-1	01	1	1112-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	1112-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97176-072-1	01	1	9704-9705	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97166-165-0	01	1	9706-9808	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-267-0	01	1	9809-0209	●
63	PIPE; OIL,TURBOCHARGER FEED GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97214-267-0	01	1	0210-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1112-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51>. (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9704-0209	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) ID=14	8-97041-638-0	01	1	0210-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9704-0209	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0210-1111	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-1	01	1	1112-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97166-389-0	01	1	9704-0209	●
149	PIPE; OIL RETURN,TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-389-0	01	1	0210-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	1112-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	9704-0209	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M14X27 FLANGE	1-09675-086-0	01	1	0210-1111	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M14X27 FLANGE	1-09675-086-0	01	1	1112-	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	1112-		●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	9704-0209	●
252	HOSE; RUBBER,TURBOCHARGER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-141-0	01	1	0210-1111	●
252	HOSE; RUBBER,TURBOCHARGER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-141-0	01	1	1112-	●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	1112-		●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97169-754-1	01	1	9704-0209	●
306	PIPE ASM; CYL HD TO OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97169-754-1	01	1	0210-	●
306	PIPE ASM; CYL HD TO OIL COOLER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94450-627-0	01	1	0210-1005	●
306	PIPE ASM; CYL HD TO OIL COOLER EXC. TURBOCHARGER<K51>	8-94450-627-1	01	1	1006-	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1112-		●
307	GASKET; WATER PIPE	8-97124-640-0	01	1	9704-0105	●
307	GASKET; WATER PIPE	8-97264-168-0	01	1	0106-1111	●
307	GASKET; WATER PIPE	8-97264-168-0	01	1	1112-	●	●
308	HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9704-9705	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	9706-1111	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1112-	●	●
309	HOSE; OIL COOLER RETURN	8-97176-138-0	01	1	9704-0209	●
309	HOSE; OIL COOLER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-138-1	01	1	0210-	●
309	HOSE; OIL COOLER RETURN GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-97022-314-1	01	1	0210-1005	●
309	HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>	8-97022-314-1	01	1	1006-	●
309	HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	1112-		●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	9704-1111	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	1112-	●	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	9704-1111	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	1112-	●	●
312	NUT; PIPE FIX M8 FLANGE	5-09440-005-0	01	1	9704-0805	●
312	NUT; PIPE FIX M8 FLANGE	8-97581-233-0	01	1	0806-1111	●
312	NUT; PIPE FIX M8 FLANGE	8-97581-233-0	01	1	1112-	●	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=21	8-94242-034-0	02	1	9704-9901	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	9902-0209	●
325	CLIP; RUBBER HOSE,OIL RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=20.8	8-94125-862-1	02	1	0210-1111	●
325	CLIP; RUBBER HOSE,OIL RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=20.8	8-94125-862-1	02	1	1112-	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	1112-		●
330	HOSE; VAC PUMP,RETURN (B)	8-98204-694-0	01	1	1112-		●
330	HOSE; VAC PUMP,RETURN (A)	8-94310-391-0	01	1	9704-9805	●
330	HOSE; VAC PUMP,RETURN (A)	8-97207-067-0	01	1	9806-1005	●
330	HOSE; VAC PUMP,RETURN GENERATOR DENSO(7KH) EXC. ISUZU BRAND<7WL> (A)	8-97207-067-0	01	1	1006-	●
330	HOSE; VAC PUMP,RETURN ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH) (A)	8-97073-920-2	01	1	1006-	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9704-1111	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1112-	●	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94310-221-1	01	1	9704-1005	●
332	PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) EXC. ISUZU BRAND<7WL>	8-94310-221-1	01	1	1006-	●
332	PIPE; OIL,C/BL TO VAC PUMP ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH)	8-94443-644-1	01	1	1006-1111	●
332	PIPE; OIL,C/BL TO VAC PUMP ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH)	8-94443-644-1	01	1	1112-	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	1112-		●
335	STOPPER; OIL PIPE	8-94310-702-0	01	1	9704-9804	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	9805-1111	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	1112-	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9704-1111	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9704-1111	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1112-	●	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9704-1111	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-	●	●
414	BOLT; OIL PIPE M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9704-0209	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0210-0310	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X16 FLANGE	0-28080-616-0	02	1	0311-0512	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X16 FLANGE	0-28050-616-0	02	1	0601-1111	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X16 FLANGE	0-28050-616-0	02	1	1112-	●
414	BOLT; OIL PIPE M6X16 FLANGE	0-28050-616-0	02	1	1112-		●
473	INSULATOR; HOSE	8-97101-331-0	02	1	9704-0209	●
473	INSULATOR; HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-331-0	02	1	0210-1111	●
473	INSULATOR; HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-331-0	02	1	1112-	●
473	INSULATOR; HOSE	8-97101-331-0	02	1	1112-		●
474	CLIP; INSULATOR	8-97101-337-0	04	1	9704-0209	●
474	CLIP; INSULATOR GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-337-0	04	1	0210-1111	●
474	CLIP; INSULATOR GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-337-0	04	1	1112-	●
474	CLIP; INSULATOR	8-97101-337-0	04	1	1112-		●

308 310 474 473 310 474 311 310 310 306 312 2 63 40 307 309 147 147 325 147 3 149 252 325 3 248 414 339 58 29 339 29 332 338 339 339 57 331 26 331 330 28 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE M10X23 FLANGE	8-94332-831-1	01	1	9704-0209	●
2	BOLT; EYE,OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X23 FLANGE	8-94332-831-1	01	1	0210-1111	●
2	BOLT; EYE,OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X23 FLANGE	8-94332-831-1	01	1	1112-	●
2	BOLT; EYE,OIL PIPE M10X23 FLANGE	8-94332-831-1	01	1	1112-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9704-0209	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=14.2 OD=20.0	9-09571-414-0	02	1	0210-1111	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51>. ID=14.2 OD=20.0	9-09571-414-0	02	1	1112-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	1112-		●
26	PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	9704-0308	●
26	PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0309-0801	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0802-1111	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1112-	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9704-1111	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1112-	●	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9704-9804	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-0202	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0209	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X10 FLANGE	0-28080-810-0	01	1	0210-0512	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-1111	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X10 FLANGE	0-28050-810-0	01	1	1112-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	1112-		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9704-0209	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0210-0512	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0601-1111	●
29	BOLT; OIL PIPE,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1112-	●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1112-		●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	9704-0209	●
40	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X10 FLANGE	0-28080-610-0	01	1	0210-0512	●
40	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X10 FLANGE	0-28050-610-0	01	1	0601-1111	●
40	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X10 FLANGE	0-28050-610-0	01	1	1112-	●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28050-610-0	01	1	1112-		●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	9704-0209	●
57	PIPE; OIL,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94469-709-3	01	1	0210-1111	●
57	PIPE; OIL,OIL JET GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94469-709-3	01	1	1112-	●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	1112-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97145-612-0	01	1	9704-0104	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-0	01	1	0105-0209	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97311-976-1	01	1	0210-1111	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97311-976-1	01	1	1112-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	1112-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97176-072-1	01	1	9704-9705	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97166-165-0	01	1	9706-9808	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97214-267-0	01	1	9809-0209	●
63	PIPE; OIL,TURBOCHARGER FEED GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97214-267-0	01	1	0210-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	1112-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51>. (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9704-0209	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) ID=14	8-97041-638-0	01	1	0210-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9704-0209	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0210-1111	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-1	01	1	1112-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97166-389-0	01	1	9704-0209	●
149	PIPE; OIL RETURN,TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-389-0	01	1	0210-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	1112-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	9704-0209	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M14X27 FLANGE	1-09675-086-0	01	1	0210-1111	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M14X27 FLANGE	1-09675-086-0	01	1	1112-	●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	1112-		●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	9704-0209	●
252	HOSE; RUBBER,TURBOCHARGER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-141-0	01	1	0210-1111	●
252	HOSE; RUBBER,TURBOCHARGER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-141-0	01	1	1112-	●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	1112-		●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97169-754-1	01	1	9704-0209	●
306	PIPE ASM; CYL HD TO OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97169-754-1	01	1	0210-	●
306	PIPE ASM; CYL HD TO OIL COOLER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94450-627-0	01	1	0210-1005	●
306	PIPE ASM; CYL HD TO OIL COOLER EXC. TURBOCHARGER<K51>	8-94450-627-1	01	1	1006-	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97225-604-1	01	1	1112-		●
307	GASKET; WATER PIPE	8-97124-640-0	01	1	9704-0105	●
307	GASKET; WATER PIPE	8-97264-168-0	01	1	0106-1111	●
307	GASKET; WATER PIPE	8-97264-168-0	01	1	1112-	●	●
308	HOSE; OIL COOLER FEED	8-97078-193-3	01	1	9704-9705	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	9706-1111	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	1112-	●	●
309	HOSE; OIL COOLER RETURN	8-97176-138-0	01	1	9704-0209	●
309	HOSE; OIL COOLER RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-138-1	01	1	0210-	●
309	HOSE; OIL COOLER RETURN GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-97022-314-1	01	1	0210-1005	●
309	HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51>	8-97022-314-1	01	1	1006-	●
309	HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	1112-		●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	9704-1111	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	1112-	●	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	9704-1111	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	1112-	●	●
312	NUT; PIPE FIX M8 FLANGE	5-09440-005-0	01	1	9704-0805	●
312	NUT; PIPE FIX M8 FLANGE	8-97581-233-0	01	1	0806-1111	●
312	NUT; PIPE FIX M8 FLANGE	8-97581-233-0	01	1	1112-	●	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=21	8-94242-034-0	02	1	9704-9901	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	9902-0209	●
325	CLIP; RUBBER HOSE,OIL RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=20.8	8-94125-862-1	02	1	0210-1111	●
325	CLIP; RUBBER HOSE,OIL RETURN GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=20.8	8-94125-862-1	02	1	1112-	●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	1112-		●
330	HOSE; VAC PUMP,RETURN (B)	8-98204-694-0	01	1	1112-		●
330	HOSE; VAC PUMP,RETURN (A)	8-94310-391-0	01	1	9704-9805	●
330	HOSE; VAC PUMP,RETURN (A)	8-97207-067-0	01	1	9806-1005	●
330	HOSE; VAC PUMP,RETURN GENERATOR DENSO(7KH) EXC. ISUZU BRAND<7WL> (A)	8-97207-067-0	01	1	1006-	●
330	HOSE; VAC PUMP,RETURN ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH) (A)	8-97073-920-2	01	1	1006-	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9704-1111	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	1112-	●	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94310-221-1	01	1	9704-1005	●
332	PIPE; OIL,C/BL TO VAC PUMP GENERATOR DENSO(7KH) EXC. ISUZU BRAND<7WL>	8-94310-221-1	01	1	1006-	●
332	PIPE; OIL,C/BL TO VAC PUMP ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH)	8-94443-644-1	01	1	1006-1111	●
332	PIPE; OIL,C/BL TO VAC PUMP ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH)	8-94443-644-1	01	1	1112-	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94443-644-1	01	1	1112-		●
335	STOPPER; OIL PIPE	8-94310-702-0	01	1	9704-9804	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	9805-1111	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	1112-	●	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	9704-1111	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9704-1111	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1112-	●	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9704-1111	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-	●	●
414	BOLT; OIL PIPE M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9704-0209	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0210-0310	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X16 FLANGE	0-28080-616-0	02	1	0311-0512	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X16 FLANGE	0-28050-616-0	02	1	0601-1111	●
414	BOLT; OIL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M6X16 FLANGE	0-28050-616-0	02	1	1112-	●
414	BOLT; OIL PIPE M6X16 FLANGE	0-28050-616-0	02	1	1112-		●
473	INSULATOR; HOSE	8-97101-331-0	02	1	9704-0209	●
473	INSULATOR; HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-331-0	02	1	0210-1111	●
473	INSULATOR; HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-331-0	02	1	1112-	●
473	INSULATOR; HOSE	8-97101-331-0	02	1	1112-		●
474	CLIP; INSULATOR	8-97101-337-0	04	1	9704-0209	●
474	CLIP; INSULATOR GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-337-0	04	1	0210-1111	●
474	CLIP; INSULATOR GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97101-337-0	04	1	1112-	●
474	CLIP; INSULATOR	8-97101-337-0	04	1	1112-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
