◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#72514) — 31 parça

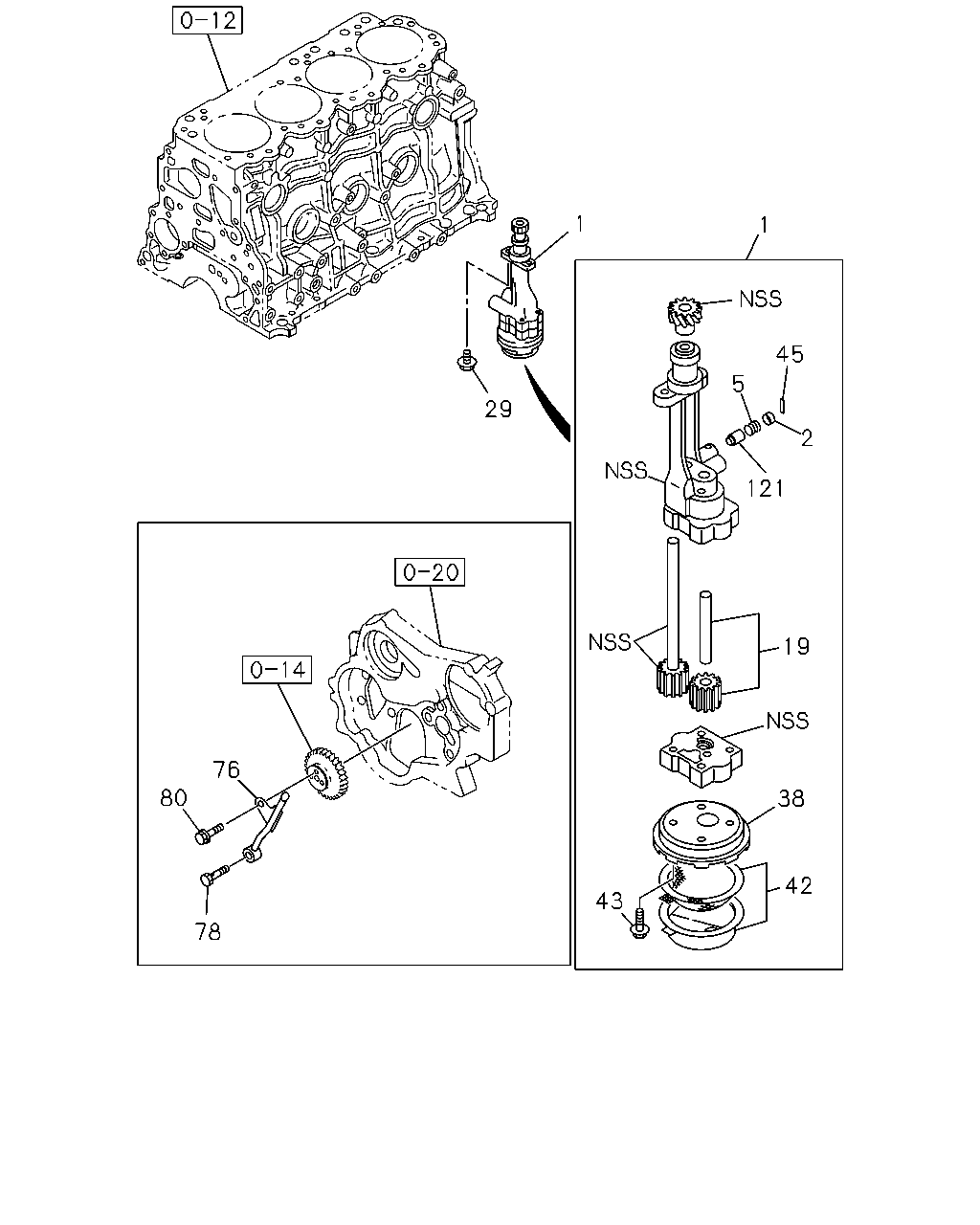

çizim 190587
1 1 45 5 29 2 121 19 76 80 38 42 43 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-97033-175-4 01 1 9704-0407 ●
1 PUMP ASM; OIL 8-97385-984-0 01 1 0408-1111 ●
1 PUMP ASM; OIL 8-97385-984-0 01 1 1112- ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9704-1111 ●
2 SEAT; SPR 5-13165-004-0 01 1 1112- ● ●
5 SPRING; COIL 8-97036-834-0 01 1 9704-1111 ●
5 SPRING; COIL 8-97036-834-0 01 1 1112- ● ●
19 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9704-1111 ●
19 GEAR SET; OIL PUMP 8-94384-778-1 01 1 1112- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 02 1 9704-0512 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 02 1 0601-1111 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 02 1 1112- ● ●
38 CASE; OIL STRAINER 8-97036-832-0 01 1 9704-1111 ●
38 CASE; OIL STRAINER 8-97036-832-0 01 1 1112- ● ●
42 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 9704-1111 ●
42 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 1112- ● ●
43 BOLT; CASE
M8X30 FLANGE 		0-28080-830-0 04 1 9704-1111 ●
43 BOLT; CASE
M8X30 FLANGE 		0-28080-830-0 04 1 1112- ● ●
45 PIN; SPLIT,RELIEF VLV
L=30 		9-08104-030-0 01 1 9704-1111 ●
45 PIN; SPLIT,RELIEF VLV
L=30 		9-08104-030-0 01 1 1112- ● ●
76 PIPE ASM; OIL 8-97160-706-0 01 1 9704-0212 ●
76 PIPE ASM; OIL 8-97913-292-0 01 1 0301-0301 ●
76 PIPE ASM; OIL 8-97160-706-0 01 1 0301-1111 ●
76 PIPE ASM; OIL 8-97160-706-0 01 1 1112- ● ●
78 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 9704-1111 ●
78 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 1112- ● ●
80 BOLT; OIL PIPE FIX
M8X22 W/LK WASHER 		0-50040-822-0 01 1 9704-0909 ●
80 BOLT; OIL PIPE FIX
M8X22 W/LK WASHER 		0-50540-822-0 01 1 0910-1111 ●
80 BOLT; OIL PIPE FIX
M8X22 W/LK WASHER 		0-50540-822-0 01 1 1112- ● ●
121 VALVE; RELIEF,OIL PUMP 8-94235-567-1 01 1 9704-1111 ●
121 VALVE; RELIEF,OIL PUMP 8-94235-567-1 01 1 1112- ● ●
