◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50784 - NKR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

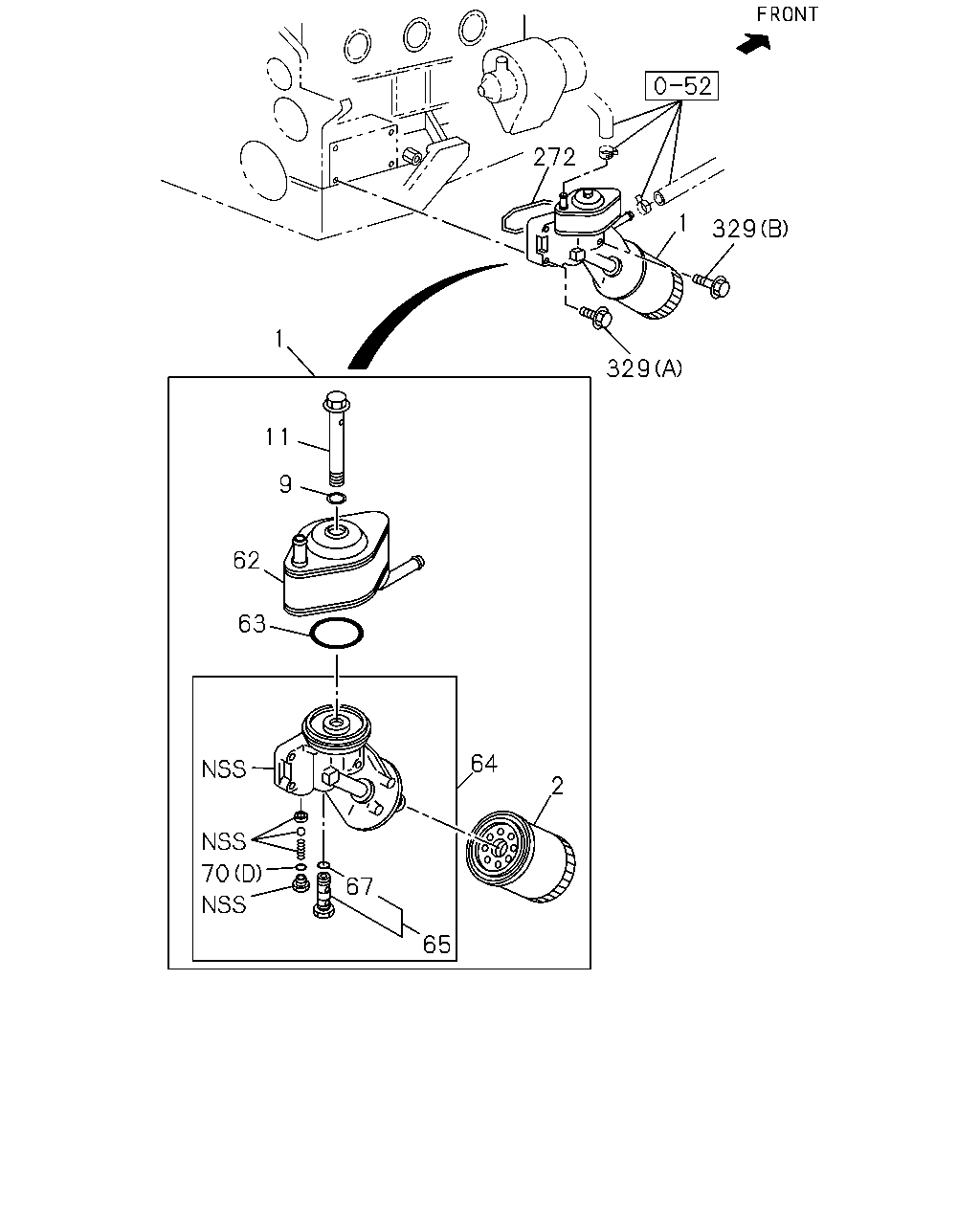

0-50 — OIL COOLER AND OIL FILTER (#72513) — 141 parça

272 1 329 1 329 11 9 62 63 64 2 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL	8-97176-074-3	01	1	9704-0209	●
1	FILTER & COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-074-3	01	1	0210-0307	●
1	FILTER & COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97224-298-2	01	1	0308-1111	●
1	FILTER & COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97224-298-2	01	1	1112-	●
1	FILTER & COOLER ASM; OIL	8-97224-298-2	01	1	1112-		●
1	FILTER & COOLER ASM; OIL PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-2	01	1	0210-0212	●
1	FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	0210-0212	●
1	FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-94327-272-1	01	1	0301-	●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9704-0204	●
2	ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-0209	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97329-911-0	01	1	0210-1111	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97329-911-0	01	1	1112-	●
2	ELEMENT; OIL FILTER	8-97329-911-0	01	1	1112-		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-97331-292-0	01	1	0210-0212	●
2	ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	0210-0212	●
2	ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-97049-708-0	01	1	0301-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0205-0209	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	0210-1111	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	1112-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	1112-		●
9	GASKET; CENTER BOLT	8-97047-000-0	01	1	9704-0209	●
9	GASKET; CENTER BOLT GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97047-000-0	01	1	0210-1111	●
9	GASKET; CENTER BOLT GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97047-000-0	01	1	1112-	●
9	GASKET; CENTER BOLT	8-97047-000-0	01	1	1112-		●
11	BOLT; CENTER	8-97144-713-0	01	1	9704-0209	●
11	BOLT; CENTER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97144-713-0	01	1	0210-1111	●
11	BOLT; CENTER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97144-713-0	01	1	1112-	●
11	BOLT; CENTER	8-97144-713-0	01	1	1112-		●
62	COOLER ASM; OIL	8-97166-499-1	01	1	9704-0209	●
62	COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-499-1	01	1	0210-0307	●
62	COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97226-391-0	01	1	0308-1111	●
62	COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97226-391-0	01	1	1112-	●
62	COOLER ASM; OIL	8-97226-391-0	01	1	1112-		●
62	COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	0210-	●
63	GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9704-1111	●
63	GASKET; COOLER TO BRKT	8-94383-720-0	01	1	1112-	●	●
64	BODY; OIL FILTER & OIL COOLER	8-97166-497-1	01	1	9704-0209	●
64	BODY; OIL FILTER & OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-497-2	01	1	0210-1111	●
64	BODY; OIL FILTER & OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-497-2	01	1	1112-	●
64	BODY; OIL FILTER & OIL COOLER	8-97166-497-2	01	1	1112-		●
64	BODY; OIL FILTER & OIL COOLER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-2	01	1	0210-0212	●
64	BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	0210-0212	●
64	BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER<K51>	8-97081-756-0	01	1	0301-	●
65	VALVE; OIL COOLER	8-94450-772-0	01	1	9704-0209	●
65	VALVE; OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94450-772-0	01	1	0210-1111	●
65	VALVE; OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94450-772-0	01	1	1112-	●
65	VALVE; OIL COOLER	8-94450-772-0	01	1	1112-		●
65	VALVE; OIL COOLER EXC. TURBOCHARGER<K51>	8-94167-882-0	01	1	0210-	●
67	GASKET; VLV	9-09920-975-0	01	1	9704-0209	●
67	GASKET; VLV GENERATOR DENSO(7KH) TURBOCHARGER<K51>	9-09920-975-0	01	1	0210-1111	●
67	GASKET; VLV GENERATOR DENSO(7KH) TURBOCHARGER<K51>	9-09920-975-0	01	1	1112-	●
67	GASKET; VLV	9-09920-975-0	01	1	1112-		●
70	GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	9704-0209	●
70	GASKET; PLUG,OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (D)	9-09921-193-0	01	1	0210-1111	●
70	GASKET; PLUG,OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (D)	9-09921-193-0	01	1	1112-	●
70	GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	1112-		●
70	GASKET; PLUG,OIL FILTER EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	0210-	●
70	GASKET; PLUG,OIL FILTER EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	0210-	●
70	GASKET; PLUG,OIL FILTER EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	0210-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-1	01	1	9704-0706	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	0707-1111	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	1112-	●	●
329	BOLT; OIL FILTER (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9704-9906	●
329	BOLT; OIL FILTER (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0209	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X32 FLANGE	0-28080-832-0	02	1	0210-1111	●
329	BOLT; OIL FILTER TURBOCHARGER<K51> (A) M8X32 FLANGE	0-28080-832-0	02	1	1112-	●
329	BOLT; OIL FILTER (A) M8X32 FLANGE	0-28080-832-0	02	1	1112-		●
329	BOLT; OIL FILTER (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9704-9903	●
329	BOLT; OIL FILTER (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-0209	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X60 FLANGE	0-28080-860-0	02	1	0210-0512	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-1111	●
329	BOLT; OIL FILTER TURBOCHARGER<K51> (B) M8X60 FLANGE	0-28050-860-0	02	1	1112-	●
329	BOLT; OIL FILTER (B) M8X60 FLANGE	0-28050-860-0	02	1	1112-		●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> (C) M8X25 FLANGE	0-28080-825-0	04	1	0210-0512	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> (C) M8X25 FLANGE	0-28050-825-0	04	1	0601-1005	●
329	BOLT; OIL FILTER EXC. TURBOCHARGER<K51> (C) M8X25 FLANGE	0-28050-825-0	04	1	1006-	●

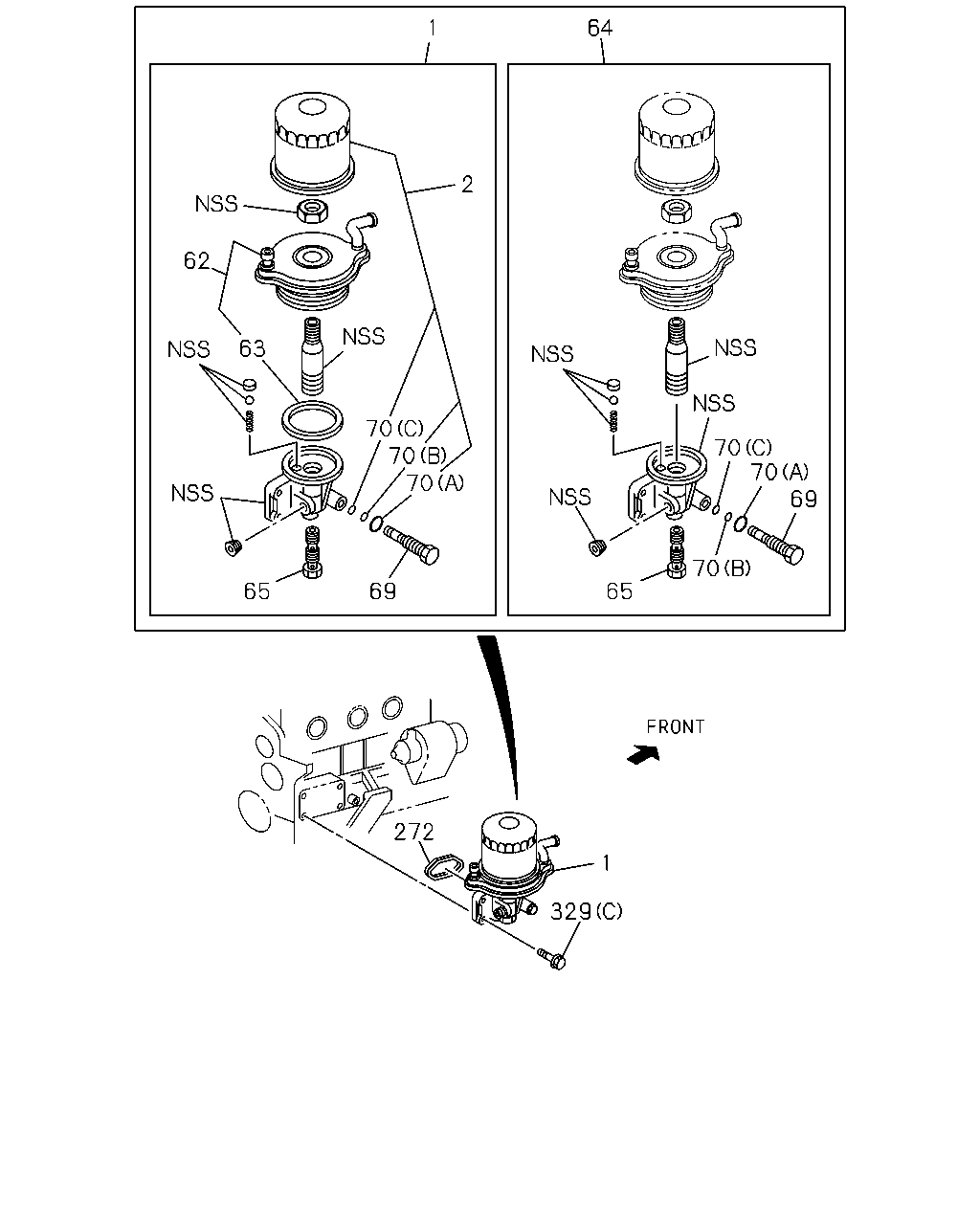

64 1 2 62 63 70 70 70 70 70 69 70 65 69 65 272 1 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL	8-97176-074-3	01	1	9704-0209	●
1	FILTER & COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-074-3	01	1	0210-0307	●
1	FILTER & COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97224-298-2	01	1	0308-1111	●
1	FILTER & COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97224-298-2	01	1	1112-	●
1	FILTER & COOLER ASM; OIL	8-97224-298-2	01	1	1112-		●
1	FILTER & COOLER ASM; OIL PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94144-296-2	01	1	0210-0212	●
1	FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-94327-272-1	01	1	0210-0212	●
1	FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-94327-272-1	01	1	0301-	●
2	ELEMENT; OIL FILTER	8-94340-697-1	01	1	9704-0204	●
2	ELEMENT; OIL FILTER	8-97329-911-0	01	1	0205-0209	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97329-911-0	01	1	0210-1111	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97329-911-0	01	1	1112-	●
2	ELEMENT; OIL FILTER	8-97329-911-0	01	1	1112-		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-97331-292-0	01	1	0210-0212	●
2	ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97049-708-0	01	1	0210-0212	●
2	ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-97049-708-0	01	1	0301-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	0205-0209	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	0210-1111	●
2	ELEMENT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> BEST VALUE PARTS	5-87610-021-0	01	1	1112-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-021-0	01	1	1112-		●
62	COOLER ASM; OIL	8-97166-499-1	01	1	9704-0209	●
62	COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-499-1	01	1	0210-0307	●
62	COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97226-391-0	01	1	0308-1111	●
62	COOLER ASM; OIL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97226-391-0	01	1	1112-	●
62	COOLER ASM; OIL	8-97226-391-0	01	1	1112-		●
62	COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-94401-680-0	01	1	0210-	●
63	GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9704-1111	●
63	GASKET; COOLER TO BRKT	8-94383-720-0	01	1	1112-	●	●
64	BODY; OIL FILTER & OIL COOLER	8-97166-497-1	01	1	9704-0209	●
64	BODY; OIL FILTER & OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-497-2	01	1	0210-1111	●
64	BODY; OIL FILTER & OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97166-497-2	01	1	1112-	●
64	BODY; OIL FILTER & OIL COOLER	8-97166-497-2	01	1	1112-		●
64	BODY; OIL FILTER & OIL COOLER PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51>	8-94423-698-2	01	1	0210-0212	●
64	BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A>	8-97081-756-0	01	1	0210-0212	●
64	BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER<K51>	8-97081-756-0	01	1	0301-	●
65	VALVE; OIL COOLER	8-94450-772-0	01	1	9704-0209	●
65	VALVE; OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94450-772-0	01	1	0210-1111	●
65	VALVE; OIL COOLER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94450-772-0	01	1	1112-	●
65	VALVE; OIL COOLER	8-94450-772-0	01	1	1112-		●
65	VALVE; OIL COOLER EXC. TURBOCHARGER<K51>	8-94167-882-0	01	1	0210-	●
69	PLUG; BODY,OIL FILTER EXC. TURBOCHARGER<K51>	8-94167-883-0	01	1	0210-	●
70	GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	9704-0209	●
70	GASKET; PLUG,OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (D)	9-09921-193-0	01	1	0210-1111	●
70	GASKET; PLUG,OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (D)	9-09921-193-0	01	1	1112-	●
70	GASKET; PLUG,OIL FILTER (D)	9-09921-193-0	01	1	1112-		●
70	GASKET; PLUG,OIL FILTER EXC. TURBOCHARGER<K51> (A) ID=13.6	8-94167-884-0	01	1	0210-	●
70	GASKET; PLUG,OIL FILTER EXC. TURBOCHARGER<K51> (B) ID=8.8	8-94167-885-0	01	1	0210-	●
70	GASKET; PLUG,OIL FILTER EXC. TURBOCHARGER<K51> (C) ID=6.8	8-94167-886-0	01	1	0210-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-1	01	1	9704-0706	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	0707-1111	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	1112-	●	●
329	BOLT; OIL FILTER (A) M8X35 W/LK WASHER	0-50040-835-0	02	1	9704-9906	●
329	BOLT; OIL FILTER (A) M8X32 FLANGE	0-28080-832-0	02	1	9907-0209	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X32 FLANGE	0-28080-832-0	02	1	0210-1111	●
329	BOLT; OIL FILTER TURBOCHARGER<K51> (A) M8X32 FLANGE	0-28080-832-0	02	1	1112-	●
329	BOLT; OIL FILTER (A) M8X32 FLANGE	0-28080-832-0	02	1	1112-		●
329	BOLT; OIL FILTER (B) M8X65 W/LK WASHER	8-94205-986-1	02	1	9704-9903	●
329	BOLT; OIL FILTER (B) M8X60 FLANGE	0-28080-860-0	02	1	9904-0209	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X60 FLANGE	0-28080-860-0	02	1	0210-0512	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-1111	●
329	BOLT; OIL FILTER TURBOCHARGER<K51> (B) M8X60 FLANGE	0-28050-860-0	02	1	1112-	●
329	BOLT; OIL FILTER (B) M8X60 FLANGE	0-28050-860-0	02	1	1112-		●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> (C) M8X25 FLANGE	0-28080-825-0	04	1	0210-0512	●
329	BOLT; OIL FILTER GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> (C) M8X25 FLANGE	0-28050-825-0	04	1	0601-1005	●
329	BOLT; OIL FILTER EXC. TURBOCHARGER<K51> (C) M8X25 FLANGE	0-28050-825-0	04	1	1006-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
