3-45 — LOAD SENSING PROPORTIONING VALVE (#7251) — 63 parça

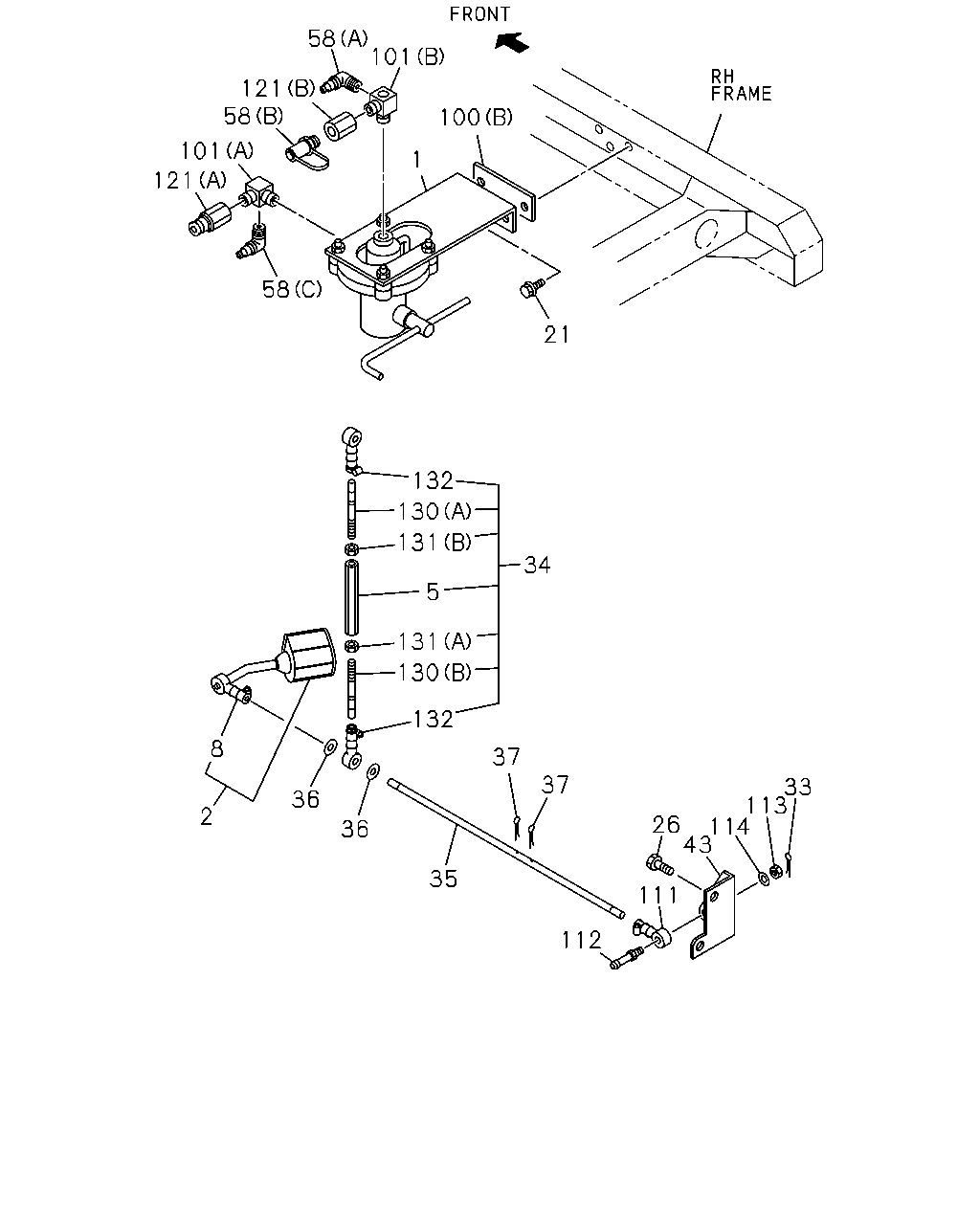

58 101 121 58 100 101 1 121 58 21 132 130 131 34 5 131 130 132 8 37 37 33 113 26 114 43 36 2 36 35 111 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING WHEEL BASE 4700MM(47W)	1-47720-061-0	01	1	9906-
2	DAMPER BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	0001-
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	0001-
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	0001-
21	BOLT; BRKT WHEEL BASE 4700MM(47W) M8X35 FLANGE	0-28680-835-0	04	1	9906-
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	0001-
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	0001-
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	0001-
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV>	1-09740-086-0	01	1	0001-
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	0001-
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	0001-
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	0001-
58	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
58	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
58	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (B)	1-47459-013-0	01	1	9906-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (B)	1-42129-245-0	01	1	9906-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-147-0	01	1	9906-
101	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (A)	1-09656-557-1	01	1	9906-
101	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9906-
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	0001-
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	0001-
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	0001-
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	0001-
121	ADAPTER WHEEL BASE 4700MM(47W) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9906-
121	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-0007
121	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	0001-
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	0001-
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	0001-
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	0001-
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	0001-

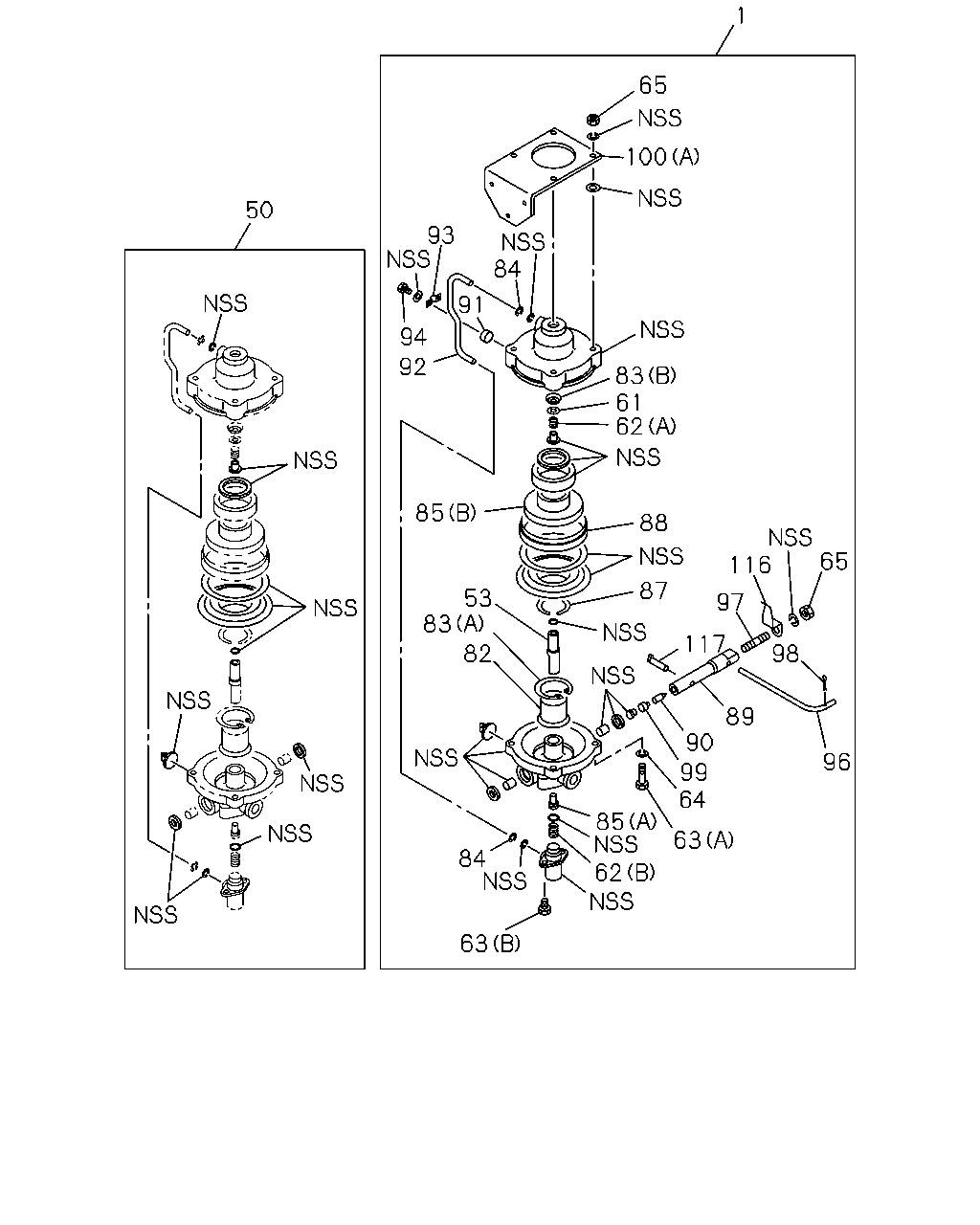

1 65 100 50 93 84 91 94 92 83 61 62 85 88 116 65 87 53 83 97 117 98 82 89 90 96 99 64 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING WHEEL BASE 4700MM(47W)	1-47720-061-0	01	1	9906-
50	REPAIR KIT; LSPV WHEEL BASE 4700MM(47W)	1-47769-088-0	01	1	9906-
53	PLUNGER; LSPV WHEEL BASE 4700MM(47W)	1-47769-033-0	01	1	9906-
61	RETAINER; SPRING WHEEL BASE 4700MM(47W)	1-47769-026-0	01	1	9906-
62	SPRING; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-025-0	01	1	9906-
62	SPRING; LSPV WHEEL BASE 4700MM(47W) (B)	1-47769-042-0	01	1	9906-
63	BOLT; LSPV WHEEL BASE 4700MM(47W) (B)	1-47769-045-0	02	1	9906-
63	BOLT; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-094-0	04	1	9906-
64	WASHER; LSPV WHEEL BASE 4700MM(47W)	1-47769-079-0	04	1	9906-
65	NUT; LSPV WHEEL BASE 4700MM(47W)	1-48199-320-0	05	1	9906-
82	GUIDE; PISTON,LSPV WHEEL BASE 4700MM(47W)	1-47769-016-0	01	1	9906-
83	RING; SNAP,RET WHEEL BASE 4700MM(47W) (A)	1-47769-017-0	01	1	9906-
83	RING; SNAP,RET WHEEL BASE 4700MM(47W) (B)	1-47769-027-0	01	1	9906-
84	RETAINER; GASKET WHEEL BASE 4700MM(47W)	1-47769-021-0	02	1	9906-
85	PISTON; LSPV WHEEL BASE 4700MM(47W) (B)	1-47769-023-0	01	1	9906-
85	PISTON; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-043-0	01	1	9906-
87	RETAINER; DIAPH WHEEL BASE 4700MM(47W)	1-47769-086-0	01	1	9906-
88	GUIDE; DIAPH WHEEL BASE 4700MM(47W)	1-47769-032-0	01	1	9906-
89	ROD; CONN,LSPV WHEEL BASE 4700MM(47W)	1-47769-083-0	01	1	9906-
90	SCREW; CAM WHEEL BASE 4700MM(47W)	1-47769-039-0	01	1	9906-
91	FILTER; LSPV WHEEL BASE 4700MM(47W)	1-47769-047-0	01	1	9906-
92	PIPE; LSPV WHEEL BASE 4700MM(47W)	1-47769-048-0	01	1	9906-
93	CLIP; PIPE WHEEL BASE 4700MM(47W)	1-47769-050-0	01	1	9906-
94	SCREW; CLIP WHEEL BASE 4700MM(47W)	1-47769-144-0	02	1	9906-
96	ARM; OPERATING WHEEL BASE 4700MM(47W)	1-47769-143-0	01	1	9906-
97	BOLT; OPERATING ARM WHEEL BASE 4700MM(47W)	1-47769-081-0	01	1	9906-
98	PIN; SPLIT WHEEL BASE 4700MM(47W) OD=1.8 L=15	9-08112-015-0	01	1	9906-
99	CAP; SCREW WHEEL BASE 4700MM(47W)	1-47769-055-0	01	1	9906-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (B)	1-42129-245-0	01	1	9906-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-147-0	01	1	9906-
116	INDICATOR; LSPV WHEEL BASE 4700MM(47W)	1-47769-078-0	01	1	9906-
117	CAM; LSPV WHEEL BASE 4700MM(47W)	1-47769-038-0	01	1	9906-
