0-36 — TURBOCHARGER SYSTEM (#72509) — 89 parça

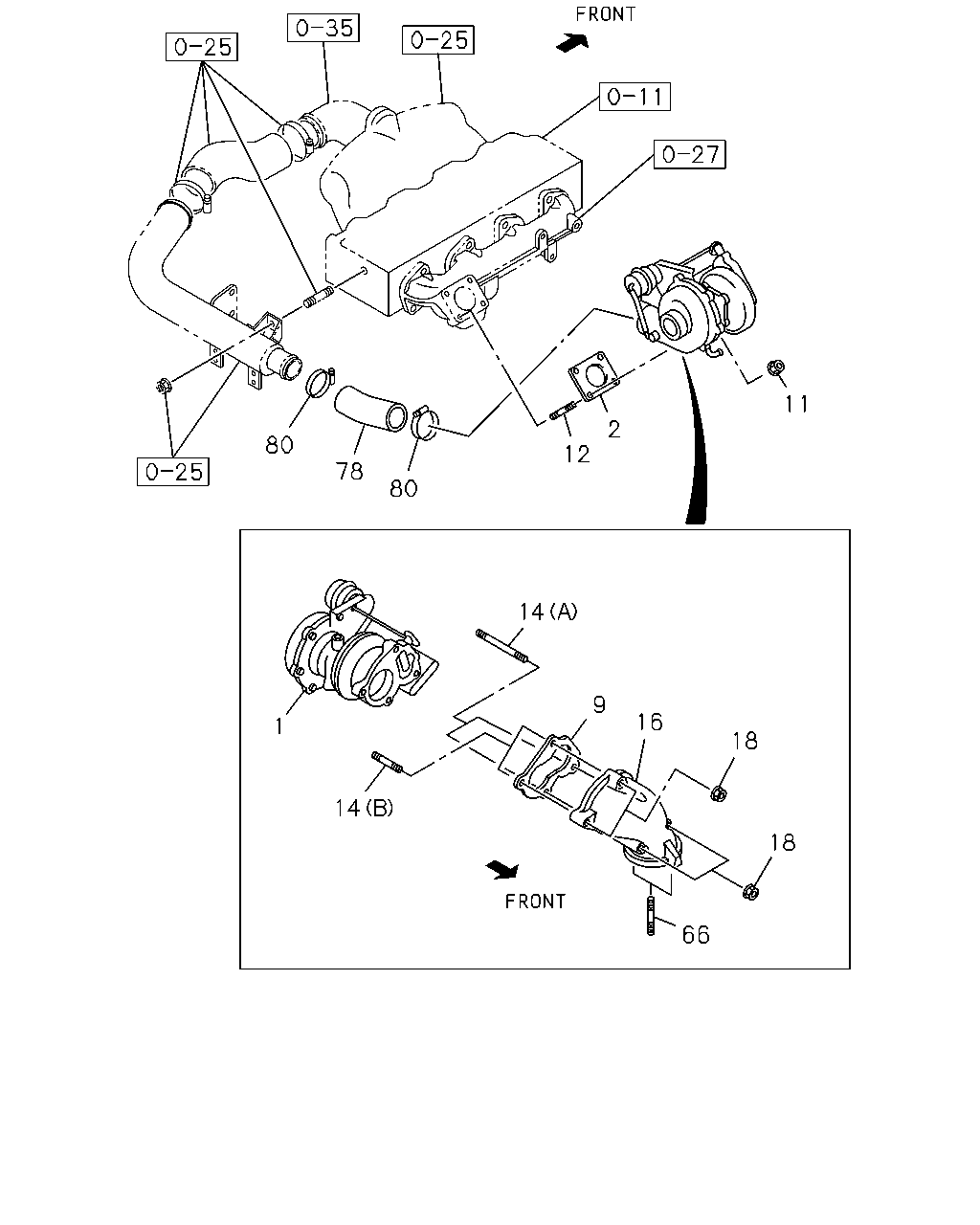

11 2 80 12 78 80 14 9 16 1 18 14 1 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97176-080-1	01	1	9704-0209	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-080-1	01	1	0210-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-4	01	1	1112-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	9704-0209	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94433-605-0	01	1	0210-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	1112-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	9704-0209	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94433-604-0	01	1	0210-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	1112-		●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	9704-0209	●
11	NUT; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0210-1111	●
11	NUT; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	1112-	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	1112-		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9704-0209	●
12	STUD; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	0210-0408	●
12	STUD; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	0409-1111	●
12	STUD; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	1112-	●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1112-		●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	04	1	0308-0406	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X43 L=54	8-97104-507-1	02	1	0407-0607	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X43 L=54	8-97378-067-0	02	1	0608-1111	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	1112-		●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X43 L=54	8-97378-067-0	02	1	1112-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	1112-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X105 L=116	8-94362-047-0	02	1	9704-0209	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	0210-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	9704-9711	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9712-0209	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0210-0307	●
16	ADAPTER; EXH PIPE	8-97192-332-0	01	1	1112-		●
16	ADAPTER; EXH PIPE	8-97176-079-0	01	1	9704-0209	●
16	ADAPTER; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-079-0	01	1	0210-	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9704-0209	●
18	NUT; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0210-1111	●
18	NUT; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	1112-	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1112-		●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	9704-0209	●
66	STUD; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X45 L=60 PLATING	5-09302-008-1	02	1	0210-1111	●
66	STUD; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X45 L=60 PLATING	5-09302-008-1	02	1	1112-	●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	1112-		●
78	HOSE; INL PIPE,TURBOCHARGER	8-97176-146-0	01	1	9704-0209	●
78	HOSE; INL PIPE,TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-146-0	01	1	0210-	●
80	CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	9704-0209	●
80	CLIP; CONN HOSE,TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=45.5-56.5	8-97131-943-0	02	1	0210-	●

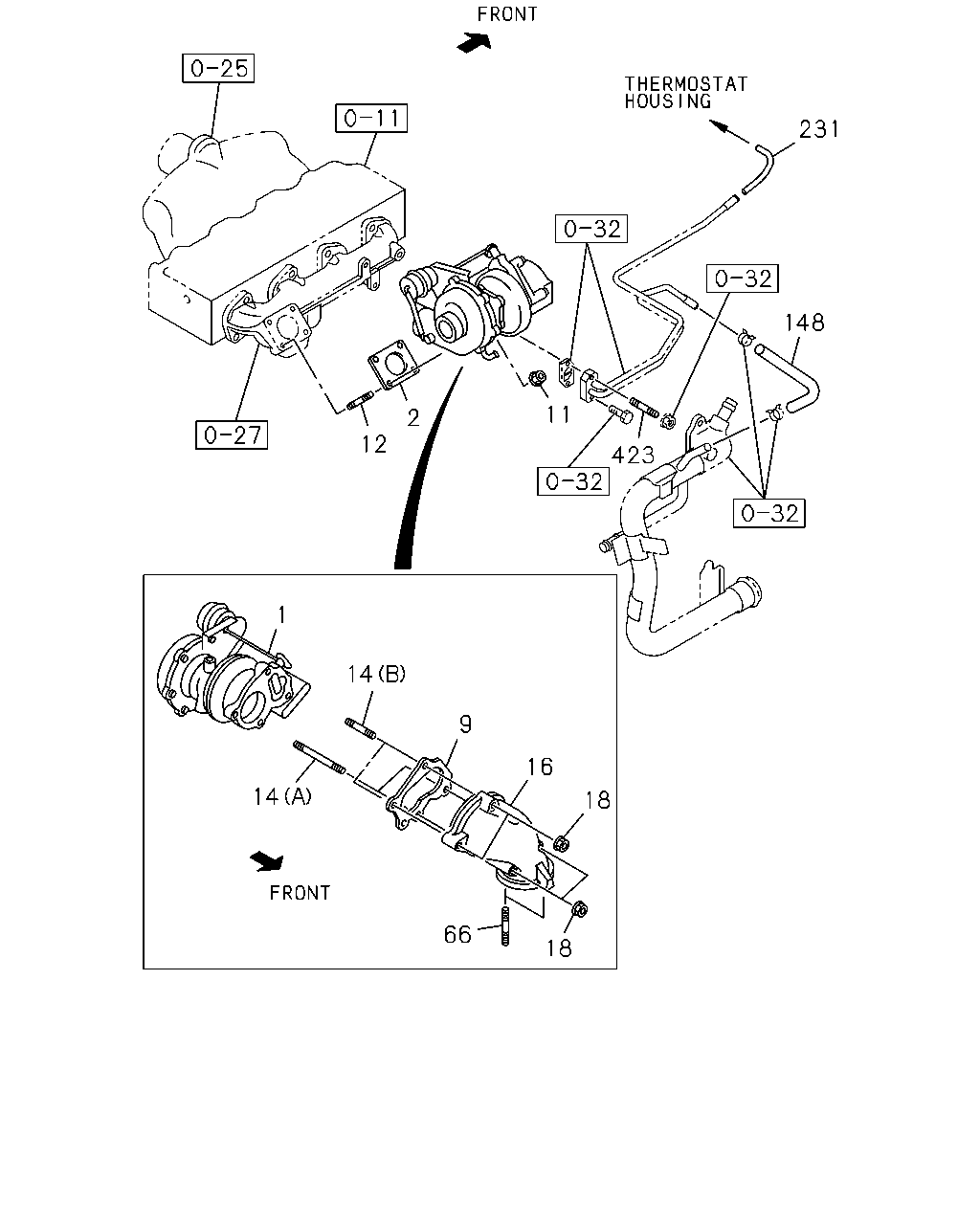

231 148 11 2 12 423 1 14 9 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97176-080-1	01	1	9704-0209	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-080-1	01	1	0210-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-4	01	1	1112-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	9704-0209	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94433-605-0	01	1	0210-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	1112-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-604-0	01	1	9704-0209	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94433-604-0	01	1	0210-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97139-726-0	01	1	1112-		●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	9704-0209	●
11	NUT; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0210-1111	●
11	NUT; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	1112-	●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	1112-		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	9704-0209	●
12	STUD; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	0210-0408	●
12	STUD; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	0409-1111	●
12	STUD; TURBOCHARGER GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X20 L=31	8-97378-060-0	04	1	1112-	●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1112-		●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	04	1	0308-0406	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0407-0408	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X43 L=54	8-97104-507-1	02	1	0407-0607	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X43 L=54	8-97378-067-0	02	1	0608-1111	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X126 L=137	8-97378-069-0	02	1	1112-		●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X43 L=54	8-97378-067-0	02	1	1112-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97378-067-0	02	1	1112-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X105 L=116	8-94362-047-0	02	1	9704-0209	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) M8X105 L=116	8-94362-047-0	02	1	0210-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X43 L=54	8-97104-507-1	02	1	9704-9711	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X41 L=52	8-97188-452-0	02	1	9712-0209	●
14	STUD; TURBOCHARGER TO EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> (B) M8X41 L=52	8-97188-452-0	02	1	0210-0307	●
16	ADAPTER; EXH PIPE	8-97192-332-0	01	1	1112-		●
16	ADAPTER; EXH PIPE	8-97176-079-0	01	1	9704-0209	●
16	ADAPTER; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-079-0	01	1	0210-	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9704-0209	●
18	NUT; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0210-1111	●
18	NUT; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	1112-	●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1112-		●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	9704-0209	●
66	STUD; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X45 L=60 PLATING	5-09302-008-1	02	1	0210-1111	●
66	STUD; EXH PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X45 L=60 PLATING	5-09302-008-1	02	1	1112-	●
66	STUD; EXH PIPE M10X45 L=60 PLATING	5-09302-008-1	02	1	1112-		●
148	HOSE; TURBOCHARGER,INL L=180 SERVICED BY L=3000	0-03559-300-0	01	1	1112-		●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1112-		●
423	STUD; WATER PIPE M6X20 L=28	0-41010-620-0	01	1	1112-		●
