Isuzu WW
▶
TRUCKS
▶
NKR
▶
50784 - NKR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#72506) — 37 parça
Tümü
A - 4JB1 ENG
B - 4JB1-TC ENG
◀

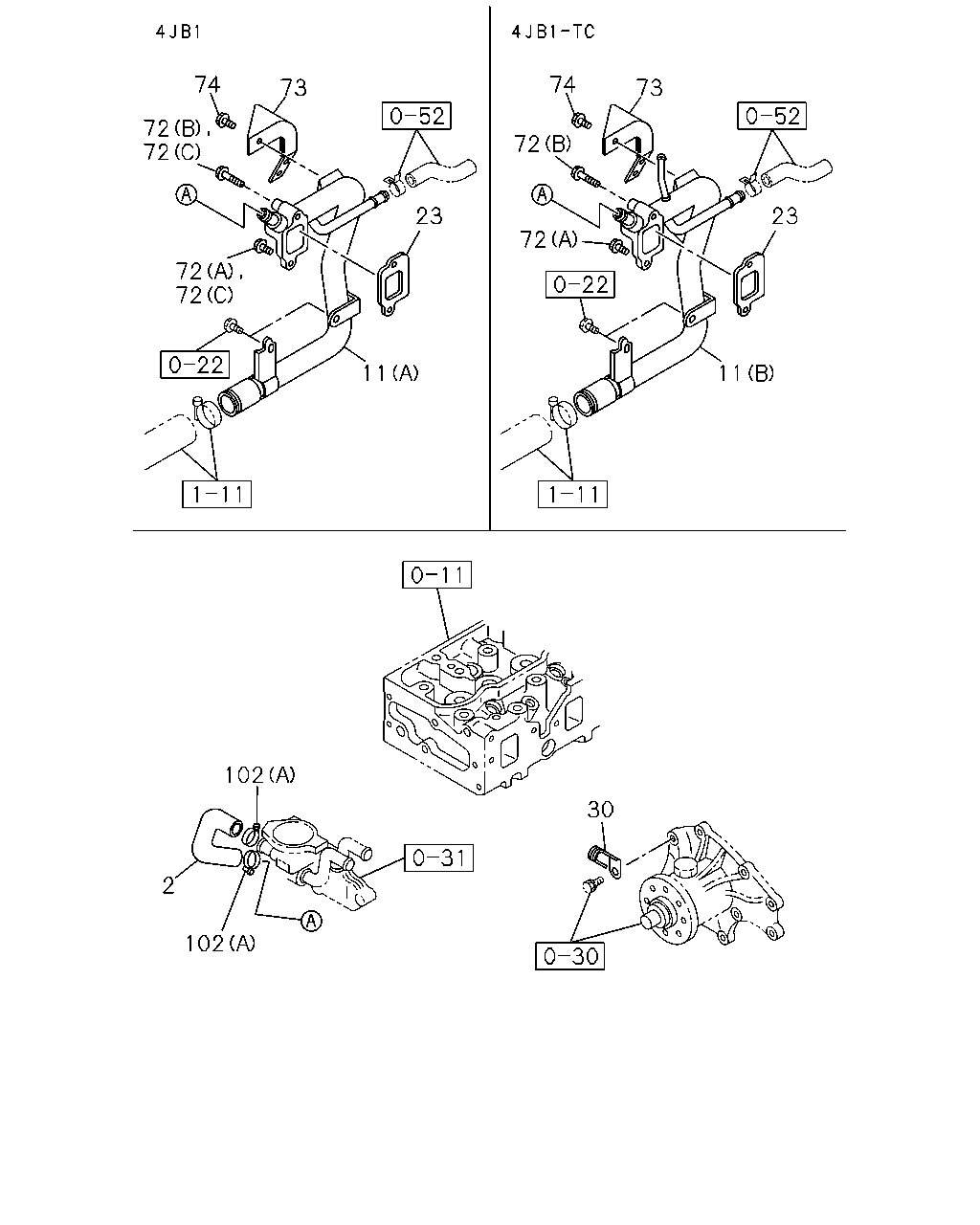

[032A] 4JB1,4JB1-TC (27 parça)
[032A] 4JB1-TC (10 parça)
▶
74
74
73
73
72
72
72
23
23
72
72
72
11
11
102
30
2
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
9704-1111
●
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
1112-
●
●
11
PIPE; INL,WATER PUMP
(A)
8-97063-639-3
01
1
9704-1011
●
11
PIPE; INL,WATER PUMP
(A)
8-97264-243-0
01
1
1012-
●
11
PIPE; INL,WATER PUMP
(B)
8-97213-400-2
01
1
1112-
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
9704-1111
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1112-
●
●
30
CLIP; HARNESS
ID=12
5-09700-331-0
01
1
9704-0302
●
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
0303-1111
●
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
1112-
●
●
72
BOLT; WATER PIPE
(A) M8X22 W/LK WASHER
0-50040-822-0
01
1
9704-0212
●
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28080-820-0
01
1
0301-0512
●
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28050-820-0
01
1
0601-1011
●
72
BOLT; WATER PIPE
(C) M8X50 W/LK WASHER
0-50540-850-0
02
1
1012-
●
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50040-845-0
01
1
9704-0909
●
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50540-845-0
01
1
0910-1011
●
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28050-820-0
01
1
1112-
●
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50540-845-0
01
1
1112-
●
73
PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
9704-1111
●
73
PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
1112-1403
●
●
73
PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
●
●
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50140-816-0
03
1
9704-0512
●
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
0601-1111
●
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
1112-
●
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
9704-1111
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
1112-
●
●
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
1112-
●
102
102
155
97
37
102
69
102
97
85
85
85
85

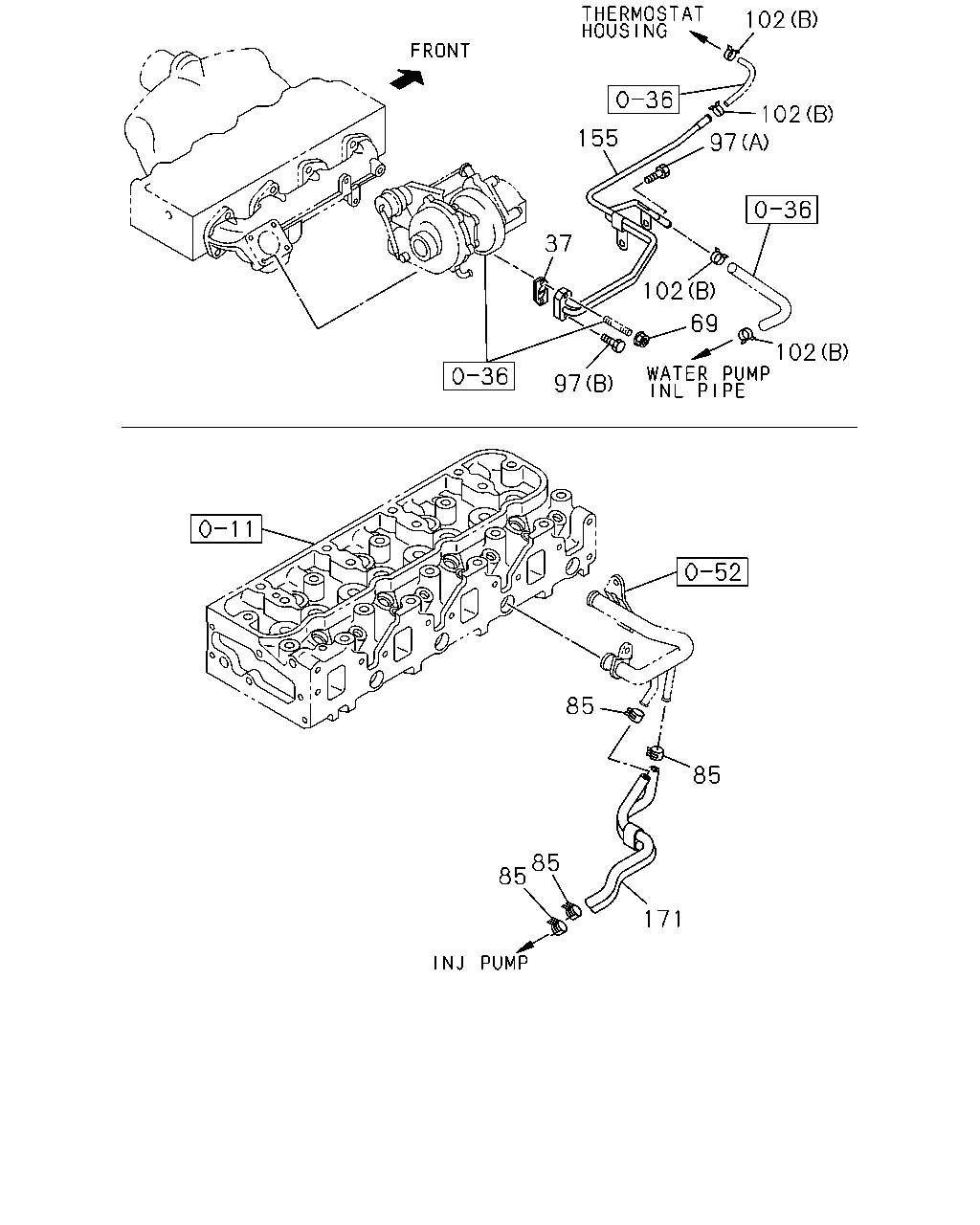

171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94321-135-1
01
1
1112-
●
69
NUT; WATER PIPE
M6 FLANGE
0-91180-106-0
01
1
1112-
●
85
CLIP; RUBBER,WAX CSD
ID=12.8
8-94367-943-0
04
1
1112-
●
97
BOLT; WATER PIPE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1112-
●
97
BOLT; WATER PIPE
(B) M6X16 FLANGE
0-28050-616-0
01
1
1112-
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
9704-1111
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
1112-
●
●
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
1112-
●
155
PIPE ASM; WATER
8-98169-766-0
01
1
1112-
●
171
HOSE; RUBBER,WAX CSD
8-97225-605-0
01
1
1112-
●
