0-25 — INLET MANIFOLD (#72501) — 109 parça

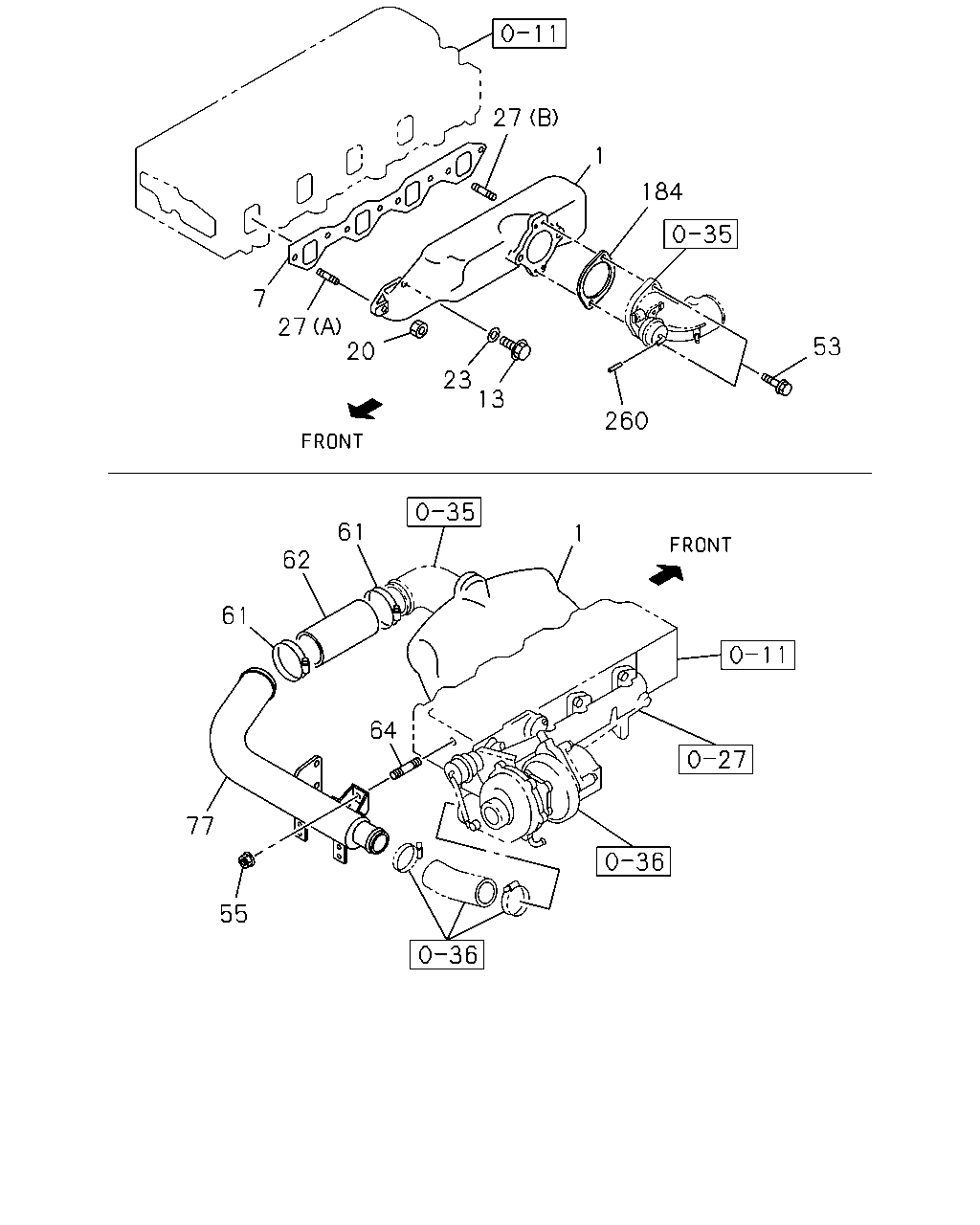

27 1 184 7 27 20 53 23 13 260 61 1 62 61 64 77 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	8-97107-744-1	01	1	9704-	●
1	MANIFOLD; INL	8-97192-327-1	01	1	1112-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9704-9905	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0102-1111	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	1112-	●	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9704-0512	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50540-825-0	06	1	0601-	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50540-825-0	05	1	1112-		●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50540-830-0	01	1	1112-		●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9704-0805	●
20	NUT; INL MANIF M8 FLANGE	8-97581-233-0	02	1	0806-1111	●
20	NUT; INL MANIF M8 FLANGE	8-97581-233-0	02	1	1112-	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	9-09164-708-0	01	1	9704-0605	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	0-91614-708-0	01	1	0606-1111	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	0-91614-708-0	01	1	1112-	●	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9704-0604	●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-1111	●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	1112-	●	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9704-1111	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	1112-	●	●
53	BOLT; INL PIPE M10X25 FLANGE	0-28781-025-0	02	1	9704-0208	●
53	BOLT; INL PIPE M10X25 FLANGE	0-28181-025-0	02	1	0209-0209	●
53	BOLT; INL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X25 FLANGE	0-28181-025-0	02	1	0210-0512	●
53	BOLT; INL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X25 FLANGE	0-28151-025-0	02	1	0601-1111	●
53	BOLT; INL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M10X25 FLANGE	0-28151-025-0	02	1	1112-	●
53	BOLT; INL PIPE M10X25 FLANGE	0-28151-025-0	02	1	1112-		●
55	NUT; INL PIPE M8 FLANGE	0-91150-108-0	01	1	9704-0209	●
55	NUT; INL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●
55	NUT; INL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8 FLANGE	0-91180-108-0	01	1	0603-	●
61	CLIP; CONNECTOR HOSE ID=58-79	8-94126-771-0	02	1	9704-0209	●
61	CLIP; CONNECTOR HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=58-79	8-94126-771-0	02	1	0210-0403	●
61	CLIP; CONNECTOR HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=58-76	1-09707-203-0	02	1	0404-0811	●
61	CLIP; CONNECTOR HOSE GENERATOR DENSO(7KH) TURBOCHARGER<K51> ID=58-79	8-94126-771-0	02	1	0812-	●
62	HOSE; CONNECTOR	8-97176-147-0	01	1	9704-0209	●
62	HOSE; CONNECTOR GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-147-0	01	1	0210-	●
64	STUD; INL PIPE M8X14 L=26	9-04110-814-0	01	1	9704-0209	●
64	STUD; INL PIPE GENERATOR DENSO(7KH) TURBOCHARGER<K51> M8X14 L=26	9-04110-814-0	01	1	0210-	●
77	PIPE; INL,INT SHUTTER TO INL MANIF	8-97176-076-0	01	1	9704-0209	●
77	PIPE; INL,INT SHUTTER TO INL MANIF GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97176-076-0	01	1	0210-	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	9704-0209	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97035-883-1	01	1	0210-1111	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GENERATOR DENSO(7KH) TURBOCHARGER<K51> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	1112-	●
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-1	01	1	1112-		●
260	CAP; RUBBER TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> ID=4	8-94217-809-0	01	1	9705-	●

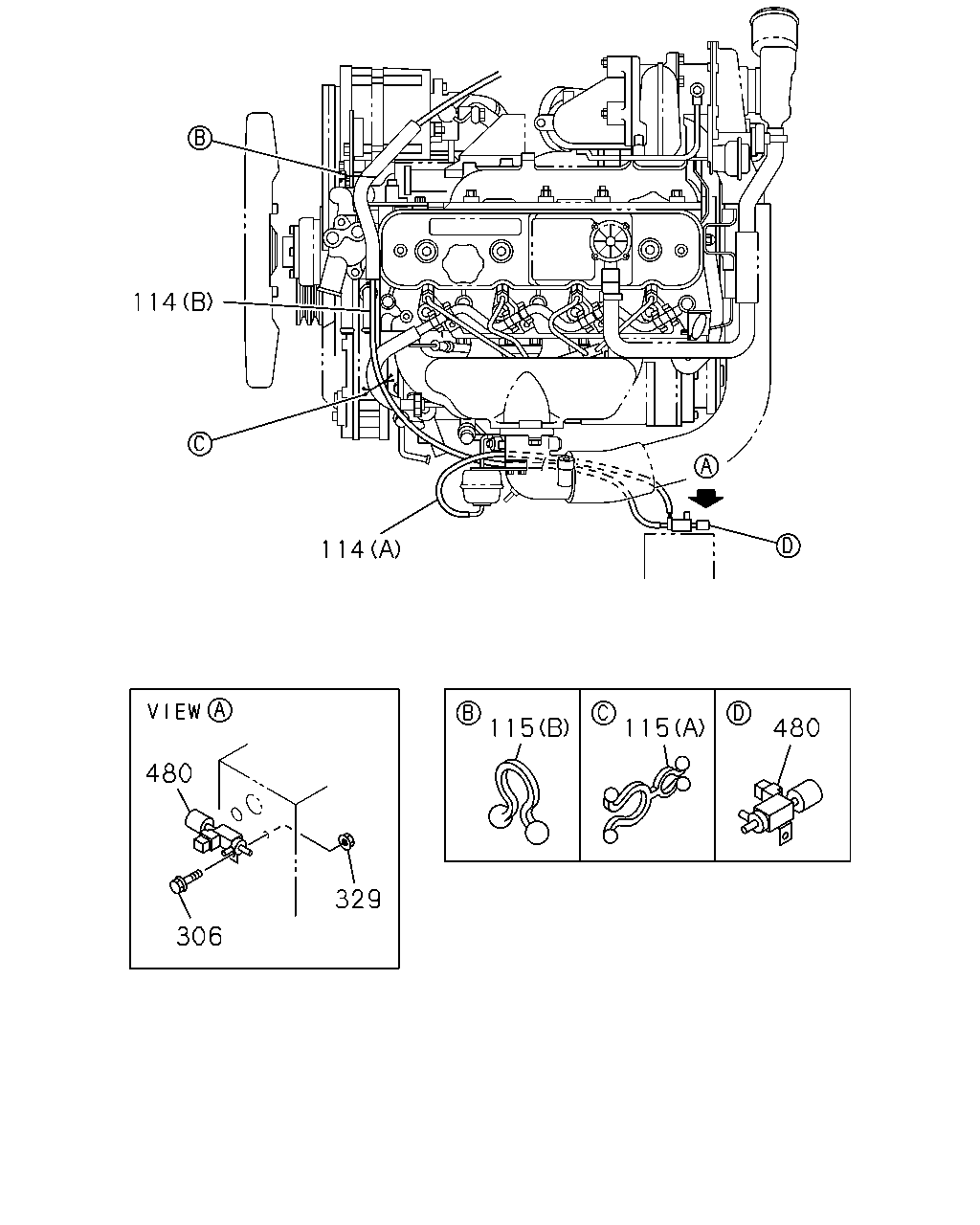

114 114 115 115 480 480 329 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
114	HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9704-9704	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9704-9708	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1140	8-97186-575-0	01	1	9709-	●
114	HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320	8-97227-211-0	01	1	0210-	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9704-0006	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430	8-97259-506-0	01	1	0007-	●
114	HOSE; VAC,INT THROTTLE (A) L=403	8-97228-401-0	01	1	1112-		●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (A) ID=8 & 23	5-09707-002-0	01	1	9704-	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (A) ID=8 & 16	5-09707-032-0	03	1	9704-9704	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (B) ID=37	8-94481-468-0	01	1	9704-1111	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (B) ID=37	8-94481-468-0	01	1	1112-	●
115	CLIP; VAC HOSE,INT THROTTLE (B) ID=37	8-94481-468-0	01	1	1112-		●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A) ID=8 & 16	5-09707-032-0	03	1	0210-	●
306	BOLT; VLV M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1112-		●
306	BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X12 FLANGE	0-28080-812-0	01	1	9704-0512	●
306	BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X12 FLANGE	0-28050-812-0	01	1	0601-1111	●
306	BOLT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8X12 FLANGE	0-28050-812-0	01	1	1112-	●
306	BOLT; VLV M8X12 FLANGE	0-28050-812-0	01	1	1112-		●
329	NUT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	01	1	9704-0602	●
329	NUT; VLV TURBOCHARGER<K51> EXHAUST BRAKE<NF8> M8 FLANGE	0-91180-108-0	01	1	0603-	●
480	VALVE ASM; VAC SW TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-94144-597-1	01	1	9704-1111	●
480	VALVE ASM; VAC SW TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-94144-597-1	01	1	1112-	●
480	VALVE ASM; VAC SW	8-94144-597-1	01	1	1112-		●

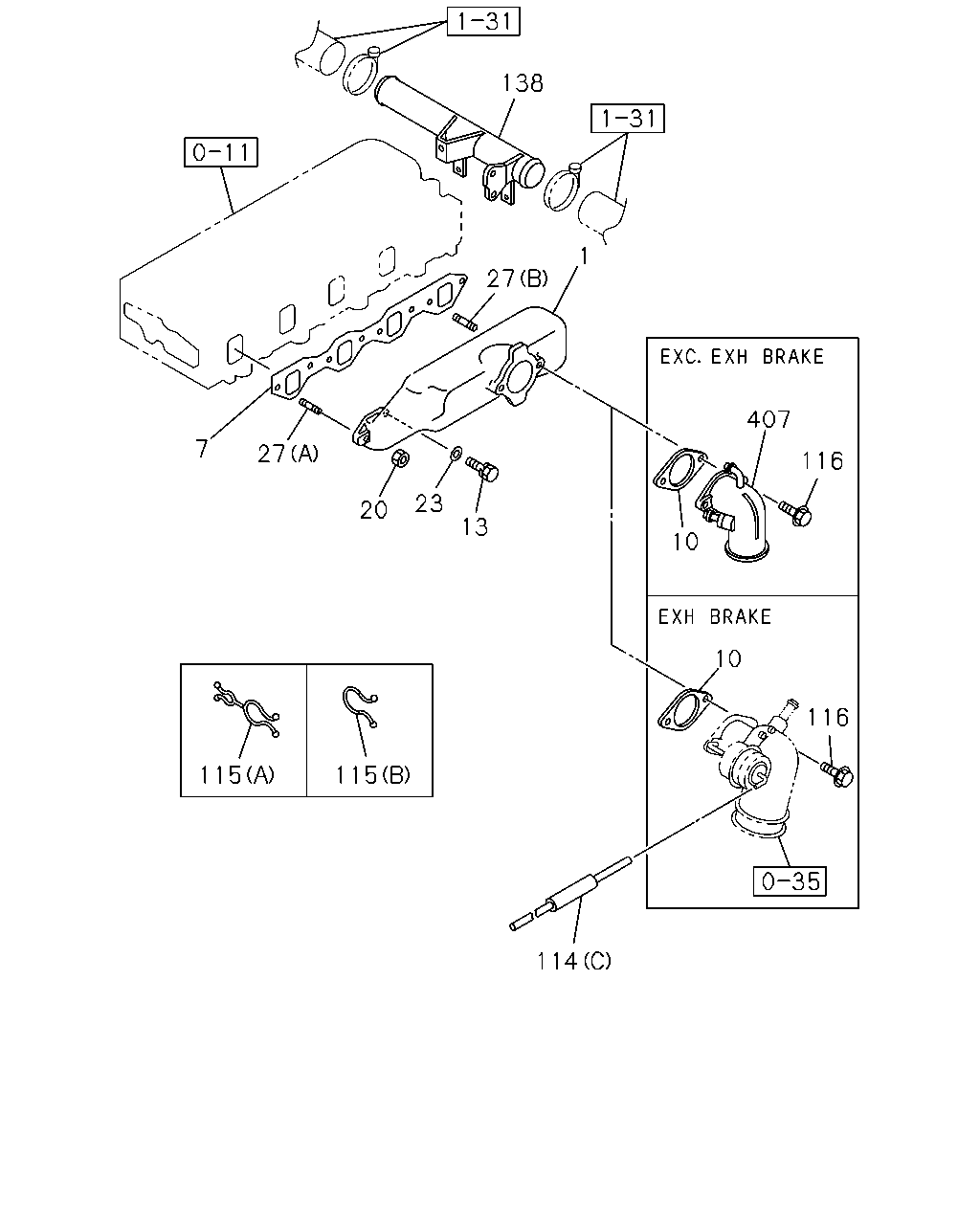

138 1 27 407 7 27 116 23 20 13 10 10 116 115 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	8-97107-744-1	01	1	9704-	●
1	MANIFOLD; INL	8-97192-327-1	01	1	1112-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9704-9905	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97228-044-0	01	1	9906-0101	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0102-1111	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	1112-	●	●
10	GASKET; INL PIPE TO MANIF EXC. TURBOCHARGER<K51>	8-97035-883-1	01	1	0210-	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9704-0512	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50540-825-0	06	1	0601-	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50540-825-0	05	1	1112-		●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50540-830-0	01	1	1112-		●
20	NUT; INL MANIF M8 FLANGE	5-09440-005-0	02	1	9704-0805	●
20	NUT; INL MANIF M8 FLANGE	8-97581-233-0	02	1	0806-1111	●
20	NUT; INL MANIF M8 FLANGE	8-97581-233-0	02	1	1112-	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	9-09164-708-0	01	1	9704-0605	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	0-91614-708-0	01	1	0606-1111	●
23	WASHER; PL,INL MANIF ID=8.4 OD=22	0-91614-708-0	01	1	1112-	●	●
27	STUD; INL MANIF (A) M8X25 L=37	9-04110-825-0	01	1	9704-0604	●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-1111	●
27	STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	1112-	●	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	9704-1111	●
27	STUD; INL MANIF (B) M8X35 L=46	9-09630-034-1	01	1	1112-	●	●
114	HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9704-9704	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1200	8-97180-275-0	01	1	9704-9708	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) L=1140	8-97186-575-0	01	1	9709-	●
114	HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (C) L=1320	8-97227-211-0	01	1	0210-	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430 SERVICED BY L=3000	0-04740-300-0	01	1	9704-0006	●
114	HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) L=430	8-97259-506-0	01	1	0007-	●
114	HOSE; VAC,INT THROTTLE (A) L=403	8-97228-401-0	01	1	1112-		●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (A) ID=8 & 23	5-09707-002-0	01	1	9704-	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (A) ID=8 & 16	5-09707-032-0	03	1	9704-9704	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (B) ID=37	8-94481-468-0	01	1	9704-1111	●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> (B) ID=37	8-94481-468-0	01	1	1112-	●
115	CLIP; VAC HOSE,INT THROTTLE (B) ID=37	8-94481-468-0	01	1	1112-		●
115	CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A) ID=8 & 16	5-09707-032-0	03	1	0210-	●
116	BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> M10X25 W/LK WASHER	0-50051-025-0	02	1	0210-0909	●
116	BOLT; MANIF TO INL PIPE EXC. TURBOCHARGER<K51> M10X25 W/LK WASHER	0-50551-025-0	02	1	0910-	●
138	PIPE; INL	8-94417-173-1	01	1	0210-0307	●
138	PIPE; INL EXC. TURBOCHARGER<K51>	8-94417-173-1	01	1	0308-	●
407	PIPE; INL,REAR EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	0210-1005	●
407	PIPE; INL,REAR EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	1006-	●
