◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#7250) — 150 parça

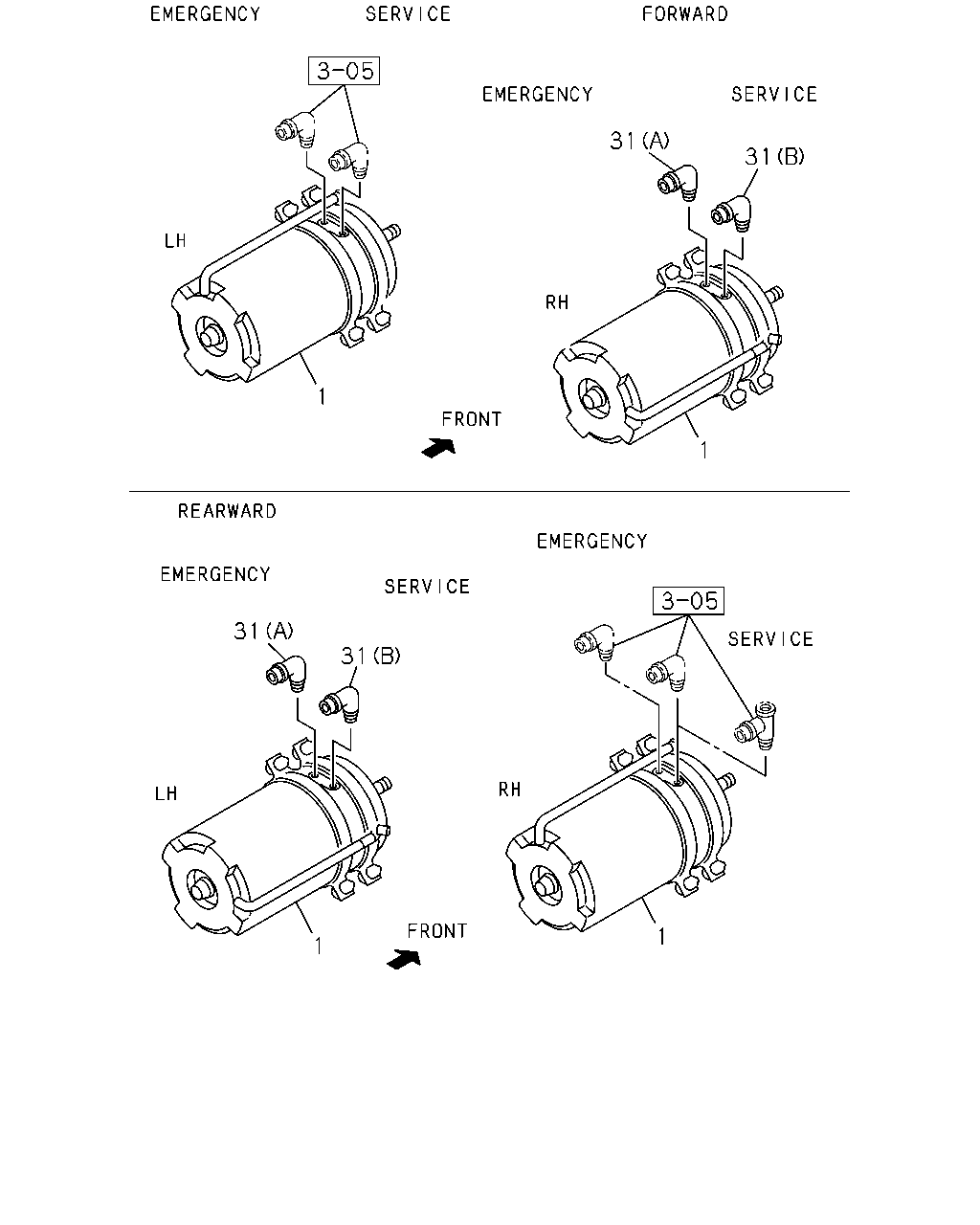

çizim 6329
31 31 1 1 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-181-2 02 1 9906-
1 CHAMBER ASM; SPRING 1-48250-180-2 02 1 9906-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9906-
31 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 9906-

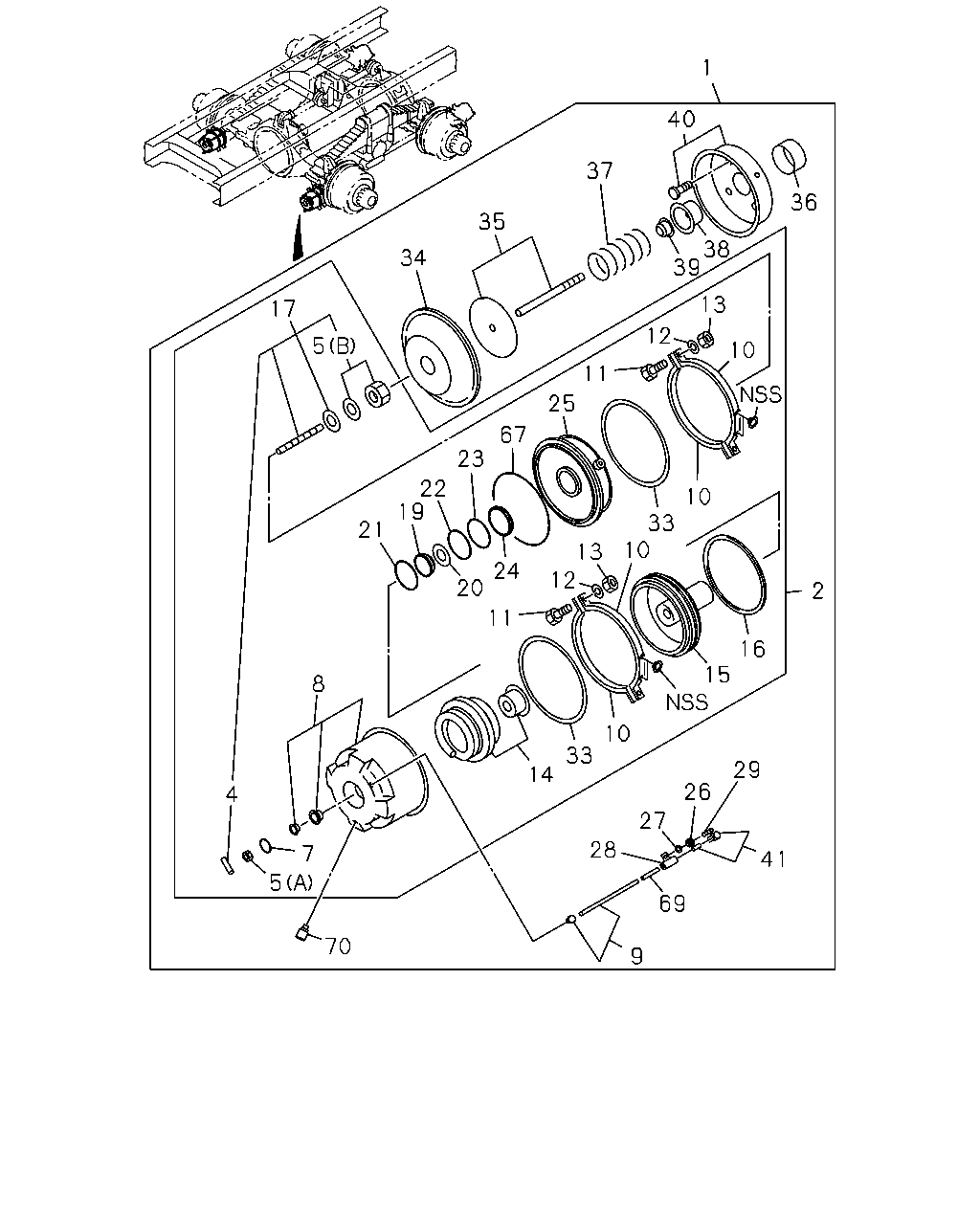

çizim 40979
1 40 37 36 35 38 39 34 13 17 12 5 10 11 25 67 23 22 19 10 33 10 21 13 24 12 20 2 11 16 15 8 10 33 29 14 26 4 27 28 7 41 5 69 70 9
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-181-2 02 1 9906-
1 CHAMBER ASM; SPRING 1-48250-180-2 02 1 9906-
2 CHAMBER; EMERGENCY 1-48252-019-0 02 1 9906-
2 CHAMBER; EMERGENCY 1-48252-018-0 02 1 9906-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9906-
4 PIN; STRAIGHT,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-056-0 04 1 9906-
4 PIN; STRAIGHT,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-056-0 02 1 9906-
4 PIN; STRAIGHT,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-056-0 02 1 9906-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9906-
5 NUT; SHELL
REAR AXLE RT260<C2B> (A) 		1-48259-054-0 02 1 9906-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9906-
5 NUT; SHELL
REAR AXLE RT260<C2B> (B) 		1-48259-074-0 02 1 9906-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (A) 		1-48259-054-0 01 1 9906-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (A) 		1-48259-054-0 01 1 9906-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (B) 		1-48259-074-0 01 1 9906-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (B) 		1-48259-074-0 01 1 9906-
7 GASKET 1-48259-055-0 02 1 9906-
7 GASKET
REAR AXLE RT260<C2B> 		1-48259-055-0 02 1 9906-
7 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-055-0 01 1 9906-
7 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-055-0 01 1 9906-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-1 02 1 9906-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-1 02 1 9906-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9906-
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> 		1-48259-076-0 02 1 9906-
9 PIPE ASM; SHELL
EXC. REAR AXLE RT260<C2B> 		1-48259-076-0 01 1 9906-
9 PIPE ASM; SHELL
EXC. REAR AXLE RT260<C2B> 		1-48259-076-0 01 1 9906-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 9906-
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-016-0 08 1 9906-
10 RING; CLAMP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-016-0 04 1 9906-
10 RING; CLAMP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-016-0 04 1 9906-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9906-
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> 		1-48259-035-0 08 1 9906-
11 BOLT; CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-035-0 04 1 9906-
11 BOLT; CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-035-0 04 1 9906-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 9906-
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> 		1-48259-046-0 08 1 9906-
12 WASHER; LK,CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-046-0 04 1 9906-
12 WASHER; LK,CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-046-0 04 1 9906-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 9906-
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> M10 		9-09110-510-0 08 1 9906-
13 NUT; CLAMP RING
EXC. REAR AXLE RT260<C2B> M10 		9-09110-510-0 04 1 9906-
13 NUT; CLAMP RING
EXC. REAR AXLE RT260<C2B> M10 		9-09110-510-0 04 1 9906-
14 SPRING & SEAT SET 1-48259-037-0 02 1 9906-
14 SPRING & SEAT SET
REAR AXLE RT260<C2B> 		1-48259-037-0 02 1 9906-
14 SPRING & SEAT SET
EXC. REAR AXLE RT260<C2B> 		1-48259-037-0 01 1 9906-
14 SPRING & SEAT SET
EXC. REAR AXLE RT260<C2B> 		1-48259-037-0 01 1 9906-
15 PISTON 1-48262-005-0 02 1 9906-
15 PISTON
REAR AXLE RT260<C2B> 		1-48262-005-0 02 1 9906-
15 PISTON
EXC. REAR AXLE RT260<C2B> 		1-48262-005-0 01 1 9906-
15 PISTON
EXC. REAR AXLE RT260<C2B> 		1-48262-005-0 01 1 9906-
16 GASKET 1-48259-048-0 02 1 9906-
16 GASKET
REAR AXLE RT260<C2B> 		1-48259-048-0 02 1 9906-
16 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-048-0 01 1 9906-
16 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-048-0 01 1 9906-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9906-
17 BOLT ASM; EMERGENCY
REAR AXLE RT260<C2B> 		1-48259-073-0 02 1 9906-
17 BOLT ASM; EMERGENCY
EXC. REAR AXLE RT260<C2B> 		1-48259-073-0 01 1 9906-
17 BOLT ASM; EMERGENCY
EXC. REAR AXLE RT260<C2B> 		1-48259-073-0 01 1 9906-
19 COVER; PISTON 1-48269-011-0 02 1 9906-
19 COVER; PISTON
REAR AXLE RT260<C2B> 		1-48269-011-0 02 1 9906-
19 COVER; PISTON
EXC. REAR AXLE RT260<C2B> 		1-48269-011-0 01 1 9906-
19 COVER; PISTON
EXC. REAR AXLE RT260<C2B> 		1-48269-011-0 01 1 9906-
20 RING; RET 1-48259-060-0 02 1 9906-
20 RING; RET
REAR AXLE RT260<C2B> 		1-48259-060-0 02 1 9906-
20 RING; RET
EXC. REAR AXLE RT260<C2B> 		1-48259-060-0 01 1 9906-
20 RING; RET
EXC. REAR AXLE RT260<C2B> 		1-48259-060-0 01 1 9906-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9906-
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-049-0 02 1 9906-
21 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-049-0 01 1 9906-
21 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-049-0 01 1 9906-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9906-
22 RING; BACKUP,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-019-0 02 1 9906-
22 RING; BACKUP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-019-0 01 1 9906-
22 RING; BACKUP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-019-0 01 1 9906-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9906-
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-047-0 02 1 9906-
23 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-047-0 01 1 9906-
23 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-047-0 01 1 9906-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9906-
24 BEARING; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-020-0 02 1 9906-
24 BEARING; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-020-0 01 1 9906-
24 BEARING; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-020-0 01 1 9906-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-085-0 02 1 9906-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 02 1 9906-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9906-
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-058-0 04 1 9906-
26 NUT; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-058-0 02 1 9906-
26 NUT; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-058-0 02 1 9906-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 9906-
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-057-0 02 1 9906-
27 WASHER; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-057-0 01 1 9906-
27 WASHER; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-057-0 01 1 9906-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9906-
28 BRACKET; PRESSURE PLATE,HOSE
REAR AXLE RT260<C2B> 		1-48259-059-0 02 1 9906-
28 BRACKET; PRESSURE PLATE,HOSE
EXC. REAR AXLE RT260<C2B> 		1-48259-059-0 01 1 9906-
28 BRACKET; PRESSURE PLATE,HOSE
EXC. REAR AXLE RT260<C2B> 		1-48259-059-0 01 1 9906-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9906-
29 STUD; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-050-0 02 1 9906-
29 STUD; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-050-0 01 1 9906-
29 STUD; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-050-0 01 1 9906-
33 RETAINER; DIAPH 1-48259-044-0 04 1 9906-
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> 		1-48259-044-0 04 1 9906-
33 RETAINER; DIAPH
EXC. REAR AXLE RT260<C2B> 		1-48259-044-0 02 1 9906-
33 RETAINER; DIAPH
EXC. REAR AXLE RT260<C2B> 		1-48259-044-0 02 1 9906-
34 DIAPHRAGM 1-48252-010-0 02 1 9906-
34 DIAPHRAGM
REAR AXLE RT260<C2B> 		1-48252-010-0 02 1 9906-
34 DIAPHRAGM
EXC. REAR AXLE RT260<C2B> 		1-48252-010-0 01 1 9906-
34 DIAPHRAGM
EXC. REAR AXLE RT260<C2B> 		1-48252-010-0 01 1 9906-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 9906-
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48253-010-0 02 1 9906-
35 PLATE; ROD END,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48253-010-0 01 1 9906-
35 PLATE; ROD END,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48253-010-0 01 1 9906-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9906-
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-043-0 02 1 9906-
36 RETAINER; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-043-0 01 1 9906-
36 RETAINER; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-043-0 01 1 9906-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9906-
37 SPRING; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48255-003-0 02 1 9906-
37 SPRING; LWR,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48255-003-0 01 1 9906-
37 SPRING; LWR,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48255-003-0 01 1 9906-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9906-
38 COVER; ROD & PLATE
REAR AXLE RT260<C2B> 		1-48259-066-0 02 1 9906-
38 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-066-0 01 1 9906-
38 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-066-0 01 1 9906-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9906-
39 COVER; ROD & PLATE
REAR AXLE RT260<C2B> 		1-48259-065-0 02 1 9906-
39 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-065-0 01 1 9906-
39 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-065-0 01 1 9906-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 02 1 9906-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 02 1 9906-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 9906-
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> 		1-48259-075-0 02 1 9906-
41 PIPE ASM; LWR COVER
EXC. REAR AXLE RT260<C2B> 		1-48259-075-0 01 1 9906-
41 PIPE ASM; LWR COVER
EXC. REAR AXLE RT260<C2B> 		1-48259-075-0 01 1 9906-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9906-
67 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-053-0 02 1 9906-
67 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-053-0 01 1 9906-
67 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-053-0 01 1 9906-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9906-
69 HOSE; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-051-0 02 1 9906-
69 HOSE; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-051-0 01 1 9906-
69 HOSE; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-051-0 01 1 9906-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9906-
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-052-0 02 1 9906-
70 COVER; EXH,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-052-0 01 1 9906-
70 COVER; EXH,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-052-0 01 1 9906-
