2-01 — CLUTCH (#725) — 160 parça

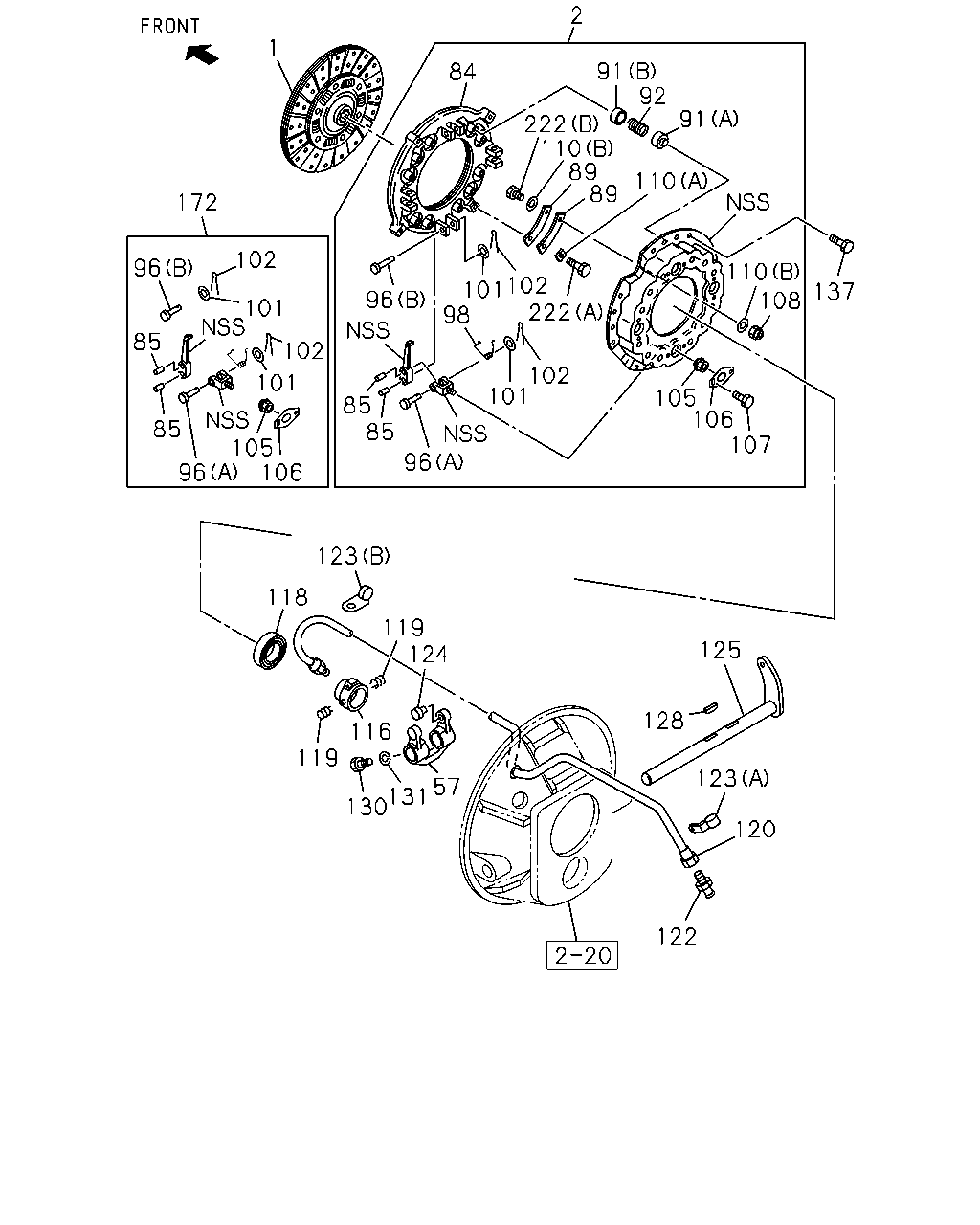

2 1 91 92 84 222 110 89 89 91 110 172 110 108 102 96 101 102 98 222 137 96 101 85 102 101 102 101 105 106 107 85 85 105 106 85 96 96 123 118 119 124 125 128 116 119 123 57 131 130 120 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-547-0	01	1	9204-9309	●	●
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9310-	●	●
1	DISC; CLUTCH 14"	1-31240-662-0	01	1	9505-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-1	01	1	9204-	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-168-1	01	1	9505-			●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9204-	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9505-			●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9204-	●	●
84	PLATE; PRESSURE	1-31221-044-0	01	1	9505-			●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9204-	●	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9204-	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9505-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9204-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9204-	●	●	●
92	SPRING; CLU	1-31214-019-0	12	1	9204-	●	●
92	SPRING; CLU	1-09580-234-0	12	1	9505-			●
96	PIN; RELEASE LEVER (B) L=57	1-31232-004-0	04	1	9204-	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9204-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9505-			●
98	SPRING; RETURN	1-31233-003-0	04	1	9204-	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9204-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9204-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9505-			●
105	NUT; SUPPORT	9-31235-061-0	04	1	9204-	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9204-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9204-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	9204-	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9204-	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9204-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-063-1	01	1	9204-	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9505-			●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9204-	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9505-			●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9204-	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9204-	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9505-			●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9505-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=204	1-09364-633-0	01	1	9204-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9505-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9505-			●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9505-			●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9505-			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9505-			●
125	SHAFT; CLU	1-31342-255-0	01	1	9204-	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9505-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9204-	●	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9204-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9505-			●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9204-	●	●	●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9204-9504	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	9204-9412	●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-0	01	1	9501-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9505-			●
222	BOLT; STRAP (A) M10X23.2	1-09040-042-0	04	1	9204-	●	●	●
222	BOLT; STRAP (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9204-	●	●	●

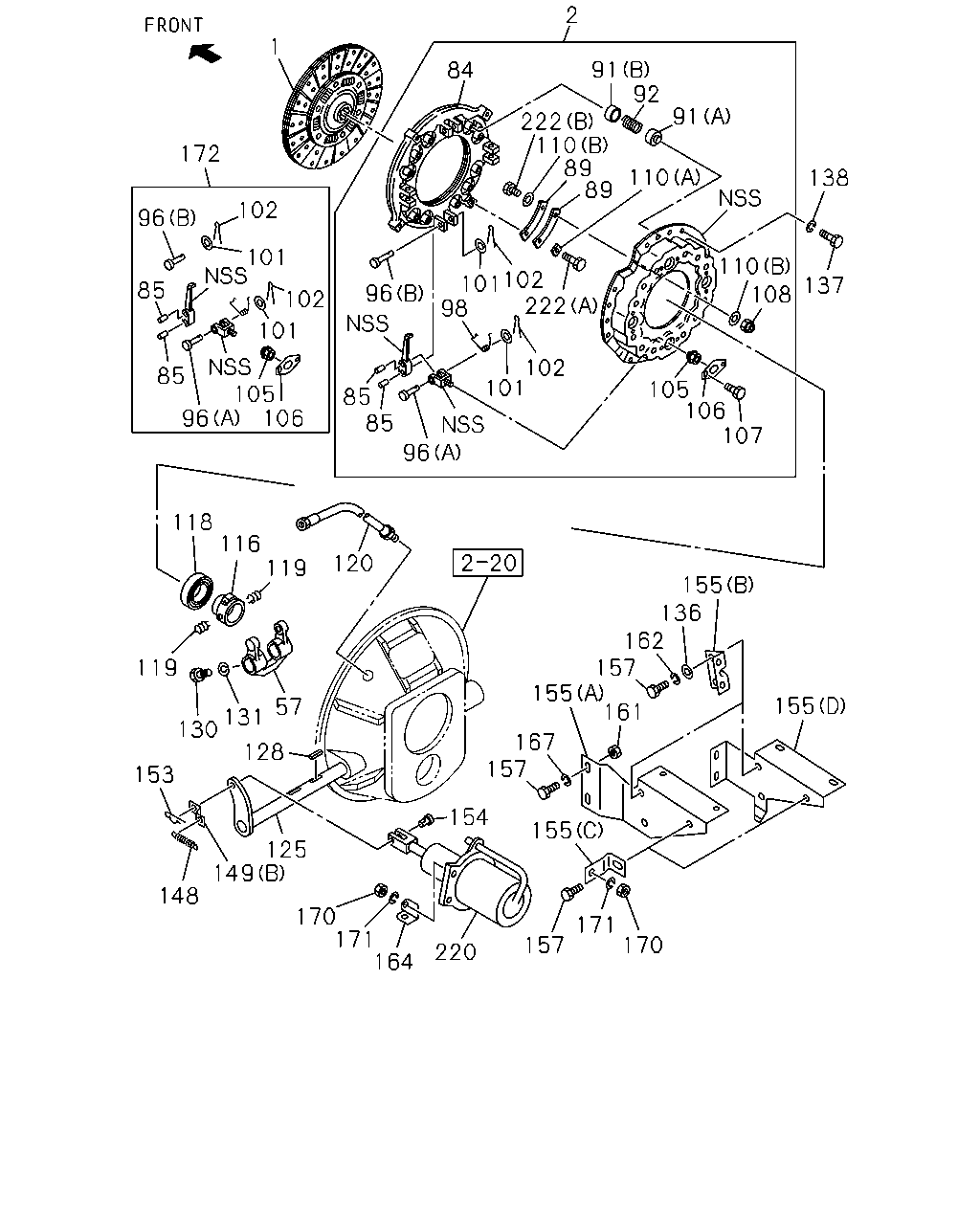

2 1 91 92 84 222 110 89 89 91 172 110 138 102 96 110 108 101 101 102 98 222 137 85 96 102 101 105 106 102 101 85 105 106 107 85 85 96 96 118 116 119 120 155 136 162 157 161 119 155 155 57 131 130 167 157 128 153 154 155 125 149 148 170 171 164 171 157 170 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 15"	1-31240-547-0	01	1	9204-9309	●	●
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9310-	●	●
1	DISC; CLUTCH 14"	1-31240-662-0	01	1	9505-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-207-1	01	1	9204-	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-168-1	01	1	9505-			●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9204-	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9505-			●
84	PLATE; PRESSURE 15"	1-31221-067-0	01	1	9204-	●	●
84	PLATE; PRESSURE	1-31221-044-0	01	1	9505-			●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9204-	●	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9204-	●	●
89	PLATE; STRAP	1-31229-001-0	08	1	9505-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9204-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9204-	●	●	●
92	SPRING; CLU	1-31214-019-0	12	1	9204-	●	●
92	SPRING; CLU	1-09580-234-0	12	1	9505-			●
96	PIN; RELEASE LEVER (B) L=57	1-31232-004-0	04	1	9204-	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	9204-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-008-0	04	1	9505-			●
98	SPRING; RETURN	1-31233-003-0	04	1	9204-	●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9204-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9204-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9505-			●
105	NUT; SUPPORT	9-31235-061-0	04	1	9204-	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9204-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9204-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	9204-	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9204-	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9204-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-063-1	01	1	9204-	●	●
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	9505-			●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9204-	●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9505-			●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9204-	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9204-	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9505-			●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9505-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=204	1-09364-633-0	01	1	9204-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9505-			●
125	SHAFT; CLU	1-31342-255-0	01	1	9204-	●	●
125	SHAFT; CLU	1-31342-169-1	01	1	9505-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9204-	●	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9204-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9505-			●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9204-	●	●	●
136	WASHER; PL 6SA1TC ENG(28L) ID=15	9-09160-514-0	01	1	9204-	●
136	WASHER; PL ID=15	9-09160-514-0	01	1	9204-		●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9204-9504	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9204-9504	●	●
148	SPRING; CLU RETURN 6SA1 STD ENG(06L)	1-09583-212-0	01	1	9204-	●
148	SPRING; CLU RETURN 6SA1TC ENG(28L) L=137.7	1-09583-284-0	01	1	9204-	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9204-		●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9505-			●
149	EYE; SPRING,RETURN SPRING 6SA1 STD ENG(06L) (B)	1-31426-019-1	01	1	9204-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9204-			●
149	EYE; SPRING,RETURN SPRING 6SA1TC ENG(28L) (B)	1-31426-025-0	01	1	9204-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-025-0	01	1	9204-		●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9505-			●
153	PIN; SPLIT,CLU SHAFT 6SA1TC ENG(28L)	1-09747-009-0	01	1	9204-	●
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	9204-		●
154	PIN; JAW JOINT 6SA1 STD ENG(06L) L=30	1-31424-001-1	01	1	9204-9312	●
154	PIN; JAW JOINT 6SA1 STD ENG(06L) L=30	1-31424-009-0	01	1	9401-	●
154	PIN; JAW JOINT L=30	1-31424-009-0	01	1	9401-			●
154	PIN; JAW JOINT 6SA1TC ENG(28L) L=35	1-31424-003-0	01	1	9204-	●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	9204-		●
155	BRACKET; MINIPACK 6SA1 STD ENG(06L) (A)	1-31429-321-1	01	1	9204-	●
155	BRACKET; MINIPACK 6SA1TC ENG(28L) (D)	1-31429-332-0	01	1	9204-	●
155	BRACKET; MINIPACK (D)	1-31429-332-0	01	1	9204-		●
155	BRACKET; MINIPACK (B)	1-31429-066-0	01	1	9204-	●	●
155	BRACKET; MINIPACK (C)	1-31429-322-0	01	1	9204-	●	●
157	BOLT; BRKT 6SA1 STD ENG(06L) M10X16 FLANGE	0-28181-016-0	01	1	9204-	●
157	BOLT; BRKT 6SA1 STD ENG(06L) 3/4"-10UNC	1-09087-033-0	02	1	9204-	●
157	BOLT; BRKT 6SA1TC ENG(28L) M10X16 FLANGE	0-28181-016-0	03	1	9204-	●
157	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	9204-		●
157	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9204-	●	●
161	NUT; BRKT M10	9-09110-510-0	04	1	9204-	●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9204-	●	●
164	EYE; SPRING 6SA1 STD ENG(06L)	1-31426-016-1	01	1	9204-	●
167	WASHER; LK,SPRING EYE 6SA1 STD ENG(06L) ID=20.2	9-09150-520-0	02	1	9204-	●
170	NUT; BOOSTER FIX M8	9-09110-408-0	03	1	9204-	●	●
171	WASHER; LK,BOOSTER FIX ID=8.2	9-09150-508-0	03	1	9204-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-513-0	01	1	9204-9412	●	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-0	01	1	9501-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9505-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-350-0	01	1	9204-	●	●
222	BOLT; STRAP (A) M10X23.2	1-09040-042-0	04	1	9204-	●	●	●
222	BOLT; STRAP (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9204-	●	●	●

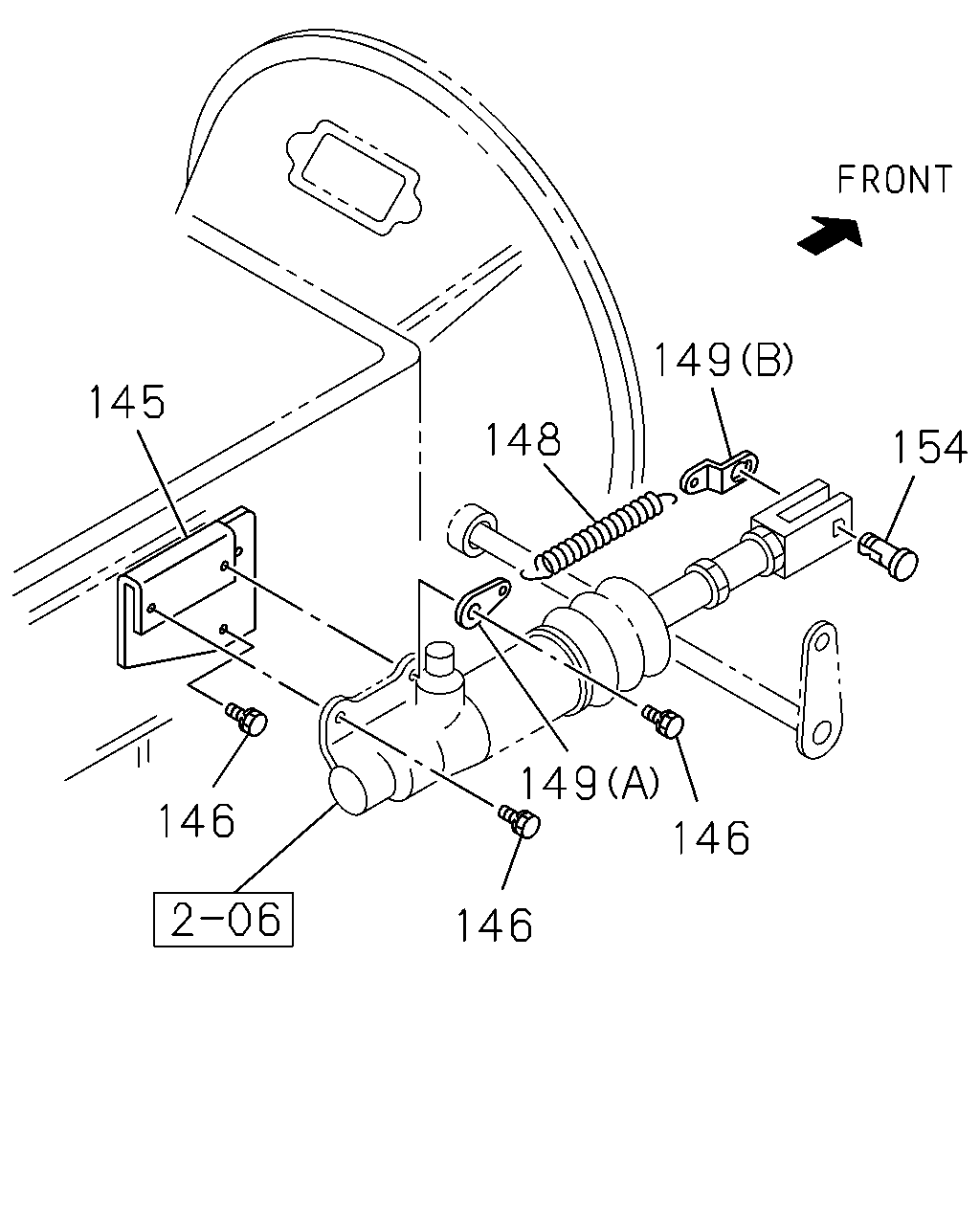

149 145 148 154 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
145	BRACKET; SLAVE CYL,OIL CLU	1-47579-051-0	01	1	9505-			●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9505-			●
148	SPRING; CLU RETURN 6SA1 STD ENG(06L)	1-09583-212-0	01	1	9204-	●
148	SPRING; CLU RETURN 6SA1TC ENG(28L) L=137.7	1-09583-284-0	01	1	9204-	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9204-		●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9505-			●
149	EYE; SPRING,RETURN SPRING 6SA1 STD ENG(06L) (B)	1-31426-019-1	01	1	9204-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9204-			●
149	EYE; SPRING,RETURN SPRING 6SA1TC ENG(28L) (B)	1-31426-025-0	01	1	9204-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-025-0	01	1	9204-		●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9505-			●
154	PIN; JAW JOINT 6SA1 STD ENG(06L) L=30	1-31424-001-1	01	1	9204-9312	●
154	PIN; JAW JOINT 6SA1 STD ENG(06L) L=30	1-31424-009-0	01	1	9401-	●
154	PIN; JAW JOINT L=30	1-31424-009-0	01	1	9401-			●
154	PIN; JAW JOINT 6SA1TC ENG(28L) L=35	1-31424-003-0	01	1	9204-	●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	9204-		●
