0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#72499) — 74 parça

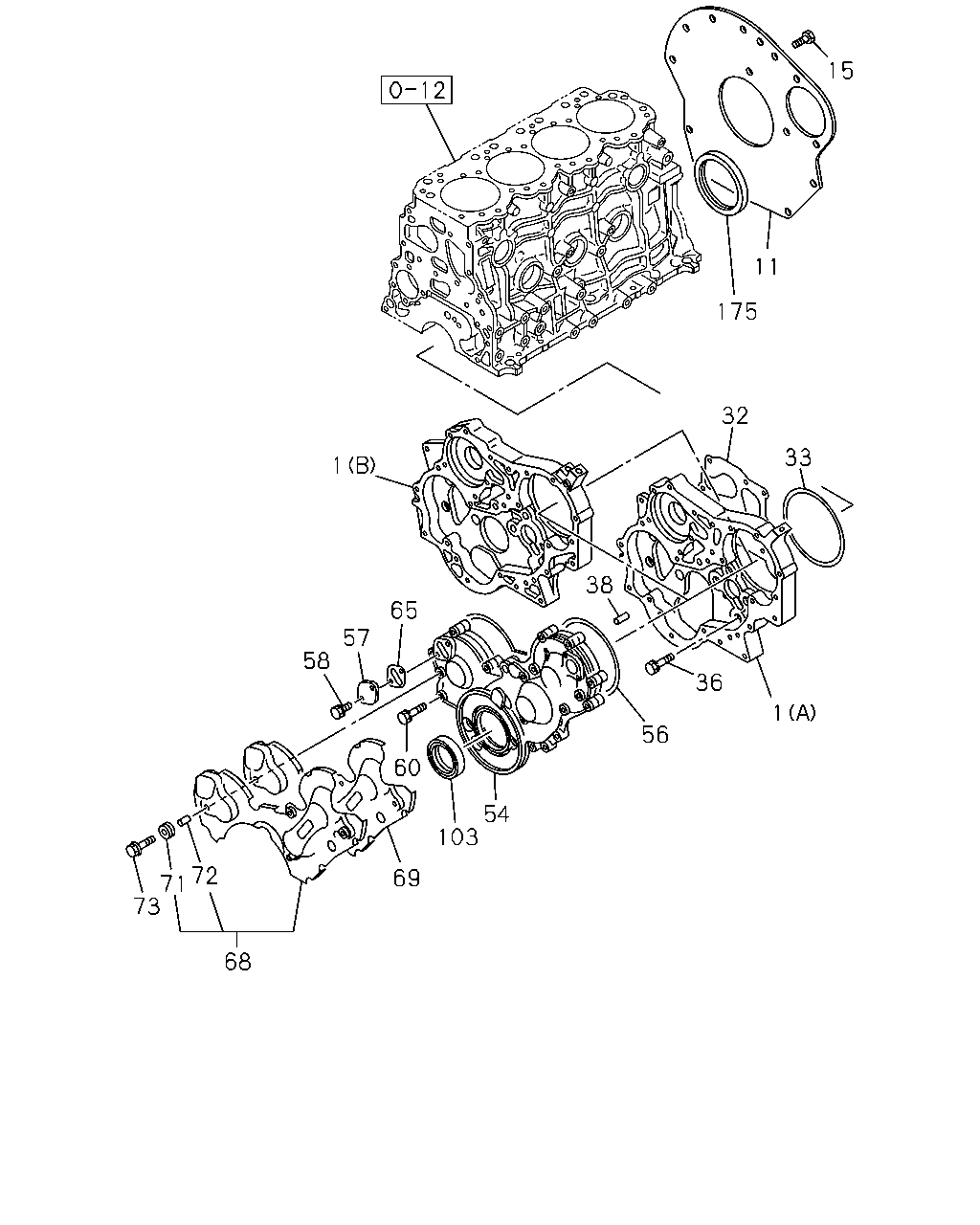

çizim 38344
15 11 175 32 33 1 38 65 57 58 36 1 56 60 54 103 72 71 73 69 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR
(A) 		8-97129-982-3 01 1 9704- ●
1 CASE; TIMING GEAR
(B) 		8-97219-001-4 01 1 1112- ●
11 PLATE; RR,C/BL 8-94437-923-2 01 1 9704-1111 ●
11 PLATE; RR,C/BL 8-94437-923-2 01 1 1112- ● ●
15 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 9704-1111 ●
15 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 1112- ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 9704-1111 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 1112- ● ●
33 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 9704-1111 ●
33 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 1112- ● ●
36 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50040-820-0 06 1 9704-0909 ●
36 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 0910-1111 ●
36 BOLT; GEAR CASE
M8X20 W/LK WASHER 		0-50540-820-0 06 1 1112- ● ●
36 BOLT; GEAR CASE
TURBOCHARGER<K51> POWER STEERING<N40> M8X45 W/LK WASHER 		0-50040-845-0 01 1 9704-0209 ●
36 BOLT; GEAR CASE
POWER STEERING<N40> M8X45 W/LK WASHER 		0-50040-845-0 01 1 0210-0503 ●
36 BOLT; GEAR CASE
M8X45 W/LK WASHER 		0-50040-845-0 02 1 0504-0909 ●
36 BOLT; GEAR CASE
M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910-1111 ●
36 BOLT; GEAR CASE
M8X45 W/LK WASHER 		0-50540-845-0 02 1 1112- ● ●
36 BOLT; GEAR CASE
TURBOCHARGER<K51> EXC. POWER STEERING<N40> M8X45 W/LK WASHER 		0-50040-845-0 02 1 9704-0209 ●
36 BOLT; GEAR CASE
EXC. POWER STEERING<N40> M8X45 W/LK WASHER 		0-50040-845-0 02 1 0210-0503 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 		9-08151-020-0 02 1 9704-0201 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 		8-97135-423-0 02 1 0202-1111 ●
38 PIN; GEAR CASE COVER
OD=10 L=20 		8-97135-423-0 02 1 1112- ● ●
54 COVER; GEAR CASE 8-94155-360-2 01 1 9704-9903 ●
54 COVER; GEAR CASE 8-97219-278-0 01 1 9904-9912 ●
54 COVER; GEAR CASE 8-97231-214-1 01 1 0001-1111 ●
54 COVER; GEAR CASE 8-97231-214-1 01 1 1112- ● ●
56 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94140-117-1 01 1 9704-9910 ●
56 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97238-631-0 01 1 9911-0106 ●
56 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 0107-1111 ●
56 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 1112- ● ●
57 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 9704-1111 ●
57 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 1112- ● ●
58 BOLT; CHECK HOLE COVER
M6X14 W/LK WASHER 		0-50040-614-0 04 1 9704-0403 ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE 		0-28080-612-0 04 1 0404-0512 ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE 		0-28050-612-0 04 1 0601-1111 ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE 		0-28050-612-0 04 1 1112- ● ●
60 BOLT; COVER TO CASE
M8X32 W/LK WASHER 		0-50040-832-0 08 1 9704-9906 ●
60 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28080-830-0 08 1 9907-0512 ●
60 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 0601-1111 ●
60 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 1112- ● ●
60 BOLT; COVER TO CASE
M8X60 W/LK WASHER 		0-50040-860-0 01 1 9704-9906 ●
60 BOLT; COVER TO CASE
M8X58 FLANGE 		8-94130-055-1 01 1 9907-1111 ●
60 BOLT; COVER TO CASE
M8X58 FLANGE 		8-94130-055-1 01 1 1112- ● ●
60 BOLT; COVER TO CASE
M8X65 W/LK WASHER 		8-94205-986-1 06 1 9704-9903 ●
60 BOLT; COVER TO CASE
M8X60 FLANGE 		0-28080-860-0 06 1 9904-0201 ●
60 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50040-870-0 06 1 0202-0512 ●
60 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 0601-1111 ●
60 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 1112- ● ●
60 BOLT; COVER TO CASE
M12X55 W/HEX-SOCKET 		9-95821-255-0 01 1 9704-0107 ●
60 BOLT; COVER TO CASE
M12X55 W/HEX-SOCKET 		0-58311-255-0 01 1 0108-0512 ●
60 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 0601-1111 ●
60 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 1112- ● ●
65 GASKET; COVER,TIMING CHECK HOLE 8-97118-698-1 02 1 9704-1111 ●
65 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 1112- ● ●
68 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 9704-1111 ●
68 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 1112- ● ●
69 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 9704-0402 ●
69 SEAL; RUBBER,COVER TO COVER
ISUZU BRAND<7WL> EXC. GENERATOR DENSO(7KH) 		8-94155-722-3 01 1 1006-1111 ●
69 SEAL; RUBBER,COVER TO COVER
EXC. TURBOCHARGER<K51> 		8-94155-722-3 01 1 1112- ●
69 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 1112- ●
71 RUBBER; MTG,COVER 5-19389-002-0 04 1 9704-1111 ●
71 RUBBER; MTG,COVER 5-19389-002-0 04 1 1112- ● ●
72 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 9704-1111 ●
72 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 1112- ● ●
73 BOLT; COVER FIX
M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9704-0403 ●
73 BOLT; COVER FIX
M6X16 FLANGE 		0-28080-616-0 04 1 0404-0512 ●
73 BOLT; COVER FIX
M6X16 FLANGE 		0-28050-616-0 04 1 0601-1111 ●
73 BOLT; COVER FIX
M6X16 FLANGE 		0-28050-616-0 04 1 1112- ● ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97049-145-0 01 1 9704-0206 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 0207-1111 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97351-704-0 01 1 1112- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 9704-1111 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1112- ● ●
