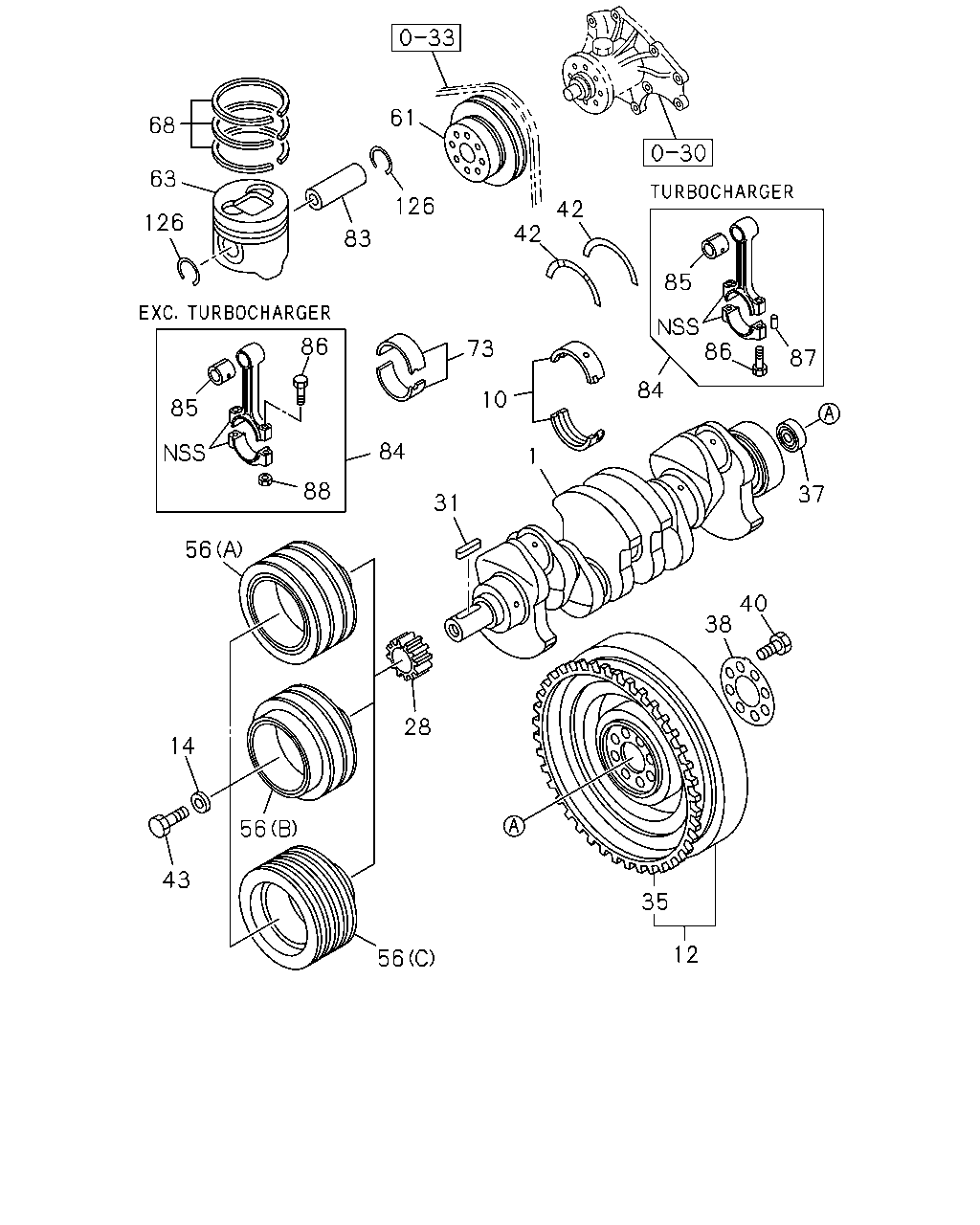

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#72498) — 132 parça

61 68 63 42 126 126 42 83 85 86 86 73 87 84 10 85 84 1 88 37 31 56 40 38 28 14 56 43 35 12 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94453-525-2	01	1	9704-0008	●
1	CRANKSHAFT	8-97190-929-1	01	1	0009-0206	●
1	CRANKSHAFT	8-97331-853-0	01	1	0207-0209	●
1	CRANKSHAFT GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97331-853-1	01	1	0210-1111	●
1	CRANKSHAFT GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97331-853-1	01	1	1112-	●
1	CRANKSHAFT	8-97331-853-1	01	1	1112-		●
1	CRANKSHAFT GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-97190-928-3	01	1	0210-1005	●
1	CRANKSHAFT EXC. TURBOCHARGER<K51>	8-97190-928-3	01	1	1006-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9704-0209	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9704-0209	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9704-0209	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0210-0411	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0412-1111	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1112-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0210-0411	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0412-1111	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1112-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0210-0411	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0412-1111	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1112-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0210-0411	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0412-1111	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1112-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0210-0411	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0412-1111	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1112-	●	●
12	FLYWHEEL	8-97034-430-2	01	1	9704-0209	●
12	FLYWHEEL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97034-430-2	01	1	0210-1111	●
12	FLYWHEEL TURBOCHARGER<K51>	8-97034-430-2	01	1	1112-	●
12	FLYWHEEL	8-97034-430-2	01	1	1112-		●
12	FLYWHEEL GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	0210-1005	●
12	FLYWHEEL EXC. TURBOCHARGER<K51>	8-94125-761-4	01	1	1006-	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	9704-1111	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1112-	●	●
28	GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9704-	●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1112-		●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	9704-0008	●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	0009-1111	●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	1112-	●	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	9704-1111	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	1112-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	9704-1111	●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	1112-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	1006-1111	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	1112-	●	●
38	WASHER; FLYWHEEL	8-94133-970-1	01	1	9704-1005	●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1006-1111	●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1112-	●	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9704-1111	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1112-	●	●
42	WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9704-0411	●
42	WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-1108	●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1109-1111	●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1112-	●	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9704-1111	●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1112-	●	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9704-0209	●
56	PULLEY; CR/SHF DAMPER GENERATOR DENSO(7KH) TURBOCHARGER<K51> (A) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	0210-	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9704-9906	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE FUKOKU	8-97229-900-0	01	1	9907-0108	●
56	PULLEY; CR/SHF DAMPER (A) 3-GROOVE FUKOKU	8-94442-166-5	01	1	0109-0209	●
56	PULLEY; CR/SHF DAMPER TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-6	01	1	0210-	●
56	PULLEY; CR/SHF DAMPER POWER STEERING<N40> EXC. TURBOCHARGER<K51> (A) 3-GROOVE FUKOKU	8-94442-166-6	01	1	0210-	●
56	PULLEY; CR/SHF DAMPER EXC. TURBOCHARGER<K51>,POWER STEERING<N40> (B) 2-GROOVE	8-94453-552-3	01	1	0210-	●
56	PULLEY; CR/SHF DAMPER (C) 4-GROOVE	8-97204-204-0	01	1	1112-		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	9704-0209	●
61	PULLEY; FAN DRIVE GENERATOR DENSO(7KH) TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-4	01	1	0210-1111	●
61	PULLEY; FAN DRIVE GENERATOR DENSO(7KH) TURBOCHARGER<K51> 1-GROOVE OD=120	8-94459-815-4	01	1	1112-	●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1112-		●
61	PULLEY; FAN DRIVE GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-2	01	1	0210-1005	●
61	PULLEY; FAN DRIVE EXC. TURBOCHARGER<K51> 1-GROOVE	8-94146-638-2	01	1	1006-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9704-0209	●
63	PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=AX	8-97176-610-0	04	1	0210-1111	●
63	PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1112-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1112-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9704-0209	●
63	PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=CX	8-97176-611-0	04	1	0210-1111	●
63	PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1112-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1112-		●
63	PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	0210-1005	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=AX	8-97176-606-0	04	1	1006-	●
63	PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	0210-1005	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> GRADE=CX	8-97176-607-0	04	1	1006-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	9704-1111	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1112-	●	●
73	METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9704-0210	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-1111	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1112-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9704-0209	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94457-008-1	04	1	0210-1111	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1112-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1112-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	0210-1005	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51>	8-94454-479-0	04	1	1006-	●
84	ROD ASM; CONN	8-97062-300-1	04	1	9704-0209	●
84	ROD ASM; CONN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97062-300-1	04	1	0210-0306	●
84	ROD ASM; CONN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97360-243-1	04	1	0307-0307	●
84	ROD ASM; CONN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-97062-300-1	04	1	0308-0504	●
84	ROD ASM; CONN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-98013-290-2	04	1	0505-0705	●
84	ROD ASM; CONN GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-98013-962-4	04	1	0706-1111	●
84	ROD ASM; CONN TURBOCHARGER<K51>	8-98013-962-4	04	1	1112-	●
84	ROD ASM; CONN	8-98013-962-4	04	1	1112-		●
84	ROD ASM; CONN GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94329-692-4	04	1	0210-0504	●
84	ROD ASM; CONN GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-98012-607-2	04	1	0505-1005	●
84	ROD ASM; CONN EXC. TURBOCHARGER<K51>	8-98012-607-2	04	1	1006-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9704-0209	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94457-158-0	04	1	0210-0705	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	0706-1111	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1112-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1112-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97288-551-0	04	1	0210-0706	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0707-1005	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	1006-	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9704-0209	●
86	BOLT; CONNROD GENERATOR DENSO(7KH) TURBOCHARGER<K51> M11X44.5	8-97062-086-0	08	1	0210-0701	●
86	BOLT; CONNROD GENERATOR DENSO(7KH) TURBOCHARGER<K51> M11X44.5	8-98048-538-0	08	1	0702-1111	●
86	BOLT; CONNROD TURBOCHARGER<K51> M11X44.5	8-98048-538-0	08	1	1112-	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1112-		●
86	BOLT; CONNROD GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	0210-1005	●
86	BOLT; CONNROD EXC. TURBOCHARGER<K51> M11X59	5-12235-009-0	08	1	1006-	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9704-0209	●
87	PIN; CONNROD BIG END GENERATOR DENSO(7KH) TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	0210-1111	●
87	PIN; CONNROD BIG END TURBOCHARGER<K51> OD=5 L=8	9-08160-508-0	08	1	1112-	●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1112-		●
88	NUT; CONNROD GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> M11	5-09409-016-0	08	1	0210-1005	●
88	NUT; CONNROD EXC. TURBOCHARGER<K51> M11	5-09409-016-0	08	1	1006-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9704-0209	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> OD=37.5	8-94460-687-0	08	1	0210-1111	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) TURBOCHARGER<K51> ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1112-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1112-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> ID=33.9	8-94133-969-0	08	1	0210-1005	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER<K51> ID=33.9	8-94133-969-0	08	1	1006-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
