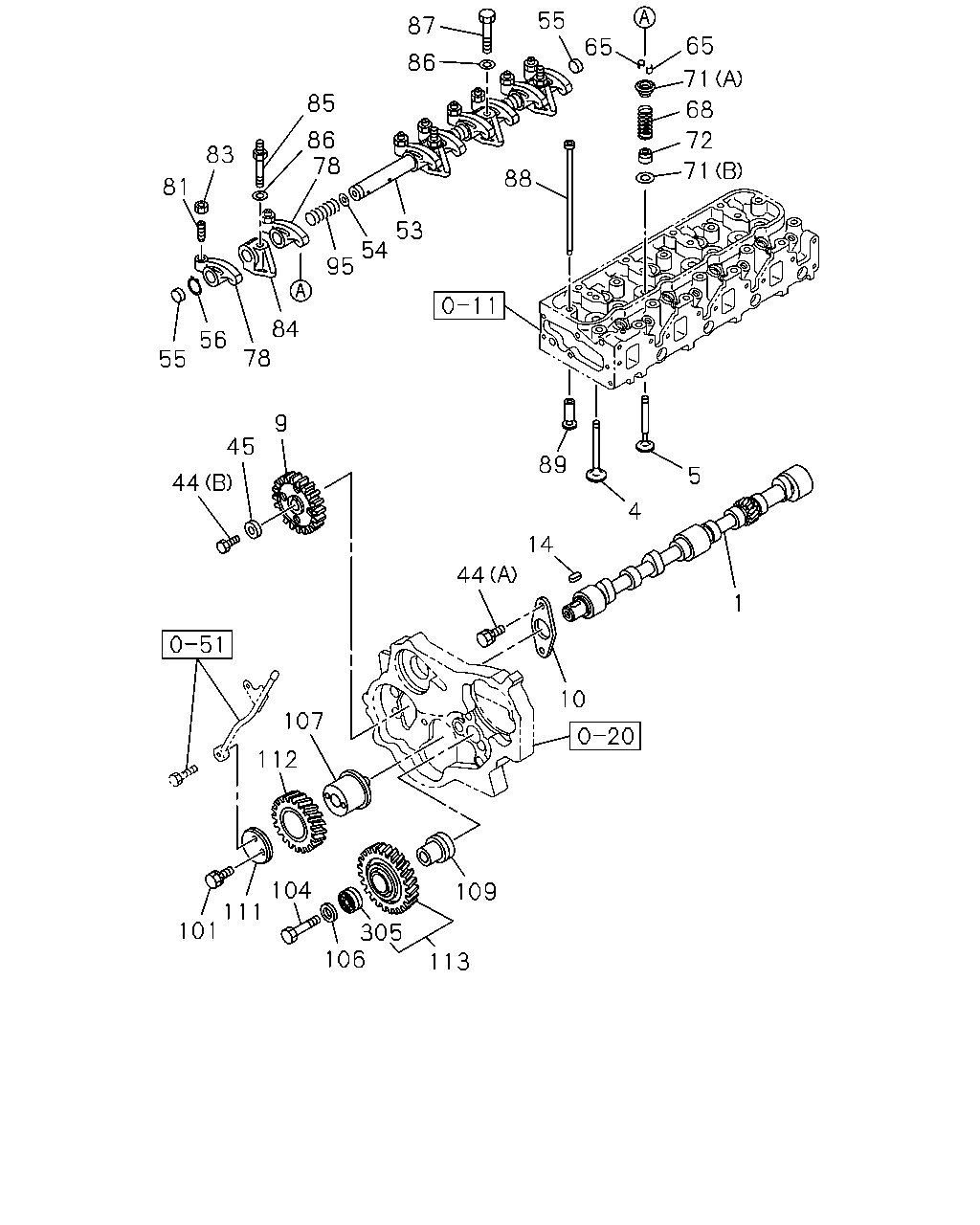

0-14 — CAMSHAFT AND VALVE (#72497) — 93 parça

55 65 65 71 72 68 71 88 87 86 85 78 86 83 81 53 54 95 84 78 56 55 5 4 89 14 44 10 1 107 112 109 305 106 104 111 101 9 45 44 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94127-797-4	01	1	9704-0012	●
1	CAMSHAFT	8-97287-657-1	01	1	0101-1111	●
1	CAMSHAFT	8-97287-657-1	01	1	1112-	●	●
4	VALVE; INL	8-94464-921-0	04	1	9704-0209	●
4	VALVE; INL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94464-921-2	04	1	0210-1111	●
4	VALVE; INL GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94464-921-2	04	1	1112-	●
4	VALVE; INL	8-94464-921-2	04	1	1112-		●
4	VALVE; INL GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94133-275-2	04	1	0210-1005	●
4	VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-2	04	1	1006-	●
5	VALVE; EXH	8-94433-245-0	04	1	9704-0209	●
5	VALVE; EXH GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94433-245-1	04	1	0210-1111	●
5	VALVE; EXH GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-94433-245-1	04	1	1112-1405	●
5	VALVE; EXH	8-94433-245-1	04	1	1112-1405		●
5	VALVE; EXH GENERATOR DENSO(7KH) TURBOCHARGER<K51>	8-98277-383-0	04	1	1406-	●
5	VALVE; EXH	8-98277-383-0	04	1	1406-		●
5	VALVE; EXH GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51>	8-94247-875-2	04	1	0210-1005	●
5	VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-2	04	1	1006-	●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	9704-	●
9	GEAR; CM/SHF Z=42	8-97229-594-2	01	1	1112-		●
10	PLATE; THRUST	8-94110-480-1	01	1	9704-1111	●
10	PLATE; THRUST	8-94110-480-1	01	1	1112-	●	●
14	KEY; CM/SHF	9-08000-718-0	01	1	9704-1111	●
14	KEY; CM/SHF	9-08000-718-0	01	1	1112-	●	●
44	BOLT (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9704-0102	●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512	●
44	BOLT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-1111	●
44	BOLT (A) M8X16 FLANGE	0-28050-816-0	02	1	1112-	●	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	9704-1111	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	1112-	●	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9704-0409	●
45	WASHER; GEAR CAM ID=13 OD=36	8-97918-881-0	01	1	0410-0410	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0410-1111	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	1112-	●	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	9704-1111	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	1112-	●	●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9704-1111	●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	1112-	●	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9704-1111	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	1112-	●	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9704-1111	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	1112-	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9704-1111	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	1112-	●	●
68	SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9704-1111	●
68	SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1112-	●	●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9704-1111	●
71	SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	1112-	●	●
71	SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9704-1111	●
71	SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	1112-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9704-1111	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	1112-	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9704-1111	●
78	ARM; ROCKER	8-94152-344-0	08	1	1112-	●	●
81	SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9704-1111	●
81	SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	1112-	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9704-0512	●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0601-1111	●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	1112-	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9704-1111	●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	1112-	●	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	9704-1111	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	1112-	●	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9704-1111	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	1112-	●	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9704-1111	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	1112-	●	●
88	ROD; PUSH	8-97071-673-0	08	1	9704-1111	●
88	ROD; PUSH	8-97071-673-0	08	1	1112-	●	●
89	TAPPET; VLV	8-94438-305-1	08	1	9704-1111	●
89	TAPPET; VLV	8-94438-305-1	08	1	1112-	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9704-1111	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	1112-	●	●
101	BOLT; THRUST COLLAR M8X55 W/LK WASHER	5-09000-084-1	02	1	9704-9904	●
101	BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9905-1111	●
101	BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	1112-	●	●
104	BOLT; SHAFT IDLE	8-94109-706-1	01	1	9704-1111	●
104	BOLT; SHAFT IDLE	8-94109-706-1	01	1	1112-	●	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	9704-0409	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	8-97918-881-0	01	1	0410-0410	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	0410-1111	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	1112-	●	●
107	SHAFT; IDLE GEAR	8-94139-758-1	01	1	9704-	●
107	SHAFT; IDLE GEAR	8-97920-007-0	01	1	1112-		●
109	SHAFT; IDLE GEAR	8-94109-913-1	01	1	9704-	●
109	SHAFT; IDLE GEAR	8-97218-780-0	01	1	1112-		●
111	COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9704-1111	●
111	COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	1112-	●	●
112	GEAR; IDLE Z=31	8-97164-773-0	01	1	9704-	●
112	GEAR; IDLE Z=31	8-97229-601-0	01	1	1112-		●
113	GEAR; IDLE Z=37	8-94139-761-0	01	1	9704-	●
113	GEAR; IDLE Z=37	8-98140-217-0	01	1	1112-		●
305	BEARING; IDLE GEAR	8-94110-271-0	01	1	9704-	●
305	BEARING; IDLE GEAR	8-98140-110-0	01	1	1112-		●
