0-13 — OIL PAN AND LEVEL GAUGE (#72496) — 29 parça

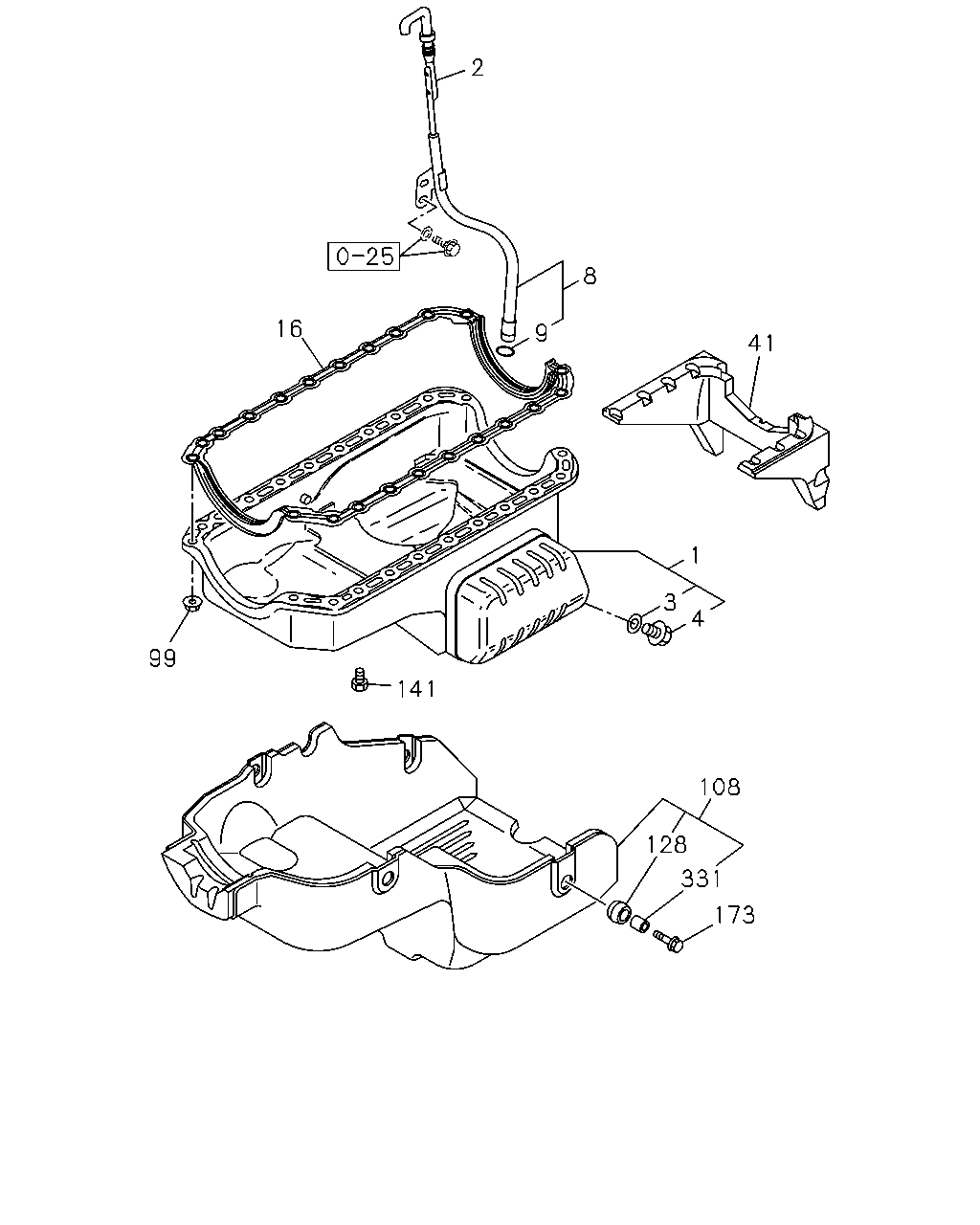

çizim 33444
2 8 16 9 41 1 3 4 99 141 108 128 331 173
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-97083-322-3 01 1 9704-0411 ●
1 PAN ASM; OIL 8-98000-123-0 01 1 0412- ●
1 PAN ASM; OIL 8-98000-124-0 01 1 1112- ●
2 GAUGE; OIL LEVEL 8-97092-924-0 01 1 9704-9905 ●
2 GAUGE; OIL LEVEL 8-97231-295-0 01 1 9906-0209 ●
2 GAUGE; OIL LEVEL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> 		8-97231-295-0 01 1 0210-1111 ●
2 GAUGE; OIL LEVEL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> 		8-97231-295-0 01 1 1112- ●
2 GAUGE; OIL LEVEL 8-97231-295-0 01 1 1112- ●
2 GAUGE; OIL LEVEL
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> 		8-97092-924-0 01 1 0210-1005 ●
2 GAUGE; OIL LEVEL
EXC. TURBOCHARGER<K51> 		8-97092-924-0 01 1 1006- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 9704-1111 ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1112- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 9704-1111 ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1112- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 9704- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 1112- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9704- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 1112- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 9704-1111 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 1112- ● ●
41 RUBBER; SPACE 8-97286-992-0 01 1 1112- ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 10 1 9704-1111 ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE 		5-09440-010-0 10 1 1112- ● ●
108 COVER; OIL PAN 8-98066-954-1 01 1 1112- ●
128 RUBBER; MTG,OIL PAN 8-97227-521-0 04 1 1112- ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 9704-1111 ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 1112- ● ●
173 BOLT; COVER
M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 1112- ●
331 COLLAR; MTG RUBBER 8-97224-450-0 04 1 1112- ●
