0-12 — CYLINDER BLOCK (#72495) — 152 parça

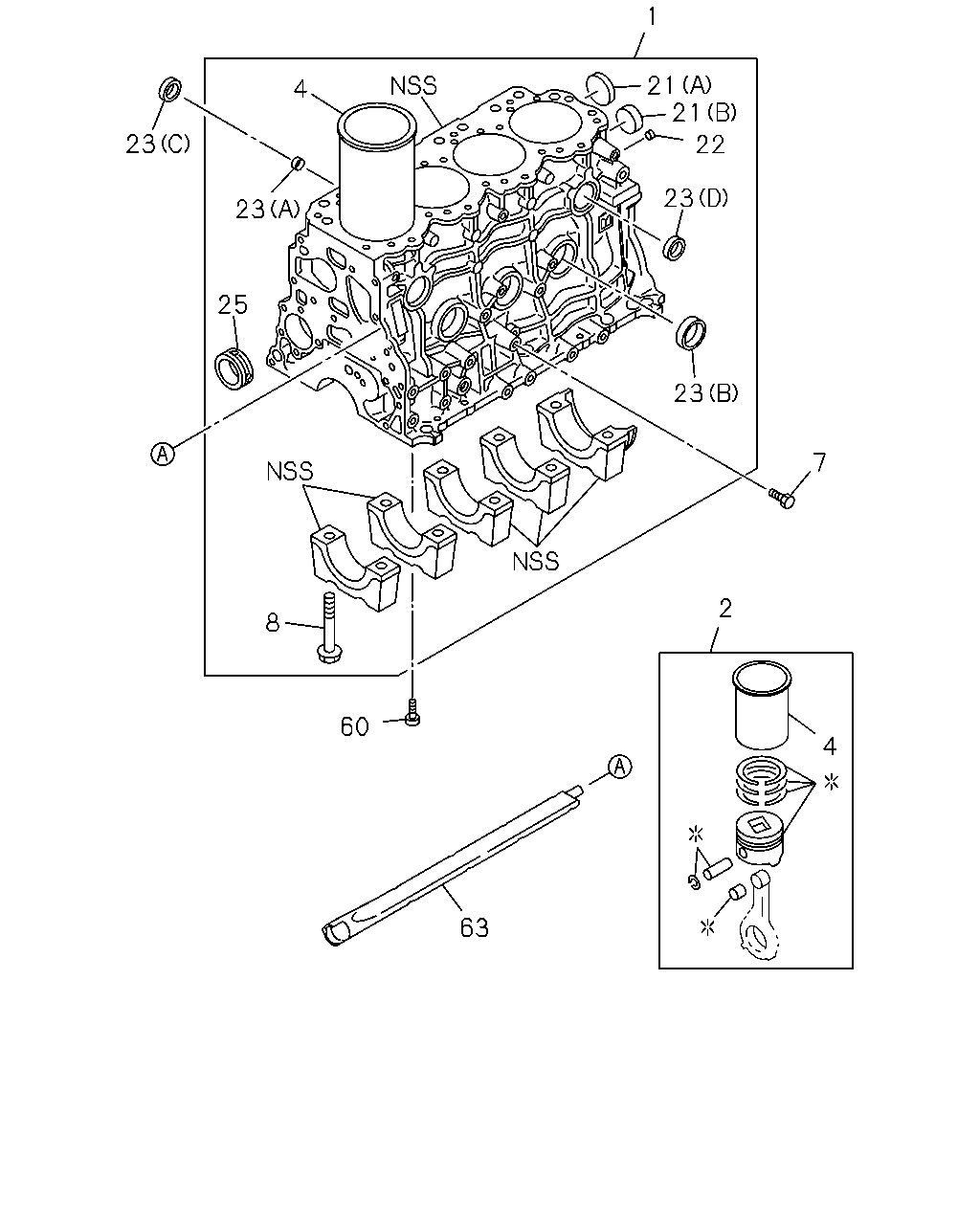

çizim 28368
1 21 21 4 23 22 23 23 25 23 7 2 8 60 4 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-94437-397-7 01 1 9704-0209 ●
1 BLOCK ASM; CYL 8-97352-707-2 01 1 0210-1111 ●
1 BLOCK ASM; CYL 8-97352-707-2 01 1 1112- ● ●
2 LINER SET; ENG CYL
GRADE=1 		5-87813-193-0 04 1 9704-0209 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=1 		5-87813-193-2 04 1 0210-1111 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=1 		5-87813-193-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=2 		5-87813-194-0 04 1 9704-0209 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=2 		5-87813-194-2 04 1 0210-1111 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=2 		5-87813-194-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=3 		5-87813-195-0 04 1 9704-0209 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=3 		5-87813-195-2 04 1 0210-1111 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=3 		5-87813-195-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=4 		5-87813-196-0 04 1 9704-0209 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=4 		5-87813-196-2 04 1 0210-1111 ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> GRADE=4 		5-87813-196-2 04 1 1112- ●
2 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 1112- ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> GRADE=1 		5-87813-181-3 04 1 0210-1005 ●
2 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> GRADE=1 		5-87813-181-3 04 1 1006- ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> GRADE=2 		5-87813-182-3 04 1 0210-1005 ●
2 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> GRADE=2 		5-87813-182-3 04 1 1006- ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> GRADE=3 		5-87813-183-3 04 1 0210-1005 ●
2 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> GRADE=3 		5-87813-183-3 04 1 1006- ●
2 LINER SET; ENG CYL
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> GRADE=4 		5-87813-184-3 04 1 0210-1005 ●
2 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> GRADE=4 		5-87813-184-3 04 1 1006- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 1112- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 9704-1111 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 1112- ● ●
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 9704-1111 ●
7 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 03 1 1112- ● ●
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9704-1111 ●
8 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1112- ● ●
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 9704-1111 ●
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1112- ● ●
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 9704-1111 ●
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1112- ● ●
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 9704-1111 ●
22 CUP; SEALING,DUCT HOLE
OD=12.3 		5-09600-013-0 01 1 1112- ● ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		1-09600-005-1 03 1 9704-0209 ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0210-1111 ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1112- ● ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=18 		5-11219-008-0 03 1 9704-1111 ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=18 		5-11219-008-0 03 1 1112- ● ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 9704-1111 ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 1112- ● ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 9704-0209 ●
23 CUP; SEALING,C/BL FRT & RR
GENERATOR DENSO(7KH) TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 02 1 0210-1111 ●
23 CUP; SEALING,C/BL FRT & RR
GENERATOR DENSO(7KH) TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 02 1 1112- ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 1112- ●
23 CUP; SEALING,C/BL FRT & RR
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 03 1 0210-1005 ●
23 CUP; SEALING,C/BL FRT & RR
EXC. TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 03 1 1006- ●
25 METAL; CM/SHF
FRONT 		8-94427-206-2 01 1 9704-0411 ●
25 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0411-1111 ●
25 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 1112- ● ●
25 METAL; CM/SHF
CENTER & REAR 		8-94427-201-2 02 1 9704-0411 ●
25 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 0411-1111 ●
25 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 1112- ● ●
60 BOLT; OIL JET
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> M16X12 		9-99202-316-0 01 1 0210-0606 ●
60 BOLT; OIL JET
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> M16X12 		0-92002-416-0 01 1 0607-1005 ●
60 BOLT; OIL JET
EXC. TURBOCHARGER<K51> M16X12 		0-92002-416-0 01 1 1006- ●
63 DUCT; WATER,C/BL 8-94419-436-2 01 1 9704-1111 ●
63 DUCT; WATER,C/BL 8-94419-436-2 01 1 1112- ● ●

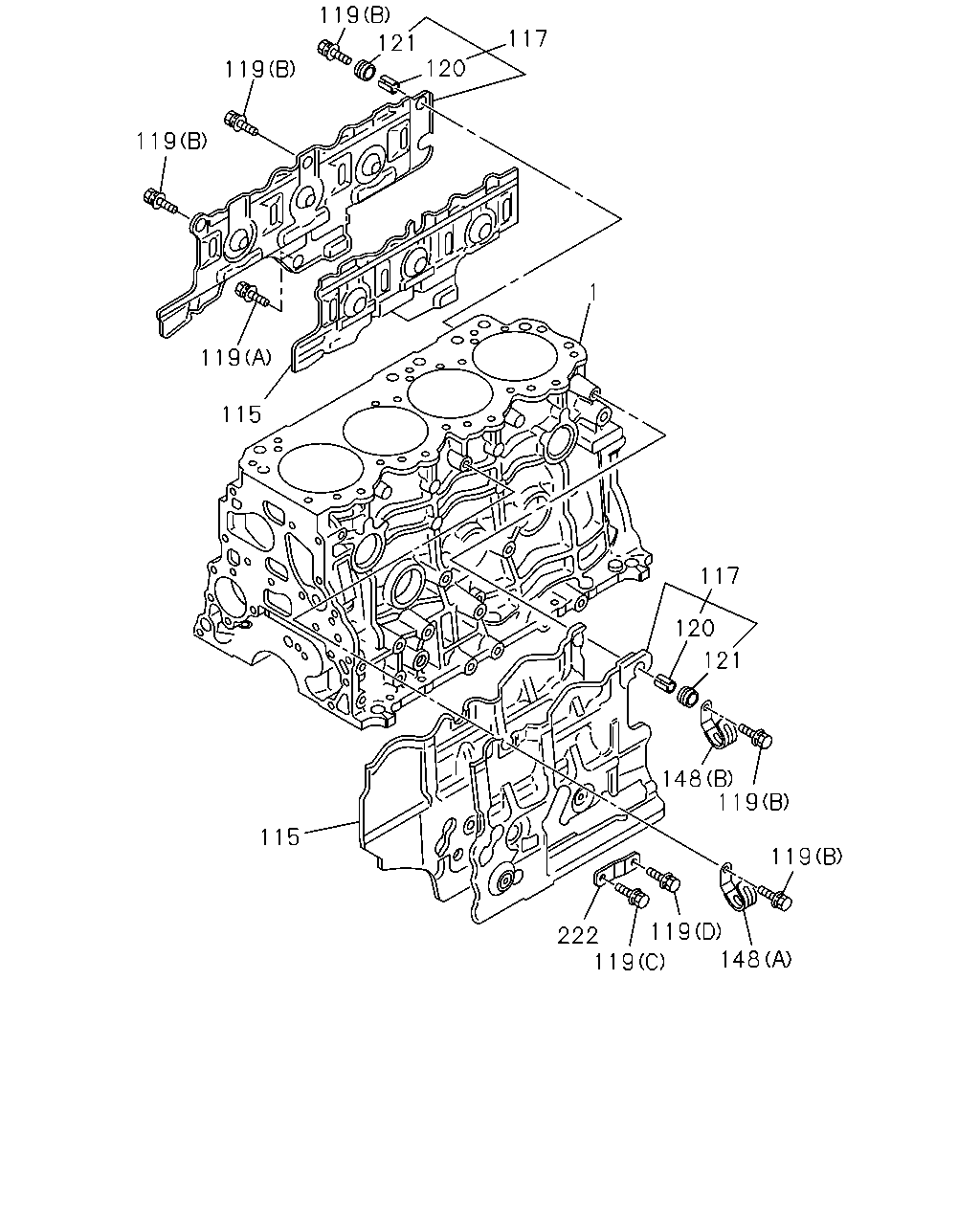

çizim 28552
119 121 117 120 119 119 1 119 115 117 120 121 148 119 115 119 119 148 222 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-94437-397-7 01 1 9704-0209 ●
1 BLOCK ASM; CYL 8-97352-707-2 01 1 0210-1111 ●
1 BLOCK ASM; CYL 8-97352-707-2 01 1 1112- ● ●
115 RUBBER; SPACE 8-97204-193-0 01 1 1112-1304 ●
115 RUBBER; SPACE 8-97204-194-0 01 1 1112-1304 ●
117 COVER ASM; C/BL 8-97020-126-0 01 1 1112-1304 ●
117 COVER ASM; C/BL 8-97204-191-1 01 1 1112-1304 ●
119 BOLT; COVER FIX
(C) M8X10 FLANGE 		0-28050-810-0 01 1 1112-1304 ●
119 BOLT; COVER FIX
(D) M10X20 W/LK WASHER 		0-50541-020-0 01 1 1112-1304 ●
119 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 1112-1304 ●
119 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1112-1304 ●
120 BUSHING; MTG RUBBER
OD=13 T=9.5 		8-94140-427-1 06 1 1112-1304 ●
121 RUBBER; MTG,COVER
OD=22 		8-94140-428-1 06 1 1112-1304 ●
148 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9704-9812 ●
148 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9901-9906 ●
148 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9907-0801 ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802-0907 ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0908-1111 ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1112-1304 ● ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1305- ●
148 CLIP; HARNESS
(B) L=91 ID=8.5 		8-94329-956-0 01 1 9907-1111 ●
148 CLIP; HARNESS
(B) L=91 ID=8.5 		8-94329-956-0 01 1 1112-1304 ● ●
148 CLIP; HARNESS
(B) L=91 ID=8.5 		8-94329-956-0 01 1 1305- ●
222 BRACKET; COVER,C/BL 8-97209-129-0 01 1 1112-1304 ●

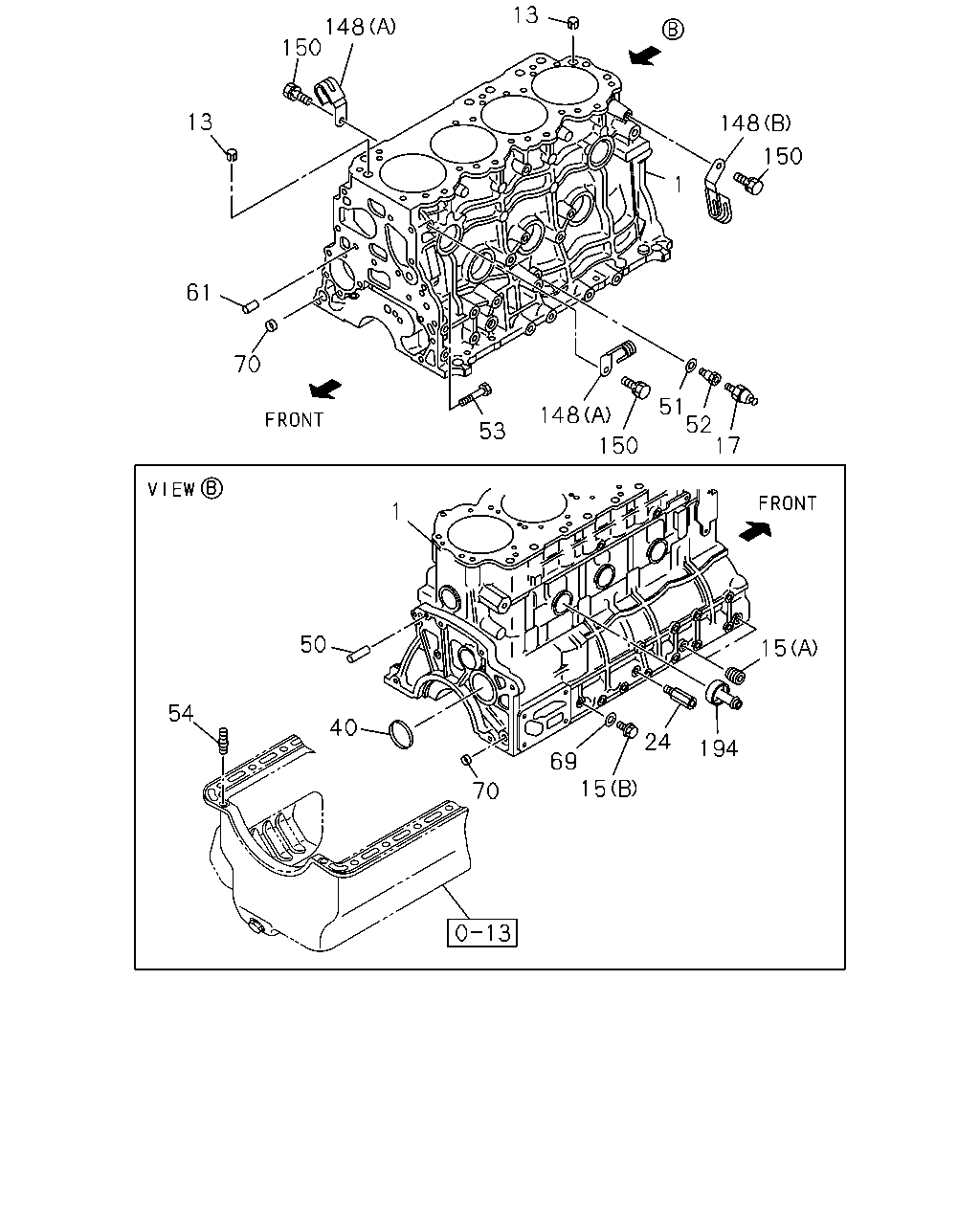

çizim 28848
13 148 1 150 148 13 150 53 148 51 52 17 150 70 61 54 40 50 70 69 15 24 194 15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-94437-397-7 01 1 9704-0209 ●
1 BLOCK ASM; CYL 8-97352-707-2 01 1 0210-1111 ●
1 BLOCK ASM; CYL 8-97352-707-2 01 1 1112- ● ●
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9704-1111 ●
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1112- ● ●
15 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 9704-1111 ●
15 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 1112- ● ●
15 PLUG; OIL GALLERY
GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> (B) M14X14 		8-94152-613-0 01 1 0210-1005 ●
15 PLUG; OIL GALLERY
EXC. TURBOCHARGER<K51> (B) M14X14 		8-94152-613-0 01 1 1006- ●
17 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 9704-1111 ●
17 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 1112- ● ●
24 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 9704-1111 ●
24 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 1112- ● ●
40 CUP; SEALING,C/BL RR
OD=56 		8-94250-514-1 01 1 9704-1111 ●
40 CUP; SEALING,C/BL RR
OD=56 		8-94250-514-1 01 1 1112- ● ●
50 PIN; STRAIGHT,RR PLATE
OD=10 L=32 		9-08161-032-0 01 1 9704-1111 ●
50 PIN; STRAIGHT,RR PLATE
OD=10 L=32 		9-08161-032-0 01 1 1112- ● ●
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 9704-0402 ●
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1006-1111 ●
51 GASKET; OIL PRESS WARNING SW,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1112- ● ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-94167-749-2 01 1 9704- ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-98089-872-0 01 1 1112-1501 ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-94167-750-2 01 1 1502- ●
53 BOLT; REAMER
M10X52 		9-09806-020-0 01 1 9704-1111 ●
53 BOLT; REAMER
M10X52 		9-09806-020-0 01 1 1112- ● ●
54 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 9704-1111 ●
54 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 1112- ● ●
61 PIN; STRAIGHT
OD=10 L=20 		9-08151-020-0 02 1 9704-0201 ●
61 PIN; STRAIGHT
OD=10 L=20 		8-97135-423-0 02 1 0202- ●
61 PIN; STRAIGHT
OD=10 L=20 		8-97135-423-0 01 1 1112- ●
69 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). GENERATOR DENSO(7KH) EXC. TURBOCHARGER<K51> ID=14.2 OD=20.0 		9-09571-414-0 01 1 0210-1005 ●
69 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> ID=14.2 OD=20.0 		9-09571-414-0 01 1 1006- ●
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 02 1 9704-1111 ●
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 02 1 1112- ● ●
148 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9704-9812 ●
148 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9901-9906 ●
148 CLIP; HARNESS
(A) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 9907-0801 ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802-0907 ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0908-1111 ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1112-1304 ● ●
148 CLIP; HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1305- ●
148 CLIP; HARNESS
(B) L=91 ID=8.5 		8-94329-956-0 01 1 9907-1111 ●
148 CLIP; HARNESS
(B) L=91 ID=8.5 		8-94329-956-0 01 1 1112-1304 ● ●
148 CLIP; HARNESS
(B) L=91 ID=8.5 		8-94329-956-0 01 1 1305- ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 03 1 9704-0512 ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
150 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1112-1304 ●
194 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 9704-0209 ●
194 PIPE; OIL DRAIN,C/BL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> 		8-97137-781-0 01 1 0210-1111 ●
194 PIPE; OIL DRAIN,C/BL
GENERATOR DENSO(7KH) TURBOCHARGER<K51> 		8-97137-781-0 01 1 1112- ●
194 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
