3-40 — FRONT BRAKE POWER CHAMBER (#7249) — 50 parça

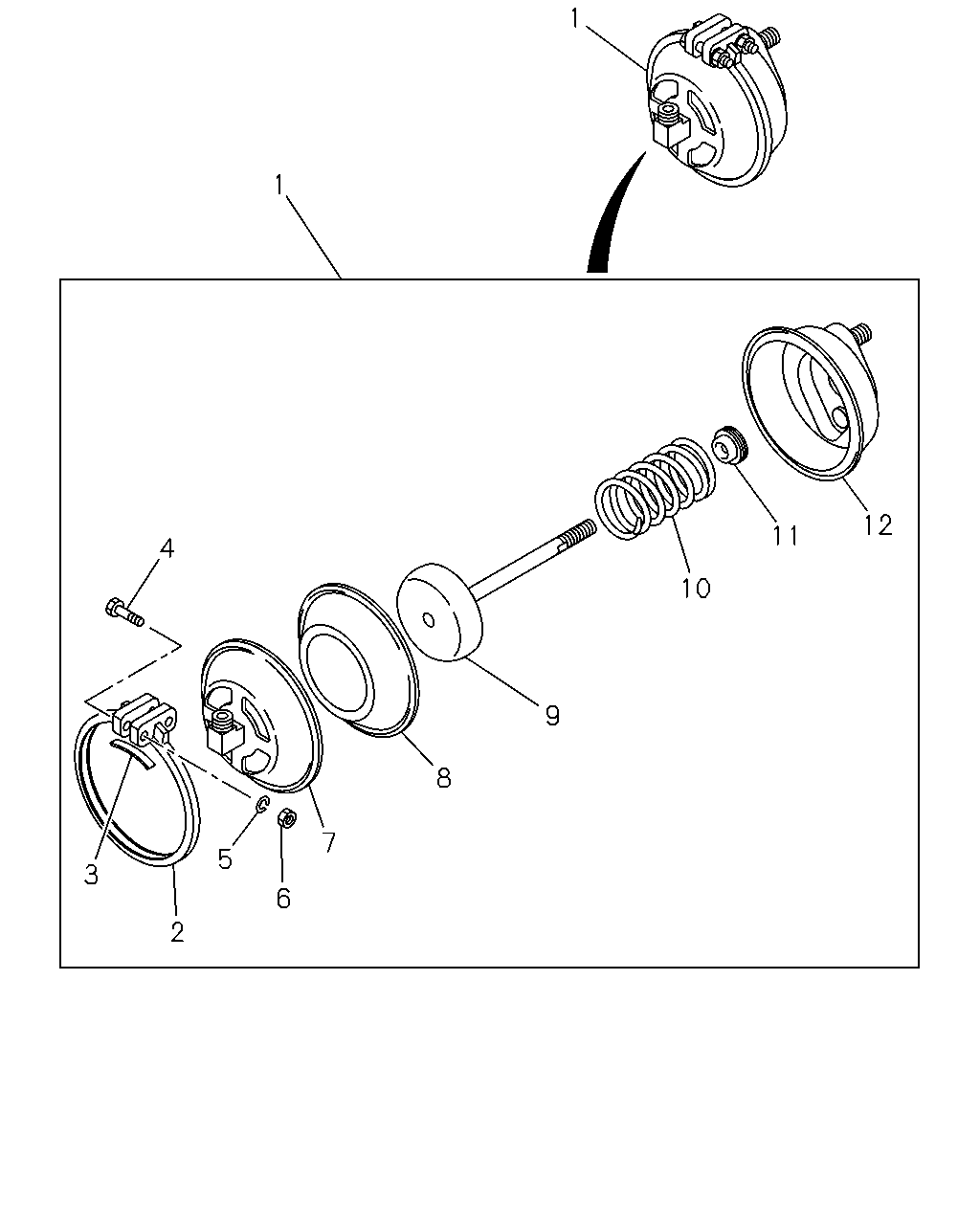

çizim 43589
1 1 12 11 4 10 9 8 7 5 3 6 2
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48250-425-0 02 1 9906-9912
1 CHAMBER ASM; POWER,FRT BRK
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG),BRAKE REGULATION ECE<TDV> 		1-48250-425-0 02 1 0001-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48250-425-0 01 1 0001-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48250-518-0 01 1 0001-
1 CHAMBER ASM; POWER,FRT BRK
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48250-338-0 02 1 9906-9906
1 CHAMBER ASM; POWER,FRT BRK
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48250-338-0 02 1 9907-9912
1 CHAMBER ASM; POWER,FRT BRK
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48250-338-0 02 1 0001-
2 RING; CLAMP,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		9-48259-049-0 02 1 9906-9912
2 RING; CLAMP,SPR CHAMBER
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		9-48259-049-0 02 1 0001-
2 RING; CLAMP,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48259-001-0 02 1 9906-9906
2 RING; CLAMP,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48259-001-0 02 1 9907-9912
2 RING; CLAMP,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48259-001-0 02 1 0001-
3 RETAINER; DIAPH
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		9-48259-016-0 02 1 9906-9912
3 RETAINER; DIAPH
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG),BRAKE REGULATION ECE<TDV> 		9-48259-016-0 02 1 0001-
3 RETAINER; DIAPH
BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		9-48259-016-0 01 1 0001-
3 RETAINER; DIAPH
BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48250-044-0 01 1 0001-
3 RETAINER; DIAPH
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		9-48259-016-0 04 1 9906-9906
3 RETAINER; DIAPH
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		9-48259-016-0 04 1 9907-9912
3 RETAINER; DIAPH
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		9-48259-016-0 04 1 0001-
4 BOLT; CLAMP RING 1-48259-002-0 04 1 9906-
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 9906-
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 9906-
7 COVER ASM; UPR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48251-050-0 02 1 9906-9912
7 COVER ASM; UPR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG),BRAKE REGULATION ECE<TDV> 		1-48251-050-0 02 1 0001-
7 COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48251-050-0 01 1 0001-
7 COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48251-051-0 01 1 0001-
7 COVER ASM; UPR,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48251-039-0 02 1 9906-9906
7 COVER ASM; UPR,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48251-039-0 02 1 9907-9912
7 COVER ASM; UPR,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48251-039-0 02 1 0001-
8 DIAPHRAGM; SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48252-009-0 02 1 9906-9912
8 DIAPHRAGM; SPR CHAMBER
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48252-009-0 02 1 0001-
8 DIAPHRAGM; SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48252-006-0 02 1 9906-9906
8 DIAPHRAGM; SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48252-006-0 02 1 9907-9912
8 DIAPHRAGM; SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48252-006-0 02 1 0001-
9 PISTON; SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48253-003-0 02 1 9906-9912
9 PISTON; SPR CHAMBER
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48253-003-0 02 1 0001-
9 PISTON; SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48253-001-0 02 1 9906-9906
9 PISTON; SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48253-001-0 02 1 9907-9912
9 PISTON; SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48253-001-0 02 1 0001-
10 SPRING; PISTON,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		9-48255-012-0 02 1 9906-9912
10 SPRING; PISTON,SPR CHAMBER
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		9-48255-012-0 02 1 0001-
10 SPRING; PISTON,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48255-001-0 02 1 9906-9906
10 SPRING; PISTON,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48255-001-0 02 1 9907-9912
10 SPRING; PISTON,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48255-001-0 02 1 0001-
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 9906-
12 COVER ASM; LWR,SPR CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48251-023-0 02 1 9906-9912
12 COVER ASM; LWR,SPR CHAMBER
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISHALCOA(SHG) 		1-48251-023-0 02 1 0001-
12 COVER ASM; LWR,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-48251-019-0 02 1 9906-9906
12 COVER ASM; LWR,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) 		1-48251-019-0 02 1 9907-9912
12 COVER ASM; LWR,SPR CHAMBER
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA(SHG) EXC. BRAKE REGULATION ECE<TDV> 		1-48251-019-0 02 1 0001-
