◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#72489) — 49 parça
çizim 5173
7 7 226 6 6 226 1 3 268 34 7 1 7 6 226 6 4 226
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97120-649-0 01 1 9704-9912 ● ●
1 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0001- ● ●
3 ATTACH KIT; AM/FM RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION 		8-97093-559-0 01 1 9704-0307 ● ●
4 CASSETTE DECK; AUDIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION 		8-97088-291-0 01 1 9704- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A) 		8-97853-615-2 01 1 9704- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A) 		8-97853-614-2 01 1 9704- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-104-1 01 1 9704- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-97859-103-1 01 1 9704- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9704-0604 ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ●
7 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		9-03920-510-0 08 1 9704-0604 ● ●
7 SCREW; RADIO
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		0-36230-510-0 08 1 0605- ● ●
34 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 9704- ● ●
226 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9704-1210 ● ●
226 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
226 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704-1210 ● ●
226 BOLT; BRKT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
268 KNOB; VOL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION 		8-97093-559-0 01 1 0308- ● ●

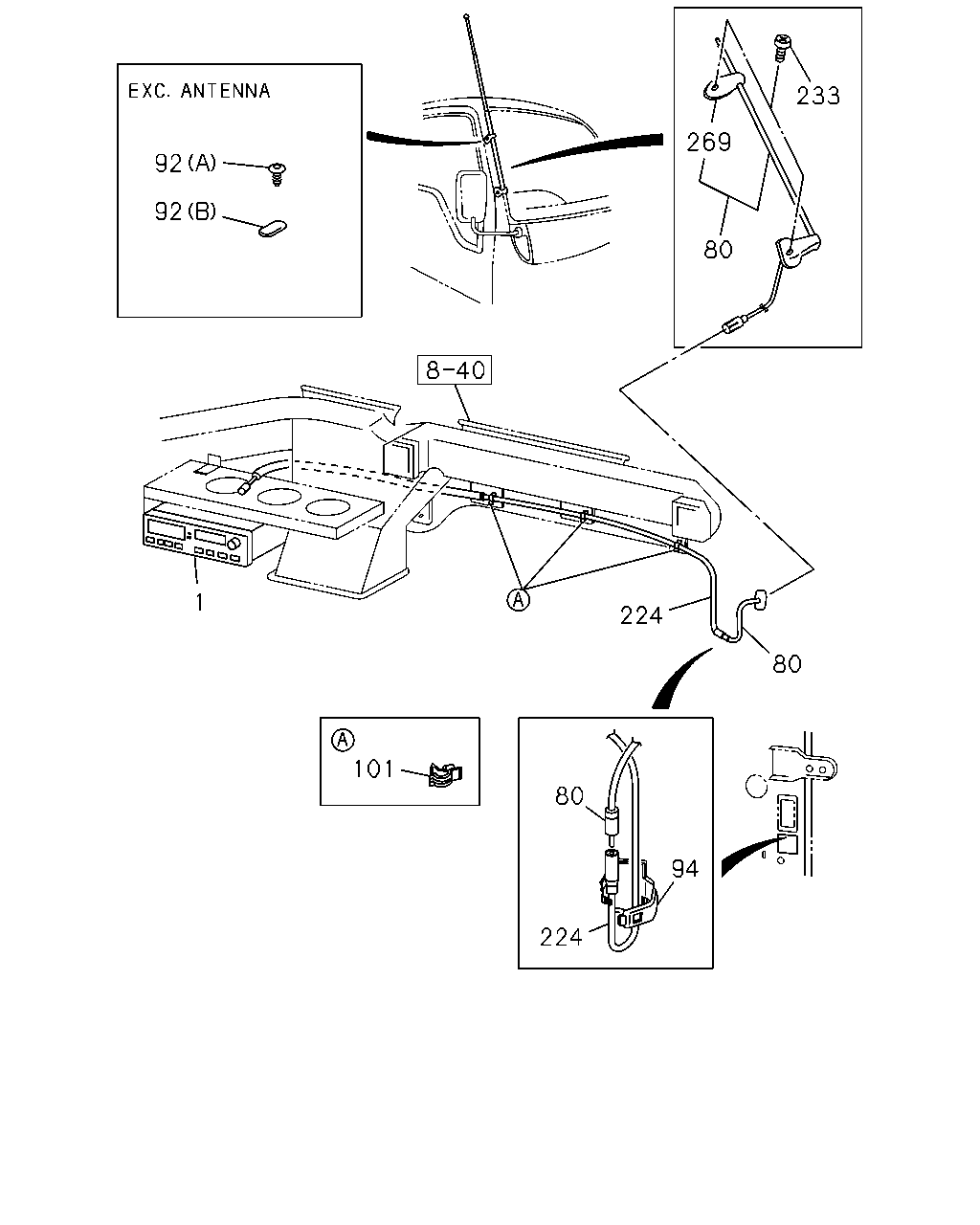

çizim 14485
233 269 92 92 80 1 224 80 101 80 94 224
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97120-649-0 01 1 9704-9912 ● ●
1 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM 		8-97241-542-0 01 1 0001- ● ●
80 ANTENNA
ANTENNA<U73> 		8-97070-022-2 01 1 9704-9809 ● ●
80 ANTENNA
ANTENNA<U73> 		8-97210-546-0 01 1 9810-9903 ● ●
80 ANTENNA
ANTENNA<U73> 		8-97211-564-0 01 1 9904- ● ●
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (A) OD=12 L=14.8 		8-94279-921-0 01 1 9704- ● ●
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-3 01 1 9704- ● ●
94 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-3 01 1 9704- ● ●
101 CLIP; FEEDER TO BRKT
ANTENNA<U73> ID=7 		5-09707-053-0 03 1 9704- ● ●
224 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97118-847-0 01 1 9704-9811 ● ●
224 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97213-766-0 01 1 9812- ● ●
233 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 9704- ● ●
233 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 9704- ● ●
269 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97108-183-0 01 1 9704-9903 ● ●
269 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97219-079-0 01 1 9904- ● ●

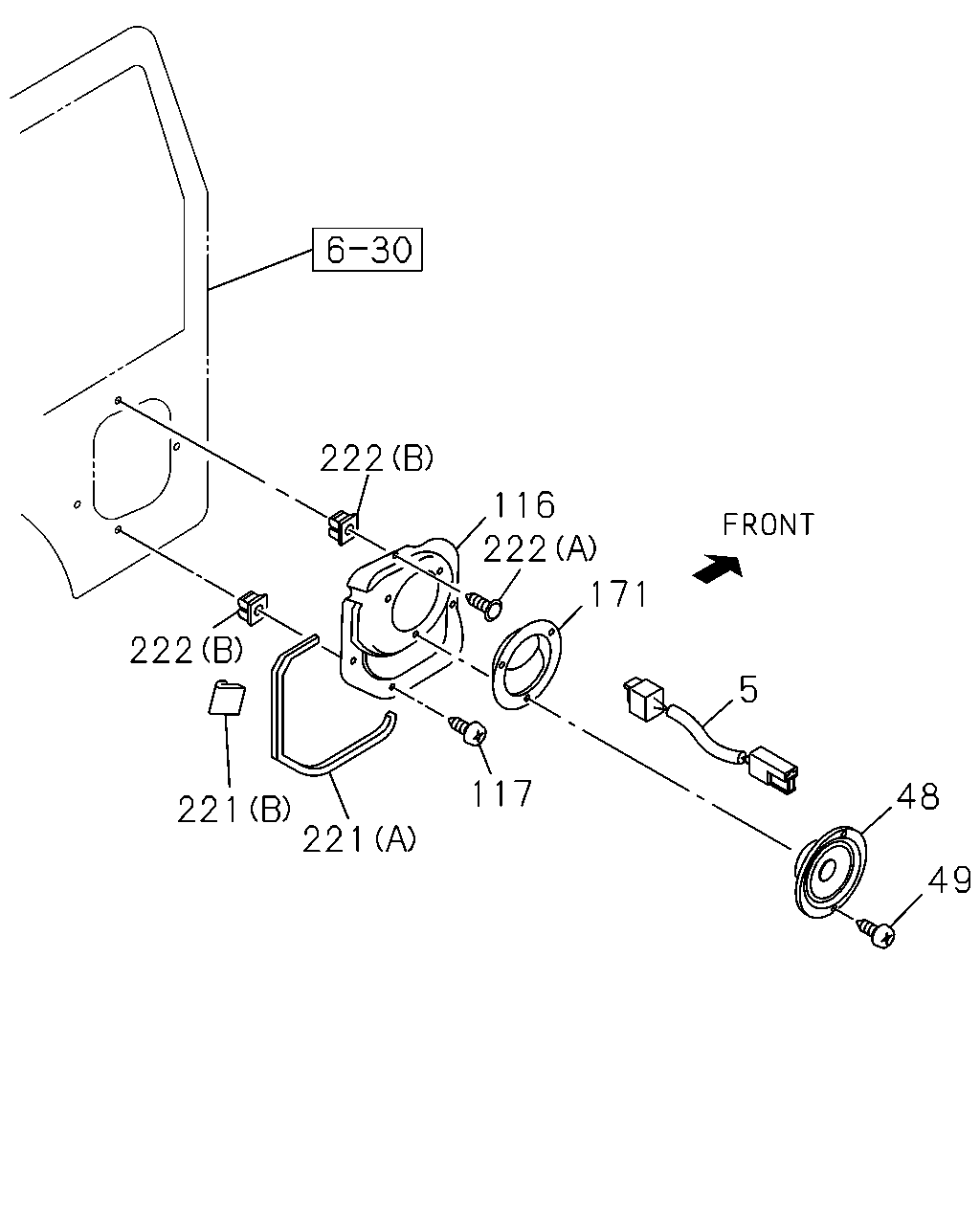

çizim 190548
222 116 222 171 222 5 117 48 221 221 49
BalonParca AdiParca NoAdetTipApplied Date A B
5 HARNESS; EXT
ANTENNA<U73> 		8-97131-327-0 02 1 9704- ● ●
48 SPEAKER; AUDIO
ANTENNA<U73> 		8-97169-451-0 02 1 9704-9809 ● ●
48 SPEAKER; AUDIO
ANTENNA<U73> 		8-97207-695-0 02 1 9810-9902 ● ●
48 SPEAKER; AUDIO
ANTENNA<U73> 		8-97223-098-0 02 1 9903-0204 ● ●
48 SPEAKER; AUDIO
ANTENNA<U73> 		8-97317-001-1 02 1 0205- ● ●
49 SCREW; SPEAKER
ANTENNA<U73> M5X14 		8-94279-325-0 06 1 9704-0612 ● ●
49 SCREW; SPEAKER
ANTENNA<U73> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0701- ● ●
116 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> 		8-97852-325-3 01 1 9704- ● ●
116 PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> 		8-97852-324-3 01 1 9704- ● ●
117 SCREW; SPEAKER PANEL
ANTENNA<U73> M5X14 		8-94279-325-0 06 1 9704- ● ●
171 COVER; SPEAKER
ANTENNA<U73> 		8-97852-331-4 02 1 9704- ● ●
221 SEAL; SPEAKER PANEL
ANTENNA<U73> (A) 		8-97852-327-5 02 1 9704- ● ●
221 SEAL; SPEAKER PANEL
ANTENNA<U73> (B) 		8-97852-601-2 02 1 9704- ● ●
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> (A) 		1-09987-144-0 02 1 9704- ● ●
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> (B) D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9704-9705 ● ●
222 GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9706- ● ●
