Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

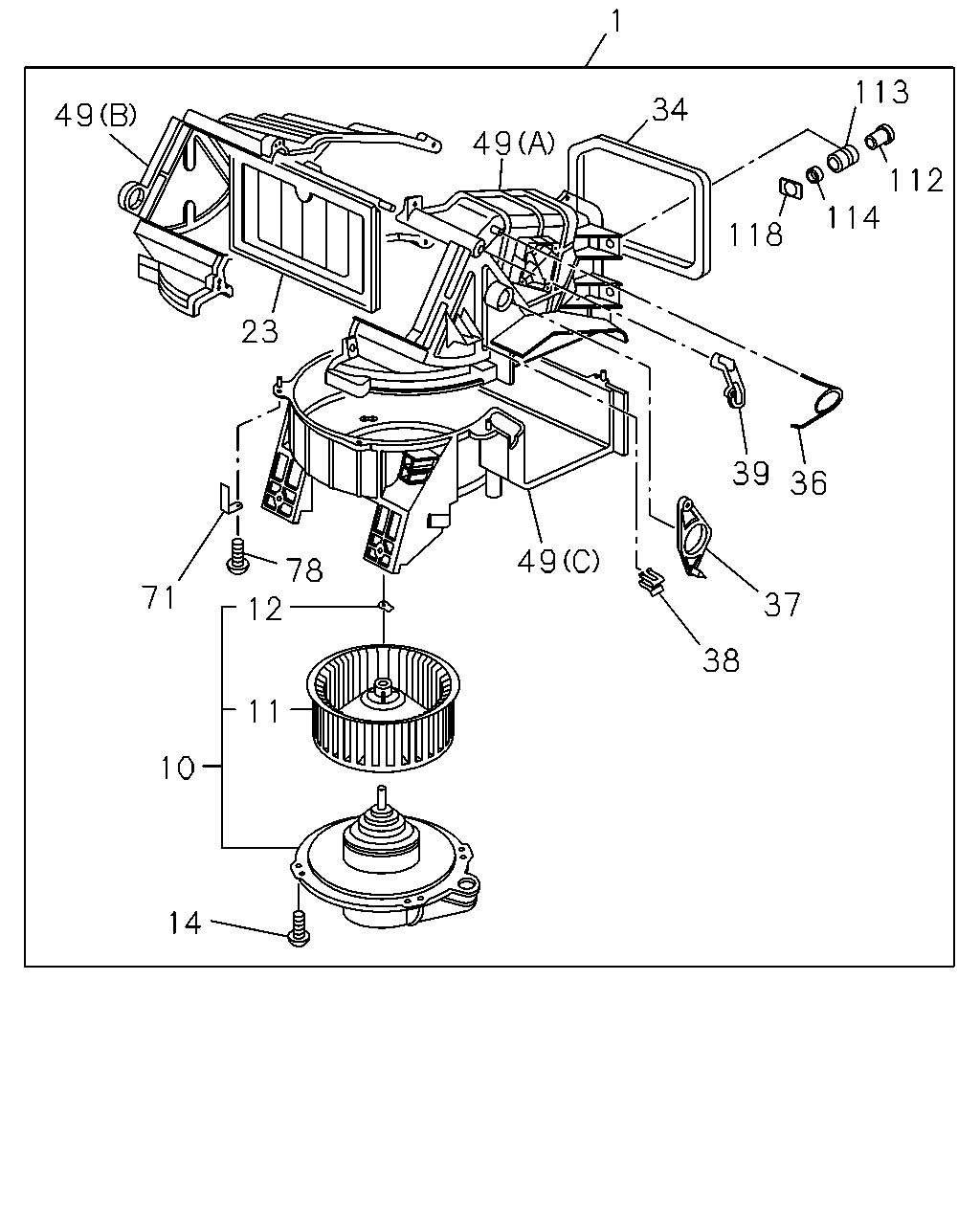

8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#72487) — 24 parça
Tümü
A - NPC5SF
B - NPC5SK
1
113
34
49
49
112
114
118
23
39
36
49
78
12
71
37
38
11
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BLOWER ASM
8-97106-316-3
01
1
9704-9902
●
●
1
BLOWER ASM
8-97227-479-0
01
1
9903-0009
●
●
1
BLOWER ASM
8-97288-165-0
01
1
0010-
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
8-97085-607-2
01
1
9704-9809
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
8-97211-950-0
01
1
9810-
●
●
11
IMPELLER; FAN MOTOR
8-97089-700-0
01
1
9704-
●
●
12
RING; SNAP,FAN MOTOR
8-94243-962-0
01
1
9704-
●
●
14
SCREW; COVER TO CASE
M5X20
9-09829-324-1
04
1
9704-
●
●
23
SHUTTER; BLOWER UNIT
8-97096-640-3
01
1
9704-
●
●
34
LINING; BLOWER UNIT
8-97085-612-1
01
1
9704-
●
●
36
SPRING; BLOWER UNIT
8-94233-123-0
01
1
9704-9809
●
●
37
LEVER; MODE LEVER
8-97085-610-2
01
1
9704-
●
●
38
CLIP; BLOWER UNIT
8-94337-654-0
01
1
9704-
●
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97085-609-3
01
1
9704-
●
●
49
CASE; BLOWER UNIT
(C)
8-97085-606-0
01
1
9704-
●
●
49
CASE; BLOWER UNIT
(A)
8-97089-698-4
01
1
9704-
●
●
49
CASE; BLOWER UNIT
(B)
8-97089-699-3
01
1
9704-
●
●
71
CLIP; HARNESS
1-83574-080-0
01
1
9704-9902
●
●
71
CLIP; HARNESS
8-94158-260-0
01
1
9903-
●
●
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
9704-
●
●
112
ISOLATOR; CASE
8-97096-641-0
02
1
9704-
●
●
113
BUSHING; ISOLATOR
8-97096-642-0
02
1
9704-
●
●
114
NUT; ISOLATOR
M8 FLANGE
5-09440-005-0
02
1
9704-
●
●
118
BRACKET; BUSHING
8-97107-979-0
02
1
9704-
●
●
