8-65 — CONTROL LEVER; HEATER AND AIR CON (#72486) — 16 parça

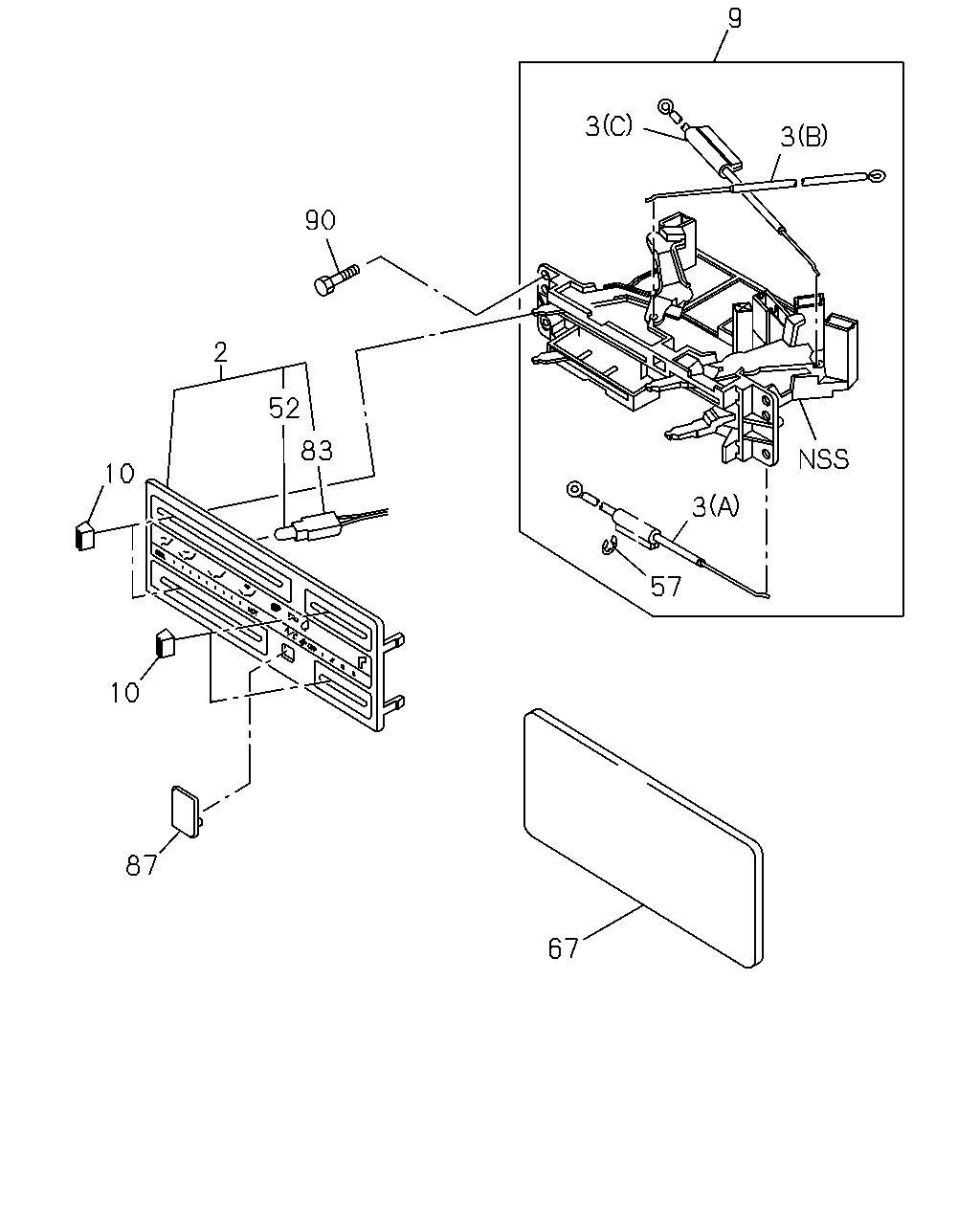

çizim 140863
9 3 3 90 2 52 83 10 3 57 10 87 67
BalonParca AdiParca NoAdetTipApplied Date A B
2 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 9704- ● ●
3 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 9704- ● ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97085-619-2 01 1 9704- ● ●
3 CABLE; HTR CONT LVR
(A) MIX 		8-97085-617-2 01 1 9709- ● ●
9 LEVER ASM; HTR & A/C CONT 8-97073-346-0 01 1 9704-9708 ● ●
9 LEVER ASM; HTR & A/C CONT 8-97048-613-4 01 1 9709- ● ●
10 KNOB; CONT LEVER
4HF1 ENG(RLS) 		8-97114-430-0 03 1 9704-9708 ● ●
10 KNOB; CONT LEVER
4HF1 ENG(RLS) 		8-97114-430-0 04 1 9709- ● ●
52 BULB; PANEL ILLUMINATION
28V 65MA 		8-97100-291-0 01 1 9704-0307 ● ●
52 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0308- ● ●
57 RING; SNAP,HTR CONT LVR 8-97262-535-0 01 1 0005- ● ●
67 CAP; BEZEL,CONT LEVER 8-97071-228-0 01 1 9704-9709 ● ●
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 9704- ● ●
87 CAP; A/C SWITCH 8-97065-448-2 01 1 9704- ● ●
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 9704-1210 ● ●
90 BOLT; CONT PANEL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ●
