◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#72485) — 23 parça

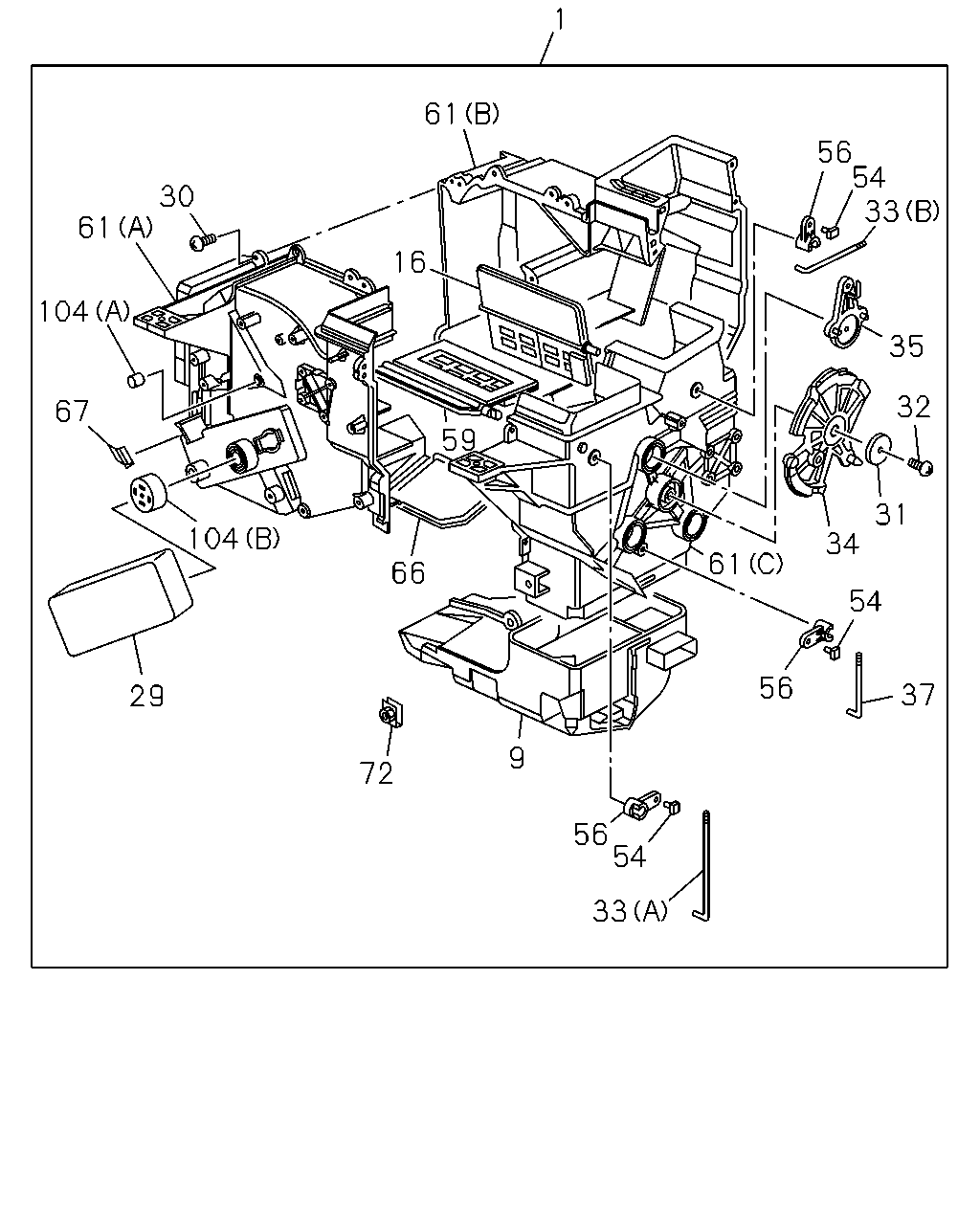

çizim 141218
61 56 54 33 30 61 16 104 35 32 67 59 31 104 34 61 66 54 56 37 29 9 72 56 54 33 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 8-97166-608-3 01 1 9704- ● ●
9 DUCT; HTR UNIT 8-97087-555-0 01 1 9704- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97087-559-2 01 1 9704- ● ●
29 COVER; HTR UNIT 8-97102-661-0 01 1 9704- ● ●
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 10 1 9704- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9704- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 9704- ● ●
33 ROD; SHUTTER LEVER
(A) 		8-97087-568-1 01 1 9704- ● ●
33 ROD; SHUTTER LEVER
(B) 		8-97087-569-1 01 1 9704- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97166-657-0 01 1 9704- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-97087-565-0 03 1 9704- ● ●
37 ROD; LEVER 8-97087-570-1 01 1 9704- ● ●
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 9704- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 9704- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97087-558-2 01 1 9704- ● ●
61 CASE; HTR UNIT
(B) 		8-97087-552-0 01 1 9704- ● ●
61 CASE; HTR UNIT
(C) 		8-97087-553-0 01 1 9704- ● ●
61 CASE; HTR UNIT
(A) 		8-97115-147-3 01 1 9704- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-97087-560-2 01 1 9704- ● ●
67 CLIP; HTR UNIT 8-94337-654-0 01 1 9704- ● ●
72 NUT; CASE,HTR UNIT 8-97085-613-0 02 1 9704- ● ●
104 CAP; CASE,HTR UNIT
(A) 		8-94328-657-0 04 1 9704- ● ●
104 CAP; CASE,HTR UNIT
(B) 		8-94387-703-0 01 1 9704- ● ●
