◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#72481) — 74 parça

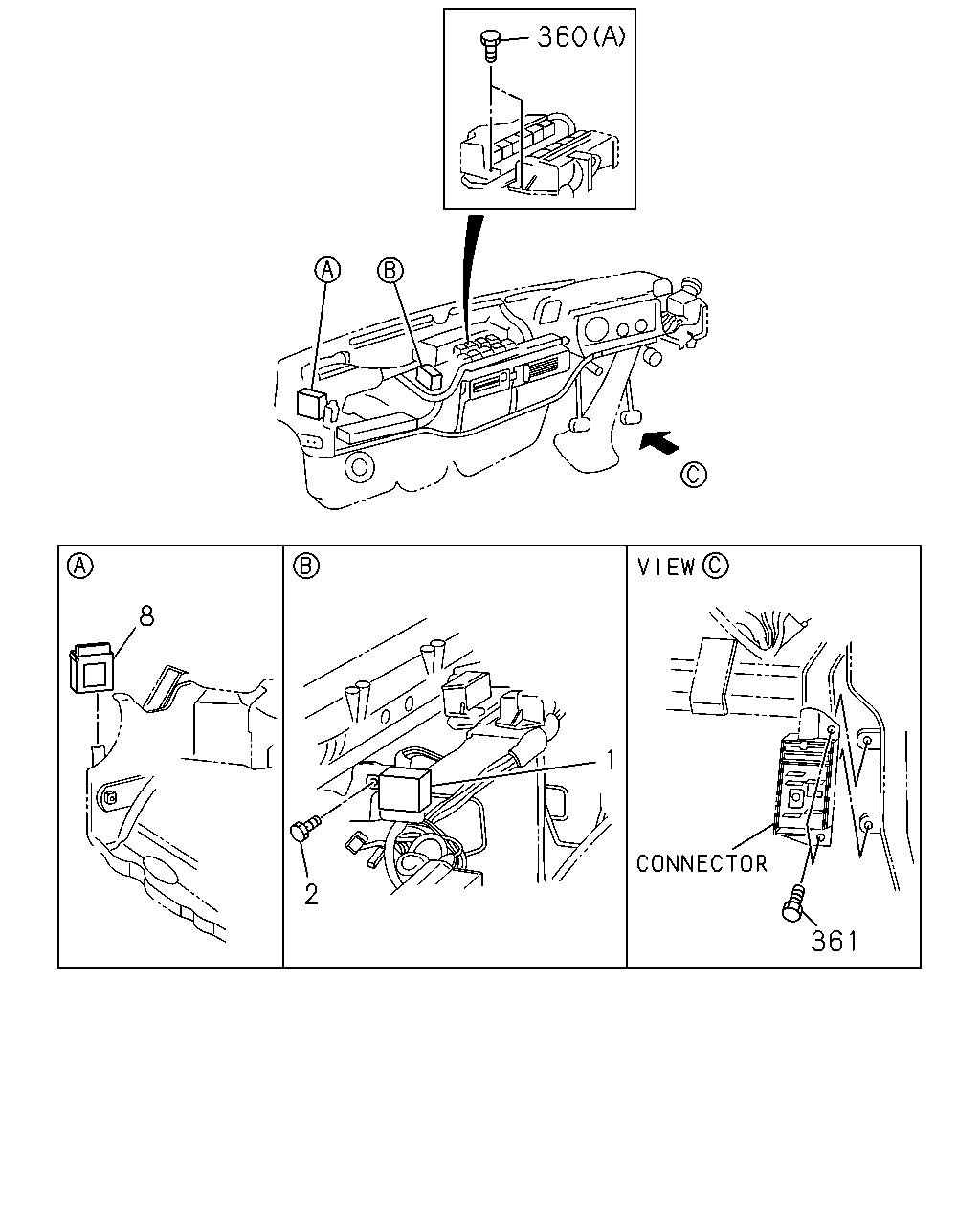

çizim 143890
360 8 1 2 361
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-97086-508-1 01 1 9704-0212 ● ●
1 UNIT; FLASHER 8-97360-084-1 01 1 0301- ● ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9704-1210 ● ●
2 BOLT; FLASHER UNIT
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97855-015-0 01 1 9704-0307 ● ●
8 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0308- ● ●
360 BOLT; RELAY BOX
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512 ● ●
360 BOLT; RELAY BOX
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 9704-0512 ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704-1210 ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9704-1210 ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9704-1210 ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●

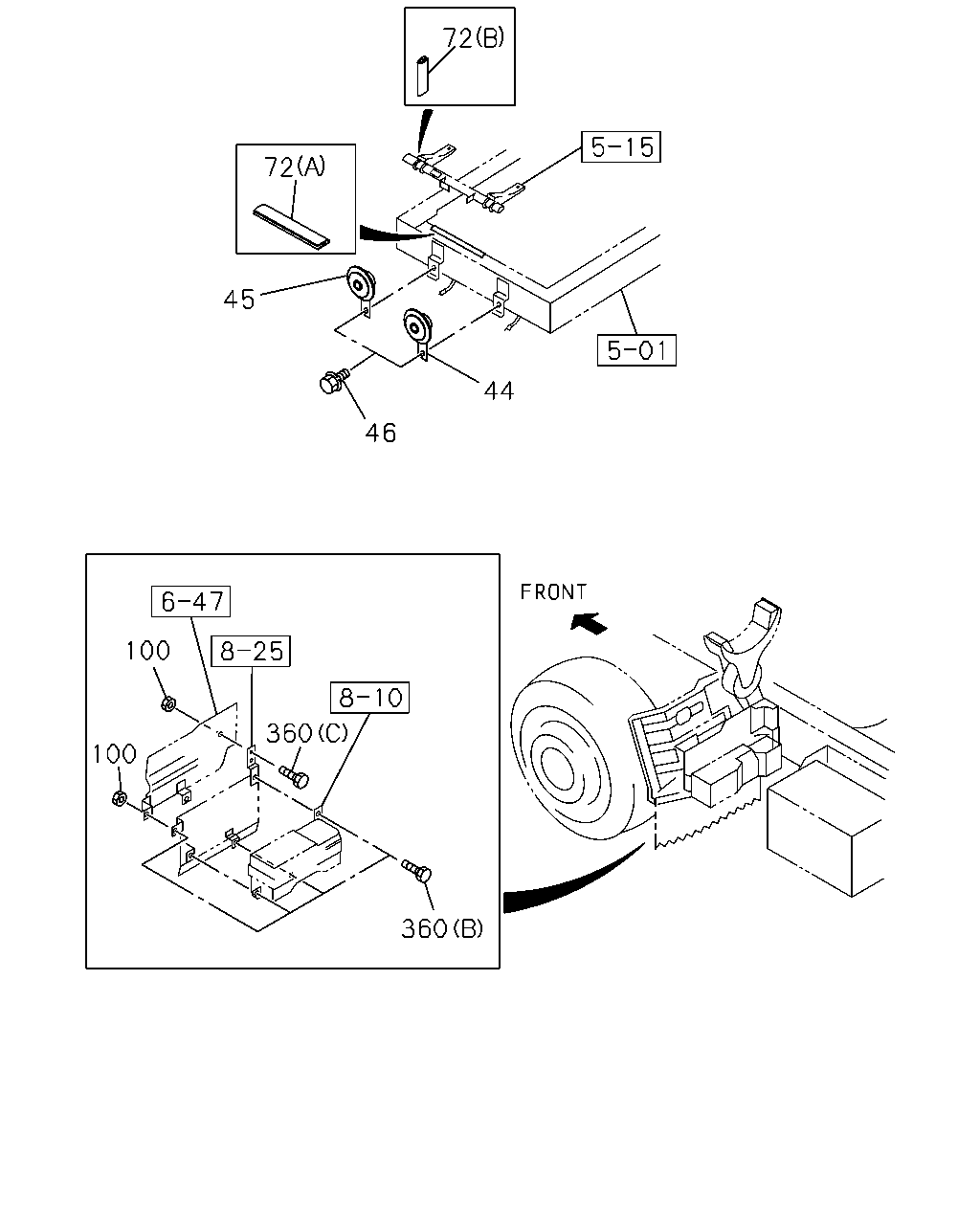

çizim 144062
72 72 45 44 46 100 360 100 360
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97109-363-0 01 1 9704-0307 ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97211-743-2 01 1 0308-1202 ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97211-741-2 01 1 1203- ● ●
45 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 		8-97109-364-1 01 1 9704- ● ●
46 BOLT; HORN TO BODY
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704- ● ●
46 BOLT; HORN TO BODY
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704- ● ●
72 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) (B) L=65 		8-94235-856-0 01 1 9704- ● ●
72 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) (A) L=200 		8-97096-423-0 01 1 9704- ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 02 1 9704-0602 ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
360 BOLT; RELAY BOX
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512 ● ●
360 BOLT; RELAY BOX
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 9704-0512 ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704-1210 ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
çizim 190540
22 11 29
BalonParca AdiParca NoAdetTipApplied Date A B
11 RELAY; DIMMER
4HG1-T ENG(RDP) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1508 ● ●
11 RELAY; DIMMER
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
11 RELAY; DIMMER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9704-0104 ● ●
11 RELAY; DIMMER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-1111 ● ●
11 RELAY; DIMMER
4HF1 ENG(RLS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1508 ● ●
11 RELAY; DIMMER
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
11 RELAY; DIMMER
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
22 RELAY; STOP LAMP
4HG1-T ENG(RDP) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1508 ● ●
22 RELAY; STOP LAMP
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9704-0104 ● ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-1111 ● ●
22 RELAY; STOP LAMP
4HF1 ENG(RLS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1508 ● ●
22 RELAY; STOP LAMP
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
22 RELAY; STOP LAMP
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
29 RELAY; HORN
4HG1-T ENG(RDP) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1508 ● ●
29 RELAY; HORN
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9704-0104 ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-1111 ● ●
29 RELAY; HORN
4HF1 ENG(RLS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1508 ● ●
29 RELAY; HORN
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
29 RELAY; HORN
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●

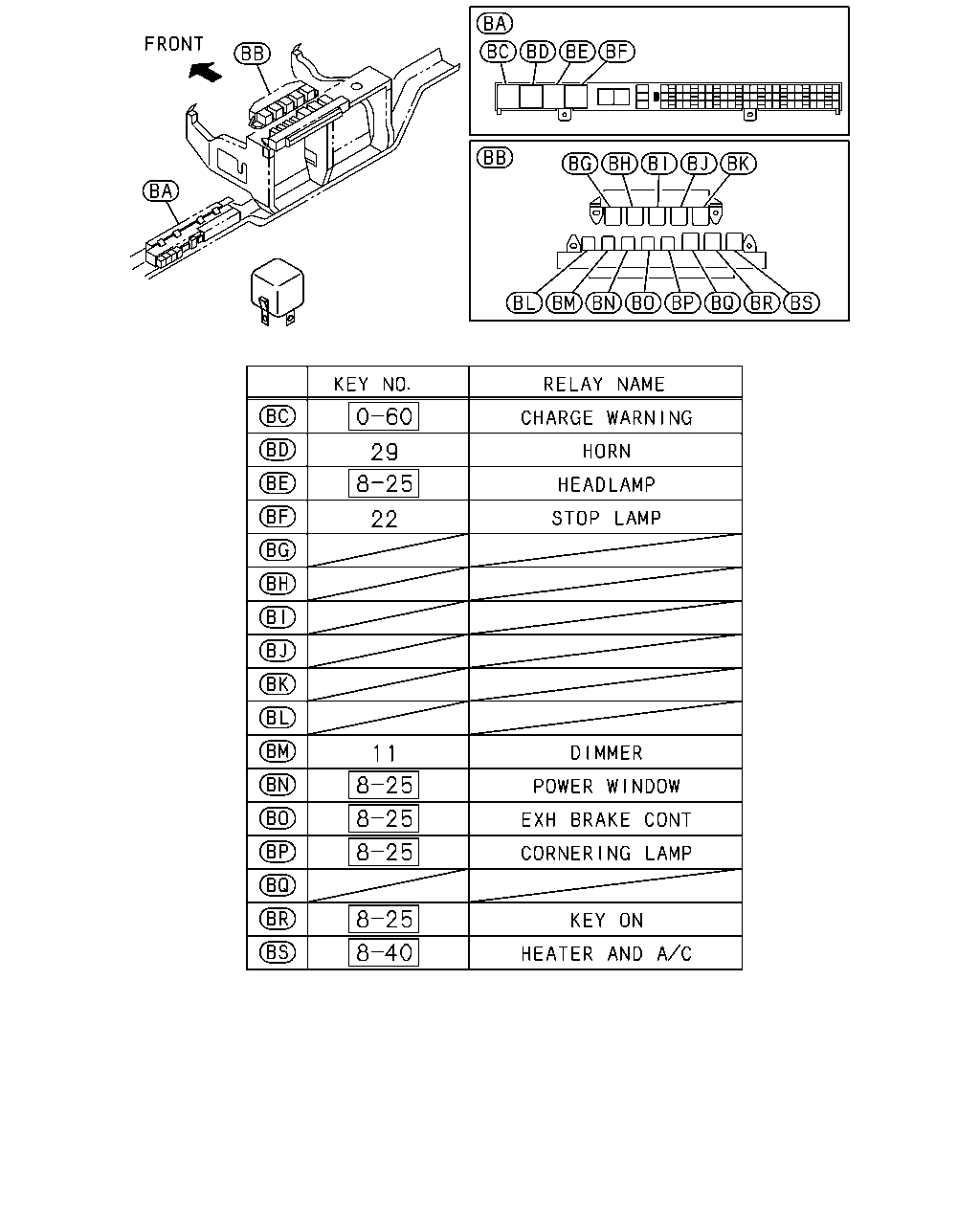

çizim 284270
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 RELAY; DIMMER
4HG1-T ENG(RDP) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1508 ● ●
11 RELAY; DIMMER
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
11 RELAY; DIMMER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9704-0104 ● ●
11 RELAY; DIMMER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-1111 ● ●
11 RELAY; DIMMER
4HF1 ENG(RLS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1508 ● ●
11 RELAY; DIMMER
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
11 RELAY; DIMMER
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
22 RELAY; STOP LAMP
4HG1-T ENG(RDP) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1508 ● ●
22 RELAY; STOP LAMP
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9704-0104 ● ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-1111 ● ●
22 RELAY; STOP LAMP
4HF1 ENG(RLS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1508 ● ●
22 RELAY; STOP LAMP
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
22 RELAY; STOP LAMP
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
29 RELAY; HORN
4HG1-T ENG(RDP) 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1508 ● ●
29 RELAY; HORN
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC 		8-97173-035-1 01 1 1509- ● ●
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9704-0104 ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-1111 ● ●
29 RELAY; HORN
4HF1 ENG(RLS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-1508 ● ●
29 RELAY; HORN
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
29 RELAY; HORN
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509- ● ●
