◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#72480) — 23 parça

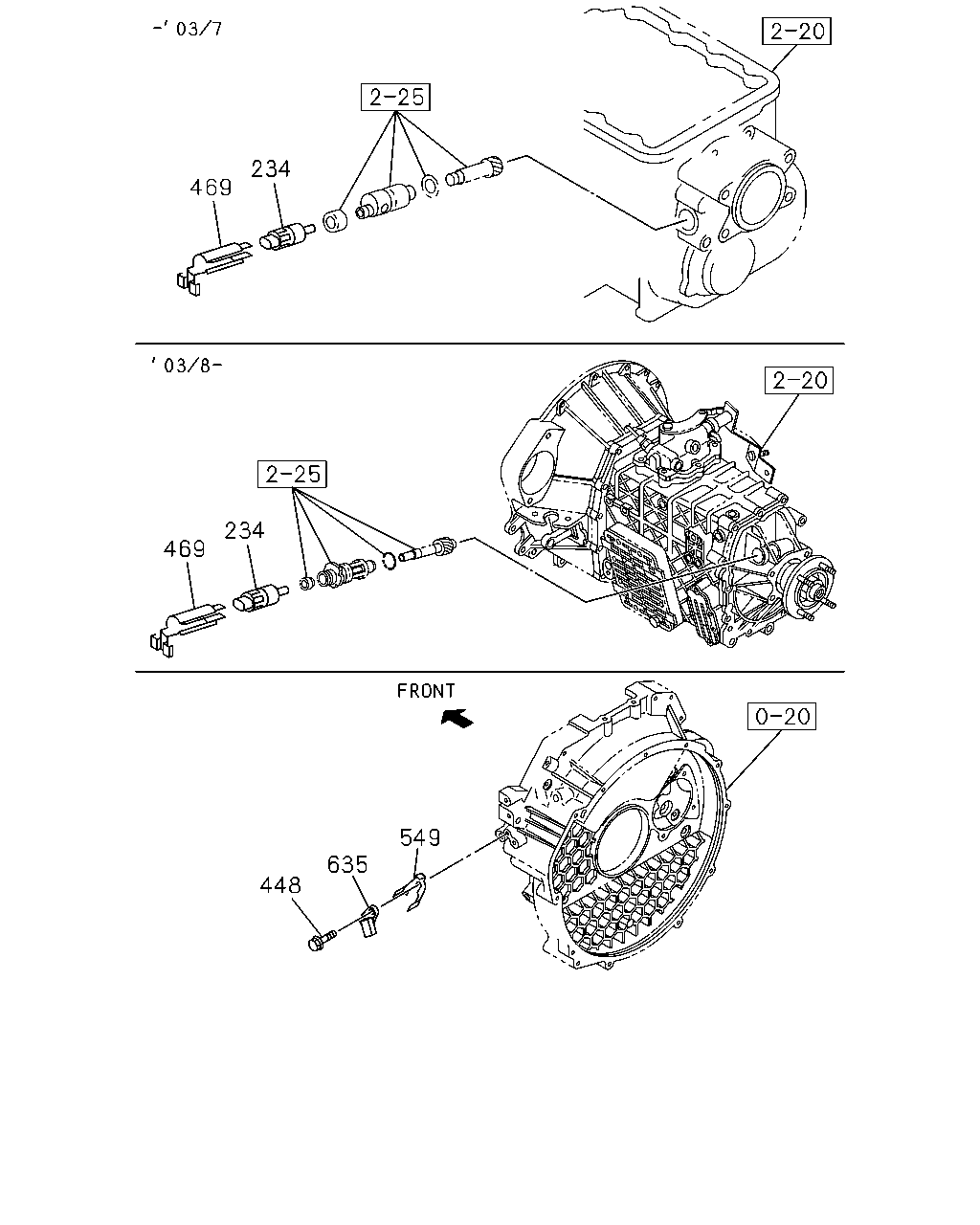

çizim 138234
234 469 234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9704-0307 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0308- ● ●
448 BOLT; SENSOR
POWER STEERING<N40> M6X16 FLANGE 		0-28080-616-0 01 1 9704-0512 ● ●
448 BOLT; SENSOR
POWER STEERING<N40> M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 9704-0808 ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809- ● ●
549 SHEET
POWER STEERING<N40> 		8-97130-170-0 01 1 9704-9805 ● ●
549 SHEET
POWER STEERING<N40> 		8-97161-633-2 01 1 9806- ● ●
635 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI 		8-97214-325-0 01 1 1112- ● ●
635 SENSOR; TACHOMETER
POWER STEERING<N40> 		8-97122-324-0 01 1 9704-0307 ● ●
635 SENSOR; TACHOMETER
POWER STEERING<N40> CALSONIC KANSEI 		8-97163-104-0 01 1 0308-1111 ● ●
635 SENSOR; TACHOMETER
4HF1 ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 1112- ● ●

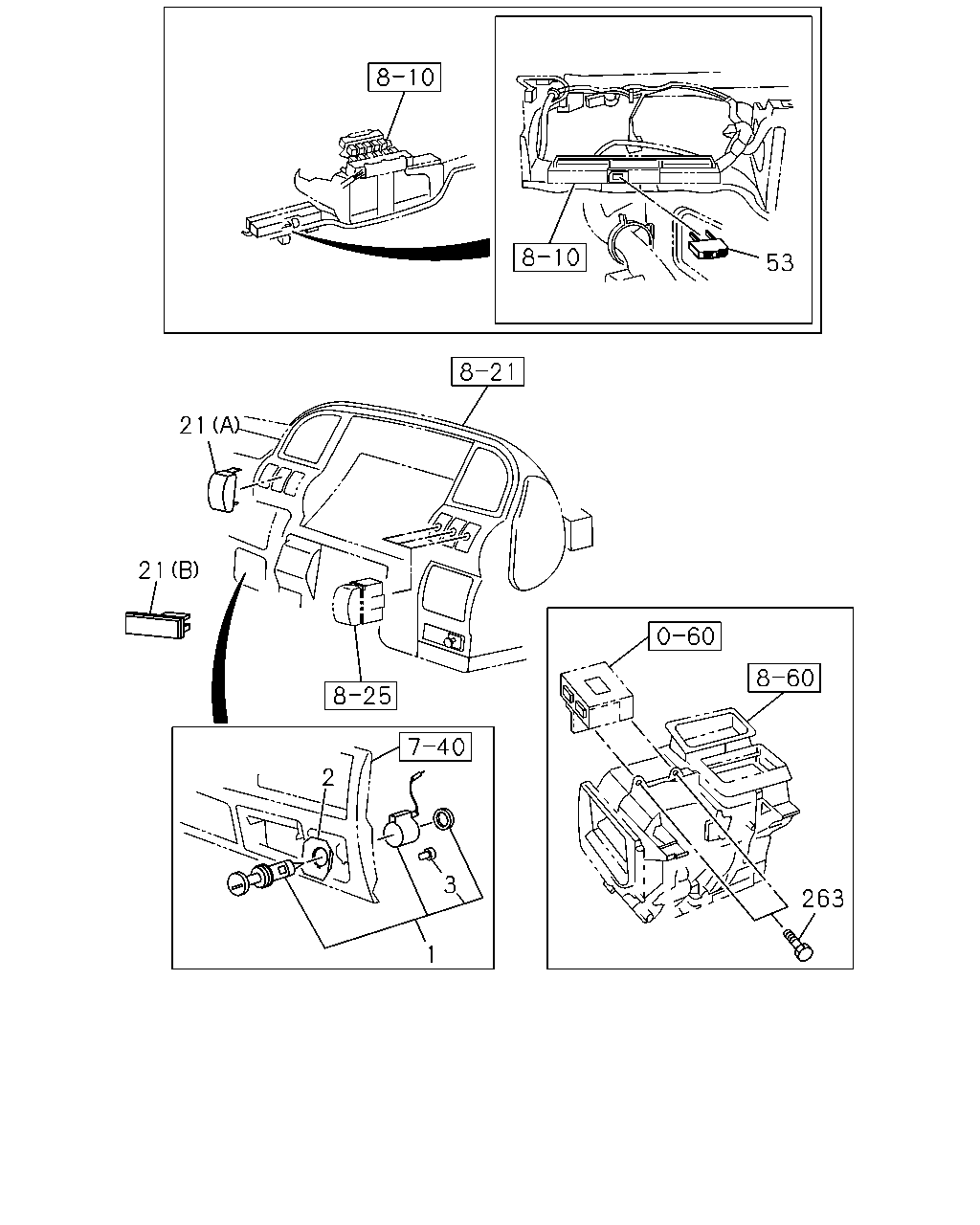

çizim 138343
53 21 21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9704-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9704-0706 ● ●
2 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 9704- ● ●
21 COVER; HOLE
(B) 		8-97047-694-1 02 1 9704-0307 ● ●
21 COVER; HOLE
(B) 		8-97136-694-0 02 1 0308- ● ●
21 COVER; HOLE
M/T MXA5R(RMT) (A) 		8-97047-694-1 01 1 9704-0307 ● ●
21 COVER; HOLE
M/T MYY5T(RSM) (A) 		8-97136-694-0 01 1 0308- ● ●
53 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A 		8-94447-470-0 01 1 9704-0307 ● ●
263 BOLT; CONT UNIT
4HG1-T ENG(RDP) M6X20 FLANGE 		0-28250-620-0 02 1 1112- ● ●
