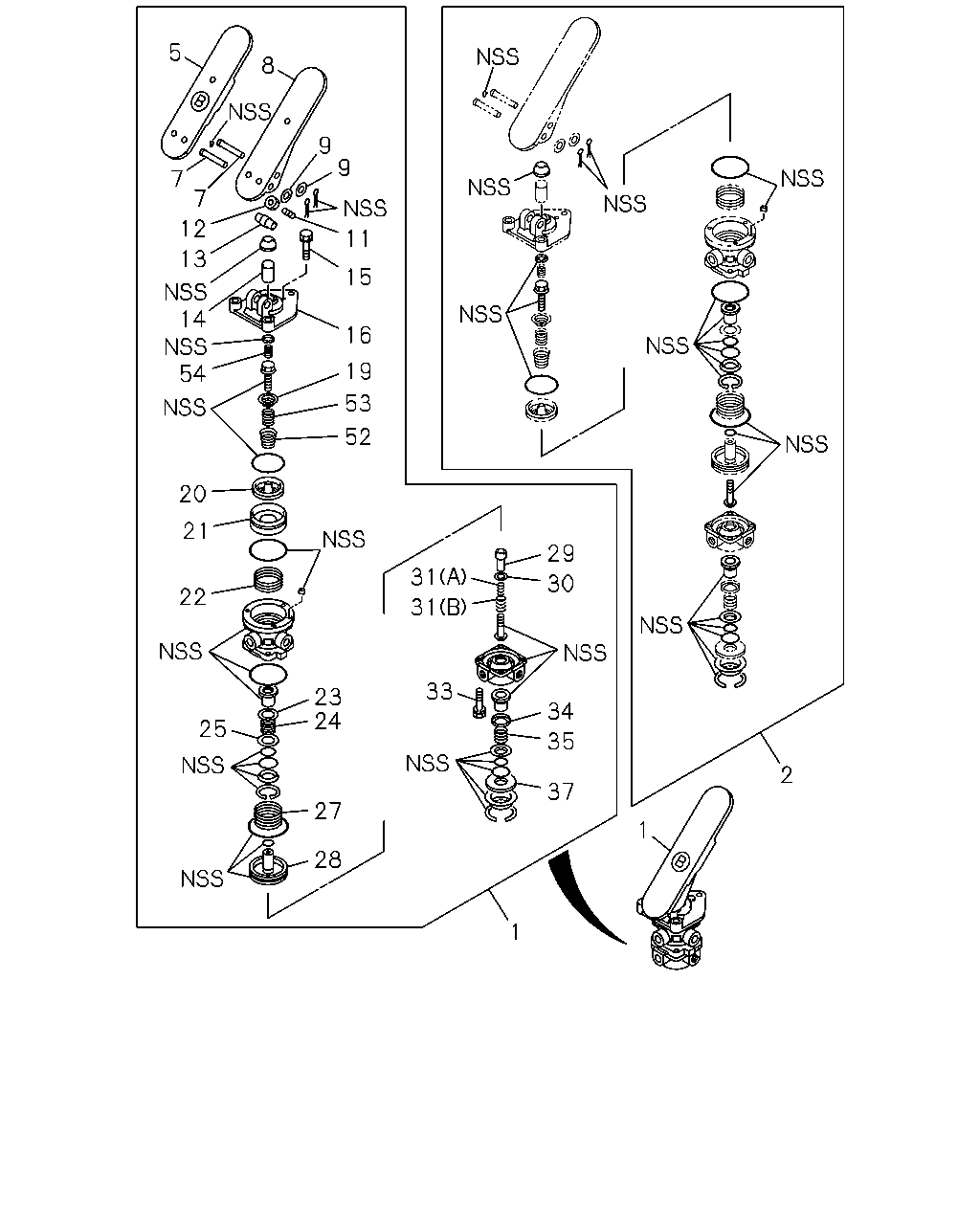

3-34 — BRAKE VALVE; AIR (#7248) — 105 parça

5 8 9 9 7 7 12 11 13 15 14 54 16 19 53 52 20 21 29 31 30 22 31 33 23 24 34 25 35 2 37 27 1 28 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-773-0	01	1	9906-9912
1	VALVE; BRK EXC. BRAKE REGULATION ECE<TDV>	1-48100-773-0	01	1	0001-0101
1	VALVE; BRK EXC. BRAKE REGULATION ECE<TDV>	1-48100-843-0	01	1	0102-
1	VALVE; BRK BRAKE REGULATION ECE<TDV>	1-48100-863-0	01	1	0001-
2	REPAIR KIT; BRK VLV	1-85576-182-0	01	1	9906-9912
2	REPAIR KIT; BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-85576-182-0	01	1	0001-0101
2	REPAIR KIT; BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-85576-285-0	01	1	0102-
2	REPAIR KIT; BRK VLV BRAKE REGULATION ECE<TDV>	1-85576-318-0	01	1	0001-
5	COVER; PEDAL,BRK VLV	1-48119-333-0	01	1	9906-9912
5	COVER; PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-333-0	01	1	0001-0101
5	COVER; PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-432-0	01	1	0102-
5	COVER; PEDAL,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-432-0	01	1	0001-
7	PIN; PEDAL,BRK VLV	1-48119-244-0	02	1	9906-9912
7	PIN; PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-244-0	02	1	0001-0101
7	PIN; PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-431-0	02	1	0102-
7	PIN; PEDAL,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-431-0	01	1	0001-
7	PIN; PEDAL,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-431-0	01	1	0001-
8	PEDAL; BRK VLV	1-48119-332-0	01	1	9906-9912
8	PEDAL; BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-332-0	01	1	0001-0101
8	PEDAL; BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-429-0	01	1	0102-
8	PEDAL; BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-429-0	01	1	0001-
9	WASHER; PIN,BRK VLV	1-48119-106-0	02	1	9906-9912
9	WASHER; PIN,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-106-0	02	1	0001-0101
11	SCREW; SET,BRK VLV	1-48119-245-0	01	1	9906-9912
11	SCREW; SET,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-245-0	01	1	0001-0101
11	SCREW; SET,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-003-1	01	1	0102-
11	SCREW; SET,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-003-1	01	1	0001-
12	NUT; SCREW,PEDAL,BRK VLV	9-88510-123-0	01	1	9906-9912
12	NUT; SCREW,PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	9-88510-123-0	01	1	0001-
12	NUT; SCREW,PEDAL,BRK VLV BRAKE REGULATION ECE<TDV>	9-88510-123-0	01	1	0001-
13	ROLLER; PEDAL,BRK VLV	1-48119-243-0	01	1	9906-9912
13	ROLLER; PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-243-0	01	1	0001-0101
13	ROLLER; PEDAL,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-430-0	01	1	0102-
13	ROLLER; PEDAL,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-430-0	01	1	0001-
14	PLUNGER; BRK VLV	1-48119-383-0	01	1	9906-9912
14	PLUNGER; BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-383-0	01	1	0001-0101
14	PLUNGER; BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-561-0	01	1	0102-
14	PLUNGER; BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-561-0	01	1	0001-
15	BOLT; PLATE,BRK VLV	1-48219-039-0	03	1	9906-9912
15	BOLT; PLATE,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48219-039-0	03	1	0001-
15	BOLT; PLATE,BRK VLV BRAKE REGULATION ECE<TDV>	1-48219-039-0	03	1	0001-
16	PLATE; MTG,BRKT VLV	1-48119-268-0	01	1	9906-9912
16	PLATE; MTG,BRKT VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-268-0	01	1	0001-0101
16	PLATE; MTG,BRKT VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-547-0	01	1	0102-
16	PLATE; MTG,BRKT VLV BRAKE REGULATION ECE<TDV>	1-48119-547-0	01	1	0001-
19	SEAT; SPRING,BRK VLV	1-48123-041-0	01	1	9906-9912
19	SEAT; SPRING,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-041-0	01	1	0001-
19	SEAT; SPRING,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-041-0	01	1	0001-
20	PISTON; UPR,BRK VLV	1-48119-381-0	01	1	9906-9912
20	PISTON; UPR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-381-0	01	1	0001-0101
20	PISTON; UPR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-560-0	01	1	0102-
20	PISTON; UPR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-565-0	01	1	0001-
21	BUSHING; UPR BODY BRAKE REGULATION ECE<TDV>	1-48119-293-0	01	1	0001-
22	SPRING; PISTON,LWR,BRK VLV	1-48123-071-0	01	1	9906-9912
22	SPRING; PISTON,LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-071-0	01	1	0001-
22	SPRING; PISTON,LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48143-009-0	01	1	0001-
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	9906-9912
23	WASHER; UPR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-145-0	01	1	0001-
23	WASHER; UPR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-145-0	01	1	0001-
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	9906-9912
24	SPRING; UPR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-018-0	01	1	0001-
24	SPRING; UPR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-018-0	01	1	0001-
25	WASHER; PISTON,BRK VLV	1-48129-138-0	01	1	9906-9912
25	WASHER; PISTON,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-138-0	01	1	0001-
25	WASHER; PISTON,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-138-0	01	1	0001-
27	SPRING; PISTON,LWR,BRK VLV	1-48123-055-0	01	1	9906-9912
27	SPRING; PISTON,LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-055-0	01	1	0001-
27	SPRING; PISTON,LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-055-0	01	1	0001-
28	PISTON; LWR,BRK VLV	1-48129-140-0	01	1	9906-9912
28	PISTON; LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-140-0	01	1	0001-0101
28	PISTON; LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-313-0	01	1	0102-
28	PISTON; LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-317-0	01	1	0001-
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	9906-9912
29	SLEEVE; VLV,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-083-1	01	1	0001-
29	SLEEVE; VLV,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-083-1	01	1	0001-
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	9906-9912
30	WASHER; SLEEVE,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-082-0	01	1	0001-
30	WASHER; SLEEVE,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-082-0	01	1	0001-
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	9906-9912
31	SPRING; VLV,BRK VLV EXC. BRAKE REGULATION ECE<TDV> (A)	1-48123-032-0	01	1	0001-
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	9906-9912
31	SPRING; VLV,BRK VLV EXC. BRAKE REGULATION ECE<TDV> (B)	1-48123-033-0	01	1	0001-
31	SPRING; VLV,BRK VLV BRAKE REGULATION ECE<TDV> (B)	1-48123-033-0	01	1	0001-
31	SPRING; VLV,BRK VLV BRAKE REGULATION ECE<TDV> (A)	1-48123-032-0	01	1	0001-
33	BOLT; BODY,BRK VLV	1-48119-213-0	04	1	9906-9912
33	BOLT; BODY,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48119-213-0	04	1	0001-
33	BOLT; BODY,BRK VLV BRAKE REGULATION ECE<TDV>	1-48119-213-0	04	1	0001-
34	RETAINER; VLV,BRK VLV	1-48129-144-0	01	1	9906-9912
34	RETAINER; VLV,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-144-0	01	1	0001-
34	RETAINER; VLV,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-144-0	01	1	0001-
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	9906-9912
35	SPRING; VLV,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-019-0	01	1	0001-
35	SPRING; VLV,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-019-0	01	1	0001-
37	WASHER; VLV LWR,BRK VLV	1-48129-080-0	01	1	9906-9912
37	WASHER; VLV LWR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48129-080-0	01	1	0001-
37	WASHER; VLV LWR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48129-080-0	01	1	0001-
52	SPRING; PISTON,OUTER,BRK VLV	1-48123-074-0	01	1	9906-9912
52	SPRING; PISTON,OUTER,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-074-0	01	1	0001-
52	SPRING; PISTON,OUTER,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-074-0	01	1	0001-
53	SPRING; PISTON,INNER,BRK VLV	1-48123-068-0	01	1	9906-9912
53	SPRING; PISTON,INNER,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-068-0	01	1	0001-
53	SPRING; PISTON,INNER,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-068-0	01	1	0001-
54	SPRING; PISTON,UPR,BRK VLV	1-48123-067-0	01	1	9906-9912
54	SPRING; PISTON,UPR,BRK VLV EXC. BRAKE REGULATION ECE<TDV>	1-48123-067-0	01	1	0001-
54	SPRING; PISTON,UPR,BRK VLV BRAKE REGULATION ECE<TDV>	1-48123-067-0	01	1	0001-
