8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#72479) — 126 parça

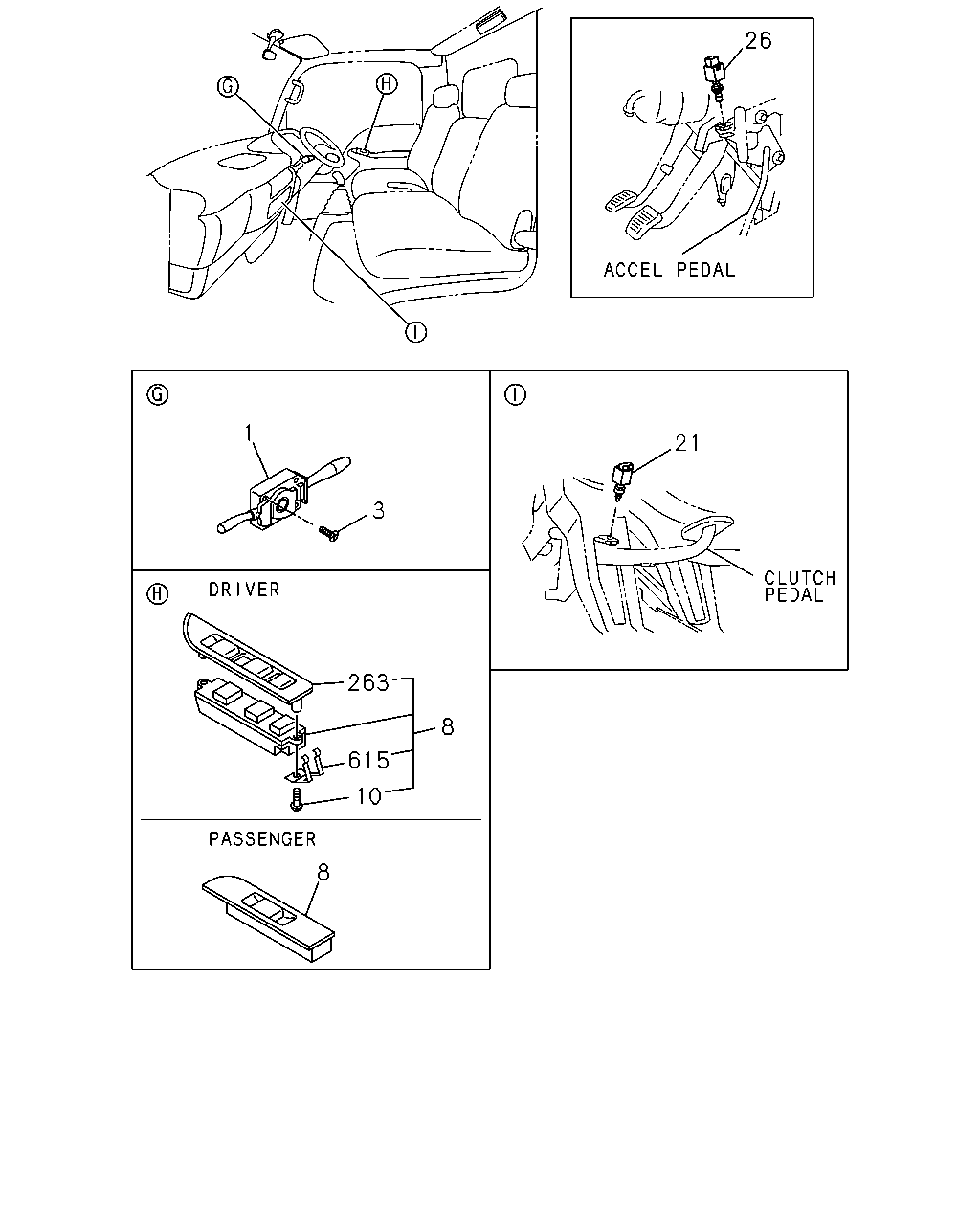

26 1 21 3 263 8 615 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB INTERMITTENT WIPER<C13>	8-97071-215-1	01	1	9704-0101	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13>	8-97287-884-2	01	1	0102-0403	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13>	8-97364-076-0	01	1	0404-	●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97071-217-1	01	1	9704-0101	●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97287-886-2	01	1	0102-0301	●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97364-072-0	01	1	0302-	●	●
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	04	1	9704-0604	●	●
3	SCREW; COMB SW M5X20 W/LK WASHER	0-36220-520-0	04	1	0605-0612	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	04	1	0701-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97043-748-2	01	1	9704-9805	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97207-668-0	01	1	9806-9901	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97214-400-0	01	1	9902-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97214-398-0	01	1	0308-0703	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98075-445-0	01	1	0704-0907	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98147-235-0	01	1	0908-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97166-336-0	01	1	9704-9811	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97214-604-0	01	1	9812-9905	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97222-596-0	01	1	9906-0004	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97249-341-0	01	1	0005-0106	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97315-182-0	01	1	0107-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97315-176-0	01	1	0308-0907	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98147-225-0	01	1	0908-	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-97219-239-0	02	1	9704-	●	●
21	SWITCH; CLU	8-94331-723-1	01	1	9704-0212	●	●
21	SWITCH; CLU	8-97358-248-0	01	1	0301-	●	●
26	SWITCH; ACCEL	8-94368-343-0	01	1	9704-0212	●	●
26	SWITCH; ACCEL	8-97358-315-0	01	1	0301-	●	●
263	COVER; SW POWER WINDOW FRT DOOR<A32>	8-97219-235-0	01	1	9704-0307	●	●
263	COVER; SW POWER WINDOW FRT DOOR<A32>	8-97219-234-0	01	1	0308-	●	●
615	SPRING; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-97219-238-0	01	1	9704-	●	●

85 311 12 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
12	RELAY; POWER WINDOW 4HF1 ENG(RLS) POWER WINDOW FRT DOOR<A32> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
12	RELAY; POWER WINDOW 4HF1 ENG(RLS) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
85	RELAY; HEADLAMP 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
85	RELAY; HEADLAMP 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
85	RELAY; HEADLAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
85	RELAY; HEADLAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
85	RELAY; HEADLAMP 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
85	RELAY; HEADLAMP 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
85	RELAY; HEADLAMP 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
311	RELAY; CORNERING LAMP 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
311	RELAY; CORNERING LAMP 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
311	RELAY; CORNERING LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
311	RELAY; CORNERING LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
311	RELAY; CORNERING LAMP 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
311	RELAY; CORNERING LAMP 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
311	RELAY; CORNERING LAMP 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
315	RELAY; EXH BRAKE CONT 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
315	RELAY; EXH BRAKE CONT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
315	RELAY; EXH BRAKE CONT 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
315	RELAY; EXH BRAKE CONT 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●

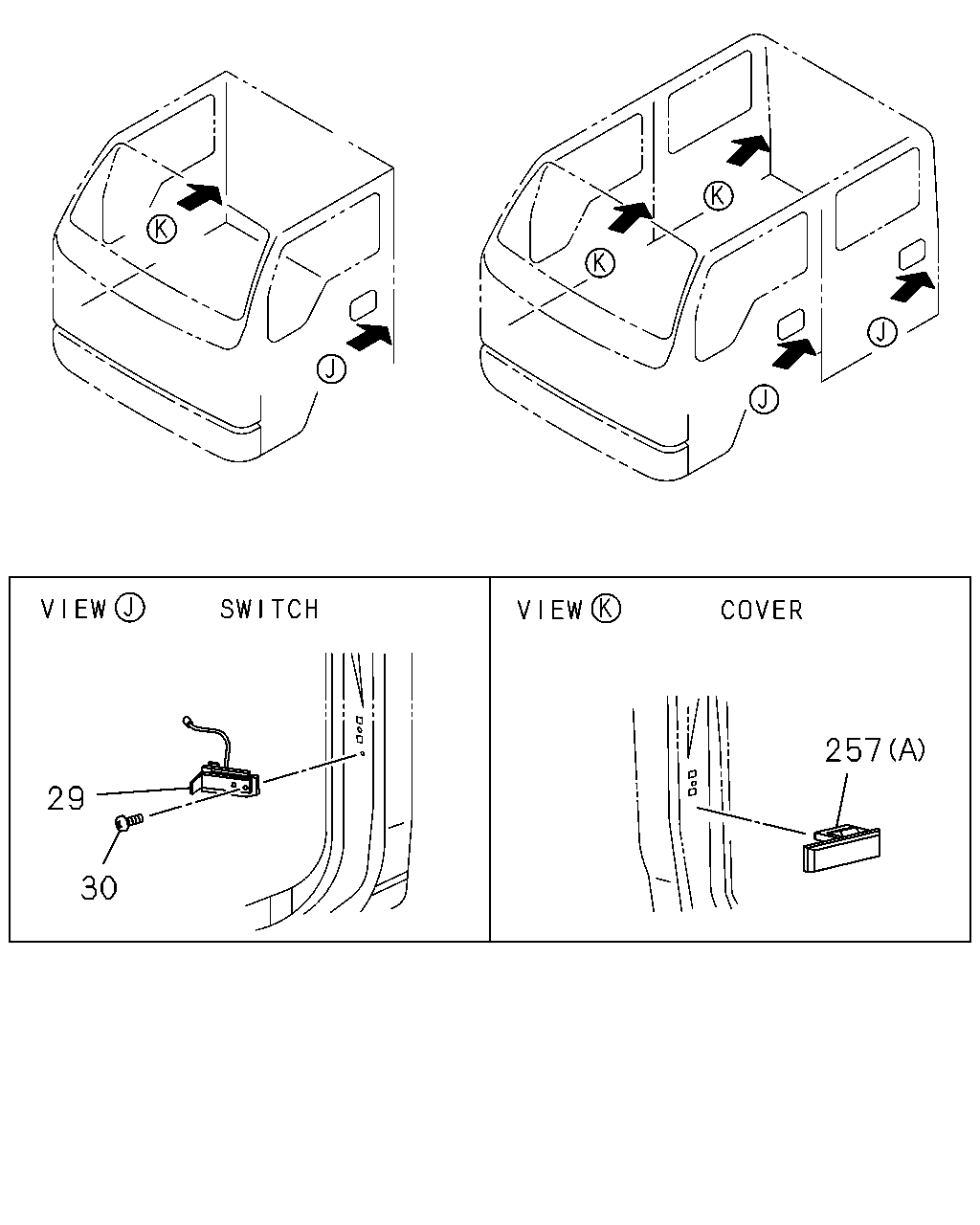

257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR	8-97855-032-3	01	1	9704-	●	●
30	SCREW; DOOR SW M5X16	8-94279-341-0	01	1	9704-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	9704-	●	●
257	COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) (B)	8-94310-890-0	01	1	9704-	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97047-694-1	01	1	9704-0307	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	0308-	●	●

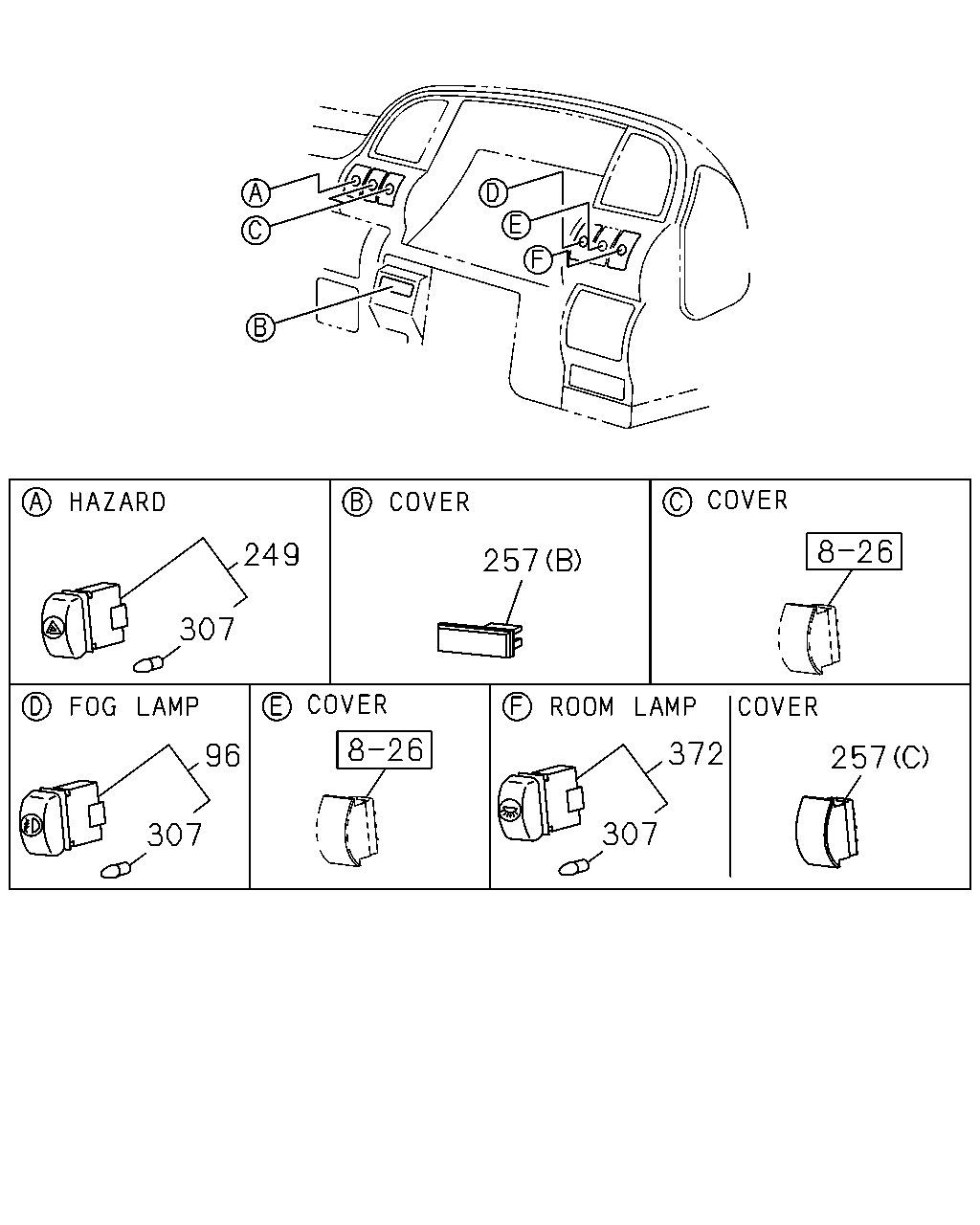

249 257 307 372 96 257 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	SWITCH; FOG LAMP	8-97076-351-3	01	1	9704-0307	●	●
96	SWITCH; FOG LAMP	8-97170-441-0	01	1	0308-	●	●
249	SWITCH; HAZARD	8-97117-658-0	01	1	9704-9807	●	●
249	SWITCH; HAZARD	8-97202-478-0	01	1	9808-0307	●	●
249	SWITCH; HAZARD	8-97202-475-0	01	1	0308-1005	●	●
249	SWITCH; HAZARD 4HF1 ENG(RLS)	8-97202-475-0	01	1	1006-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	9704-	●	●
257	COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) (B)	8-94310-890-0	01	1	9704-	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97047-694-1	01	1	9704-0307	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (C)	8-97136-694-0	01	1	0308-	●	●
307	BULB ASM; SW 28V 40MA	8-97116-331-0	01	1	9704-9807	●	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	9704-9807	●	●
307	BULB ASM; SW 28V 40MA	8-97116-331-0	01	1	9704-9807	●	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	9808-	●	●
307	BULB ASM; SW 28V 40MA	8-97116-331-0	01	1	9808-	●	●
307	BULB ASM; SW 28V 40MA	8-97116-331-0	02	1	9808-1005	●	●
307	BULB ASM; SW 4HF1 ENG(RLS) 28V 40MA	8-97116-331-0	02	1	1006-	●	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97076-361-2	01	1	9704-9704	●	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97122-193-0	01	1	9704-0307	●	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-693-0	01	1	0308-	●	●

186

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	186	BRACKET; RELAY BOX	8-97088-652-1	01	1	9704-	●	●

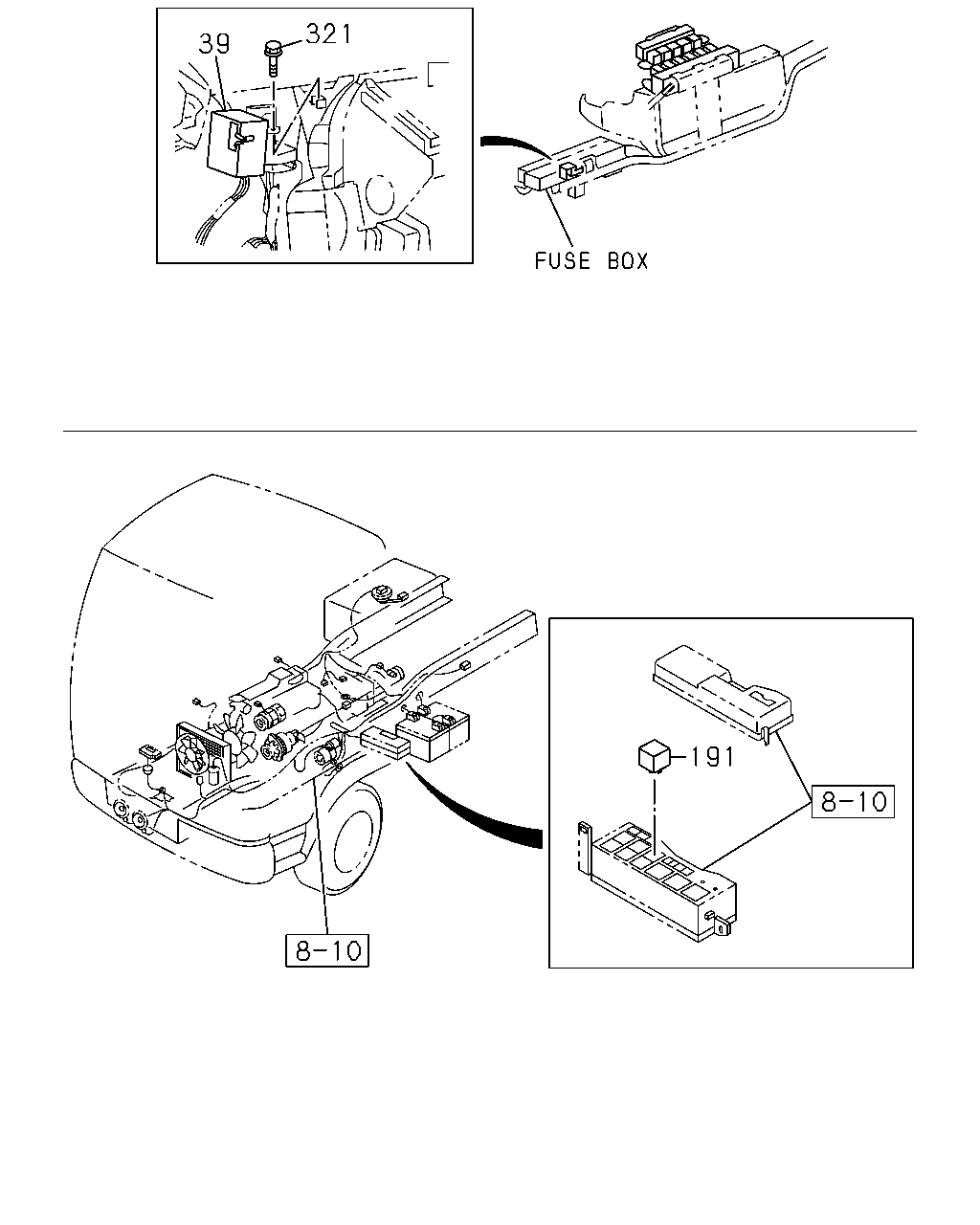

321 39 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97063-659-1	01	1	9704-9705	●	●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-214-0	01	1	9706-	●	●
191	RELAY; EXH BRK CUT 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
191	RELAY; EXH BRK CUT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
191	RELAY; EXH BRK CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
191	RELAY; EXH BRK CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
191	RELAY; EXH BRK CUT 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
191	RELAY; EXH BRK CUT 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
191	RELAY; EXH BRK CUT 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X20	8-94436-927-0	01	1	9704-0612	●	●
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-	●	●

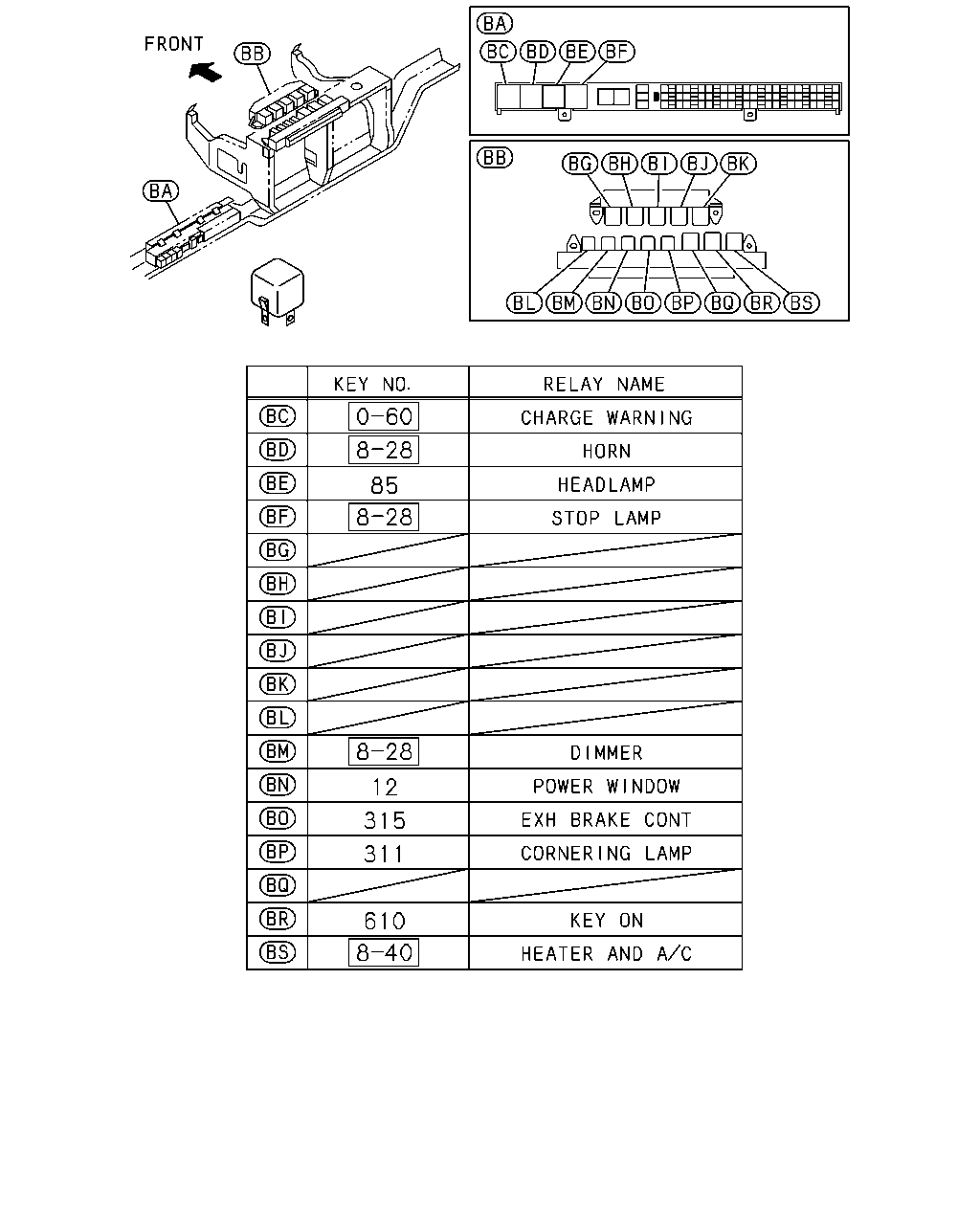

85 12 315 311 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
12	RELAY; POWER WINDOW 4HF1 ENG(RLS) POWER WINDOW FRT DOOR<A32> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
12	RELAY; POWER WINDOW 4HF1 ENG(RLS) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
85	RELAY; HEADLAMP 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
85	RELAY; HEADLAMP 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
85	RELAY; HEADLAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
85	RELAY; HEADLAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
85	RELAY; HEADLAMP 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
85	RELAY; HEADLAMP 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
85	RELAY; HEADLAMP 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
311	RELAY; CORNERING LAMP 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
311	RELAY; CORNERING LAMP 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
311	RELAY; CORNERING LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
311	RELAY; CORNERING LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
311	RELAY; CORNERING LAMP 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
311	RELAY; CORNERING LAMP 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
311	RELAY; CORNERING LAMP 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1508	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●
315	RELAY; EXH BRAKE CONT 24V 12.5A MITUBA	8-97062-815-1	01	1	9704-0104	●	●
315	RELAY; EXH BRAKE CONT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-1111	●	●
315	RELAY; EXH BRAKE CONT 4HF1 ENG(RLS) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-1508	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
315	RELAY; EXH BRAKE CONT 4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
610	RELAY; KEY ON 4HG1-T ENG(RDP) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1204-1508	●	●
610	RELAY; KEY ON 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●
