◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#72478) — 118 parça

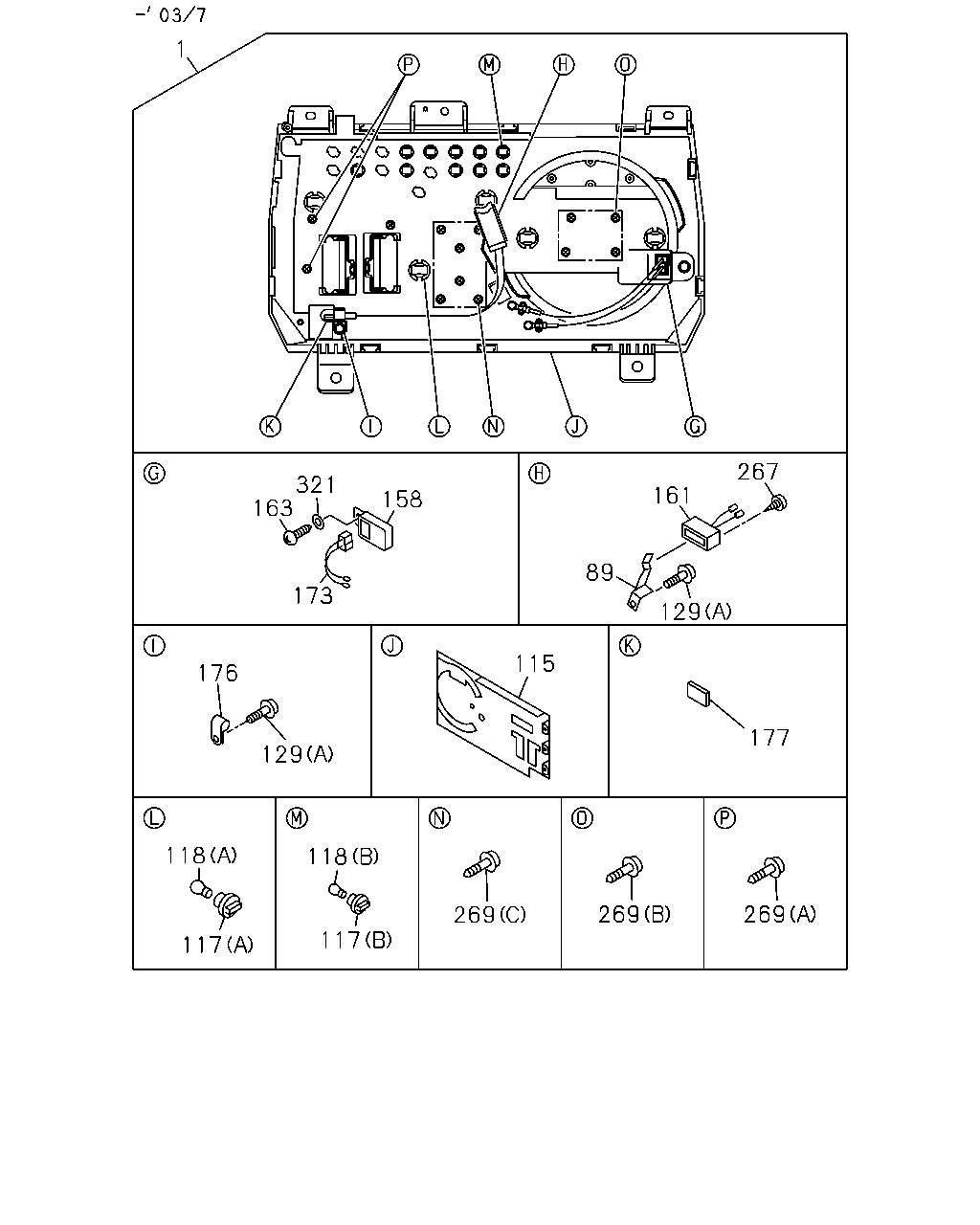

çizim 137331
1 267 321 163 161 158 89 173 129 115 176 177 129 118 118 269 269 269 117 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-309-0 01 1 9704-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-596-2 01 1 0308- ● ●
89 CLIP; HARNESS 8-97088-531-1 01 1 9704-0307 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97108-115-0 01 1 9704-0307 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97185-489-0 01 1 0308- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 24V 1.8W LIGHT BROWN 		8-97031-181-0 10 1 9704-0307 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 24V 3W GREEN 		8-97045-599-0 04 1 9704-0307 ● ●
118 BULB; CLUSTER METER
(A) 24V 3W 		1-82194-073-0 AR 1 9704-0307 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W 		8-97031-179-0 AR 1 9704-0307 ● ●
118 BULB; CLUSTER METER
(C) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0308- ● ●
118 BULB; CLUSTER METER
(D) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0308- ● ●
118 BULB; CLUSTER METER
(D) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0308- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M4X16 		1-09140-005-0 02 1 9704-0307 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) 		8-97092-908-0 09 1 9704-0307 ● ●
158 BUZZER; VAC WARNING
12V 		5-83460-004-1 01 1 9704-0307 ● ●
158 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0308- ● ●
161 CLOCK; CLUSTER METER 8-97105-397-0 01 1 9704-0307 ● ●
161 CLOCK; CLUSTER METER 8-97185-462-0 01 1 0308- ● ●
163 SCREW; BUZZER
M4X20 		8-94246-136-0 01 1 9704-0307 ● ●
163 SCREW; BUZZER 8-97185-527-0 01 1 0308- ● ●
173 WIRE; LEAD 8-97108-141-0 01 1 9704-0307 ● ●
173 WIRE; LEAD 8-97185-643-0 01 1 0308- ● ●
176 CLAMP; CORD,METER 8-97088-532-0 01 1 9704-0307 ● ●
177 COVER; WIRE HOLE 8-97092-911-0 01 1 9704-0307 ● ●
267 SCREW; CLOCK 8-97107-891-0 03 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9704-1210 ● ●
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(E) 		8-97185-524-0 07 1 0308- ● ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0308- ● ●
321 WASHER; BUZZER 8-97108-140-0 01 1 9704-0307 ● ●

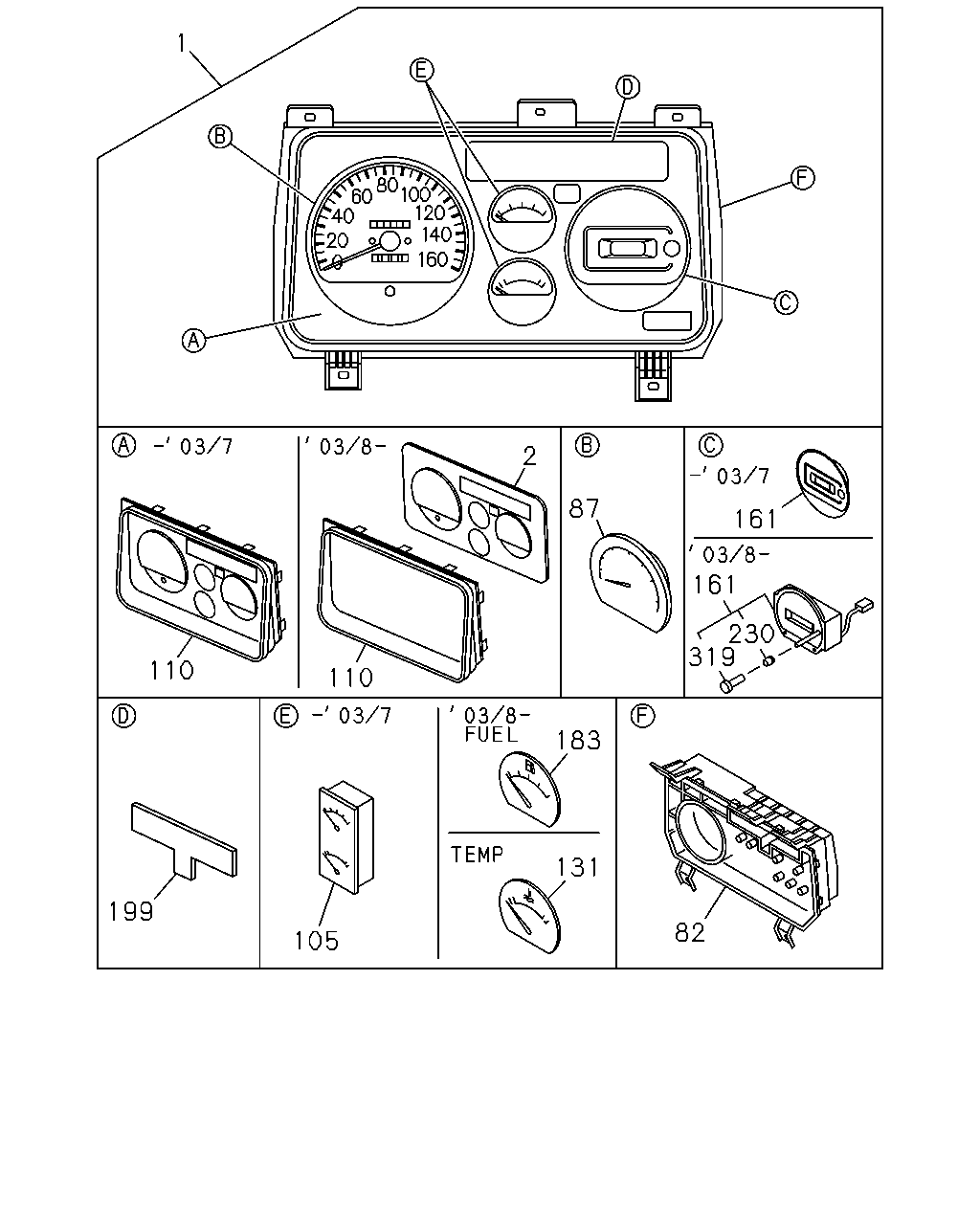

çizim 137712
1 2 87 161 161 230 319 110 110 183 131 199 82 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-309-0 01 1 9704-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-596-2 01 1 0308- ● ●
2 PANEL; CLUSTER 8-97185-443-0 01 1 0308- ● ●
82 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 9704-0307 ● ●
82 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0308- ● ●
87 SPEEDOMETER 8-97088-507-0 01 1 9704-0307 ● ●
87 SPEEDOMETER 8-97185-457-0 01 1 0308- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-97117-462-0 01 1 9704-0307 ● ●
110 GLASS; CLUSTER METER 8-97108-121-0 01 1 9704-0307 ● ●
110 GLASS; CLUSTER METER 8-97185-451-0 01 1 0308- ● ●
131 GAUGE; TEMP,CLUSTER METER 8-97185-475-0 01 1 0308- ● ●
161 CLOCK; CLUSTER METER 8-97105-397-0 01 1 9704-0307 ● ●
161 CLOCK; CLUSTER METER 8-97185-462-0 01 1 0308- ● ●
183 GAUGE; FUEL 8-97185-473-0 01 1 0308- ● ●
199 LENS; WARNING LAMP 8-97108-123-0 01 1 9704-0307 ● ●
199 LENS; WARNING LAMP 8-97185-481-0 01 1 0308- ● ●
230 KNOB; DIGITAL CLOCK,SUB METER 8-97185-644-0 01 1 0308- ● ●
319 SCREW; KNOB,CLUSTER METER 8-97185-522-0 01 1 0308- ● ●
çizim 137812
1 314 129 129 314 314 129 129 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-309-0 01 1 9704-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-596-2 01 1 0308- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M4X16 		1-09140-005-0 02 1 9704-0307 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) 		8-97092-908-0 09 1 9704-0307 ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(A) 		8-97092-892-0 01 1 9704-0307 ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(D) 		8-97185-515-0 01 1 0308- ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(B) 		8-97092-893-0 01 1 9704-0307 ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(E) 		8-97185-516-0 01 1 0308- ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(C) 		8-97092-894-0 01 1 9704-0307 ● ●

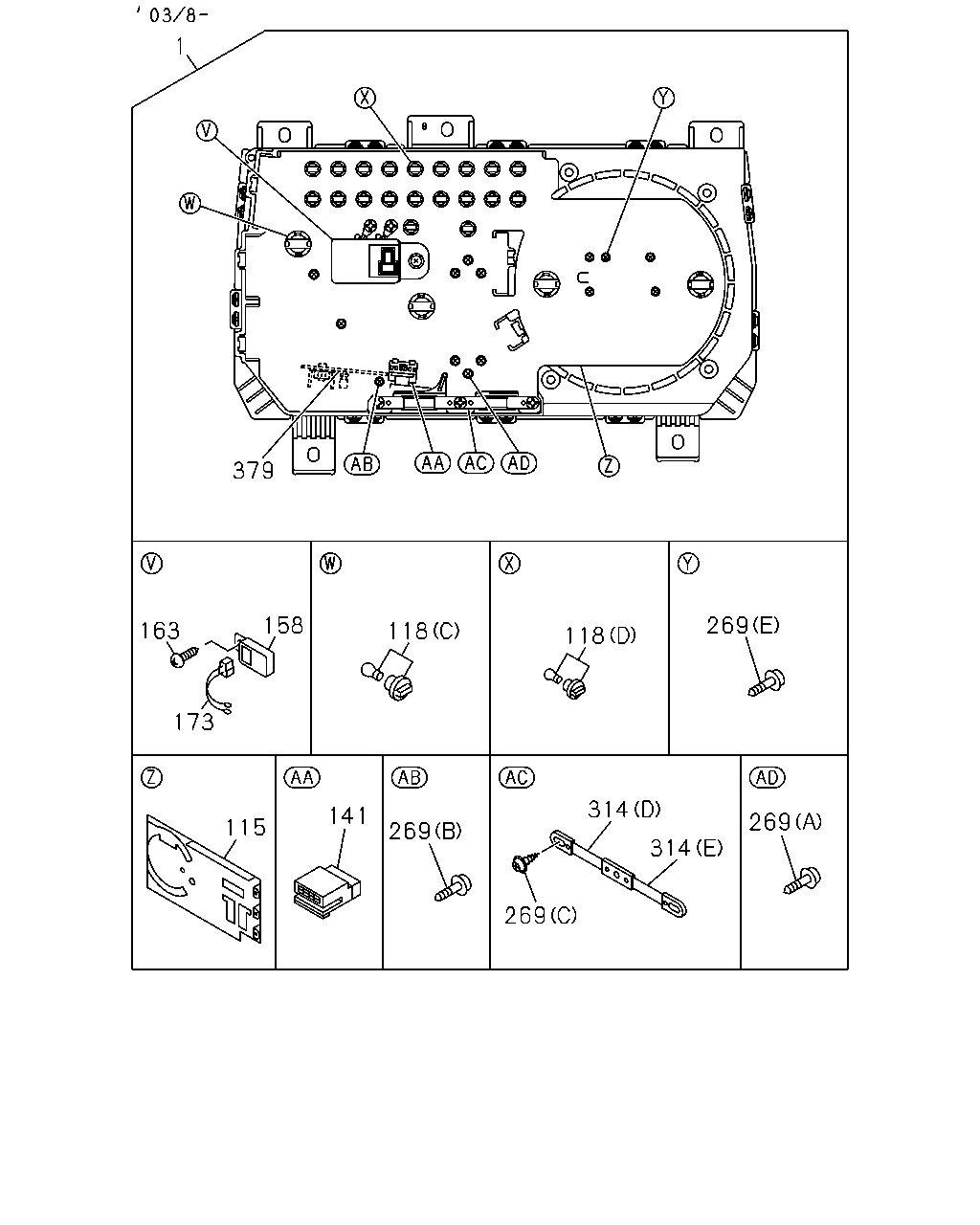

çizim 137861
1 379 269 158 163 118 118 173 314 141 269 115 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-309-0 01 1 9704-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-596-2 01 1 0308- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97108-115-0 01 1 9704-0307 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97185-489-0 01 1 0308- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W 		1-82194-073-0 AR 1 9704-0307 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W 		8-97031-179-0 AR 1 9704-0307 ● ●
118 BULB; CLUSTER METER
(C) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0308- ● ●
118 BULB; CLUSTER METER
(D) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0308- ● ●
118 BULB; CLUSTER METER
(D) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0308- ● ●
141 CONNECTOR; CLUSTER METER 8-97185-513-0 01 1 0308- ● ●
158 BUZZER; VAC WARNING
12V 		5-83460-004-1 01 1 9704-0307 ● ●
158 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0308- ● ●
163 SCREW; BUZZER
M4X20 		8-94246-136-0 01 1 9704-0307 ● ●
163 SCREW; BUZZER 8-97185-527-0 01 1 0308- ● ●
173 WIRE; LEAD 8-97108-141-0 01 1 9704-0307 ● ●
173 WIRE; LEAD 8-97185-643-0 01 1 0308- ● ●
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9704-1210 ● ●
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(E) 		8-97185-524-0 07 1 0308- ● ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0308- ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(A) 		8-97092-892-0 01 1 9704-0307 ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(D) 		8-97185-515-0 01 1 0308- ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(B) 		8-97092-893-0 01 1 9704-0307 ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(E) 		8-97185-516-0 01 1 0308- ● ●
314 RESISTOR; COMB METER,CLUSTER METER
(C) 		8-97092-894-0 01 1 9704-0307 ● ●
379 CIRCUIT; DROP 8-97185-512-0 01 1 0308- ● ●

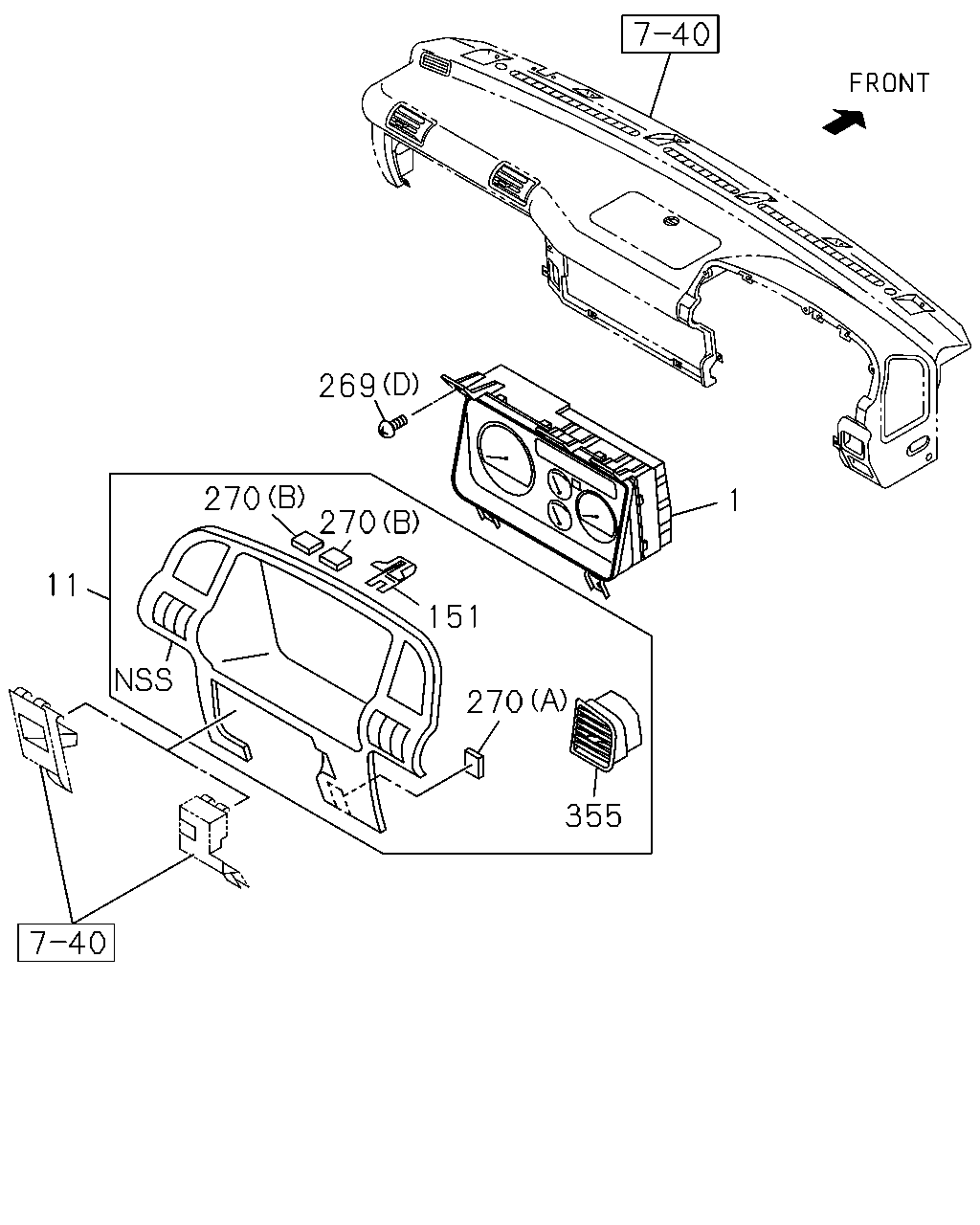

çizim 190538
270 1 11 151 355 269 270 270
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-309-0 01 1 9704-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-596-2 01 1 0308- ● ●
11 CLUSTER ASM; METER
DARK BEIGE 		8-97859-354-2 01 1 9704-0307 ● ●
11 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0308- ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 07 1 9704-9902 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 9903- ● ●
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9704-1210 ● ●
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(E) 		8-97185-524-0 07 1 0308- ● ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 9704-0307 ● ●
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0308- ● ●
270 CUSHION; METER CLUSTER
(A) 15X30 T=5 		8-94270-366-2 01 1 9704- ● ●
270 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 9704- ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97853-872-3 01 1 9704-9904 ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-030-1 01 1 9905-0002 ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-488-0 01 1 0003-0307 ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0308- ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97853-871-3 01 1 9704-9904 ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-027-1 01 1 9905-0002 ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-487-0 01 1 0003-0307 ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0308- ● ●
