8-15 — FIXING PARTS; WIRING HARNESS (#72477) — 193 parça
çizim 136754
16 16 142 483 488 14 16 205 48 142 464 16 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=200 		8-94464-835-0 01 1 9704- ● ●
16 CLIP; HARNESS
(I) L=135 		1-09987-143-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(A) L=170 		5-09707-054-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(C) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=22 & 22 		8-94464-837-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(F) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) ID=12.5-14.5 		8-97087-726-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(L) L=175 		8-97110-167-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(N) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(K) ID=15-32 		8-97174-404-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(H) ID=32 L=75 		1-09700-702-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(J) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(A) L=170.3 		1-09987-182-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(D) ID=9.6 		8-94147-870-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(M) L=110 		8-94149-419-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=20 		8-94169-650-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) T=9 & 10.5 		8-97041-091-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(N) ID=12 VINYL CHLORIDE 		8-97367-984-1 AR 1 0802- ● ●
142 CLIP; HARNESS,ENG
(A) L=140 		5-09707-031-1 01 1 9704-0307 ● ●
142 CLIP; HARNESS,ENG
(B) L=170.3 		1-09987-182-0 01 1 0308- ● ●
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0308- ● ●
464 CLIP; SEDIMENTER HARNESS
(B) ID=6.5 		8-94257-639-0 01 1 9704- ● ●
464 CLIP; SEDIMENTER HARNESS
(A) ID=6 		5-09700-316-0 01 1 9704-0307 ● ●
464 CLIP; SEDIMENTER HARNESS
(C) ID=14 L=47 		5-09700-319-0 01 1 0308- ● ●
483 CLIP; ENG HARNESS
POWER STEERING<N40> L=140 		5-09707-031-1 01 1 9704-0307 ● ●
483 CLIP; ENG HARNESS
POWER STEERING<N40> L=140 		5-09707-031-1 01 1 0310- ● ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 9704- ● ●

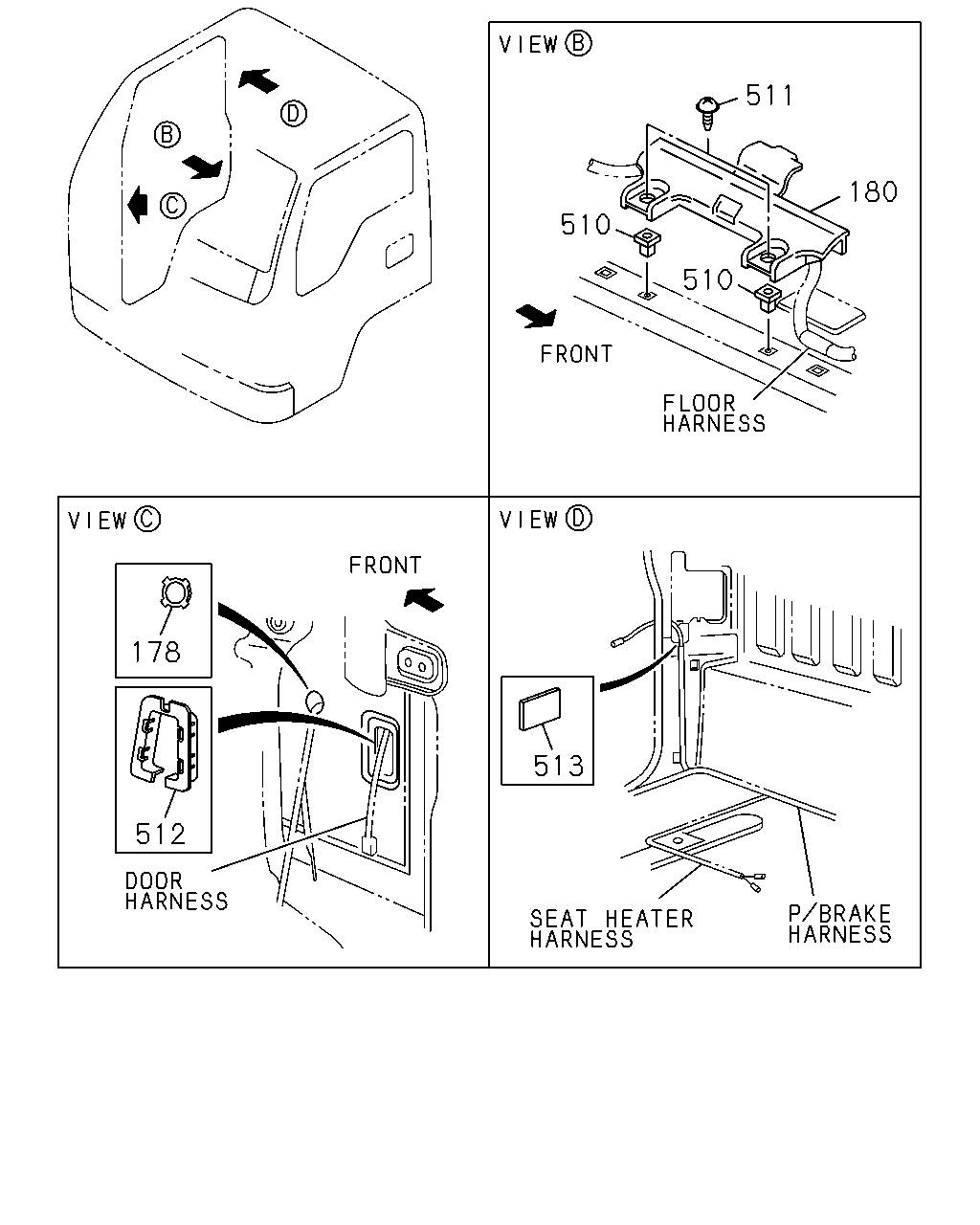

çizim 136885
511 180 510 510 178 513 512
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 9704- ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 9704- ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 9704- ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9704-0604 ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605- ● ●
512 PROTECTOR; HARNESS 8-97072-950-0 02 1 9704- ● ●
513 TAPE; SOFT,HARNESS
50X45 		8-94232-630-0 01 1 9704-0307 ● ●
çizim 136934
38 139 377 38 239 38 19 38 139 386 386 219 294 515 219 294 515 219 294 469 519
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M/T MXA5R(RMT) M10X35 FLANGE 		0-28681-035-0 01 1 9704-0307 ● ●
19 BOLT; PROTECTOR
M/T MYY5T(RSM) M10X35 FLANGE 		0-28681-035-0 01 1 0308-0512 ● ●
19 BOLT; PROTECTOR
M/T MYY5T(RSM) M10X35 FLANGE 		0-28651-035-0 01 1 0601-1111 ● ●
19 BOLT; PROTECTOR
4HF1 ENG(RLS) M10X35 FLANGE 		0-28651-035-0 01 1 1112- ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28080-625-0 01 1 9704-0512 ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28080-625-0 01 1 9704-0512 ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28080-625-0 01 1 9704-0512 ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28050-625-0 01 1 0601-1204 ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28050-625-0 01 1 0601-1204 ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28050-625-0 01 1 0601-1204 ● ●
38 BOLT; CLIP,HARNESS
M/T MYY5T(RSM) (A) M6X25 FLANGE 		0-28050-625-0 01 1 1205- ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28050-625-0 01 1 1205- ● ●
38 BOLT; CLIP,HARNESS
4HF1 ENG(RLS) (A) M6X25 FLANGE 		0-28050-625-0 01 1 1205- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
M/T MXA5R(RMT) (C) M10X25 FLANGE 		0-28081-025-0 01 1 9704-0307 ● ●
38 BOLT; CLIP,HARNESS
(D) M10X35 FLANGE 		0-28081-035-0 01 1 0308-0512 ● ●
38 BOLT; CLIP,HARNESS
(D) M10X35 FLANGE 		0-28051-035-0 01 1 0601- ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 03 1 9704-0512 ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ●
139 BOLT; BRKT
(B) 		8-97028-451-3 01 1 9704- ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9704-0307 ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9704-0307 ● ●
219 NUT
M/T MXA5R(RMT) (A) M6 FLANGE 		0-91150-106-0 01 1 9704-0307 ● ●
219 NUT
M/T MXA5R(RMT) (A) M6 FLANGE 		0-91150-106-0 01 1 9704-0307 ● ●
219 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91150-106-0 01 1 0308-0602 ● ●
219 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91150-106-0 01 1 0308-0602 ● ●
219 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91180-106-0 01 1 0603-1005 ● ●
219 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91180-106-0 01 1 0603-1005 ● ●
219 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91180-106-0 01 1 1006- ● ●
219 NUT
4HF1 ENG(RLS) (A) M6 FLANGE 		0-91180-106-0 01 1 1006- ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9704-0602 ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 03 1 0308-0602 ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
219 NUT
M/T MXA5R(RMT) (C) M10 FLANGE 		0-91150-110-0 01 1 9704-0307 ● ●
219 NUT
M/T MYY5T(RSM) (C) M10 FLANGE 		0-91150-110-0 01 1 0308-0602 ● ●
219 NUT
M/T MYY5T(RSM) (C) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
239 BOLT; GRAND
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9704- ● ●
294 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9704-0602 ● ●
294 NUT
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
294 NUT
(C) M10 FLANGE 		0-91150-110-0 01 1 0308-0602 ● ●
294 NUT
(C) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704- ● ●
386 BOLT; GRAND HARNESS
FACE LIFT MODEL<TX7> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1111- ● ●
386 BOLT; GRAND HARNESS
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9704-1110 ● ●
386 BOLT; GRAND HARNESS
EXC. FACE LIFT MODEL<TX7> (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1111- ● ●
469 NUT; PROTECTOR
M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 9704-0307 ● ●
469 NUT; PROTECTOR
M/T MYY5T(RSM) M10 FLANGE 		0-91150-110-0 01 1 0308-0602 ● ●
469 NUT; PROTECTOR
M/T MYY5T(RSM) M10 FLANGE 		0-91180-110-0 01 1 0603-1111 ● ●
469 NUT; PROTECTOR
4HF1 ENG(RLS) M10 FLANGE 		0-91180-110-0 01 1 1112- ● ●
515 NUT; BRKT
4HG1-T ENG(RDP) (B) M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91150-106-0 02 1 9704-0602 ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91150-110-0 01 1 9704-0602 ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
çizim 137198
48 48 16 48 464 48 48 48 48 48 183 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) L=135 		1-09987-143-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(A) L=170 		5-09707-054-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(C) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=22 & 22 		8-94464-837-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(F) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) ID=12.5-14.5 		8-97087-726-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(L) L=175 		8-97110-167-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(N) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(K) ID=15-32 		8-97174-404-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(H) ID=32 L=75 		1-09700-702-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(J) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(A) L=170.3 		1-09987-182-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(D) ID=9.6 		8-94147-870-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(M) L=110 		8-94149-419-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=20 		8-94169-650-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) T=9 & 10.5 		8-97041-091-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(N) ID=12 VINYL CHLORIDE 		8-97367-984-1 AR 1 0802- ● ●
183 CLIP; CONNECTOR
ID=4.8 & 10 		8-94152-110-0 01 1 9704-0307 ● ●
464 CLIP; SEDIMENTER HARNESS
(B) ID=6.5 		8-94257-639-0 01 1 9704- ● ●
464 CLIP; SEDIMENTER HARNESS
(A) ID=6 		5-09700-316-0 01 1 9704-0307 ● ●
464 CLIP; SEDIMENTER HARNESS
(C) ID=14 L=47 		5-09700-319-0 01 1 0308- ● ●

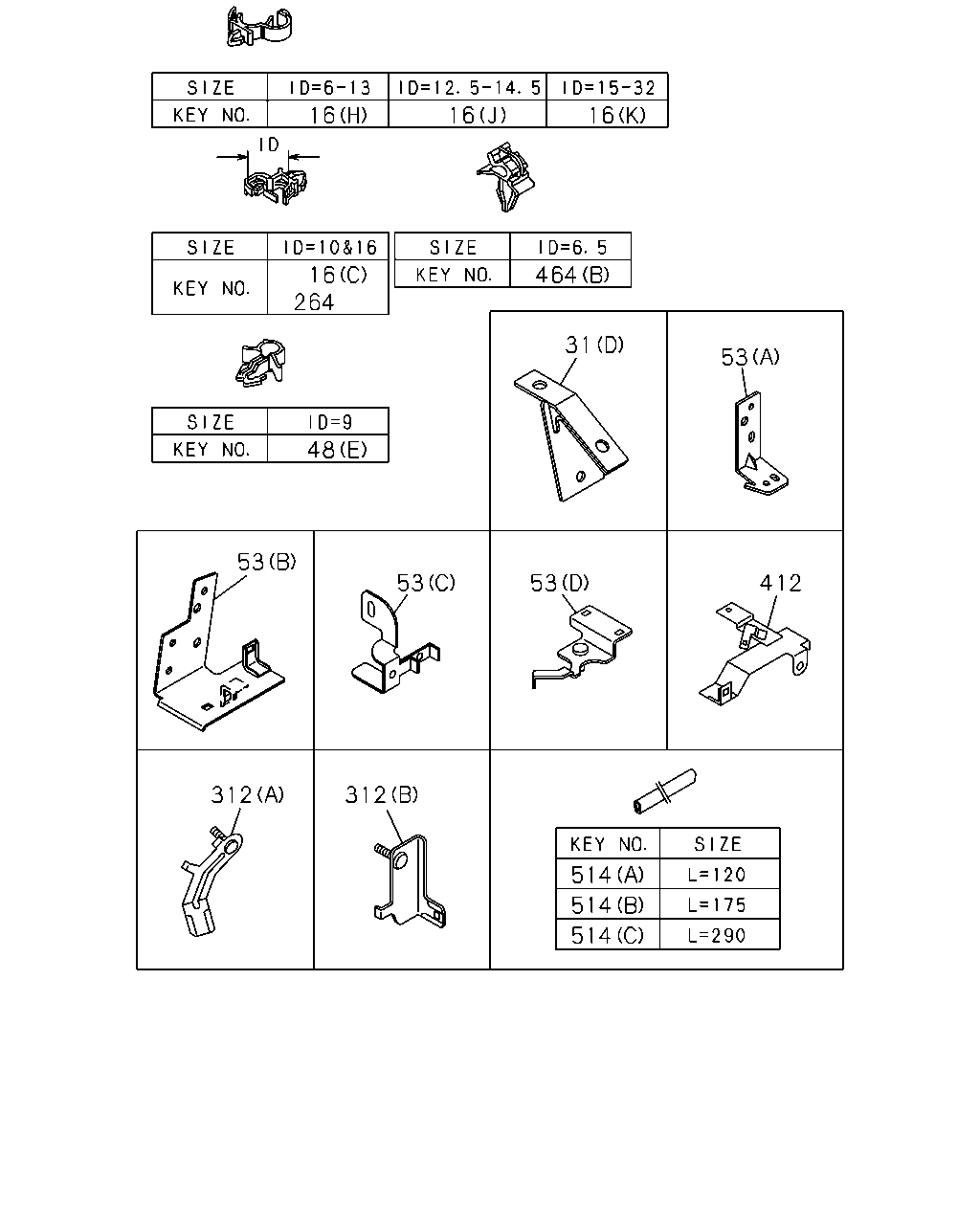

çizim 137735
16 16 16 16 264 464 31 53 48 53 53 53 412 312 312 514 514 514
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) L=135 		1-09987-143-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(A) L=170 		5-09707-054-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=100 		8-94327-067-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(C) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=22 & 22 		8-94464-837-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(F) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) ID=12.5-14.5 		8-97087-726-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(L) L=175 		8-97110-167-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(N) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(K) ID=15-32 		8-97174-404-0 AR 1 9704- ● ●
31 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 9704-0307 ● ●
31 BRACKET; HARNESS CLIP,PIPE
(D) 		8-97362-859-0 03 1 0308- ● ●
31 BRACKET; HARNESS CLIP,PIPE
(C) 		8-97017-071-2 01 1 9704-0307 ● ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97042-635-0 01 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(H) ID=32 L=75 		1-09700-702-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(J) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(A) L=170.3 		1-09987-182-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(K) ID=20 		5-09700-321-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(D) ID=9.6 		8-94147-870-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(M) L=110 		8-94149-419-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=20 		8-94169-650-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) T=9 & 10.5 		8-97041-091-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(L) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(N) ID=12 VINYL CHLORIDE 		8-97367-984-1 AR 1 0802- ● ●
53 BRACKET; HARNESS
4HG1-T ENG(RDP) (C) 		8-97065-158-2 01 1 1112- ● ●
53 BRACKET; HARNESS
4HG1-T ENG(RDP) (D) 		8-98003-048-0 01 1 1112- ● ●
53 BRACKET; HARNESS
(A) 		8-97062-178-3 01 1 9704-0307 ● ●
53 BRACKET; HARNESS
(B) 		8-97357-140-0 01 1 0308- ● ●
264 CLIP; HARNESS,HEADLAMP
FACE LIFT MODEL<TX7> ID=6 & 10-13 		8-97069-515-0 01 1 1111- ● ●
264 CLIP; HARNESS,HEADLAMP
ID=10 & 16 		8-94413-325-0 03 1 9704-1110 ● ●
264 CLIP; HARNESS,HEADLAMP
EXC. FACE LIFT MODEL<TX7> ID=10 & 16 		8-94413-325-0 03 1 1111- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97017-072-2 01 1 9704-0307 ● ●
312 BRACKET; CLIP HARNESS
(B) 		8-97357-050-0 01 1 0308- ● ●
312 BRACKET; CLIP HARNESS
(B) 		8-97357-051-1 01 1 0308- ● ●
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0308- ● ●
464 CLIP; SEDIMENTER HARNESS
(B) ID=6.5 		8-94257-639-0 01 1 9704- ● ●
464 CLIP; SEDIMENTER HARNESS
(A) ID=6 		5-09700-316-0 01 1 9704-0307 ● ●
464 CLIP; SEDIMENTER HARNESS
(C) ID=14 L=47 		5-09700-319-0 01 1 0308- ● ●
514 FINISHER; HARNESS
4HG1-T ENG(RDP) (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1112-1508 ● ●
514 FINISHER; HARNESS
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 9704-1005 ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 03 1 1006- ● ●
514 FINISHER; HARNESS
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9704-1005 ● ●
514 FINISHER; HARNESS
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1006- ● ●
çizim 190535
31 31 31
BalonParca AdiParca NoAdetTipApplied Date A B
31 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 9704-0307 ● ●
31 BRACKET; HARNESS CLIP,PIPE
(D) 		8-97362-859-0 03 1 0308- ● ●
31 BRACKET; HARNESS CLIP,PIPE
(C) 		8-97017-071-2 01 1 9704-0307 ● ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97042-635-0 01 1 9704-0307 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
