8-10 — WIRING HARNESS AND FUSE (#72476) — 229 parça

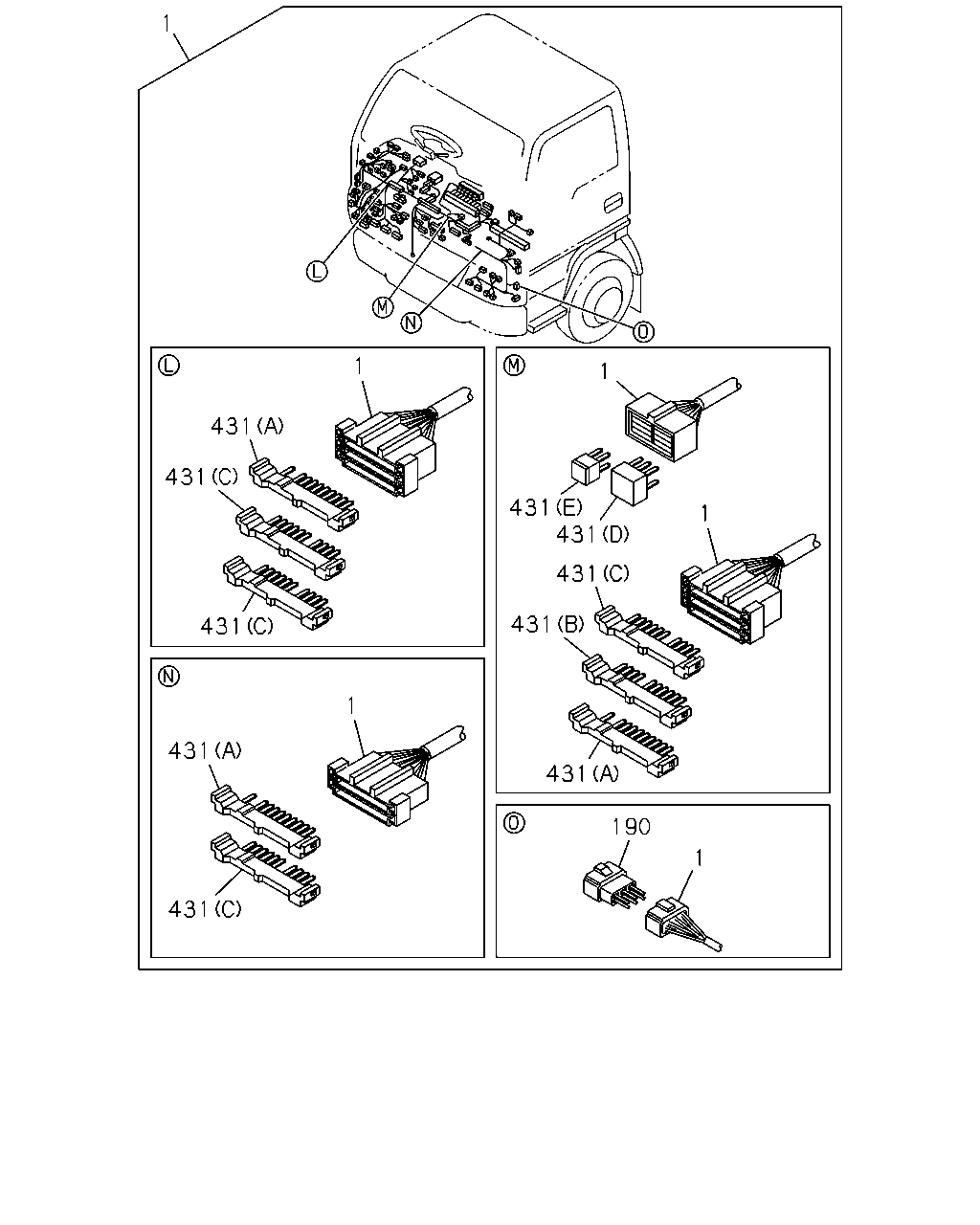

çizim 136172
1 1 1 431 431 431 431 1 431 431 431 1 431 431 190 1 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4HG1-T ENG(RDP) 		8-98028-703-1 01 1 1112-1508 ● ●
1 HARNESS; CAB
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-98028-703-1 01 1 1509- ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) FACE LIFT MODEL<TX7> 		8-98158-644-0 01 1 1006-1508 ● ●
1 HARNESS; CAB
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 		8-98158-644-0 01 1 1509- ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-98158-644-0 01 1 1509- ● ●
1 HARNESS; CAB 8-97132-922-1 01 1 9704-0307 ● ●
1 HARNESS; CAB 8-97368-735-0 01 1 0308-1005 ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7> 		8-97368-735-0 01 1 1006-1508 ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2015<VZF> 		8-97368-735-0 01 1 1509- ● ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9704-0307 ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) (B) 10P BLUE 		1-82699-598-0 01 1 1112-1508 ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (B) 10P BLUE 		1-82699-598-0 01 1 1509- ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) (C) 10P GREEN 		1-82699-599-0 04 1 1112-1508 ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (C) 10P GREEN 		1-82699-599-0 04 1 1509- ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) (A) 10P BROWN 		1-82699-601-0 03 1 1112-1508 ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (A) 10P BROWN 		1-82699-601-0 03 1 1509- ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) (E) 4P 		8-97077-939-0 01 1 1112-1508 ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (E) 4P 		8-97077-939-0 01 1 1509- ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) (D) 6P 		8-97077-941-0 01 1 1112-1508 ● ●
431 CONNECTOR; JOINT
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (D) 6P 		8-97077-941-0 01 1 1509- ● ●

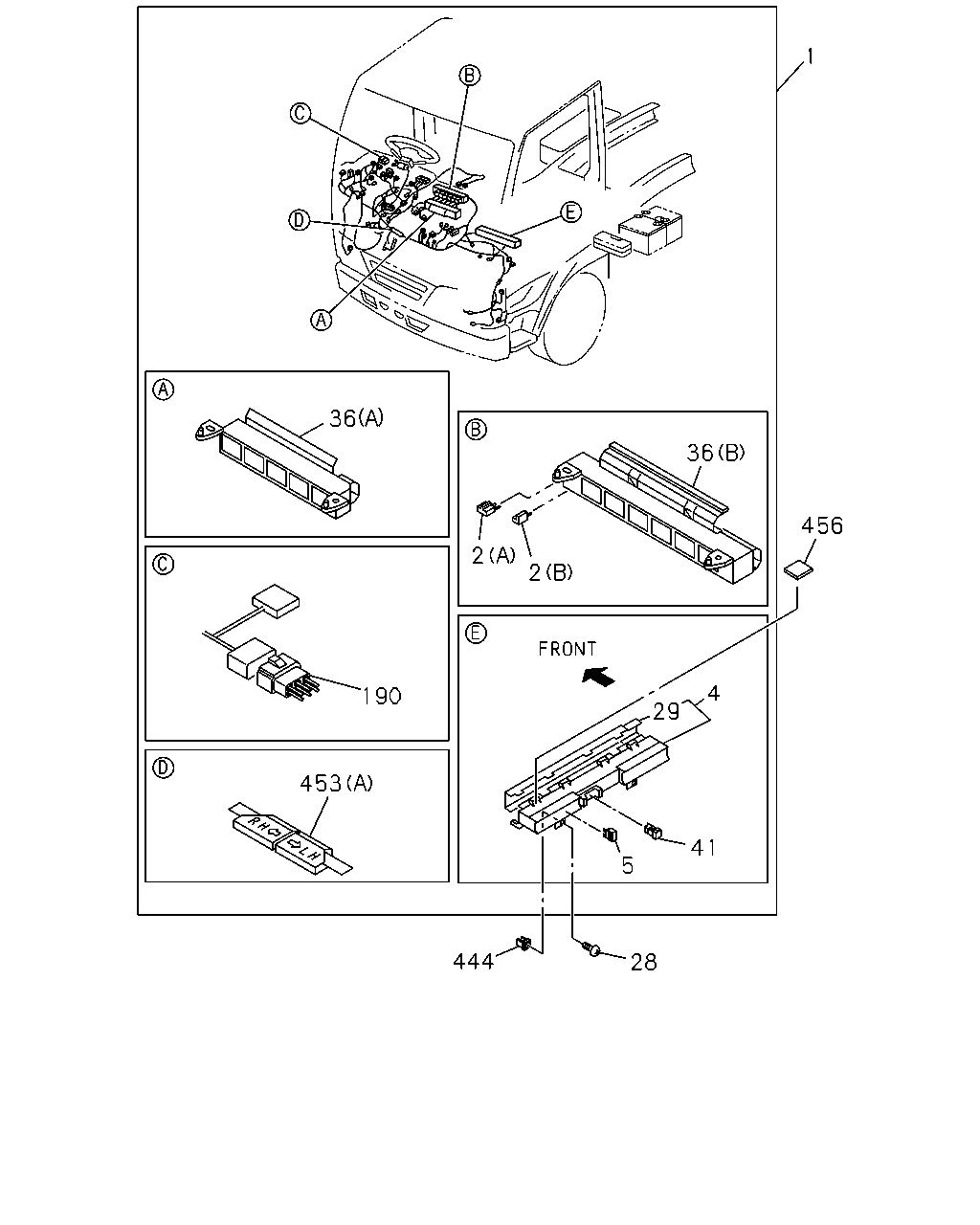

çizim 136535
1 36 36 456 2 2 4 190 29 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4HG1-T ENG(RDP) 		8-98028-703-1 01 1 1112-1508 ● ●
1 HARNESS; CAB
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-98028-703-1 01 1 1509- ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) FACE LIFT MODEL<TX7> 		8-98158-644-0 01 1 1006-1508 ● ●
1 HARNESS; CAB
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 		8-98158-644-0 01 1 1509- ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-98158-644-0 01 1 1509- ● ●
1 HARNESS; CAB 8-97132-922-1 01 1 9704-0307 ● ●
1 HARNESS; CAB 8-97368-735-0 01 1 0308-1005 ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7> 		8-97368-735-0 01 1 1006-1508 ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2015<VZF> 		8-97368-735-0 01 1 1509- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9704-1111 ● ●
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1112- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9704-1111 ● ●
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1112- ● ●
4 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP) 		8-97187-921-1 01 1 1112-1508 ● ●
4 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-97187-921-1 01 1 1509- ● ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9704-0307 ● ●
4 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0308-1111 ● ●
4 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) 		8-97214-415-0 01 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 10A MINI RED 		8-97062-022-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 15A MINI BLUE 		8-97062-023-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 20A MINI YELLOW 		8-97062-024-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 10A RED 		5-82516-002-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 15A BLUE 		5-82516-003-0 AR 1 1112- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0604 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ●
29 COVER; FUSE BOX
4HG1-T ENG(RDP) 		8-97074-955-0 01 1 1112-1508 ● ●
29 COVER; FUSE BOX
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-97074-955-0 01 1 1509- ● ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 9704-0307 ● ●
36 BOX; RELAY
4HG1-T ENG(RDP) (B) 		8-97187-918-1 01 1 1112-1508 ● ●
36 BOX; RELAY
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-97187-918-1 01 1 1509- ● ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 9704-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-640-1 01 1 0308-1111 ● ●
36 BOX; RELAY
4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 1112- ● ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 9704-1111 ● ●
36 BOX; RELAY
4HF1 ENG(RLS) (B) 		8-97087-639-1 01 1 1112- ● ●
41 PULLER; FUSE
4HG1-T ENG(RDP) 		8-97103-388-0 01 1 1112-1508 ● ●
41 PULLER; FUSE
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-97103-388-0 01 1 1509- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9704-1111 ● ●
41 PULLER; FUSE
4HF1 ENG(RLS) L=25.3 B=11.5 		8-94121-482-0 01 1 1112- ● ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9704-0307 ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704- ● ●
453 PROTECTOR; HARNESS
4HG1-T ENG(RDP) (H) 		8-97088-615-0 01 1 1112-1508 ● ●
453 PROTECTOR; HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (H) 		8-97088-615-0 01 1 1509- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9704-0307 ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(B) 		8-97261-653-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(G) 		8-97093-668-1 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97120-591-1 01 1 0308-1111 ● ●
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (C) 		8-97120-591-1 01 1 1112- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9704- ● ●

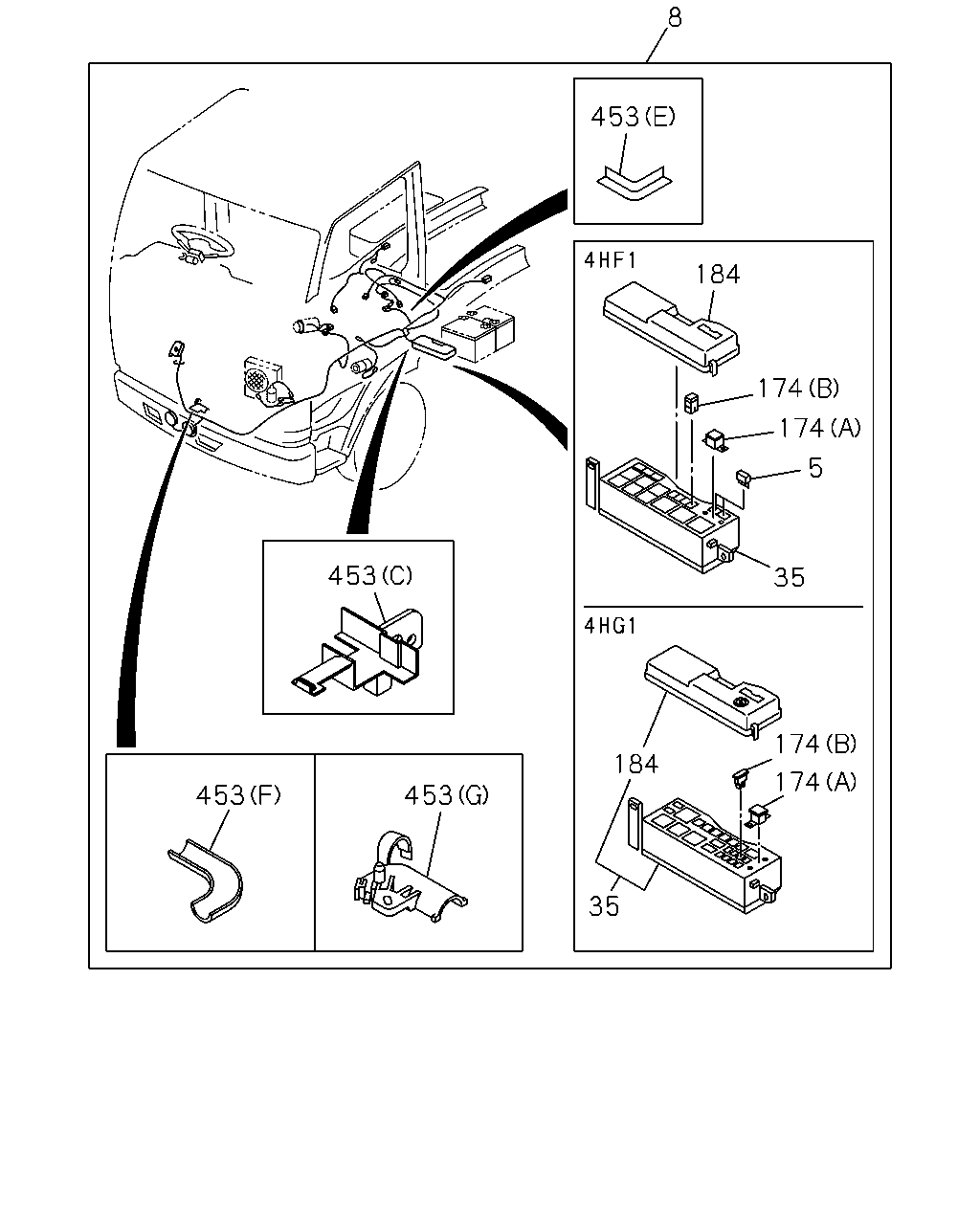

çizim 136678
8 453 184 174 174 5 453 35 174 184 174 453 453 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 10A MINI RED 		8-97062-022-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 15A MINI BLUE 		8-97062-023-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 20A MINI YELLOW 		8-97062-024-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 10A RED 		5-82516-002-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 15A BLUE 		5-82516-003-0 AR 1 1112- ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> 		8-98270-582-0 01 1 1509- ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) 		8-98000-755-0 01 1 1112-1508 ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 		8-98000-755-0 01 1 1509- ● ●
8 HARNESS; FRAME,FRT 8-97131-788-0 01 1 9704-0307 ● ●
8 HARNESS; FRAME,FRT 8-97368-736-0 01 1 0308-1111 ● ●
8 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97368-736-0 01 1 1112- ● ●
35 BOX; RELAY & FUSE
4HG1-T ENG(RDP) 		8-97377-739-0 01 1 1112- ● ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 9704-1111 ● ●
35 BOX; RELAY & FUSE
4HF1 ENG(RLS) 		8-97063-150-1 01 1 1112- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (A) 100A BLUE 		8-94388-306-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (B) 40A GREEN 		8-97183-644-0 AR 1 1112-1508 ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (B) 40A GREEN 		8-97183-644-0 AR 1 1509- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (B) 60A YELLOW 		8-97219-407-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 9704-1111 ● ●
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (A) 60A YELLOW 		8-94388-303-1 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 9704-1111 ● ●
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (B) 60A YELLOW 		8-94468-664-0 AR 1 1112- ● ●
184 COVER; RELAY & FUSE BOX
4HG1-T ENG(RDP) 		8-97377-741-0 01 1 1112- ● ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9704-1111 ● ●
184 COVER; RELAY & FUSE BOX
4HF1 ENG(RLS) 		8-97063-152-1 01 1 1112- ● ●
453 PROTECTOR; HARNESS
4HG1-T ENG(RDP) (H) 		8-97088-615-0 01 1 1112-1508 ● ●
453 PROTECTOR; HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (H) 		8-97088-615-0 01 1 1509- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9704-0307 ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(B) 		8-97261-653-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(G) 		8-97093-668-1 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97120-591-1 01 1 0308-1111 ● ●
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (C) 		8-97120-591-1 01 1 1112- ● ●
çizim 137246
8 184 174 174 35
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> 		8-98270-582-0 01 1 1509- ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) 		8-98000-755-0 01 1 1112-1508 ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 		8-98000-755-0 01 1 1509- ● ●
8 HARNESS; FRAME,FRT 8-97131-788-0 01 1 9704-0307 ● ●
8 HARNESS; FRAME,FRT 8-97368-736-0 01 1 0308-1111 ● ●
8 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97368-736-0 01 1 1112- ● ●
35 BOX; RELAY & FUSE
4HG1-T ENG(RDP) 		8-97377-739-0 01 1 1112- ● ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 9704-1111 ● ●
35 BOX; RELAY & FUSE
4HF1 ENG(RLS) 		8-97063-150-1 01 1 1112- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (A) 100A BLUE 		8-94388-306-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (B) 30A PINK 		8-97183-643-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (B) 40A GREEN 		8-97183-644-0 AR 1 1112-1508 ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (B) 40A GREEN 		8-97183-644-0 AR 1 1509- ● ●
174 FUSE; SLOW BLOW
4HG1-T ENG(RDP) (B) 60A YELLOW 		8-97219-407-0 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 9704-1111 ● ●
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (A) 60A YELLOW 		8-94388-303-1 AR 1 1112- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 9704-1111 ● ●
174 FUSE; SLOW BLOW
4HF1 ENG(RLS) (B) 60A YELLOW 		8-94468-664-0 AR 1 1112- ● ●
184 COVER; RELAY & FUSE BOX
4HG1-T ENG(RDP) 		8-97377-741-0 01 1 1112- ● ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9704-1111 ● ●
184 COVER; RELAY & FUSE BOX
4HF1 ENG(RLS) 		8-97063-152-1 01 1 1112- ● ●

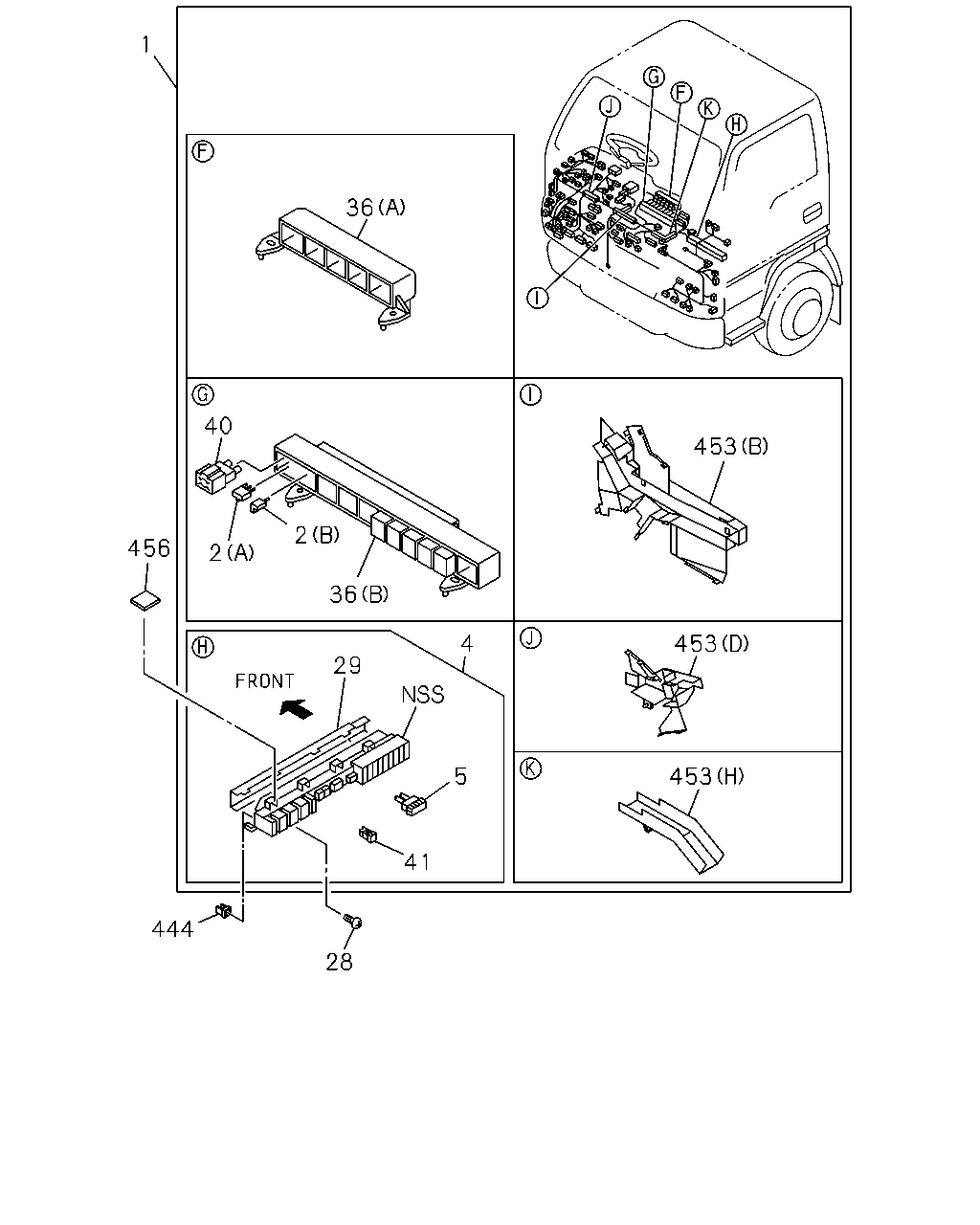

çizim 190534
1 36 40 453 456 2 36 453 4 29 453 5 41 444 28 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
4HG1-T ENG(RDP) 		8-98028-703-1 01 1 1112-1508 ● ●
1 HARNESS; CAB
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-98028-703-1 01 1 1509- ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) FACE LIFT MODEL<TX7> 		8-98158-644-0 01 1 1006-1508 ● ●
1 HARNESS; CAB
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 		8-98158-644-0 01 1 1509- ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-98158-644-0 01 1 1509- ● ●
1 HARNESS; CAB 8-97132-922-1 01 1 9704-0307 ● ●
1 HARNESS; CAB 8-97368-735-0 01 1 0308-1005 ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7> 		8-97368-735-0 01 1 1006-1508 ● ●
1 HARNESS; CAB
4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2015<VZF> 		8-97368-735-0 01 1 1509- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9704-1111 ● ●
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1112- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9704-1111 ● ●
2 DIODE; CABLE HARNESS
4HF1 ENG(RLS) (A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1112- ● ●
4 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP) 		8-97187-921-1 01 1 1112-1508 ● ●
4 BOX ASM; FUSE,HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-97187-921-1 01 1 1509- ● ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9704-0307 ● ●
4 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0308-1111 ● ●
4 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) 		8-97214-415-0 01 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 10A MINI RED 		8-97062-022-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 15A MINI BLUE 		8-97062-023-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> 20A MINI YELLOW 		8-97062-024-0 AR 1 1112- ● ●
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 10A RED 		5-82516-002-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
4HF1 ENG(RLS) 15A BLUE 		5-82516-003-0 AR 1 1112- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0604 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ●
29 COVER; FUSE BOX
4HG1-T ENG(RDP) 		8-97074-955-0 01 1 1112-1508 ● ●
29 COVER; FUSE BOX
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-97074-955-0 01 1 1509- ● ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 9704-0307 ● ●
36 BOX; RELAY
4HG1-T ENG(RDP) (B) 		8-97187-918-1 01 1 1112-1508 ● ●
36 BOX; RELAY
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-97187-918-1 01 1 1509- ● ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 9704-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-640-1 01 1 0308-1111 ● ●
36 BOX; RELAY
4HF1 ENG(RLS) (A) 		8-97087-640-1 01 1 1112- ● ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 9704-1111 ● ●
36 BOX; RELAY
4HF1 ENG(RLS) (B) 		8-97087-639-1 01 1 1112- ● ●
40 BOX; DIODE
4HG1-T ENG(RDP) NATURAL 8P 		8-97200-753-0 01 1 1112-1508 ● ●
40 BOX; DIODE
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> NATURAL 8P 		8-97200-753-0 01 1 1509- ● ●
41 PULLER; FUSE
4HG1-T ENG(RDP) 		8-97103-388-0 01 1 1112-1508 ● ●
41 PULLER; FUSE
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> 		8-97103-388-0 01 1 1509- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9704-1111 ● ●
41 PULLER; FUSE
4HF1 ENG(RLS) L=25.3 B=11.5 		8-94121-482-0 01 1 1112- ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704- ● ●
453 PROTECTOR; HARNESS
4HG1-T ENG(RDP) (H) 		8-97088-615-0 01 1 1112-1508 ● ●
453 PROTECTOR; HARNESS
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2015<VZF> (H) 		8-97088-615-0 01 1 1509- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 9704-0307 ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-730-3 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(B) 		8-97261-653-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(E) 		8-94417-716-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(F) 		8-94482-169-0 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(G) 		8-97093-668-1 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97120-591-1 01 1 0308-1111 ● ●
453 PROTECTOR; HARNESS
4HF1 ENG(RLS) (C) 		8-97120-591-1 01 1 1112- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9704- ● ●

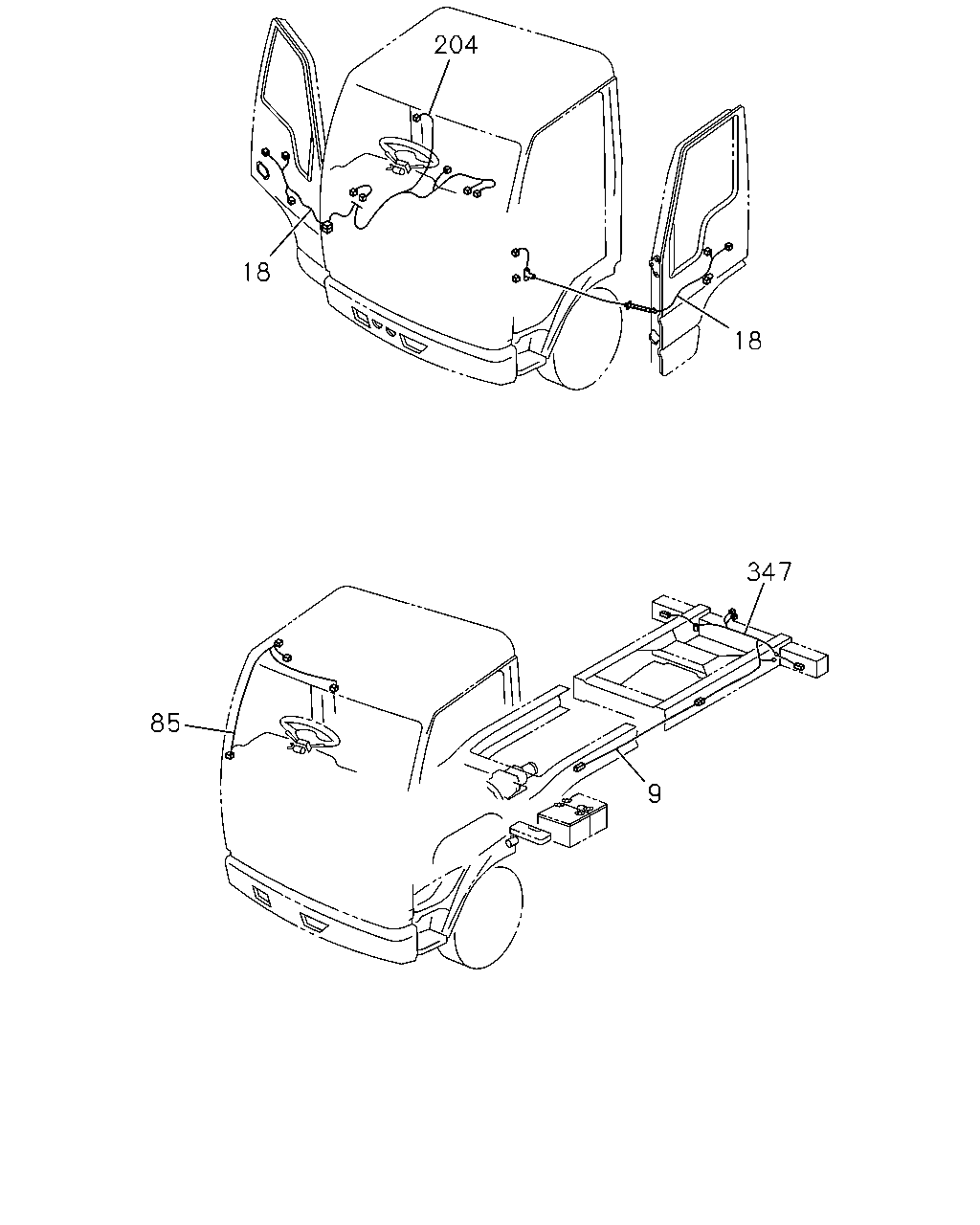

çizim 190536
204 18 18 347 85 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 HARNESS; FRAME,RR
4HG1-T ENG(RDP) 		8-97377-062-1 01 1 1112- ● ●
9 HARNESS; FRAME,RR 8-97126-401-2 01 1 9704-0307 ●
9 HARNESS; FRAME,RR 8-97126-402-2 01 1 9704-0307 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97100-295-1 01 1 9704-9708 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-144-1 01 1 9709-9904 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 9905-0307 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0308-1009 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97100-293-0 01 1 9704-9708 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 9709-0307 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0308- ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-572-1 01 1 9704-9904 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 9905-1009 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 9704- ● ●
85 HARNESS; ROOM LAMP
4HG1-T ENG(RDP) 		8-97364-159-0 01 1 1112-1508 ● ●
85 HARNESS; ROOM LAMP
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 		8-97364-159-0 01 1 1509- ● ●
85 HARNESS; ROOM LAMP 8-97145-826-0 01 1 9704-0307 ● ●
85 HARNESS; ROOM LAMP 8-97164-611-2 01 1 0308-1111 ● ●
85 HARNESS; ROOM LAMP
4HF1 ENG(RLS) 		8-97164-611-2 01 1 1112-1508 ● ●
85 HARNESS; ROOM LAMP
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 		8-97164-611-2 01 1 1509- ● ●
85 HARNESS; ROOM LAMP
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 		8-97164-611-2 01 1 1509- ● ●
204 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9704-0307 ● ●
204 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0308- ● ●
347 HARNESS; CABLE,RR BODY 8-97147-858-2 01 1 9704-0307 ● ●
347 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 0308- ● ●

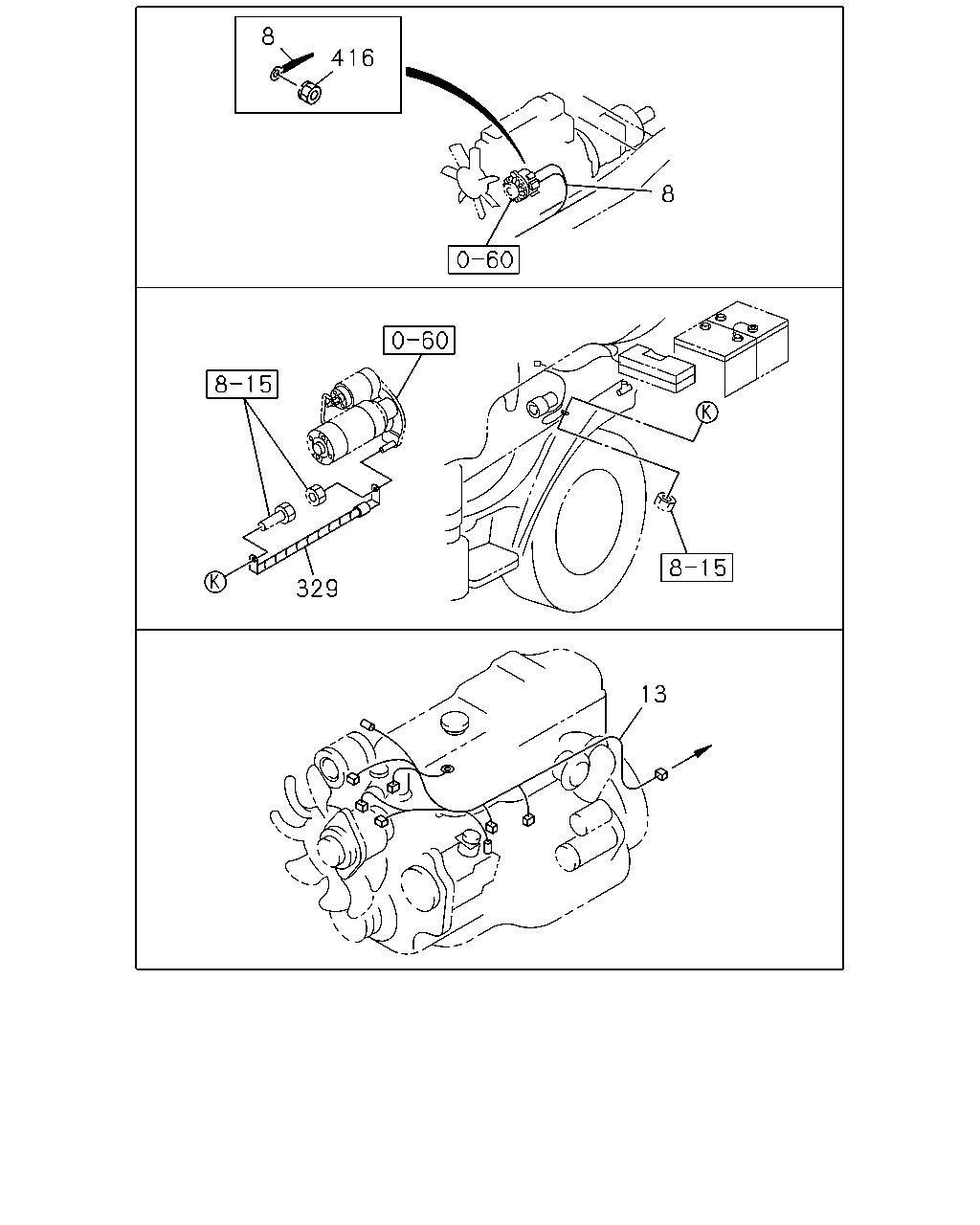

çizim 190558
8 416 8 329 13
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> 		8-98270-582-0 01 1 1509- ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) 		8-98000-755-0 01 1 1112-1508 ● ●
8 HARNESS; FRAME,FRT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 		8-98000-755-0 01 1 1509- ● ●
8 HARNESS; FRAME,FRT 8-97131-788-0 01 1 9704-0307 ● ●
8 HARNESS; FRAME,FRT 8-97368-736-0 01 1 0308-1111 ● ●
8 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97368-736-0 01 1 1112- ● ●
13 HARNESS; ENG
4HG1-T ENG(RDP) 		8-97360-784-1 01 1 1112-1201 ● ●
13 HARNESS; ENG
4HG1-T ENG(RDP) 		8-97360-767-1 01 1 1202- ● ●
13 HARNESS; ENG
POWER STEERING<N40> 		8-97131-758-1 01 1 9704-0307 ● ●
13 HARNESS; ENG
POWER STEERING<N40> 		8-97356-988-1 01 1 0308-1111 ● ●
13 HARNESS; ENG
4HF1 ENG(RLS) 		8-97356-988-1 01 1 1112- ● ●
329 CABLE; ENG TO FRAME 8-97065-249-1 01 1 9704- ● ●
416 NUT; TERMINAL
M6 W/LK WASHER 		8-94424-179-0 01 1 9704- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
