8-01 — LAMP; FRONT AND FRONT SIDE (#72474) — 252 parça

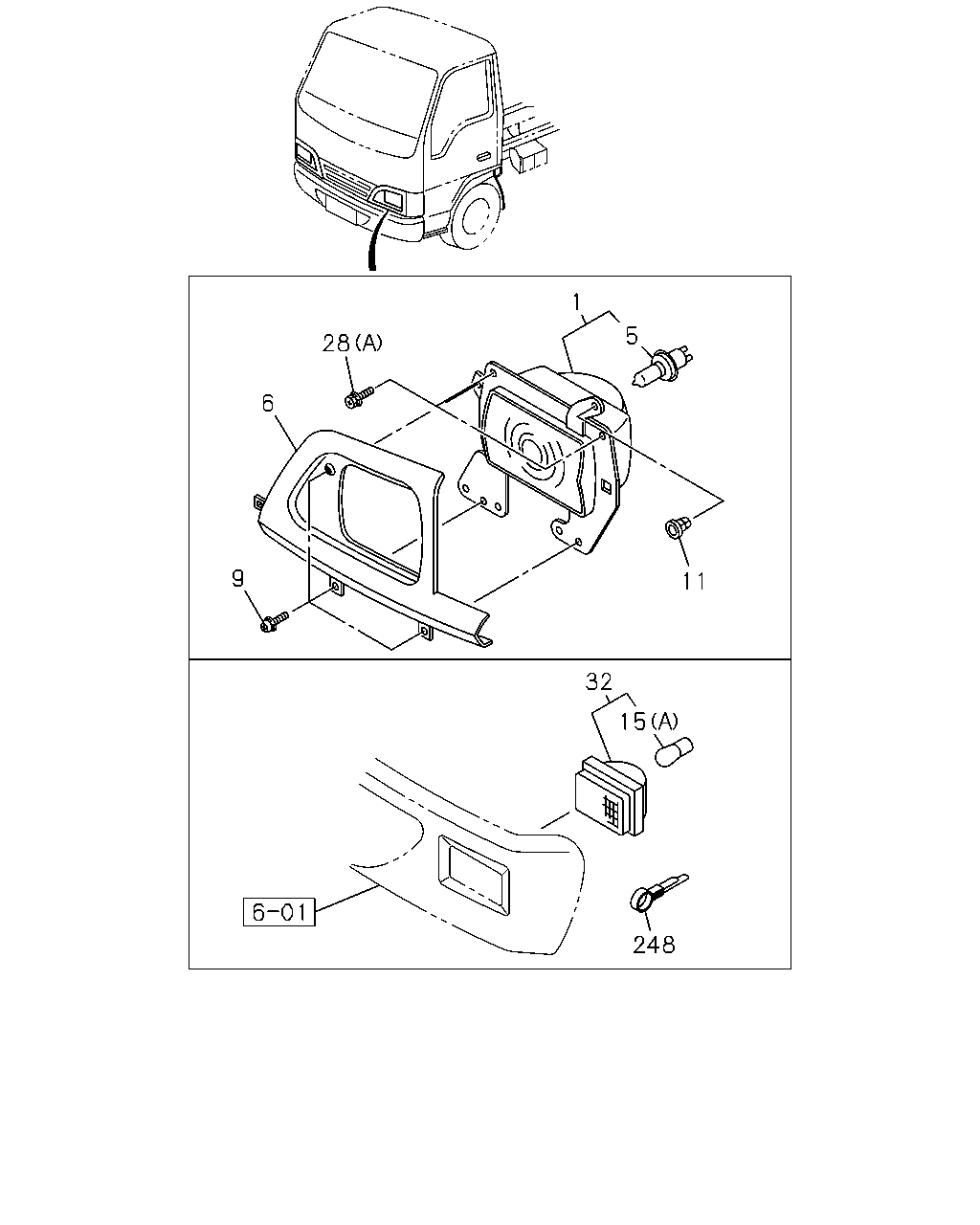

çizim 135706
1 5 28 6 9 11 32 15 248
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97365-162-6 01 1 1310- ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97365-163-6 01 1 1310- ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 24V 75/70W 		8-97372-528-5 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97372-528-5 01 1 1310- ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 24V 75/70W 		8-97372-529-5 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97372-529-5 01 1 1310- ● ●
1 LAMP ASM; HEAD 8-97161-811-0 01 1 9704-1005 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-811-0 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97161-811-0 01 1 1310- ● ●
1 LAMP ASM; HEAD 8-97161-810-0 01 1 9704-1005 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-810-0 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97161-810-0 01 1 1310- ● ●
5 BULB; HEADLAMP
FACE LIFT MODEL<TX7> 24V 75/70W 		1-82194-063-0 02 1 1006- ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-97180-367-0 02 1 9704-1005 ● ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7> 24V 75/70W 		8-97180-367-0 02 1 1006-1309 ● ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97180-367-0 02 1 1310- ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 9704-1005 ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 1006- ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 9704-1005 ● ●
6 RIM; HEADLAMP
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 1006- ● ●
6 RIM; HEADLAMP
PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 1006-1111 ● ●
6 RIM; HEADLAMP
PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 1006-1111 ● ●
6 RIM; HEADLAMP
BODY COLOR MARINE BLUE(890) PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 0308-1005 ● ●
6 RIM; HEADLAMP
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 1006- ● ●
6 RIM; HEADLAMP
BODY COLOR MARINE BLUE(890) PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 0308-1005 ● ●
6 RIM; HEADLAMP
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7> PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 1006- ● ●
9 SCREW; HEADLAMP RIM
M5X16 W/LK&PL WASHER 		8-94279-400-0 06 1 9704-1005 ● ●
9 SCREW; HEADLAMP RIM
EXC. FACE LIFT MODEL<TX7> M5X16 W/LK&PL WASHER 		8-94279-400-0 06 1 1006- ● ●
11 GROMMET; SCREW,HEADLAMP RIM 8-94452-095-0 02 1 9704-1005 ● ●
11 GROMMET; SCREW,HEADLAMP RIM
EXC. FACE LIFT MODEL<TX7> 		8-94452-095-0 02 1 1006- ● ●
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> (B) 24V 55W 		1-82194-095-0 02 1 1006-1401 ● ●
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> (B) 24V 55W 		8-98230-031-0 02 1 1402- ● ●
15 BULB; FOG LAMP
(A) 24V 70W 		8-97180-369-0 02 1 9704-1005 ● ●
15 BULB; FOG LAMP
EXC. FACE LIFT MODEL<TX7> (A) 24V 70W 		8-97180-369-0 02 1 1006- ● ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1006-1401 ● ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> (B) M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9704-1005 ● ●
28 BOLT; HEADLAMP
EXC. FACE LIFT MODEL<TX7> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1006- ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-004-1 01 1 1006- ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-005-1 01 1 1006- ● ●
32 LAMP ASM; FOG 8-97164-343-0 01 1 9704-1005 ● ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-343-0 01 1 1006- ● ●
32 LAMP ASM; FOG 8-97164-342-0 01 1 9704-1005 ● ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-342-0 01 1 1006- ● ●
248 CLIP; HARNESS
ID=20 		5-09700-321-0 02 1 9704- ● ●

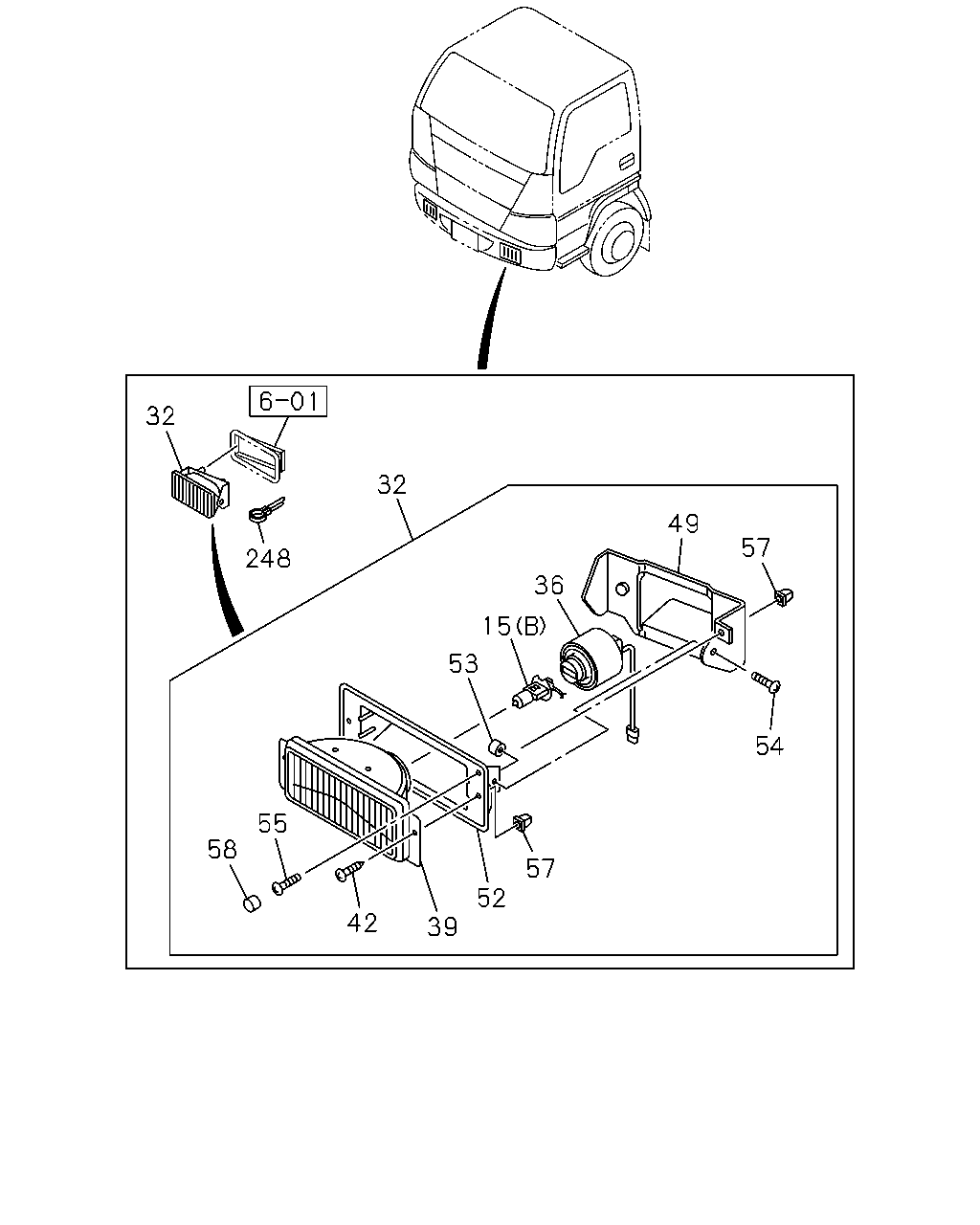

çizim 136290
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> (B) 24V 55W 		1-82194-095-0 02 1 1006-1401 ● ●
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> (B) 24V 55W 		8-98230-031-0 02 1 1402- ● ●
15 BULB; FOG LAMP
(A) 24V 70W 		8-97180-369-0 02 1 9704-1005 ● ●
15 BULB; FOG LAMP
EXC. FACE LIFT MODEL<TX7> (A) 24V 70W 		8-97180-369-0 02 1 1006- ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-004-1 01 1 1006- ● ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-005-1 01 1 1006- ● ●
32 LAMP ASM; FOG 8-97164-343-0 01 1 9704-1005 ● ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-343-0 01 1 1006- ● ●
32 LAMP ASM; FOG 8-97164-342-0 01 1 9704-1005 ● ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-342-0 01 1 1006- ● ●
36 CORD; FOG LAMP
FACE LIFT MODEL<TX7> 		8-97095-518-0 02 1 1006- ● ●
39 UNIT; FOG LAMP
FACE LIFT MODEL<TX7> 		8-98063-416-0 01 1 1006- ● ●
39 UNIT; FOG LAMP
FACE LIFT MODEL<TX7> 		8-98063-417-0 01 1 1006- ● ●
42 SCREW; LENS,FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-089-0 04 1 1006- ● ●
49 BRACKET; LAMP
FACE LIFT MODEL<TX7> 		8-97104-094-0 01 1 1006- ● ●
49 BRACKET; LAMP
FACE LIFT MODEL<TX7> 		8-97104-095-0 01 1 1006- ● ●
52 RING; MTG,FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-062-0 02 1 1006- ● ●
53 NUT; MTG RING,FOG LAMP
FACE LIFT MODEL<TX7> 		8-94379-802-0 04 1 1006- ● ●
54 BOLT; MTG RING,FOG LAMP
FACE LIFT MODEL<TX7> M5X12 		8-94379-803-0 04 1 1006- ● ●
55 SCREW; ADJ,FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-087-0 02 1 1006- ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FACE LIFT MODEL<TX7> 		8-94379-806-0 06 1 1006- ● ●
58 HOLDER; FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-088-0 02 1 1006- ● ●
248 CLIP; HARNESS
ID=20 		5-09700-321-0 02 1 9704- ● ●

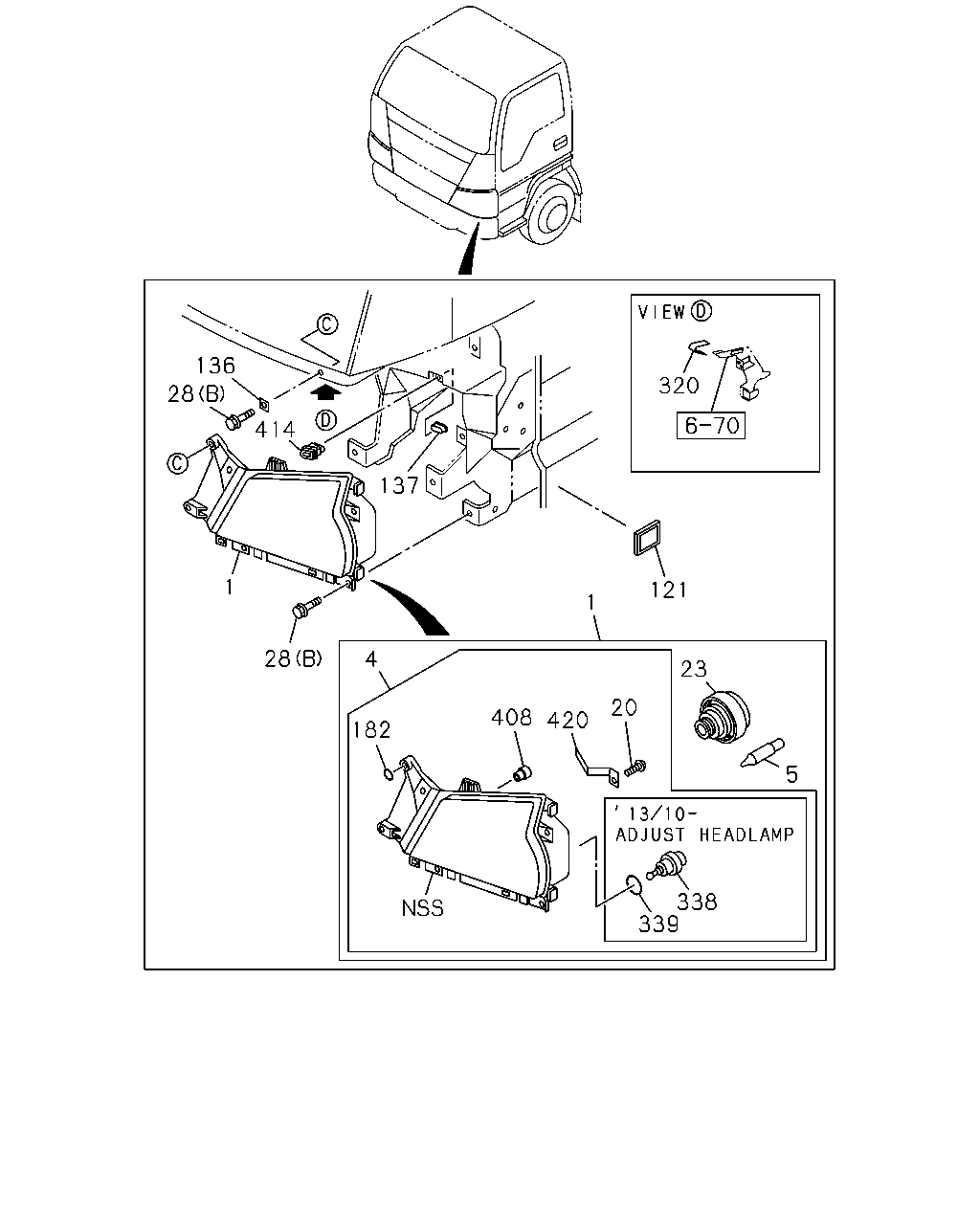

çizim 136398
121 23 20 420 1 408 182 28 1 414 137 28 136 320 5 339 338 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97365-162-6 01 1 1310- ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97365-163-6 01 1 1310- ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 24V 75/70W 		8-97372-528-5 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97372-528-5 01 1 1310- ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 24V 75/70W 		8-97372-529-5 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97372-529-5 01 1 1310- ● ●
1 LAMP ASM; HEAD 8-97161-811-0 01 1 9704-1005 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-811-0 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97161-811-0 01 1 1310- ● ●
1 LAMP ASM; HEAD 8-97161-810-0 01 1 9704-1005 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-810-0 01 1 1006-1309 ● ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97161-810-0 01 1 1310- ● ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 		8-98009-814-0 01 1 1310- ● ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 		8-98009-815-0 01 1 1310- ● ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> 		8-98009-818-0 01 1 1006-1309 ● ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE> 		8-98009-818-0 01 1 1310- ● ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> 		8-98009-819-0 01 1 1006-1309 ● ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE> 		8-98009-819-0 01 1 1310- ● ●
5 BULB; HEADLAMP
FACE LIFT MODEL<TX7> 24V 75/70W 		1-82194-063-0 02 1 1006- ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-97180-367-0 02 1 9704-1005 ● ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7> 24V 75/70W 		8-97180-367-0 02 1 1006-1309 ● ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 24V 75/70W 		8-97180-367-0 02 1 1310- ● ●
20 SCREW; HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-871-0 02 1 1006- ● ●
23 COVER; BULB,HEADLAMP
FACE LIFT MODEL<TX7> 		8-97232-491-0 02 1 1006- ● ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1006-1401 ● ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> (B) M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9704-1005 ● ●
28 BOLT; HEADLAMP
EXC. FACE LIFT MODEL<TX7> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1006- ● ●
121 REFLECTOR; REFLEX
FACE LIFT MODEL<TX7> 		8-98013-990-1 02 1 1006- ● ●
136 SEAL; HEADLAMP
FACE LIFT MODEL<TX7> 25X25 		8-94272-533-0 02 1 1006- ● ●
137 GROMMET; HEADLAMP
FACE LIFT MODEL<TX7> 		8-97581-666-0 02 1 1006- ● ●
182 GASKET; HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-869-0 02 1 1006- ● ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9704- ● ●
338 LEVELING; HEADLAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 		8-98010-256-0 02 1 1310- ● ●
339 GASKET; LEVELING
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> 		8-97378-870-0 02 1 1310- ● ●
408 CAP; BREATHER,HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-874-0 02 1 1006- ● ●
414 PIN; HEADLAMP,RIM
FACE LIFT MODEL<TX7> 		8-97581-667-0 02 1 1006- ● ●
420 SPRING; BULB,HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-875-0 02 1 1006- ● ●

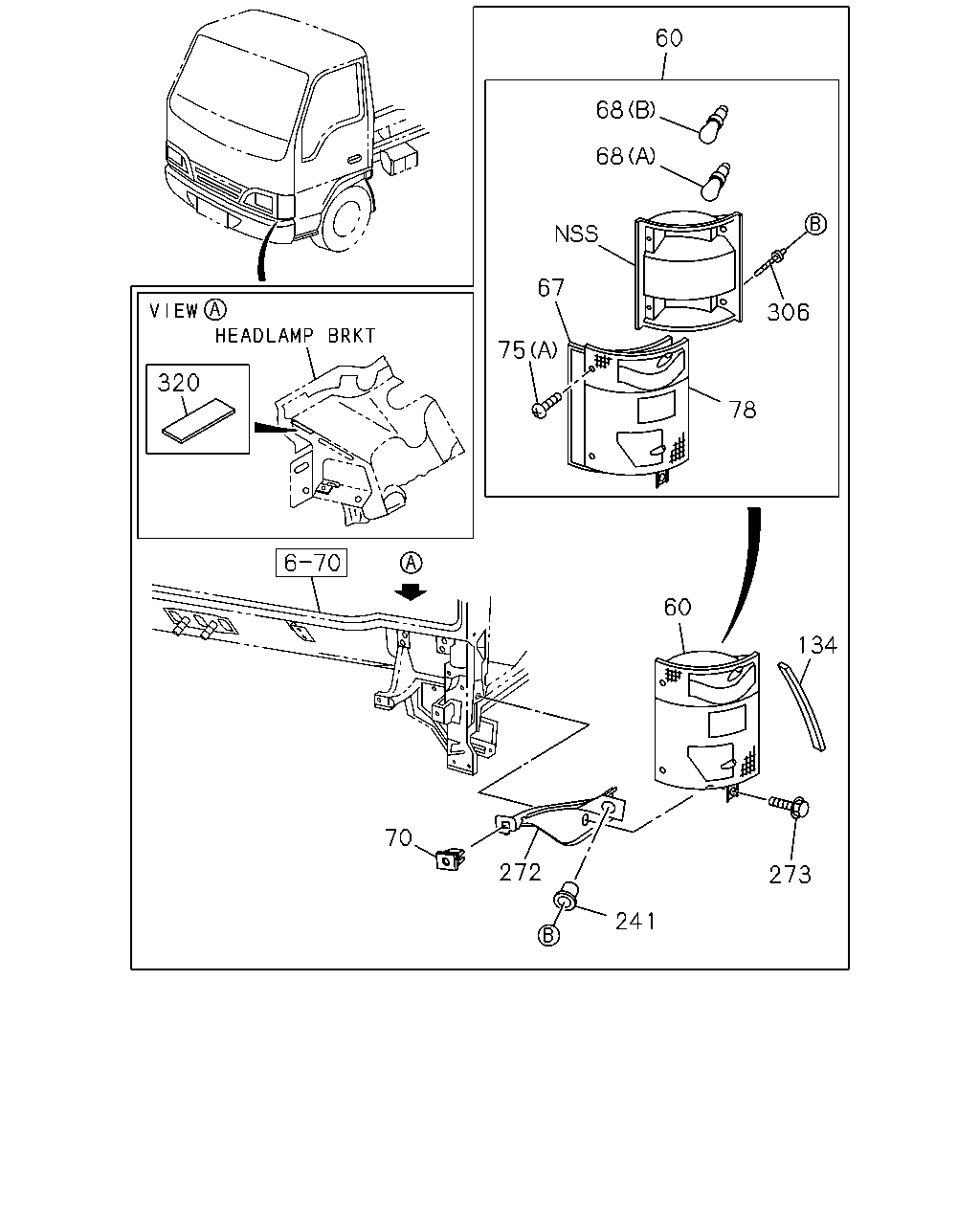

çizim 136433
60 68 68 67 306 75 320 78 60 134 70 272 273 241
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-98053-940-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-98053-941-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-891-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-98010-891-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-892-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-98010-892-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB 8-97855-008-2 01 1 9704-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-976-0 01 1 0702-1005 ● ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-976-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-98053-976-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB 8-97855-007-2 01 1 9704-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-975-0 01 1 0702-1005 ● ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-975-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-98053-975-0 01 1 1310- ● ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-948-0 02 1 1006-1309 ● ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-948-0 02 1 1310- ● ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-948-0 02 1 1310- ● ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9704-1005 ● ●
67 GASKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97855-121-0 02 1 1006-1309 ● ●
67 GASKET; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97855-121-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) 24V 21/5W 		8-94125-957-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> (C) 24V 21/5W 		8-94125-957-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> (C) 24V 21/5W 		8-94125-957-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (D) 24V 21W AMBER 		8-97323-806-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> (D) 24V 21W AMBER 		8-97323-806-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> (D) 24V 21W AMBER 		8-97323-806-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 9704-1005 ● ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) 24V 30/10W 		1-82194-065-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> (A) 24V 30/10W 		1-82194-065-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 9704-1005 ● ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (B) 24V 25W 		9-82691-347-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> (B) 24V 25W 		9-82691-347-0 02 1 1310- ● ●
70 GROMMET; SCREW,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		1-09983-081-0 02 1 1006- ● ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9704-1005 ● ●
70 GROMMET; SCREW,FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97030-792-0 04 1 1006- ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) M6X16 TAPPING 		8-97374-995-0 02 1 1006- ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (B) M4X12 		8-97378-944-0 14 1 1006-1309 ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> (B) M4X12 		8-97378-944-0 14 1 1310- ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> (B) M4X12 		8-97378-944-0 14 1 1310- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9704-1005 ● ●
75 SCREW; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1006-1309 ● ●
75 SCREW; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1310- ● ●
78 LENS ASM; FRT COMB 8-97855-131-0 01 1 9704-1005 ● ●
78 LENS ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-97855-131-0 01 1 1006-1309 ● ●
78 LENS ASM; FRT COMB
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97855-131-0 01 1 1310- ● ●
78 LENS ASM; FRT COMB 8-97855-128-0 01 1 9704-1005 ● ●
78 LENS ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-97855-128-0 01 1 1006-1309 ● ●
78 LENS ASM; FRT COMB
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97855-128-0 01 1 1310- ● ●
134 FINISHER; HEADLAMP RIM 8-97890-583-0 02 1 9706-1005 ● ●
134 FINISHER; HEADLAMP RIM
EXC. FACE LIFT MODEL<TX7> 		8-97890-583-0 02 1 1006- ● ●
241 GROMMET; FRT LAMP
FACE LIFT MODEL<TX7> 		8-97380-030-0 02 1 1006- ● ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 9704-1005 ● ●
241 GROMMET; FRT LAMP
EXC. FACE LIFT MODEL<TX7> 		8-94452-095-0 04 1 1006- ● ●
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9704-1005 ● ●
272 BRACKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97853-237-2 01 1 1006- ● ●
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9704-1005 ● ●
272 BRACKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97853-236-2 01 1 1006- ● ●
273 BOLT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X30 FLANGE 		0-28661-030-0 01 1 1310- ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9704-1005 ● ●
273 BOLT; BRKT
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006-1210 ● ●
273 BOLT; BRKT
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
306 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9704-1005 ● ●
306 PIVOT; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97219-053-0 04 1 1006-1309 ● ●
306 PIVOT; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97219-053-0 04 1 1310- ● ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9704- ● ●

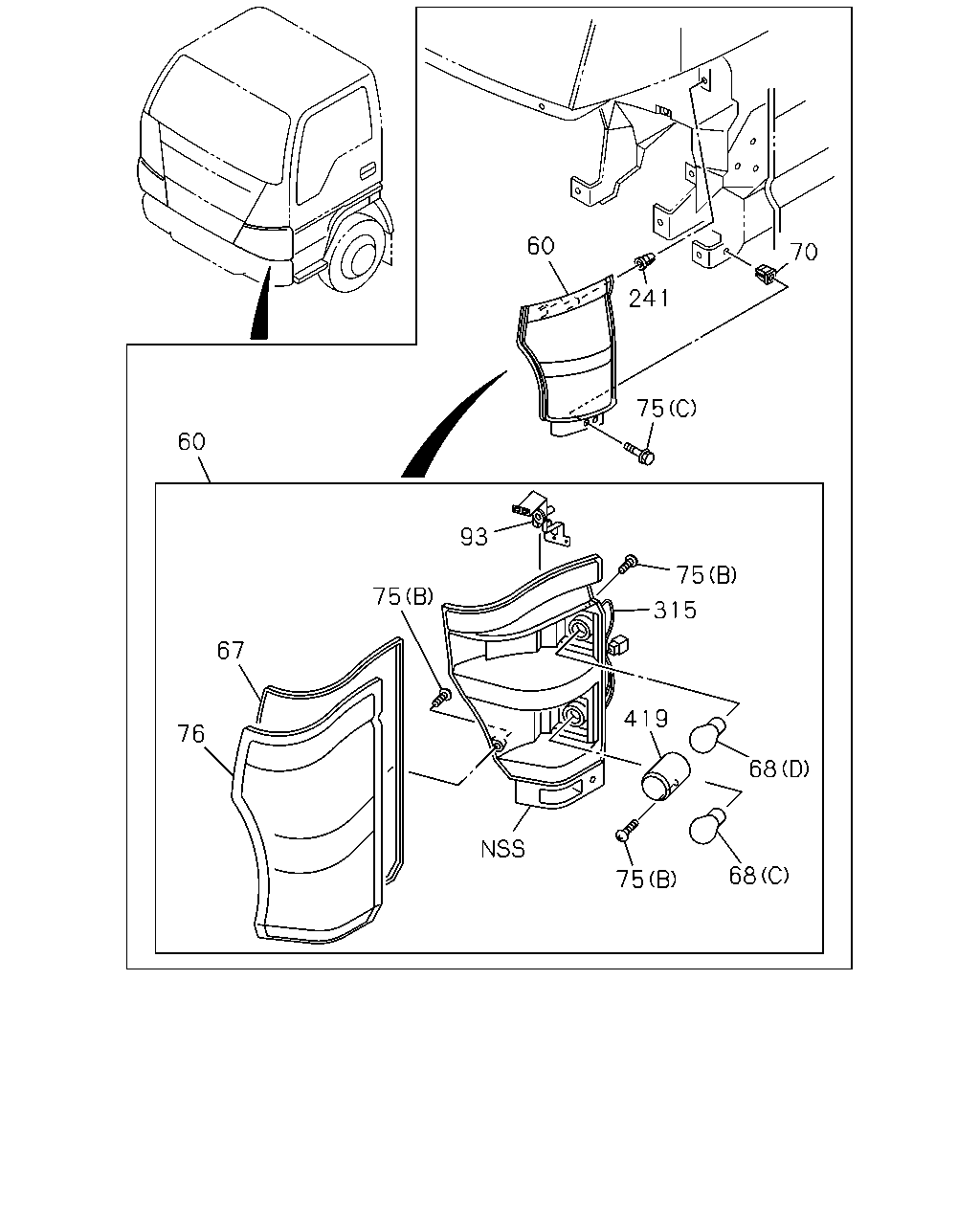

çizim 136554
60 70 241 75 60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-98053-940-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-98053-941-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-891-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-98010-891-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-892-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-98010-892-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB 8-97855-008-2 01 1 9704-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-976-0 01 1 0702-1005 ● ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-976-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-98053-976-0 01 1 1310- ● ●
60 LAMP ASM; FRT COMB 8-97855-007-2 01 1 9704-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-975-0 01 1 0702-1005 ● ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-975-0 01 1 1006-1309 ● ●
60 LAMP ASM; FRT COMB
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-98053-975-0 01 1 1310- ● ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-948-0 02 1 1006-1309 ● ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-948-0 02 1 1310- ● ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-948-0 02 1 1310- ● ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9704-1005 ● ●
67 GASKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97855-121-0 02 1 1006-1309 ● ●
67 GASKET; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> 		8-97855-121-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) 24V 21/5W 		8-94125-957-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> (C) 24V 21/5W 		8-94125-957-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> (C) 24V 21/5W 		8-94125-957-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (D) 24V 21W AMBER 		8-97323-806-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> (D) 24V 21W AMBER 		8-97323-806-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> (D) 24V 21W AMBER 		8-97323-806-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 9704-1005 ● ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) 24V 30/10W 		1-82194-065-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> (A) 24V 30/10W 		1-82194-065-0 02 1 1310- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 9704-1005 ● ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (B) 24V 25W 		9-82691-347-0 02 1 1006-1309 ● ●
68 BULB; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> (B) 24V 25W 		9-82691-347-0 02 1 1310- ● ●
70 GROMMET; SCREW,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		1-09983-081-0 02 1 1006- ● ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9704-1005 ● ●
70 GROMMET; SCREW,FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97030-792-0 04 1 1006- ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) M6X16 TAPPING 		8-97374-995-0 02 1 1006- ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (B) M4X12 		8-97378-944-0 14 1 1006-1309 ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> (B) M4X12 		8-97378-944-0 14 1 1310- ● ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> (B) M4X12 		8-97378-944-0 14 1 1310- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9704-1005 ● ●
75 SCREW; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1006-1309 ● ●
75 SCREW; FRT COMB LAMP
CORNERING LAMP<T87> EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1310- ● ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-961-0 01 1 1310- ● ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-962-0 01 1 1310- ● ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-965-0 01 1 1006-1309 ● ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-965-0 01 1 1310- ● ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-966-0 01 1 1006-1309 ● ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-966-0 01 1 1310- ● ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-943-0 01 1 1006-1309 ● ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-943-0 01 1 1310- ● ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-943-0 01 1 1310- ● ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-945-0 01 1 1006-1309 ● ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-945-0 01 1 1310- ● ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-945-0 01 1 1310- ● ●
241 GROMMET; FRT LAMP
FACE LIFT MODEL<TX7> 		8-97380-030-0 02 1 1006- ● ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 9704-1005 ● ●
241 GROMMET; FRT LAMP
EXC. FACE LIFT MODEL<TX7> 		8-94452-095-0 04 1 1006- ● ●
315 HARNESS; FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-98010-917-0 02 1 1310- ● ●
315 HARNESS; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-98010-916-0 02 1 1006-1309 ● ●
315 HARNESS; FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-98010-916-0 02 1 1310- ● ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-946-0 01 1 1006-1309 ● ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-946-0 01 1 1310- ● ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-946-0 01 1 1310- ● ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-947-0 01 1 1006-1309 ● ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2014<VZE> 		8-97378-947-0 01 1 1310- ● ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. CORNERING LAMP<T87> 		8-97378-947-0 01 1 1310- ● ●
çizim 402594
273 102 104 133 91 321 327 398 161
BalonParca AdiParca NoAdetTipApplied Date A B
91 BULB; SIDE TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 24V 21W 		1-82194-036-0 02 1 1310- ● ●
102 LENS; SIDE TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		1-82213-020-0 01 1 1310- ● ●
102 LENS; SIDE TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		1-82213-021-0 01 1 1310- ● ●
104 SCREW; SIDE TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		8-97224-571-0 02 1 1310- ● ●
133 WASHER; PL,SIDE FLASHER LAMP
VIN MODEL YEAR 2014<VZE> 		1-86830-150-0 02 1 1310- ● ●
161 NUT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10 FLANGE 		0-91180-210-0 01 1 1310- ● ●
273 BOLT; BRKT
VIN MODEL YEAR 2014<VZE> EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X30 FLANGE 		0-28661-030-0 01 1 1310- ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9704-1005 ● ●
273 BOLT; BRKT
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006-1210 ● ●
273 BOLT; BRKT
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
321 HARNESS; SIDE FLASHER LAMP
VIN MODEL YEAR 2014<VZE> 		8-97224-569-0 02 1 1310- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		8-97221-813-0 01 1 1310- ● ●
327 LAMP ASM; SIDE TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		8-97221-814-0 01 1 1310- ● ●
398 BRACKET; TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		8-97222-070-0 01 1 1310- ● ●
398 BRACKET; TURN SIGNAL
VIN MODEL YEAR 2014<VZE> 		8-97222-071-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
