7-50 — FRONT SEAT (#72472) — 88 parça

1 2 18 228 24 16 99 17 19 12 13 69 382 67 71 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-674-3	01	1	1310-	●	●
1	BACK ASM; SEAT DARK BEIGE	8-97854-234-4	01	1	9704-0307	●	●
1	BACK ASM; SEAT DARK GRAY	8-97197-356-4	01	1	0308-1309	●	●
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97197-356-4	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-675-2	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK DARK BEIGE	8-97854-237-2	01	1	9704-0307	●	●
2	COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97197-370-2	01	1	0308-1309	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97197-370-2	01	1	1310-	●	●
12	CUSHION; SEAT,FRT VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-488-1	01	1	1310-	●	●
12	CUSHION; SEAT,FRT DARK BEIGE	8-97854-238-7	01	1	9704-0307	●	●
12	CUSHION; SEAT,FRT DARK GRAY	8-97197-375-2	01	1	0308-1309	●	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97197-375-2	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-489-1	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DARK BEIGE	8-97854-241-5	01	1	9704-0307	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97197-389-2	01	1	0308-1309	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97197-389-2	01	1	1310-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER BLACK W/KNOB	8-97859-273-3	01	1	9704-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER CENTER BLACK W/KNOB	8-97859-274-3	01	1	9704-	●	●
16	ADJUSTER ASM; RECLINING DRIVER	8-97854-057-3	01	1	9704-	●	●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9704-0006	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0007-	●	●
18	COVER; RECLINING VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> GRAY	8-97398-249-0	01	1	1310-	●	●
18	COVER; RECLINING DARK BEIGE	8-97854-243-0	01	1	9704-0307	●	●
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0308-1309	●	●
18	COVER; RECLINING VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97867-020-0	01	1	1310-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9704-0604	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●
24	KNOB; RECLINING,FRT,SEAT VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> GRAY	8-97415-445-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT DARK BEIGE	8-97854-244-0	01	1	9704-0307	●	●
24	KNOB; RECLINING,FRT,SEAT DARK GRAY	8-97867-021-0	01	1	0308-1309	●	●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97867-021-0	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL>	8-97869-043-0	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE	8-97854-059-3	01	1	9704-1309	●	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE>	8-97854-059-3	01	1	1310-	●	●
67	BOLT; FRT SEAT TO BODY M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	9704-	●	●
69	NUT; FRT SEAT M8	1-09984-109-0	01	1	9704-	●	●
71	BOLT; ADJ TO SEAT M8X18	8-94279-109-1	02	1	9704-0006	●	●
71	BOLT; ADJ TO SEAT M8X20	8-97255-906-0	02	1	0007-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9704-	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9704-	●	●
382	WASHER; PL,DRIVER SEAT ID=8.4 OD=22	8-94127-883-1	01	1	9704-	●	●

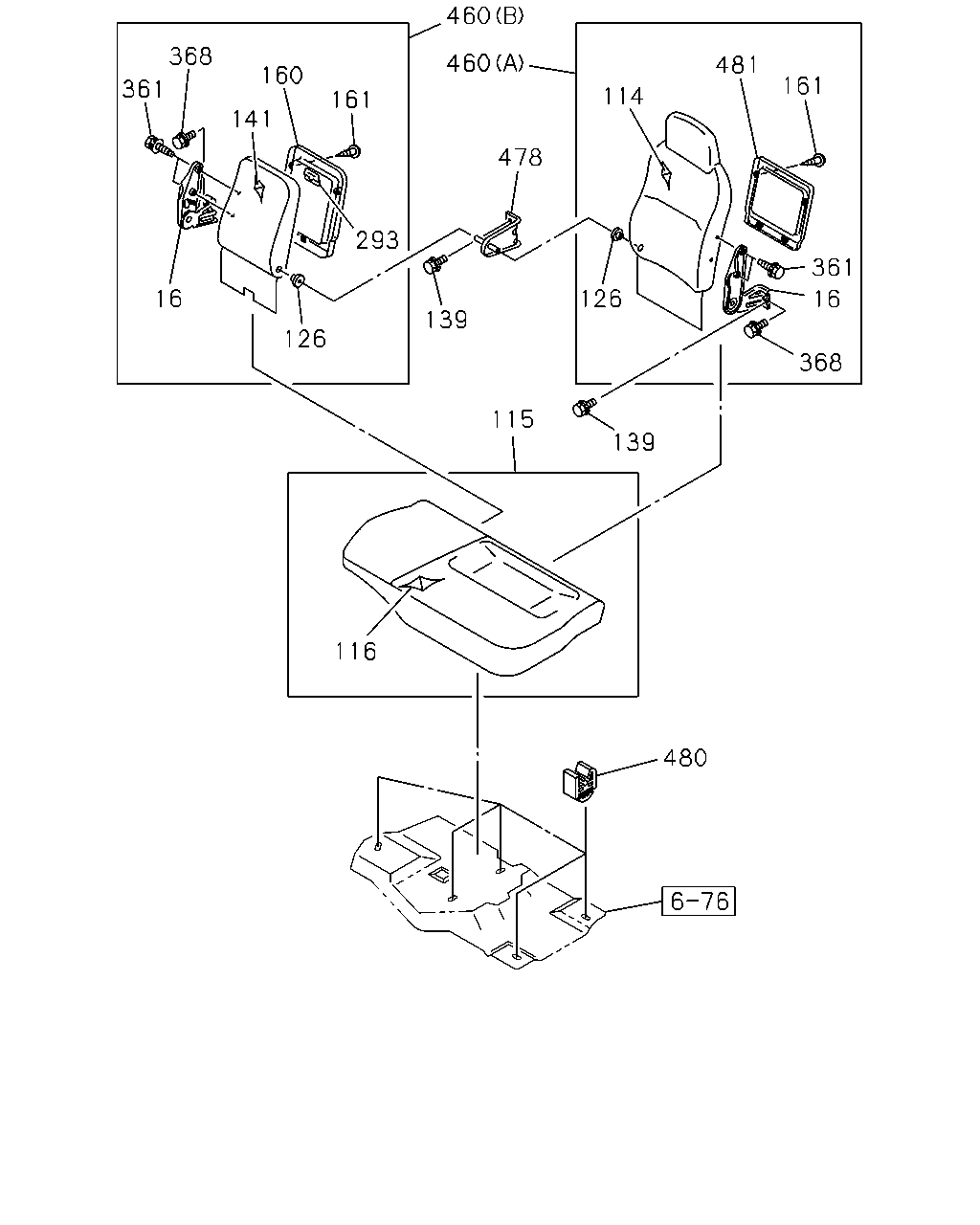

460 368 460 481 160 161 361 114 161 141 478 293 361 16 126 16 139 126 368 115 139 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING PASSENGER BLACK W/KNOB	8-97859-273-3	01	1	9704-	●	●
16	ADJUSTER ASM; RECLINING PASSENGER CENTER BLACK W/KNOB	8-97859-274-3	01	1	9704-	●	●
16	ADJUSTER ASM; RECLINING DRIVER	8-97854-057-3	01	1	9704-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-694-2	01	1	1310-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK BEIGE	8-97854-264-5	01	1	9704-0307	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97393-856-1	01	1	0308-1309	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97393-856-1	01	1	1310-	●	●
115	CUSHION ASM; PASSENGER SEAT VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-660-2	01	1	1310-	●	●
115	CUSHION ASM; PASSENGER SEAT DARK BEIGE	8-97854-611-4	01	1	9704-0307	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97394-580-2	01	1	0308-1309	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97394-580-2	01	1	1310-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-700-1	01	1	1310-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK BEIGE	8-97854-354-5	01	1	9704-0307	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97394-638-1	01	1	0308-1309	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97394-638-1	01	1	1310-	●	●
126	BUSHING; HINGE,RECLINING VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL>	8-98069-558-0	02	1	1310-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-900-0	02	1	9704-1309	●	●
126	BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE>	8-97854-900-0	02	1	1310-	●	●
139	BOLT; PASSENGER SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	9704-	●	●
141	COVER; TRIM,BENCH SEAT,BACK VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> DARK GRAY	8-97400-697-2	01	1	1310-	●	●
141	COVER; TRIM,BENCH SEAT,BACK DARK BEIGE	8-97854-346-5	01	1	9704-0307	●	●
141	COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97198-569-3	01	1	0308-1309	●	●
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97198-569-3	01	1	1310-	●	●
160	CONSOLE; UPR,BACK CENTER VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> GRAY	8-97398-252-1	01	1	1310-	●	●
160	CONSOLE; UPR,BACK CENTER DARK BEIGE	8-97854-345-1	01	1	9704-0203	●	●
160	CONSOLE; UPR,BACK CENTER DARK BEIGE	8-97394-472-0	01	1	0204-0307	●	●
160	CONSOLE; UPR,BACK CENTER DARK GRAY	8-97393-932-1	01	1	0308-1309	●	●
160	CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97393-932-1	01	1	1310-	●	●
161	SCREW; CONSOLE M4X12	8-94279-351-0	08	1	9704-0307	●	●
161	SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0308-	●	●
293	BINDER; CENTER CONSOLE	8-97854-344-1	01	1	9704-0203	●	●
361	BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	9704-	●	●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	9704-0307	●	●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0308-	●	●
460	BACK ASM; PASSENGER SEAT VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> (A) DARK GRAY	8-97400-654-2	01	1	1310-	●	●
460	BACK ASM; PASSENGER SEAT VIN MODEL YEAR 2014<VZE> SEAT CLOTH<7FL> (B) DARK GRAY	8-97400-657-4	01	1	1310-	●	●
460	BACK ASM; PASSENGER SEAT (A) DARK BEIGE	8-97854-775-6	01	1	9704-0307	●	●
460	BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97394-567-1	01	1	0308-0404	●	●
460	BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97393-832-2	01	1	0405-1309	●	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> (A) DARK GRAY	8-97393-832-2	01	1	1310-	●	●
460	BACK ASM; PASSENGER SEAT (B) DARK BEIGE	8-97854-780-6	01	1	9704-0307	●	●
460	BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97394-576-1	01	1	0308-0404	●	●
460	BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97197-323-6	01	1	0405-1309	●	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. VIN MODEL YEAR 2014<VZE> (B) DARK GRAY	8-97197-323-6	01	1	1310-	●	●
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-97868-184-0	01	1	9704-	●	●
480	CLIP; CUSHION	8-94279-977-0	05	1	9704-	●	●
481	TRAY; SEAT BACK DARK BEIGE	8-97854-265-0	01	1	9704-0307	●	●
