Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#7247) — 278 parça

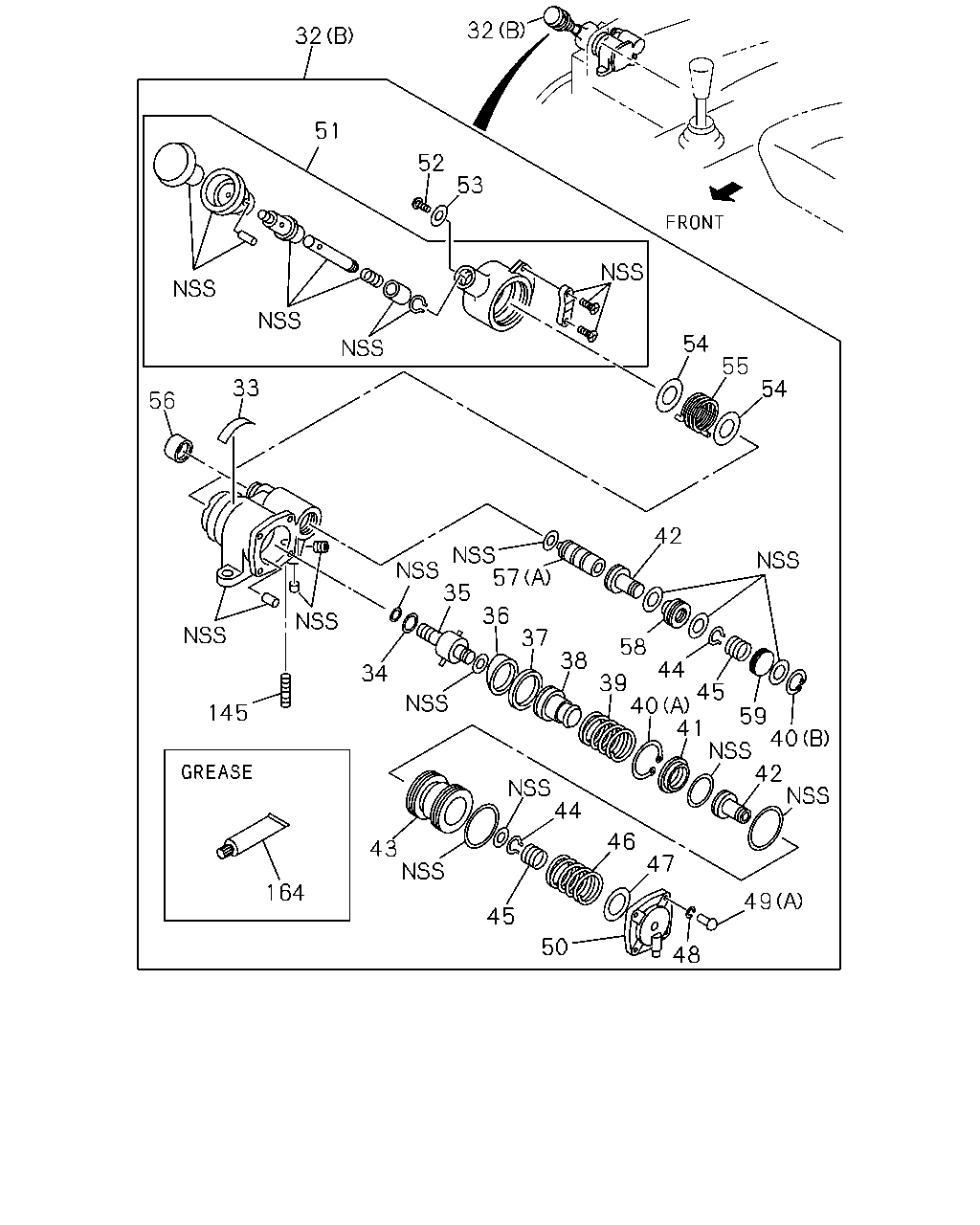

32 32 51 52 53 54 55 33 54 56 42 57 35 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 164 49 45 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV> (B)	1-48460-316-0	01	1	0001-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	9906-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-184-0	01	1	9906-9912
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48460-184-0	01	1	0001-
33	PLATE; CAUTION BRAKE REGULATION ECE<TDV>	1-48469-121-0	01	1	0001-
33	PLATE; CAUTION BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	9906-
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>	1-48469-055-0	AR	1	9906-9912
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-055-0	AR	1	0001-
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-054-0	01	1	9906-9912
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-054-0	01	1	0001-
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-056-0	01	1	9906-9912
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-056-0	01	1	0001-
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-058-0	01	1	9906-9912
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-058-0	01	1	0001-
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-057-0	01	1	9906-9912
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-057-0	01	1	0001-
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-063-0	01	1	9906-9912
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-063-0	01	1	0001-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-067-0	01	1	9906-9912
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-067-0	01	1	0001-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-079-0	01	1	9906-9912
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-079-0	01	1	0001-
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-066-0	01	1	9906-9912
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-066-0	01	1	0001-
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>	1-48469-065-0	02	1	9906-9912
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-065-0	02	1	0001-
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-064-0	01	1	9906-9912
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-064-0	01	1	0001-
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-068-0	02	1	9906-9912
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-068-0	02	1	0001-
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-070-0	02	1	9906-9912
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-070-0	02	1	0001-
46	SPRING; MAIN,PISTON BRAKE REGULATION ECE<TDV>	1-48469-119-0	01	1	0001-
46	SPRING; MAIN,PISTON BRAKE REGULATION HONG KONG<TCZ>	1-48469-071-0	01	1	9906-
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-072-0	AR	1	9906-9912
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-072-0	AR	1	0001-
48	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	9906-
49	SCREW; COVER BRAKE REGULATION ECE<TDV> (A)	1-48469-120-0	04	1	0001-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9906-
49	SCREW; COVER EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-52139-005-0	02	1	9906-9912
49	SCREW; COVER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-52139-005-0	02	1	0001-
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-073-0	01	1	9906-9912
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-073-0	01	1	0001-
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-060-0	01	1	9906-9912
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-060-0	01	1	0001-
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-062-0	01	1	9906-9912
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-062-0	01	1	0001-
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-061-0	01	1	9906-9912
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-061-0	01	1	0001-
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-082-0	02	1	9906-9912
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-082-0	02	1	0001-
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-059-0	01	1	9906-9912
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-059-0	01	1	0001-
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>	1-48469-080-0	01	1	9906-9912
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-080-0	01	1	0001-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9906-9912
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-076-0	01	1	0001-
57	PLUNGER; HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-097-0	01	1	9906-9912
57	PLUNGER; HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-097-0	01	1	0001-
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-077-0	01	1	9906-9912
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-077-0	01	1	0001-
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-078-0	01	1	9906-9912
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-078-0	01	1	0001-
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-069-0	01	1	9906-9912
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-069-0	01	1	0001-
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-084-0	01	1	9906-9912
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-084-0	01	1	0001-

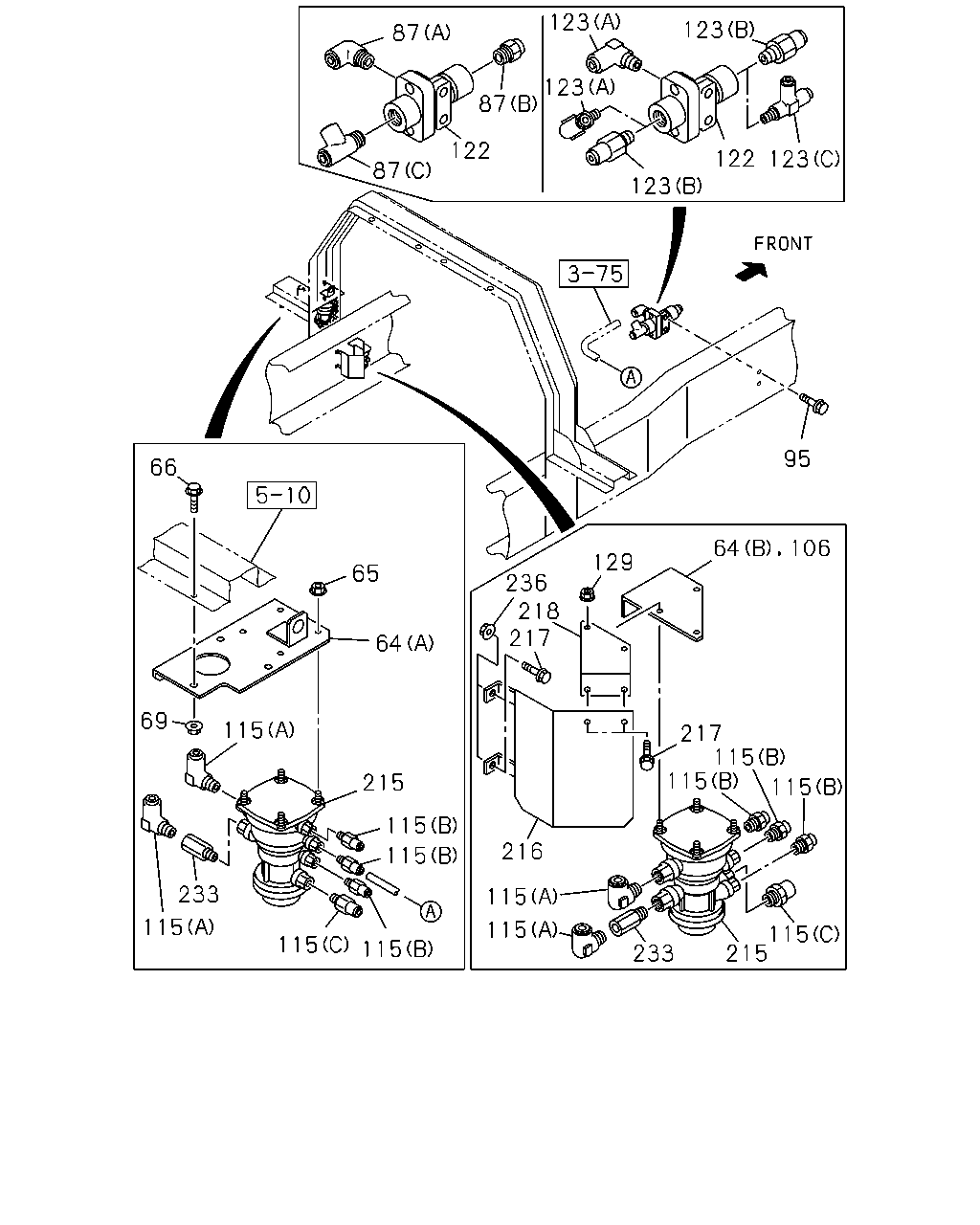

123 123 87 123 87 122 122 123 87 123 95 66 64 106 129 65 236 218 217 64 69 115 217 115 115 215 115 115 216 115 233 115 115 115 115 215 115 115 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV (A)	1-48495-215-0	01	1	9906-0003
64	BRACKET; RELAY VLV (A)	1-48495-219-1	01	1	0004-
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48495-193-0	01	1	0001-0007
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48495-226-0	01	1	0008-
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	06	1	0001-
65	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	08	1	9906-
65	NUT; RELAY VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0001-
66	BOLT; VLV BRKT M8X25 FLANGE	0-28680-825-0	01	1	9906-
66	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28681-040-0	02	1	0001-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> M10X25 FLANGE	0-28681-025-0	02	1	9906-
69	NUT; VLV BRKT M8 FLANGE	0-91150-108-0	01	1	9906-
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	9906-
87	CONNECTOR; DBL CHECK VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
87	CONNECTOR; DBL CHECK VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
87	CONNECTOR; DBL CHECK VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9906-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	9906-
106	BRACKET; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48495-193-0	01	1	0001-0007
106	BRACKET; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48495-226-0	01	1	0008-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9906-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0001-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9906-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0001-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9906-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0001-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	9906-0003
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	0004-
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48410-531-0	01	1	0004-
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	9906-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0004-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0004-
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	04	1	0001-0007
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	03	1	0008-
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	01	1	9906-
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>	1-48210-684-0	01	1	9906-9912
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48210-684-0	01	1	0001-
216	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48219-142-0	01	1	0001-
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	02	1	0001-
217	BOLT; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28080-830-0	02	1	0001-
218	BRACKET; PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV>	1-48219-144-0	01	1	0001-
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ> PT3/8	1-48319-058-0	01	1	9906-9912
233	ADAPTER; VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT3/8	1-48319-058-0	01	1	0001-
236	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0001-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

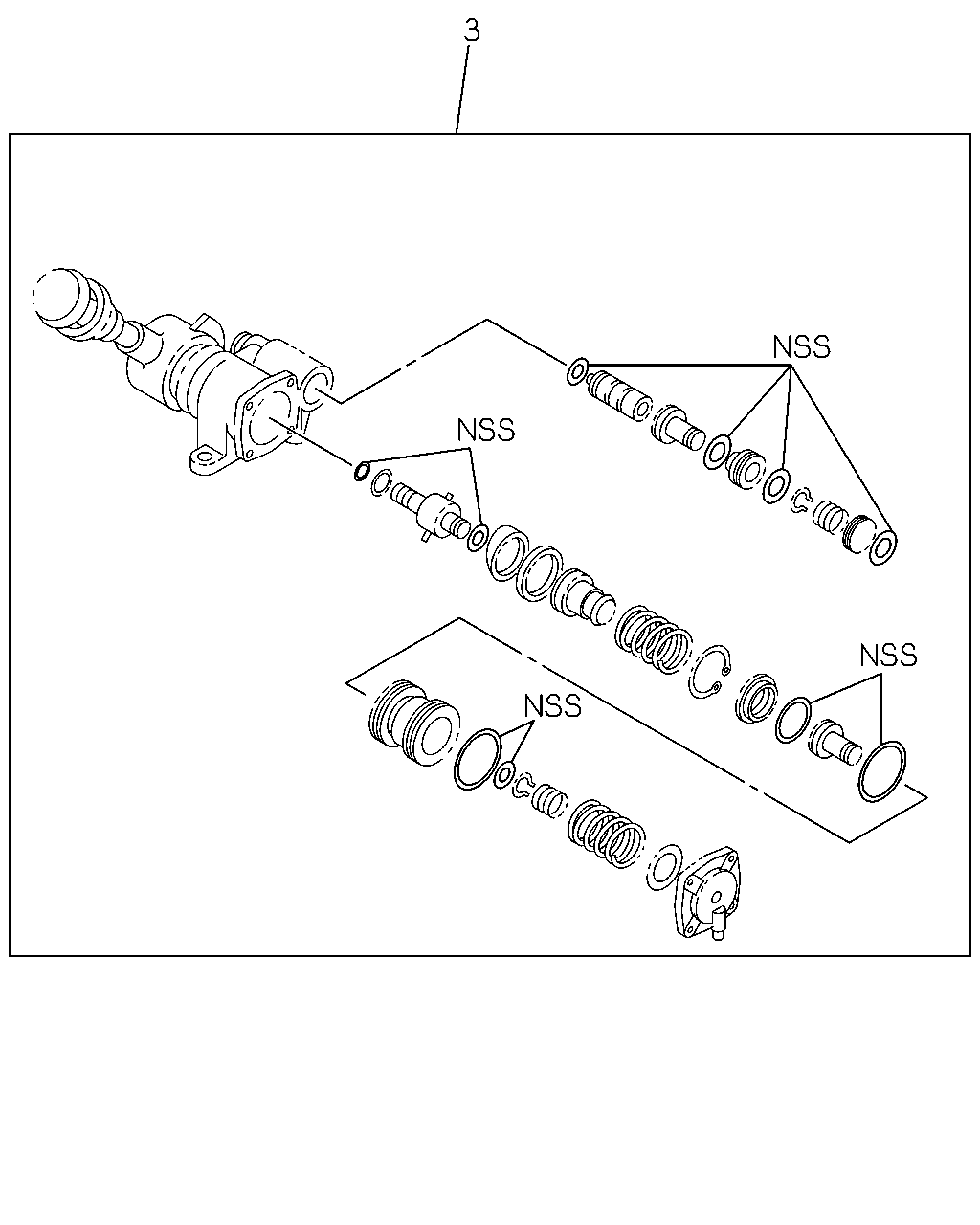

	3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-083-0	01	1	9906-9912
	3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-083-0	01	1	0001-

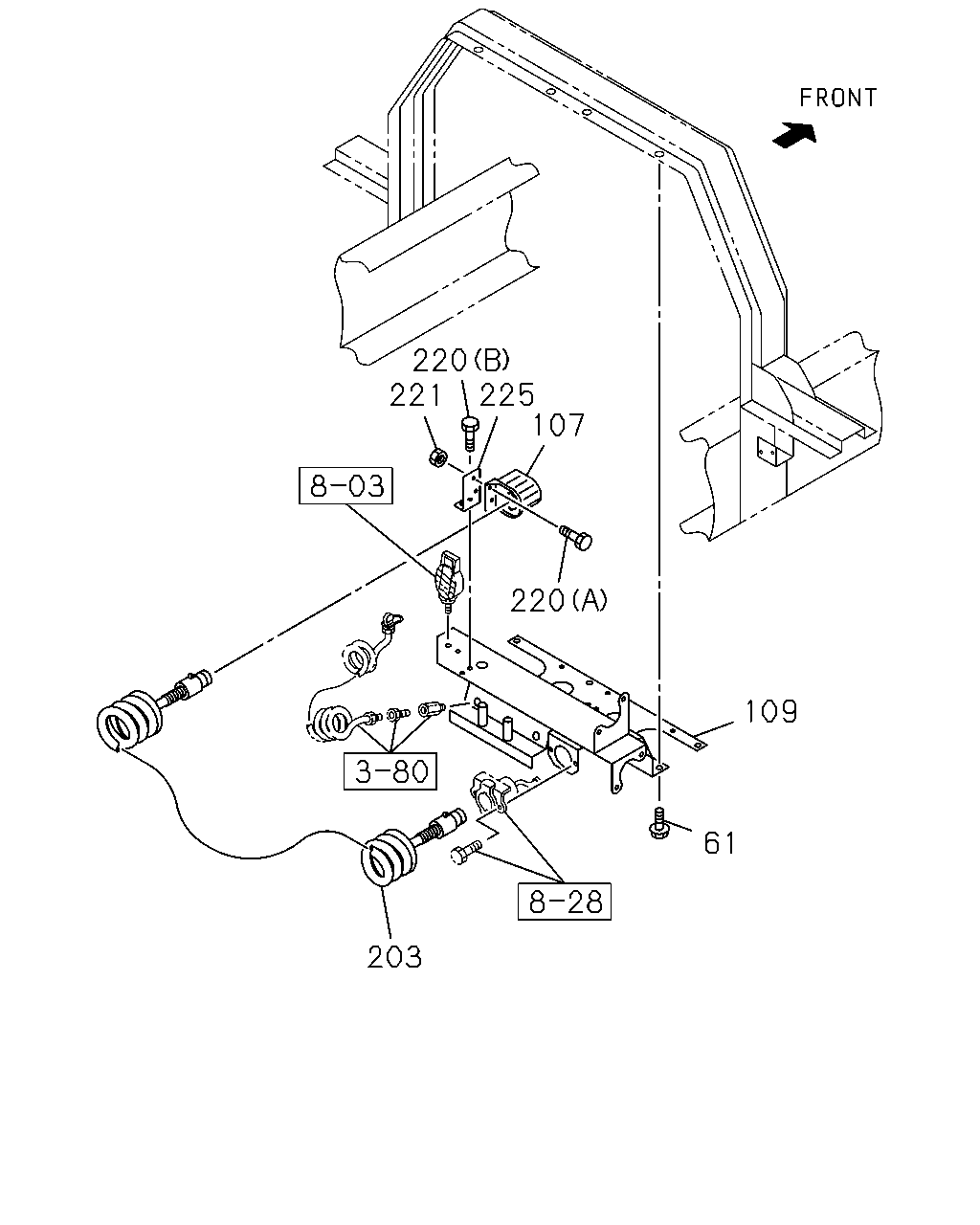

220 221 225 107 220 109 61 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	9906-
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	9906-
109	BRACKET; HOSE HANGER	1-53497-642-0	01	1	9906-0002
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA)	1-53497-656-0	01	1	0003-0105
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA)	1-53497-671-0	01	1	0106-
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-657-0	01	1	0003-0105
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-672-0	01	1	0106-
203	CABLE; JUMPER L=4000	1-82659-186-1	01	1	9906-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	9906-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	9906-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	9906-
225	BRACKET; HANGER	1-82698-002-0	01	1	9906-

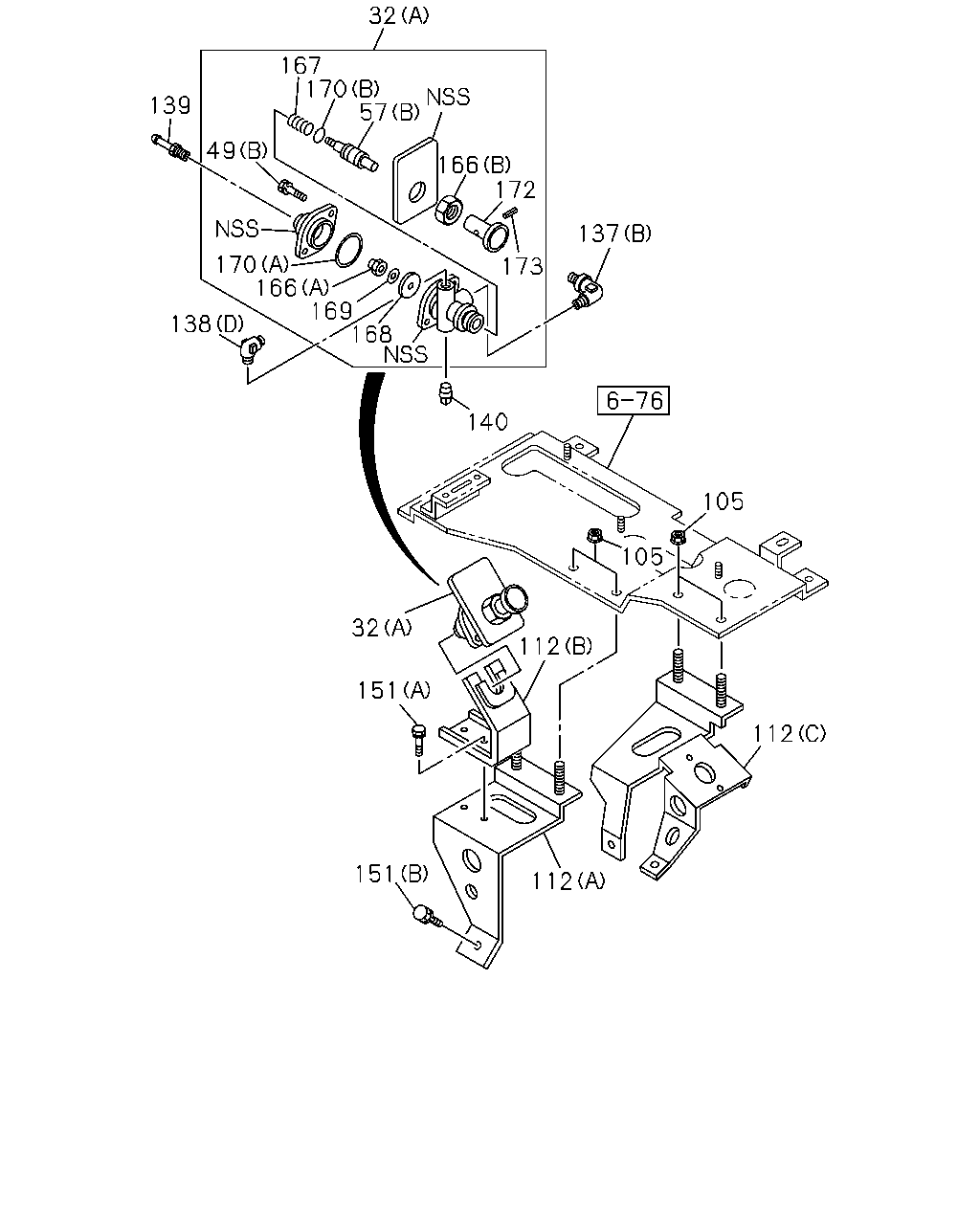

32 167 170 57 139 49 166 172 137 170 166 169 168 173 138 140 105 105 32 112 151 112 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV> (B)	1-48460-316-0	01	1	0001-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	9906-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-184-0	01	1	9906-9912
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48460-184-0	01	1	0001-
49	SCREW; COVER BRAKE REGULATION ECE<TDV> (A)	1-48469-120-0	04	1	0001-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9906-
49	SCREW; COVER EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-52139-005-0	02	1	9906-9912
49	SCREW; COVER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-52139-005-0	02	1	0001-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9906-9912
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-076-0	01	1	0001-
57	PLUNGER; HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-097-0	01	1	9906-9912
57	PLUNGER; HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-097-0	01	1	0001-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	0004-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	0004-
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-79996-336-1	01	1	9906-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47475-260-2	01	1	9906-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79997-355-0	01	1	9906-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79997-358-1	01	1	9906-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9906-9911
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9912-
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9906-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	9906-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9906-9911
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9912-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9906-0007
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	08	1	0008-0009
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0010-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9906-
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9906-
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9906-
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9906-
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9906-
166	NUT; PLUNGER EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48129-069-0	01	1	9906-9912
166	NUT; PLUNGER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48129-069-0	01	1	0001-
166	NUT; PLUNGER EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-101-0	01	1	9906-9912
166	NUT; PLUNGER EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48469-101-0	01	1	0001-
167	SPRING; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-098-0	01	1	9906-9912
167	SPRING; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-098-0	01	1	0001-
168	VALVE; INL EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-099-0	01	1	9906-9912
168	VALVE; INL EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-099-0	01	1	0001-
169	WASHER; PL,VALVE EXC. BRAKE REGULATION HONG KONG<TCZ> ID=6.4	9-09164-506-0	01	1	9906-9912
169	WASHER; PL,VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> ID=6.4	9-09164-506-0	01	1	0001-
170	GASKET; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-100-0	01	1	9906-9912
170	GASKET; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48469-100-0	01	1	0001-
170	GASKET; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	9-19519-094-0	01	1	9906-9912
170	GASKET; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	9-19519-094-0	01	1	0001-
172	KNOB; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-102-0	01	1	9906-9912
172	KNOB; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48469-102-0	01	1	0001-
173	PIN; SPR,KNOB EXC. BRAKE REGULATION HONG KONG<TCZ>	8-94124-044-0	01	1	9906-9912
173	PIN; SPR,KNOB EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	8-94124-044-0	01	1	0001-

32 105 112 129 151 137 138 138 162 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION ECE<TDV> (B)	1-48460-316-0	01	1	0001-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	9906-
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48460-184-0	01	1	9906-9912
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48460-184-0	01	1	0001-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	0004-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	0004-
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-79996-336-1	01	1	9906-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47475-260-2	01	1	9906-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79997-355-0	01	1	9906-
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79997-358-1	01	1	9906-
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	04	1	0001-0007
129	NUT; VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	03	1	0008-
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	01	1	9906-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9906-9911
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9912-
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9906-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	1-09656-391-2	01	1	9906-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9906-9911
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9912-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9906-0007
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	08	1	0008-0009
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0010-
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9906-
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9906-
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9906-
162	SWITCH; PARKING BRK VLV HONG KONG EQUIPMENT(PQ1)	1-72447-390-0	01	1	9906-

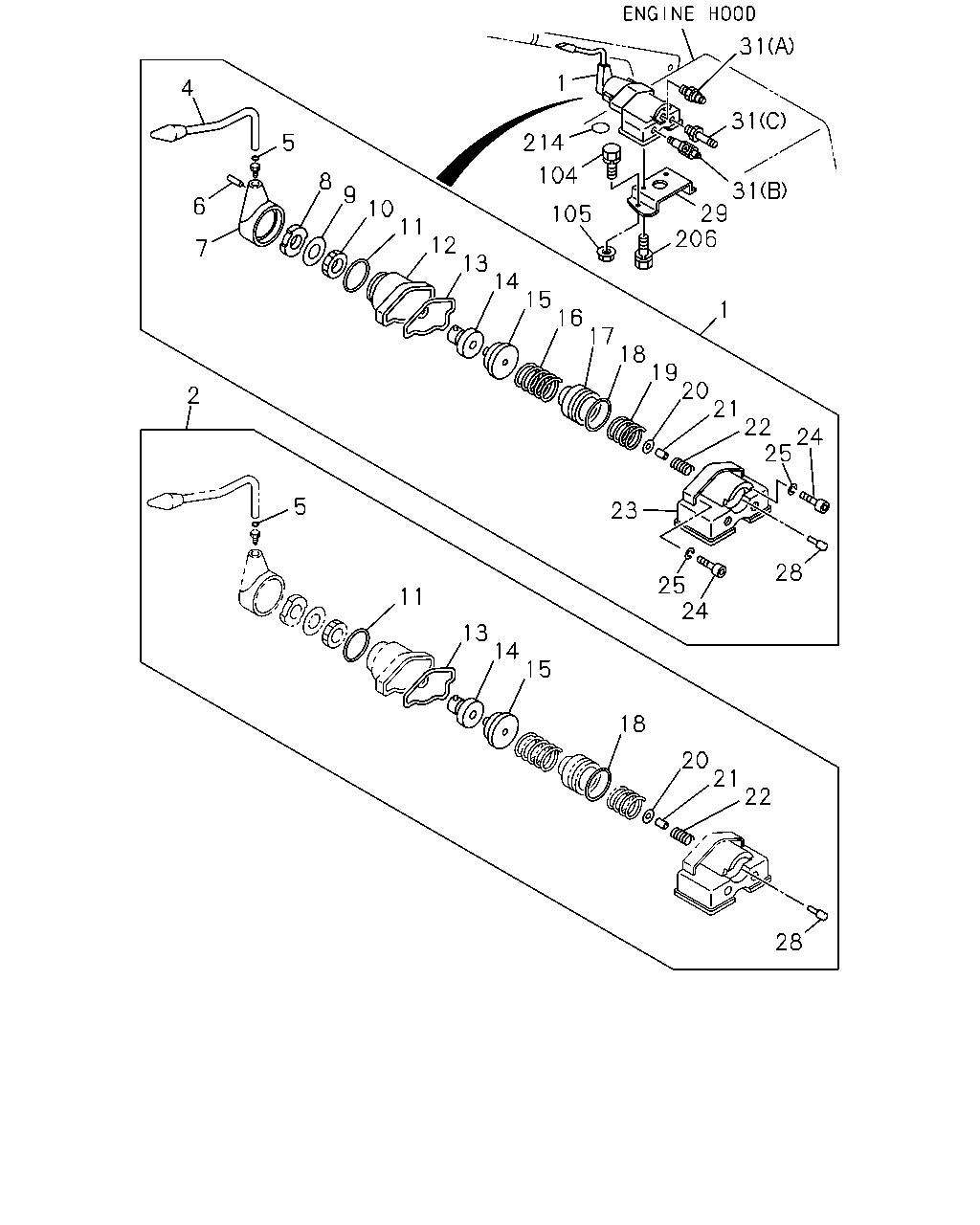

31 1 4 31 214 5 104 8 31 29 206 9 6 10 11 105 12 13 14 15 16 17 18 19 20 21 22 24 25 7 1 2 5 23 28 25 24 11 13 14 15 18 20 21 22 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-747-1	01	1	9906-9912
1	VALVE ASM; HAND BRK TRAILER BRAKE CONTROL<J91>	1-48100-747-1	01	1	0001-
2	REPAIR KIT; HAND BRK VLV	1-85576-181-0	01	1	9906-9912
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE CONTROL<J91>	1-85576-181-0	01	1	0001-
4	HANDLE ASM; BRK VLV	1-48119-360-0	01	1	9906-9912
4	HANDLE ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-360-0	01	1	0001-
5	GASKET; HANDLE	1-48119-128-0	01	1	9906-9912
5	GASKET; HANDLE TRAILER BRAKE CONTROL<J91>	1-48119-128-0	01	1	0001-
6	PIN; SPR	1-48119-143-0	01	1	9906-9912
6	PIN; SPR TRAILER BRAKE CONTROL<J91>	1-48119-143-0	01	1	0001-
7	HEAD; BRK VLV	1-48119-131-0	01	1	9906-9912
7	HEAD; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-131-0	01	1	0001-
8	STOPPER; BRK VLV	1-48119-239-0	01	1	9906-9912
8	STOPPER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48119-239-0	01	1	0001-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9906-9912
9	WASHER; LK,ADJ TRAILER BRAKE CONTROL<J91>	1-48119-123-0	01	1	0001-
10	RING; ADJ	1-48119-122-0	01	1	9906-9912
10	RING; ADJ TRAILER BRAKE CONTROL<J91>	1-48119-122-0	01	1	0001-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9906-9912
11	GASKET; HD TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-130-0	01	1	0001-
12	COVER; BRK VLV	1-48129-097-0	01	1	9906-9912
12	COVER; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-097-0	01	1	0001-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9906-9912
13	GASKET; BODY TO COVER TRAILER BRAKE CONTROL<J91>	1-48119-120-0	01	1	0001-
14	FOLLOWER; CAM	1-48129-135-0	01	1	9906-9912
14	FOLLOWER; CAM TRAILER BRAKE CONTROL<J91>	1-48129-135-0	01	1	0001-
15	CAM; FOLLOWER	1-48129-134-0	01	1	9906-9912
15	CAM; FOLLOWER TRAILER BRAKE CONTROL<J91>	1-48129-134-0	01	1	0001-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9906-9912
16	SPRING; GRUDUATING TRAILER BRAKE CONTROL<J91>	1-48129-101-0	01	1	0001-
17	PISTON; SPR	1-48129-095-0	01	1	9906-9912
17	PISTON; SPR TRAILER BRAKE CONTROL<J91>	1-48129-095-0	01	1	0001-
18	GASKET; BODY	1-48129-096-0	01	1	9906-9912
18	GASKET; BODY TRAILER BRAKE CONTROL<J91>	1-48129-096-0	01	1	0001-
19	SPRING; PISTON	1-48129-094-0	01	1	9906-9912
19	SPRING; PISTON TRAILER BRAKE CONTROL<J91>	1-48129-094-0	01	1	0001-
20	GUIDE; VLV	1-48129-090-0	01	1	9906-9912
20	GUIDE; VLV TRAILER BRAKE CONTROL<J91>	1-48129-090-0	01	1	0001-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9906-9912
21	VALVE; IN & EXH TRAILER BRAKE CONTROL<J91>	1-48121-017-0	01	1	0001-
22	SPRING; VLV	1-48123-024-0	01	1	9906-9912
22	SPRING; VLV TRAILER BRAKE CONTROL<J91>	1-48123-024-0	01	1	0001-
23	BODY; BRK VLV	1-48111-060-0	01	1	9906-9912
23	BODY; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48111-060-0	01	1	0001-
24	BOLT; EXH VLV	1-48129-092-0	02	1	9906-9912
24	BOLT; EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-092-0	02	1	0001-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	9906-9912
25	WASHER; LK,EXH VLV TRAILER BRAKE CONTROL<J91>	1-48129-093-0	02	1	0001-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9906-9912
28	STEM ASM; BRK VLV TRAILER BRAKE CONTROL<J91>	1-48129-089-0	01	1	0001-
29	BRACKET; HAND BRK	1-79997-357-0	01	1	9906-0003
29	BRACKET; HAND BRK TRAILER BRAKE CONTROL<J91>	1-79997-357-0	01	1	0004-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	9906-9912
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (B) M14	1-09656-391-2	01	1	0001-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9906-9912
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (C) L=45	8-94338-874-0	01	1	0001-
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9906-9912
31	CONNECTOR; HAND BRK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0001-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9906-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-0003
105	NUT; BRKT TRAILER BRAKE CONTROL<J91> M8 FLANGE	0-91150-108-0	02	1	0004-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0004-
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	0004-
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9906-9912
206	BOLT; HAND BRK VALVE TRAILER BRAKE CONTROL<J91> M10X20 W/LK WASHER	0-50041-020-0	02	1	0001-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
