◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-42 - ASH TRAY ▶
7-42 — ASH TRAY (#72469) — 14 parça

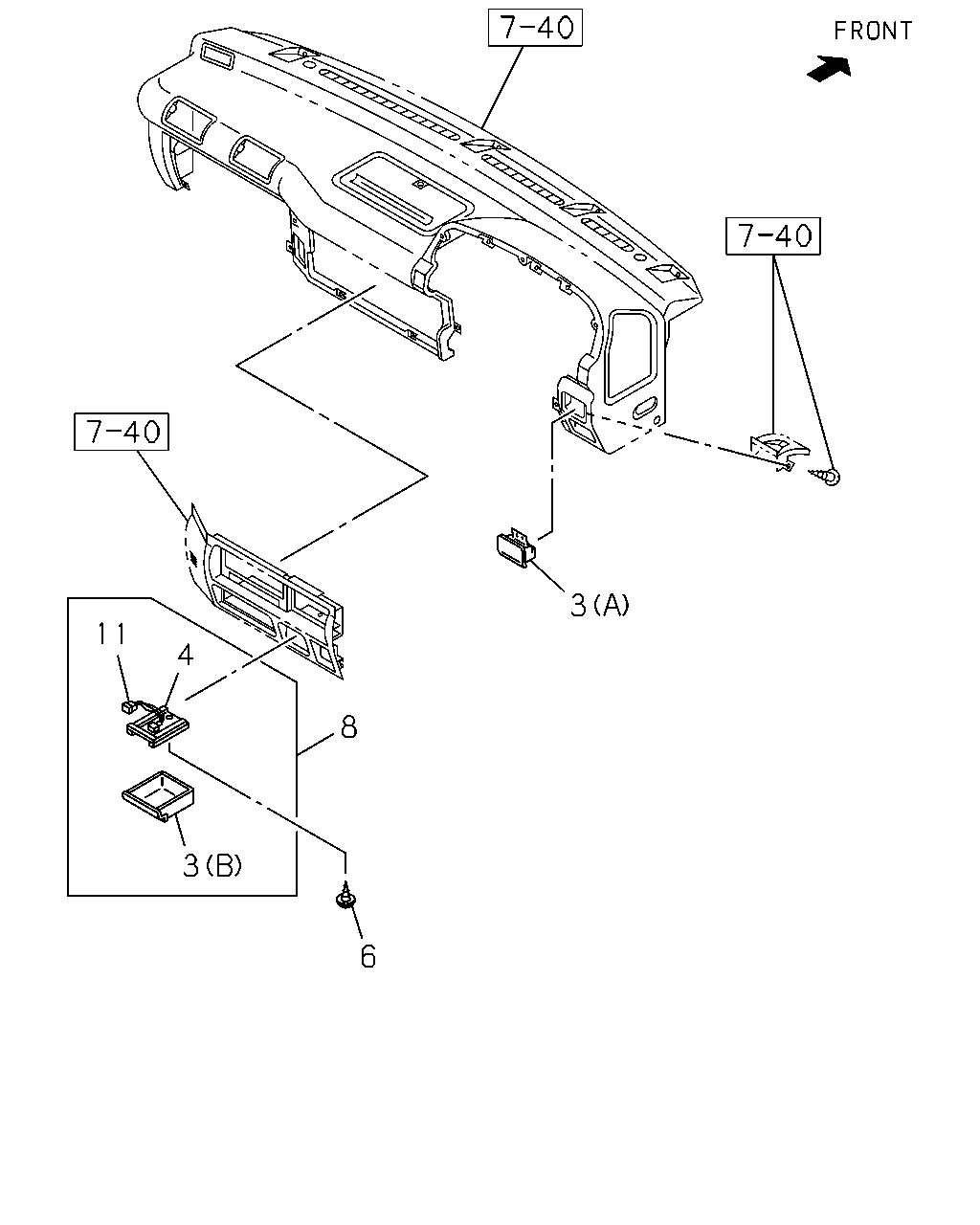

çizim 190532
3 11 4 8 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
3 CASE ASM; ASH TRAY INNER
(B) DARK BEIGE 		8-97857-997-1 01 1 9704-0009 ● ●
3 CASE ASM; ASH TRAY INNER
(B) DARK BEIGE 		8-97993-295-0 01 1 0010-0307 ● ●
3 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97898-280-0 01 1 0308- ● ●
3 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE 		8-97853-892-3 01 1 9704-9809 ● ●
3 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE 		8-97198-912-0 01 1 9810-0307 ● ●
3 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97198-913-0 01 1 0308- ● ●
4 CASE ASM; ASH TRAY OUTER 8-97857-995-1 01 1 9704-0009 ● ●
4 CASE ASM; ASH TRAY OUTER 8-97898-279-0 01 1 0010- ● ●
6 SCREW; ASH TRAY
M6X16 TRUSS-HEAD 		8-94318-980-0 01 1 9704- ● ●
8 TRAY ASM; ASH
DARK BEIGE 		8-97853-867-2 01 1 9704-0009 ● ●
8 TRAY ASM; ASH
DARK BEIGE 		8-97993-064-0 01 1 0010-0307 ● ●
8 TRAY ASM; ASH 8-97898-278-0 01 1 0308- ● ●
11 BULB; ASH TRAY 8-97857-999-0 01 1 9704-0009 ● ●
11 BULB; ASH TRAY 8-97898-281-0 01 1 0010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
