◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#72468) — 13 parça

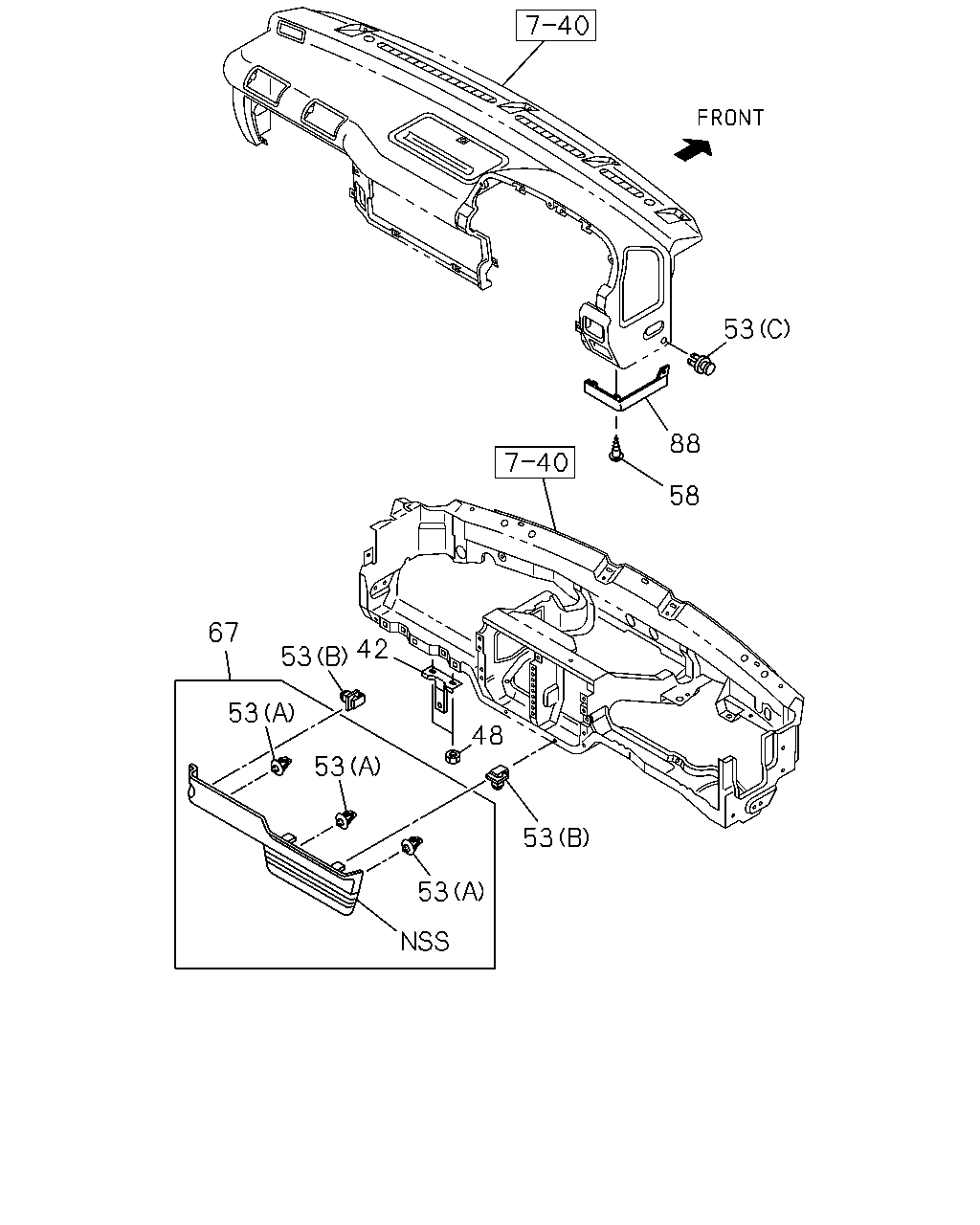

çizim 132714
53 88 58 42 53 67 48 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; UNDER COVER 8-97853-724-2 01 1 9704-9901 ● ●
42 BRACKET; UNDER COVER 8-97217-299-1 01 1 9902- ● ●
48 NUT; UNDER COVER
M6 FLANGE 		0-91150-106-0 02 1 9704-0602 ● ●
48 NUT; UNDER COVER
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
53 CLIP; UNDER COVER
(A) 		8-97853-169-0 04 1 9704- ● ●
53 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 9704- ● ●
53 CLIP; UNDER COVER
(C) DARK BEIGE 		8-97856-011-0 01 1 9704-0307 ● ●
53 CLIP; UNDER COVER
(C) DARK GRAY 		8-97857-542-0 01 1 0308-0603 ● ●
53 CLIP; UNDER COVER
(C) DARK GRAY 		8-97582-246-0 01 1 0604- ● ●
58 SCREW; UNDER COVER
M5X14 		8-94279-325-0 02 1 9704- ● ●
67 COVER; UNDER,INST PNL 8-97856-661-6 01 1 9704- ● ●
88 COVER; UNDER,INST PNL SIDE
DARK BEIGE 		8-97853-888-2 01 1 9704-0307 ● ●
88 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97859-801-2 01 1 0308- ● ●
