◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#72467) — 107 parça

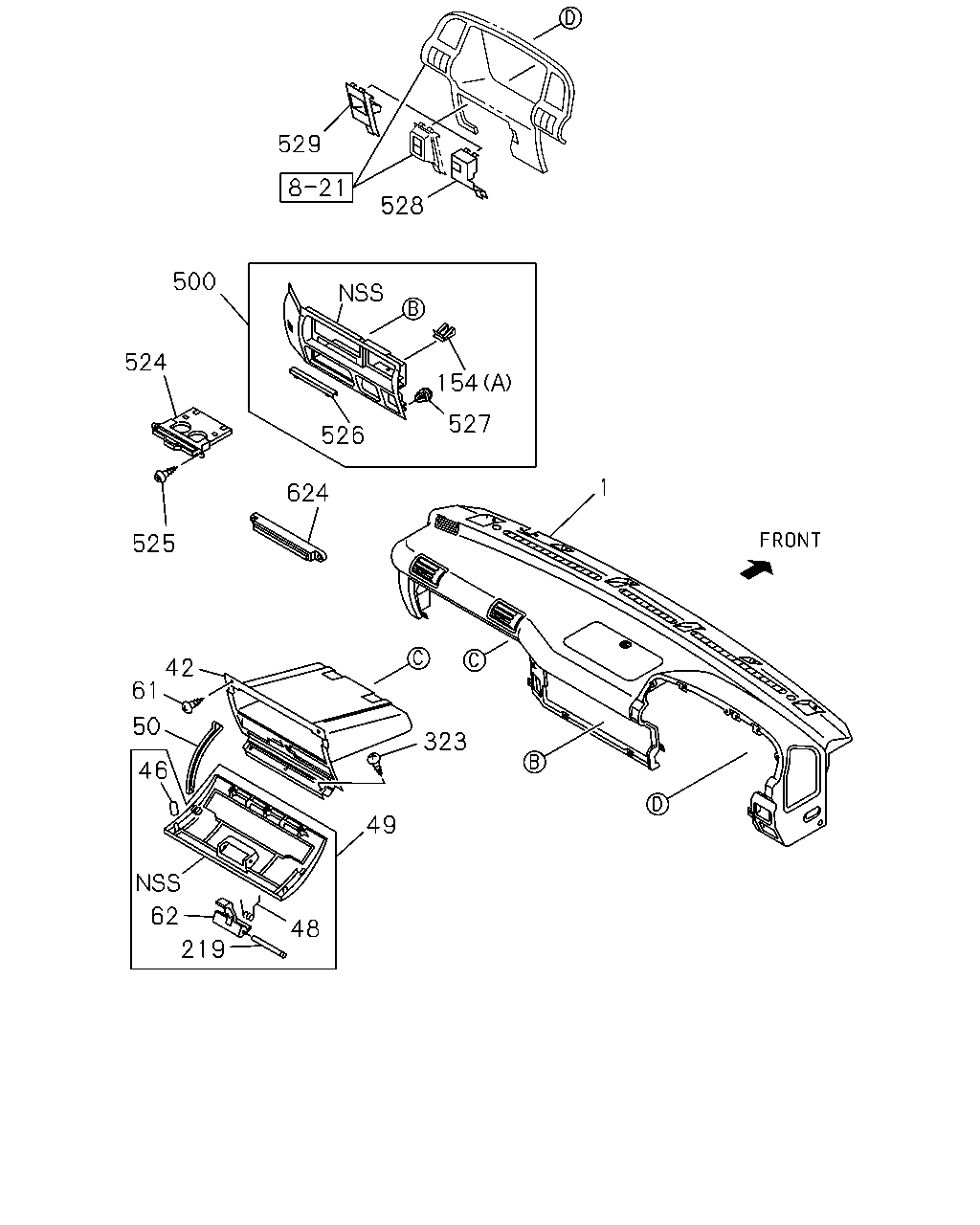

çizim 133159
529 528 500 524 154 527 526 1 624 525 42 61 50 323 46 49 62 48 219
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK BEIGE 		8-97855-245-6 01 1 9704-0307 ● ●
1 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 0308- ● ●
42 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 9704- ● ●
46 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9704-0208 ● ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9704- ● ●
49 LID; GLOVE BOX
DARK BEIGE 		8-97856-166-4 01 1 9704-0307 ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 0308- ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 9704- ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9704-0604 ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605- ● ●
62 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9704-0307 ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0308- ● ●
154 NUT
(B) M6 SPIRE NUT 		8-94291-960-0 03 1 9704-9806 ● ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ●
154 NUT
(A) M6 SPIRE NUT 		8-94291-960-0 01 1 9704-9901 ● ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902- ● ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9704- ● ●
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 9704- ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97856-162-9 01 1 9704-9901 ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97199-875-1 01 1 9902-0307 ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-876-1 01 1 0308- ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97856-161-9 01 1 9704-9901 ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97199-873-1 01 1 9902-0307 ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-874-1 01 1 0308- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9704- ● ●
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 9704- ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97853-896-1 01 1 9704-0307 ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-503-1 01 1 0308- ● ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 9704- ● ●
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-095-5 01 1 9704-0307 ● ●
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-544-5 01 1 0308- ● ●
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) DARK BEIGE 		8-97856-091-5 01 1 9704-0307 ● ●
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-543-5 01 1 0308- ● ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 9704- ● ●

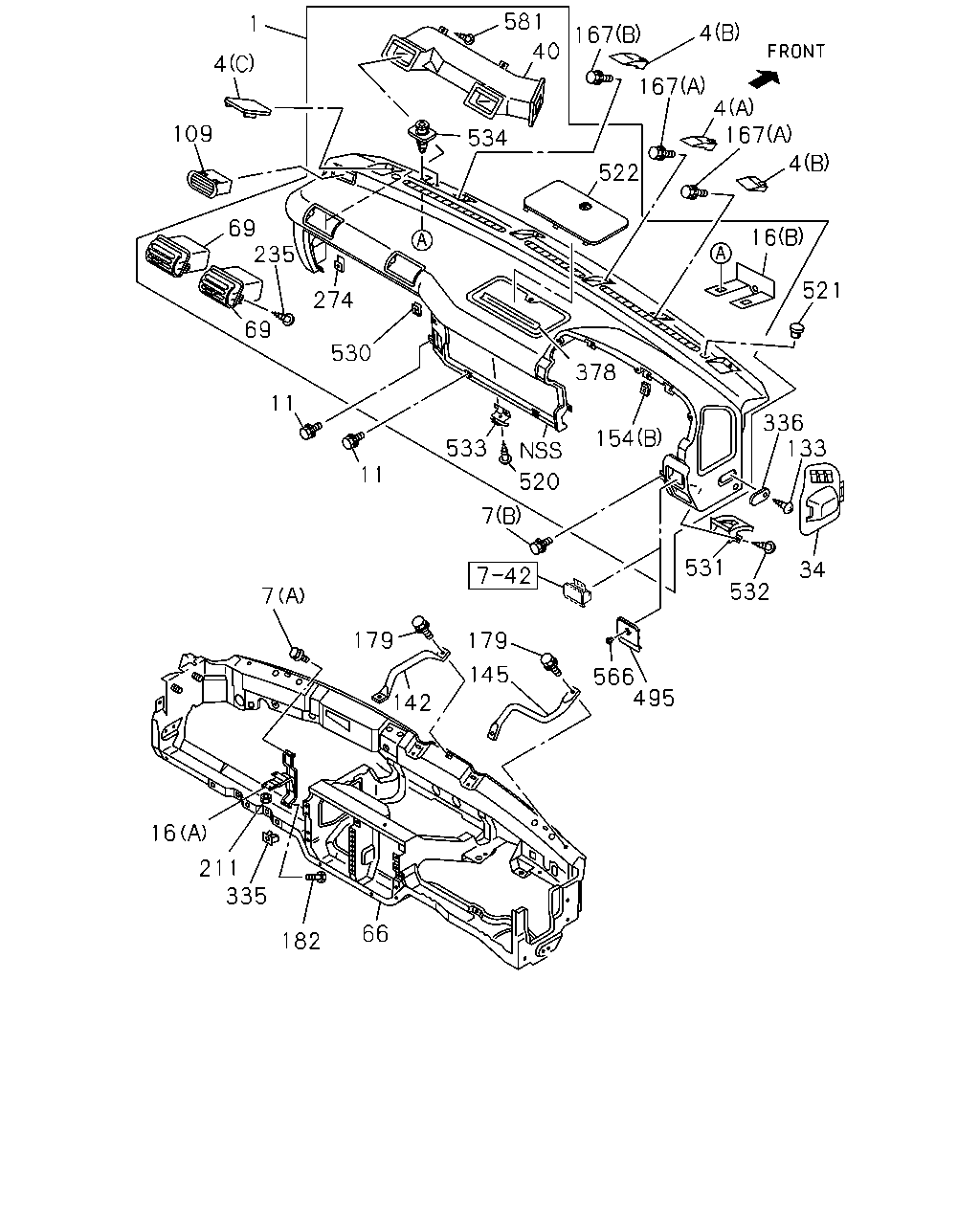

çizim 190533
581 1 4 167 40 4 167 4 167 109 534 4 522 69 235 16 521 274 69 530 378 11 336 133 154 533 11 520 7 531 532 34 7 179 179 145 566 495 142 16 211 335 66 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK BEIGE 		8-97855-245-6 01 1 9704-0307 ● ●
1 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 0308- ● ●
4 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9704-0307 ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0308- ● ●
4 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9704-0307 ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0308- ● ●
4 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-1 01 1 9704-0307 ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 0308- ● ●
4 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9704-0307 ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0308- ● ●
4 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-1 01 1 9704-0307 ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 0308- ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9704-0512 ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 9704-0106 ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9704-1210 ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211- ● ●
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 9704- ● ●
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 9704- ● ●
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9704- ● ●
34 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 9704-0307 ● ●
34 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 0308- ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97039-991-0 01 1 9704-0007 ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0008- ● ●
66 REINFORCEMENT; INST PANEL 8-97859-285-9 01 1 9704-9808 ● ●
66 REINFORCEMENT; INST PANEL 8-97213-341-1 01 1 9809-0005 ● ●
66 REINFORCEMENT; INST PANEL 8-97898-463-4 01 1 0006-0505 ● ●
66 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0506- ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9704-0301 ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97898-338-0 02 1 0302-0302 ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 0303-0307 ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0308- ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9704-0307 ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 0308- ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9704-0604 ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605- ● ●
142 STAY; INST PANEL 8-97853-624-4 01 1 9704- ● ●
145 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9704- ● ●
154 NUT
(B) M6 SPIRE NUT 		8-94291-960-0 03 1 9704-9806 ● ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ●
154 NUT
(A) M6 SPIRE NUT 		8-94291-960-0 01 1 9704-9901 ● ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902- ● ●
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 9704- ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9704- ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9704-0307 ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512 ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601- ● ●
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9704- ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91150-106-0 02 1 9704-0602 ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 9704- ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 9704- ● ●
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704- ● ●
336 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9704-0307 ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0308- ● ●
378 SEAL; INST PANEL 8-97853-938-0 01 1 9704-9810 ● ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 9811- ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9704-0307 ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 0308- ● ●
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 02 1 9704- ● ●
521 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9704-0307 ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0308- ● ●
522 LID; RELAY BOX
DARK BEIGE 		8-97853-876-6 01 1 9704-0307 ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0308- ● ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 9704- ● ●
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 9704- ● ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 		8-94279-325-0 02 1 9704- ● ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9704- ● ●
534 CLIP; BRKT 8-97856-276-0 04 1 9704- ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9704-0307 ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 0308- ● ●
581 SCREW
M5X14 		8-94279-325-0 03 1 9704- ● ●
