Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#72465) — 164 parça

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM VIN MODEL YEAR 2014<VZE> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-469-1	01	1	1310-	●	●
1	MIRROR; ROOM VIN MODEL YEAR 2014<VZE> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97890-468-1	01	1	1310-	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> GRAY	8-97853-836-2	01	1	9704-0208	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> GRAY	8-97859-226-1	01	1	0209-0307	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0308-1309	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> EXC. VIN MODEL YEAR 2014<VZE> DARK GRAY	8-97868-633-1	01	1	1310-	●	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-812-2	01	1	9704-0307	●	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0308-1309	●	●
1	MIRROR; ROOM EXC. VIN MODEL YEAR 2014<VZE>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	1310-	●	●
2	SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16	8-94279-341-0	02	1	0406-	●	●
2	SCREW; MIRROR TO BODY M5X20	5-09981-059-0	02	1	9704-0405	●	●
2	SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0406-	●	●
3	STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	9704-	●	●
3	STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26	8-97853-263-1	01	1	9704-	●	●
3	STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	9704-	●	●
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	9704-	●	●
4	GROMMET; SCREW,ROOM MIRROR	8-94279-039-0	01	1	9704-0405	●	●
4	GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0406-	●	●
158	LENS; ROOM LAMP	5-73117-108-1	01	1	9704-	●	●
159	BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	9704-	●	●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0209-1309	●	●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ> EXC. VIN MODEL YEAR 2014<VZE>	8-97856-532-0	01	1	1310-	●	●

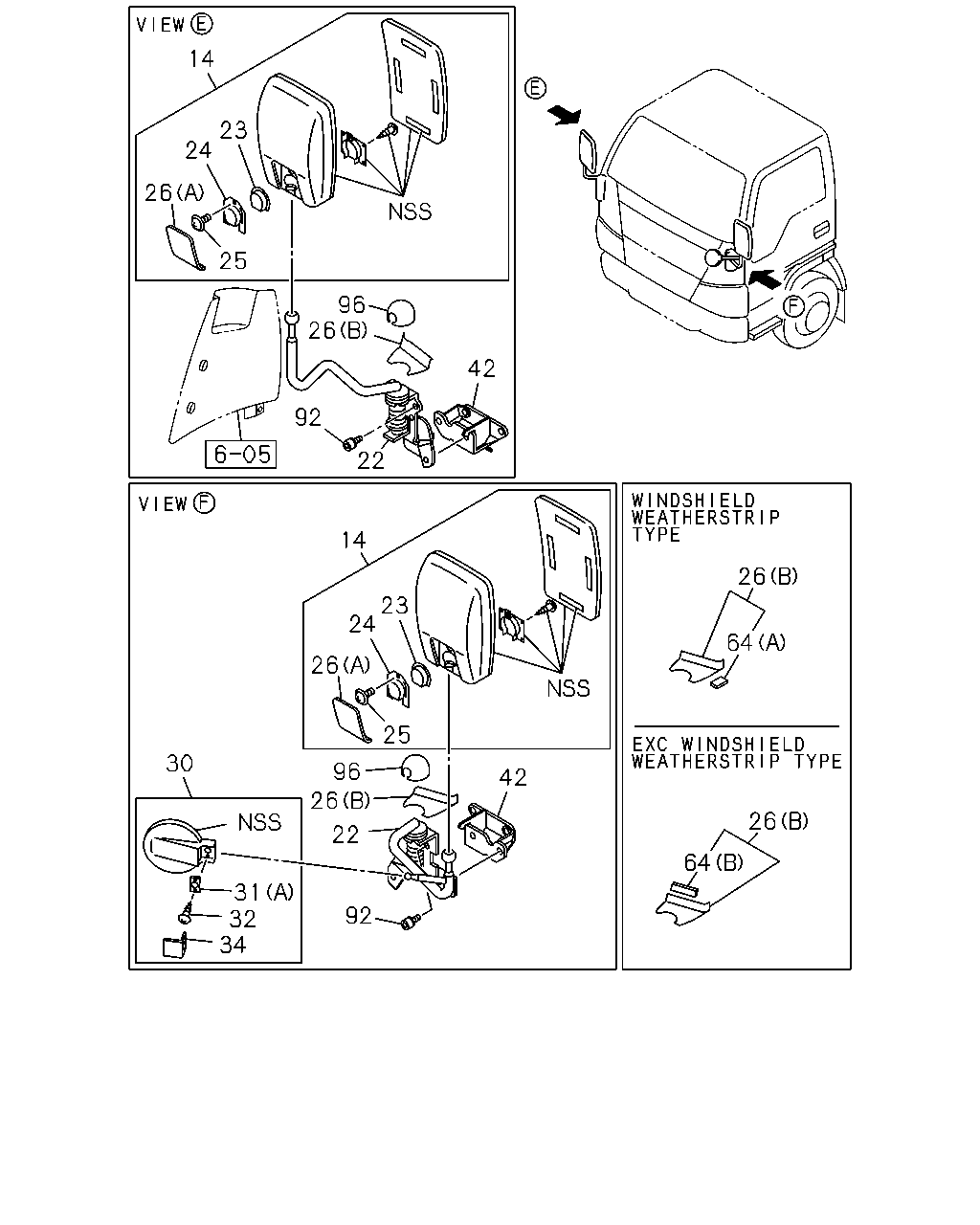

14 23 24 26 25 96 26 42 92 22 14 26 23 24 64 26 25 30 96 26 42 26 22 64 31 32 34 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE	8-94262-543-3	02	1	9704-	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7>	8-98039-579-1	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-98039-579-1	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-98039-581-1	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>	8-98039-581-1	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. UNDER MIRROR<RR9>	8-98039-586-1	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9>	8-98039-586-1	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	0801-1005	●	●
22	STAY; OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>	8-97868-237-2	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE>	8-97868-237-2	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9704-0307	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-944-3	01	1	9704-1005	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. FACE LIFT MODEL<TX7>	8-97866-944-3	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. FACE LIFT MODEL<TX7>	8-97866-944-3	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-557-9	01	1	9704-1005	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,FACE LIFT MODEL<TX7>	8-97856-557-9	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9>,FACE LIFT MODEL<TX7>	8-97856-557-9	01	1	1310-	●	●
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9704-	●	●
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9704-	●	●
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9704-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) WHITE	8-97589-159-1	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) WHITE	8-97589-166-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) BLUE	8-97589-161-1	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) BLUE	8-97589-168-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	02	1	9704-	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	9704-1309	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-625-2	01	1	1310-	●	●
31	PLATE; MIRROR (B)	8-97857-597-1	01	1	0308-0712	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9> (A)	8-94262-631-0	01	1	9704-1309	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-94262-631-0	01	1	1310-	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	9704-1309	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18	8-94279-372-0	02	1	1310-	●	●
34	CAP; MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-97995-718-0	02	1	1310-	●	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	9704-1309	●	●
34	CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-629-0	01	1	1310-	●	●
42	ATTACHMENT; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7>	8-97581-755-2	01	1	1006-1309	●	●
42	ATTACHMENT; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-97581-755-2	01	1	1310-	●	●
42	ATTACHMENT; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-97581-625-2	01	1	1006-1309	●	●
42	ATTACHMENT; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>	8-97581-625-2	01	1	1310-	●	●
64	SEAL; MIRROR FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	1006-1309	●	●
64	SEAL; MIRROR FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	1310-	●	●
64	SEAL; MIRROR FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-98015-058-0	02	1	1006-1309	●	●
64	SEAL; MIRROR FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98015-058-0	02	1	1310-	●	●
92	BOLT; STAY BRKT,MIRROR FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-98020-347-0	10	1	1006-	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9704-1005	●	●
92	BOLT; STAY BRKT,MIRROR EXC. FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-94279-183-1	06	1	1006-	●	●
96	CAP; MIRROR STAY FACE LIFT MODEL<TX7>	8-97581-631-2	02	1	1006-1309	●	●
96	CAP; MIRROR STAY FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>	8-97581-631-2	02	1	1310-	●	●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9704-1005	●	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1006-1309	●	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1006-1309	●	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> OD=40	8-97853-206-2	01	1	1310-	●	●
96	CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1310-	●	●

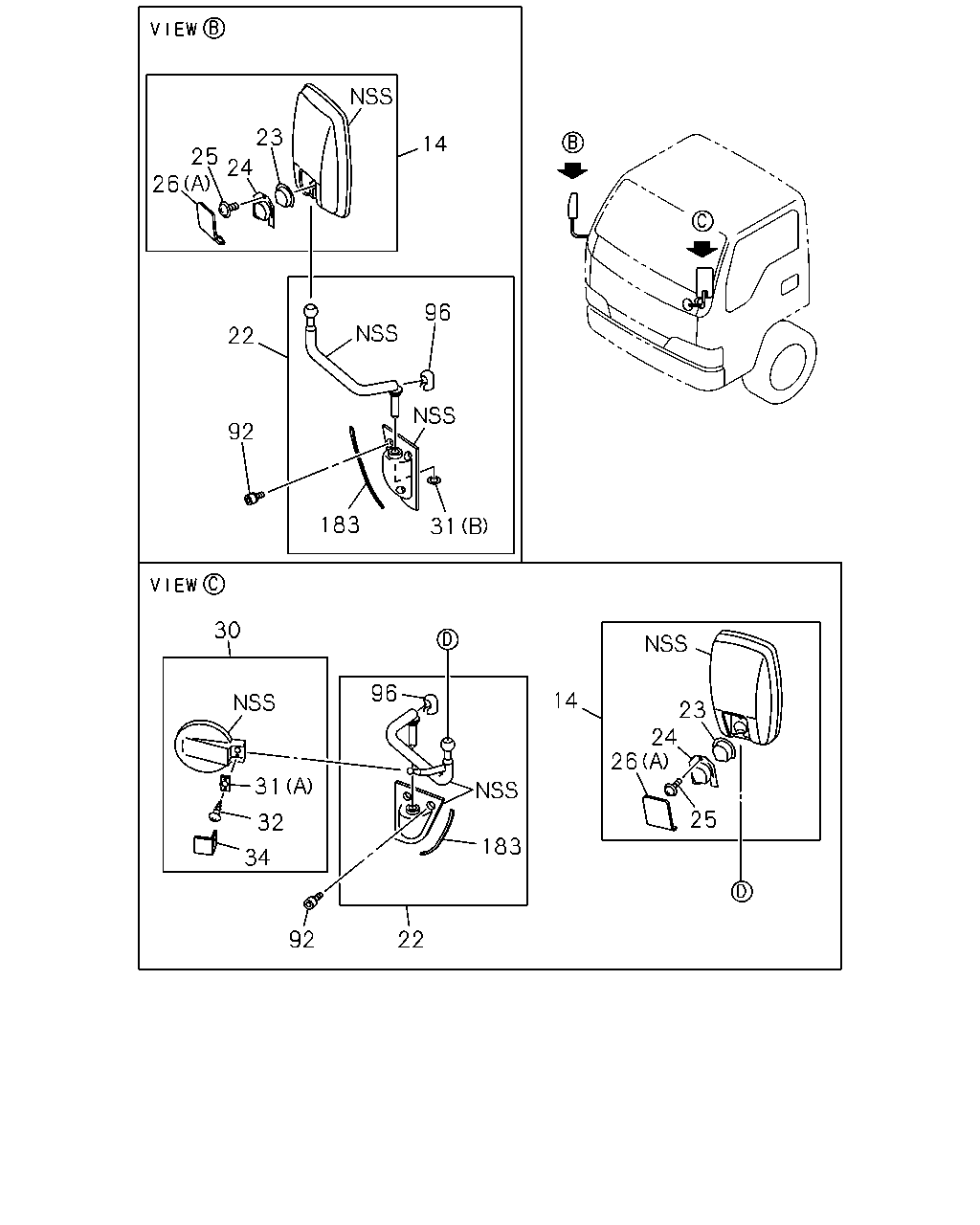

23 14 25 24 26 96 22 92 183 31 30 96 14 23 24 26 31 25 32 183 34 92 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE	8-94262-543-3	02	1	9704-	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7>	8-98039-579-1	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-98039-579-1	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-98039-581-1	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>	8-98039-581-1	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. UNDER MIRROR<RR9>	8-98039-586-1	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9>	8-98039-586-1	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	0801-1005	●	●
22	STAY; OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>	8-97868-237-2	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE>	8-97868-237-2	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9704-0307	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-944-3	01	1	9704-1005	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. FACE LIFT MODEL<TX7>	8-97866-944-3	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. FACE LIFT MODEL<TX7>	8-97866-944-3	01	1	1310-	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-557-9	01	1	9704-1005	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,FACE LIFT MODEL<TX7>	8-97856-557-9	01	1	1006-1309	●	●
22	STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9>,FACE LIFT MODEL<TX7>	8-97856-557-9	01	1	1310-	●	●
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9704-	●	●
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9704-	●	●
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9704-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) WHITE	8-97589-159-1	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) WHITE	8-97589-166-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) BLUE	8-97589-161-1	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	1006-1309	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. VIN MODEL YEAR 2014<VZE> (B) BLUE	8-97589-168-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	02	1	9704-	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	9704-1309	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-625-2	01	1	1310-	●	●
31	PLATE; MIRROR (B)	8-97857-597-1	01	1	0308-0712	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9> (A)	8-94262-631-0	01	1	9704-1309	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-94262-631-0	01	1	1310-	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	9704-1309	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18	8-94279-372-0	02	1	1310-	●	●
34	CAP; MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-97995-718-0	02	1	1310-	●	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	9704-1309	●	●
34	CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-629-0	01	1	1310-	●	●
92	BOLT; STAY BRKT,MIRROR FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-98020-347-0	10	1	1006-	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9704-1005	●	●
92	BOLT; STAY BRKT,MIRROR EXC. FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-94279-183-1	06	1	1006-	●	●
96	CAP; MIRROR STAY FACE LIFT MODEL<TX7>	8-97581-631-2	02	1	1006-1309	●	●
96	CAP; MIRROR STAY FACE LIFT MODEL<TX7> EXC. VIN MODEL YEAR 2014<VZE>	8-97581-631-2	02	1	1310-	●	●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9704-1005	●	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1006-1309	●	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1006-1309	●	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE> OD=40	8-97853-206-2	01	1	1310-	●	●
96	CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1310-	●	●
183	FINISHER; MIRROR	8-97857-925-0	01	1	0308-1005	●	●
183	FINISHER; MIRROR EXC. FACE LIFT MODEL<TX7>	8-97857-925-0	01	1	1006-1309	●	●
183	FINISHER; MIRROR EXC. FACE LIFT MODEL<TX7>	8-97857-925-0	01	1	1006-1309	●	●
183	FINISHER; MIRROR EXC. FACE LIFT MODEL<TX7>,VIN MODEL YEAR 2014<VZE>	8-97857-925-0	01	1	1310-	●	●
183	FINISHER; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. FACE LIFT MODEL<TX7>	8-97857-925-0	01	1	1310-	●	●

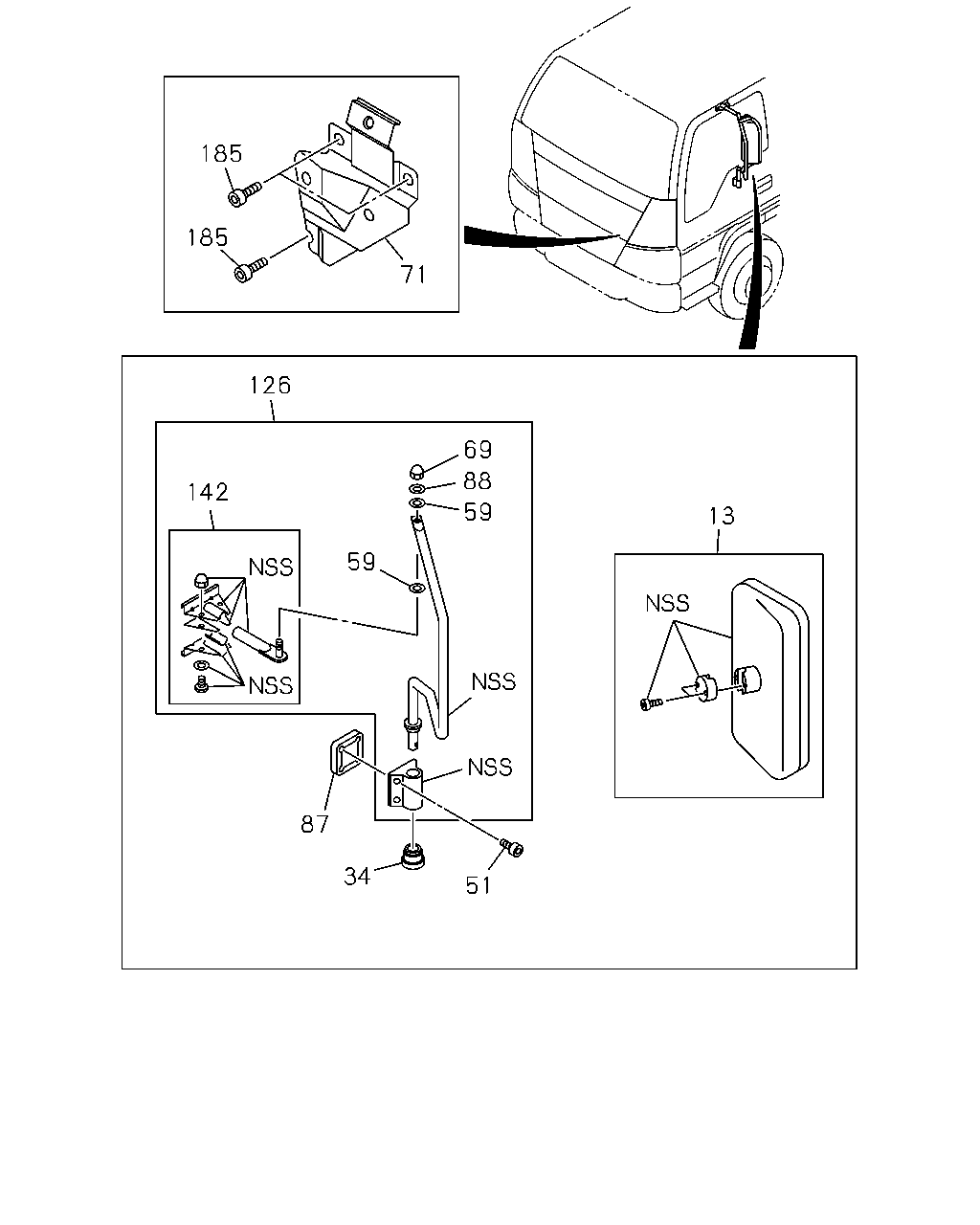

185 185 71 126 69 59 59 142 88 87 34 51 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98051-644-0	02	1	1310-	●	●
34	CAP; MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-97995-718-0	02	1	1310-	●	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	9704-1309	●	●
34	CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-629-0	01	1	1310-	●	●
51	SCREW; MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M6X30	8-94279-327-0	08	1	1310-	●	●
59	WASHER; LK O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> T=2.6	8-94279-073-0	04	1	1310-	●	●
69	NUT; CAP O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M10 CAP NUT	1-09984-134-0	02	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-97581-620-2	01	1	1311-	●	●
71	BRACKET; OUTSIDE MIRROR FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-97581-621-2	01	1	1311-	●	●
87	SPACER O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94272-677-0	02	1	1310-	●	●
88	WASHER; PL,SUPPORT STAY O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	1310-	●	●
126	STAY ASM; MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-97995-403-1	01	1	1310-	●	●
126	STAY ASM; MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-97995-404-1	01	1	1310-	●	●
142	STAY ASM; SUB O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-97856-622-2	02	1	1310-	●	●
185	BOLT; BRKT FACE LIFT MODEL<TX7> VIN MODEL YEAR 2014<VZE> EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M8X12.5 W/LK WASHER	8-98020-348-0	06	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
