◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#72464) — 22 parça

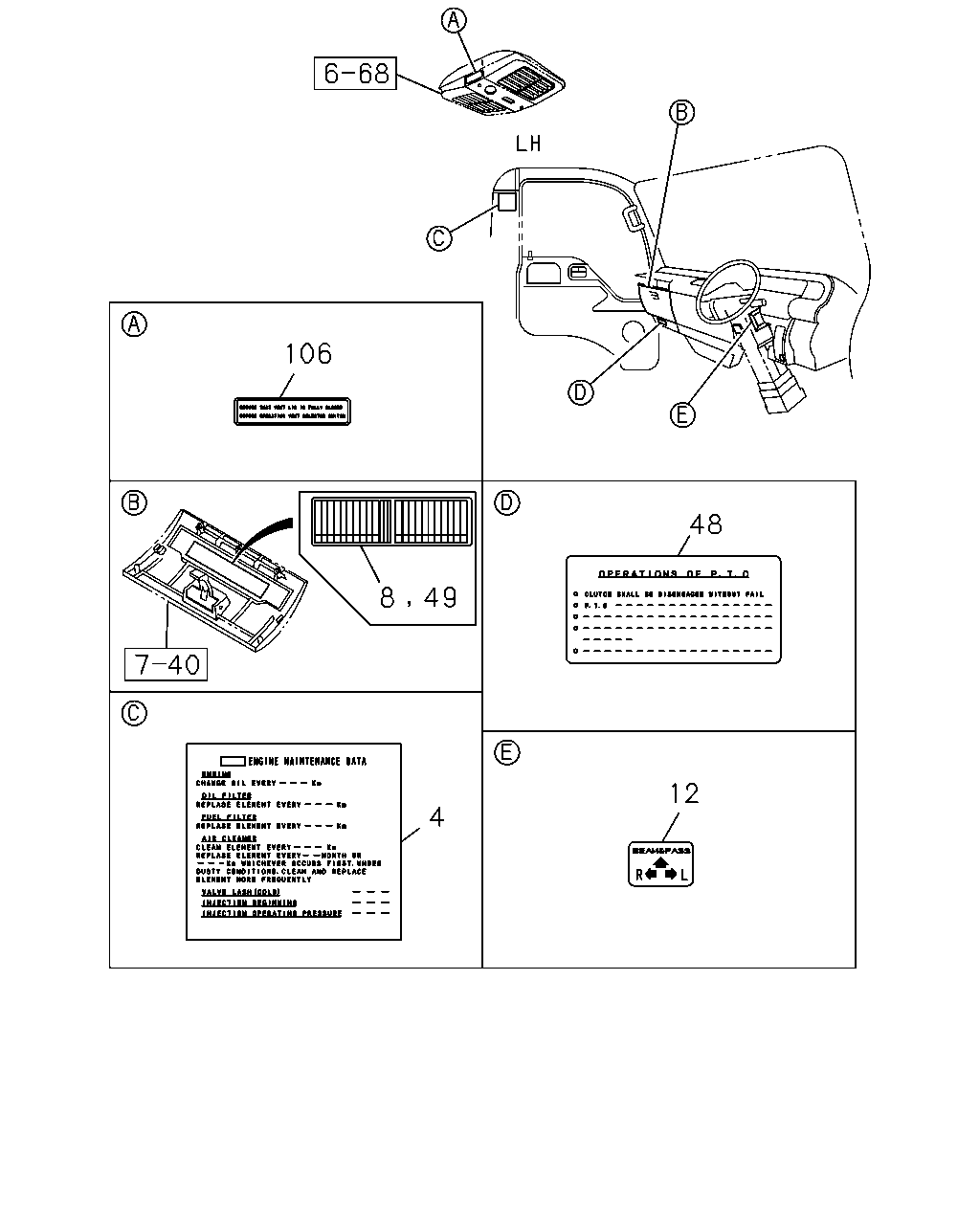

çizim 132650
106 48 8 49 12 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE 8-97133-029-0 01 1 9704-9803 ● ●
4 LABEL; ENG MAINTENANCE 8-97189-398-0 01 1 9804-1111 ● ●
4 LABEL; ENG MAINTENANCE
4HF1 ENG(RLS) 		8-97189-398-0 01 1 1112- ● ●
4 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) 		8-97187-424-0 01 1 1112- ● ●
8 LABEL; FUSE 8-97857-283-0 01 1 9704-9712 ● ●
12 LABEL; TURN 8-94273-445-0 01 1 9704- ● ●
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) 		8-94469-277-0 01 1 9704- ● ●
49 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP) 		8-97377-715-0 01 1 1112-1508 ● ●
49 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 		8-97377-715-0 01 1 1509- ● ●
49 PLATE; CAUTION,FUSE BOX 8-97857-283-0 01 1 9801-0307 ● ●
49 PLATE; CAUTION,FUSE BOX 8-97182-191-0 01 1 0308-1111 ● ●
49 PLATE; CAUTION,FUSE BOX
4HF1 ENG(RLS) 		8-97182-191-0 01 1 1112-1508 ● ●
49 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP) FACE LIFT MODEL<TX7> VIN MODEL YEAR 2015<VZF> 		8-97182-191-0 01 1 1509- ● ●
49 PLATE; CAUTION,FUSE BOX
4HF1 ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> 		8-97182-191-0 01 1 1509- ● ●
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> 		8-94273-602-0 01 1 9704-0307 ● ●
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> 		8-97580-589-0 01 1 0308- ● ●

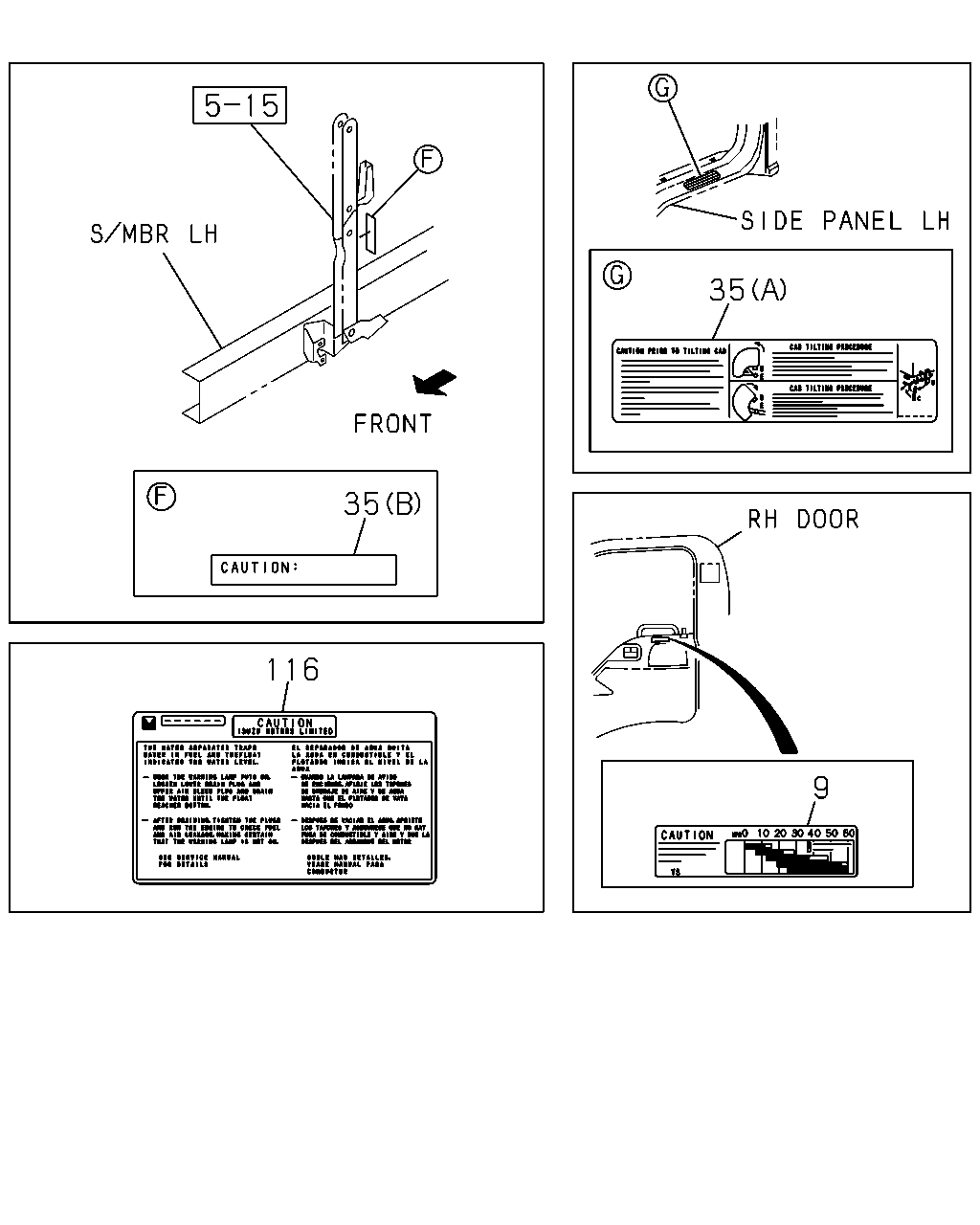

çizim 190530
35 35 116 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 PLATE; NAME,SPD RANGE
M/T MXA5R(RMT) 		8-94158-940-0 01 1 9704-0307 ● ●
9 PLATE; NAME,SPD RANGE
M/T MYY5T(RSM) 		8-94158-940-0 01 1 0308- ● ●
35 PLATE; CAUTION,CAB
(B) 		5-85881-328-1 01 1 9704- ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97856-228-0 01 1 9704-1005 ● ●
35 PLATE; CAUTION,CAB
(A) 		8-98067-809-0 01 1 1006- ● ●
116 LABEL; CAUTION,SEDIMENTER 8-94153-282-1 01 1 9704-9711 ● ●
