◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#72463) — 16 parça

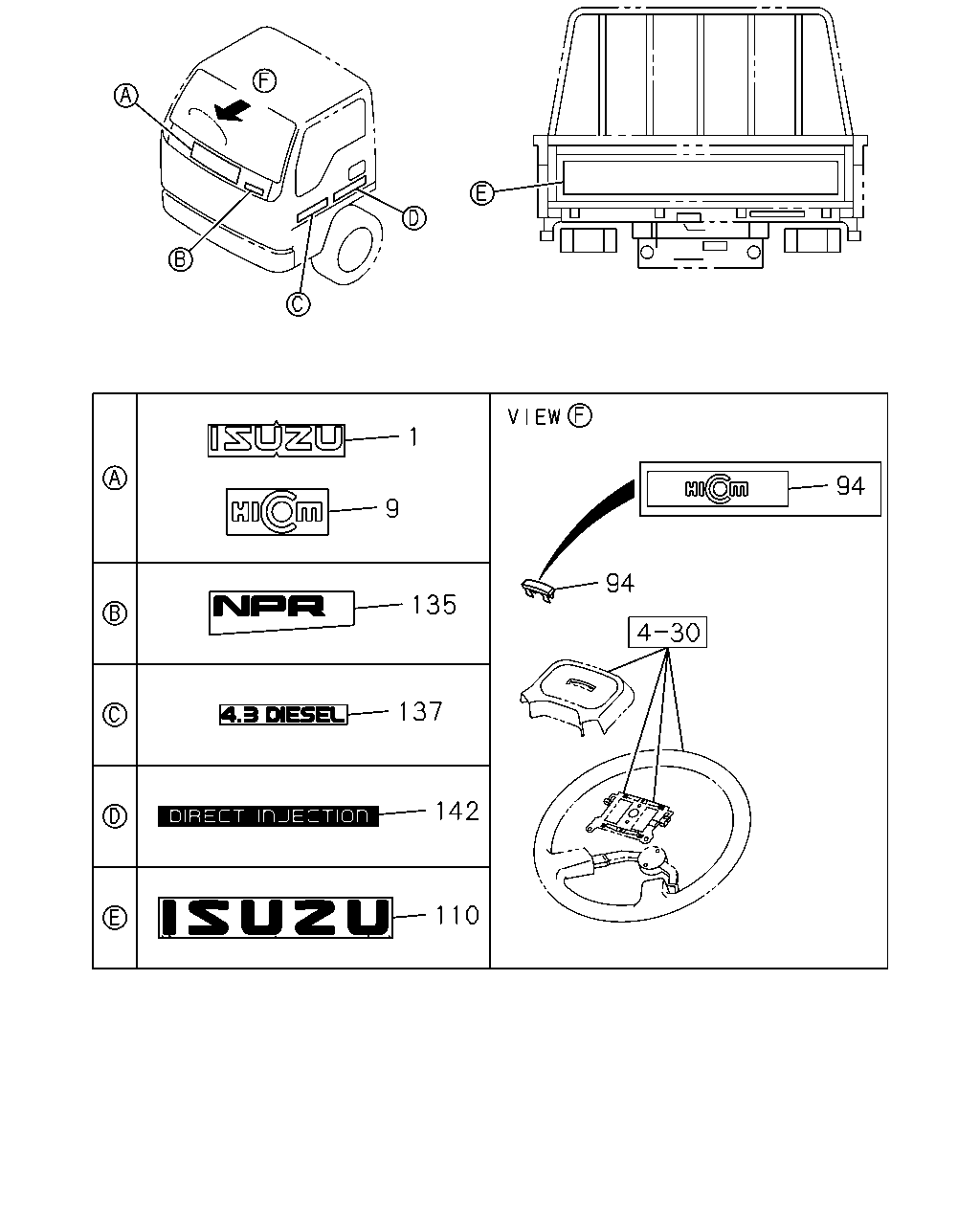

çizim 132494
1 94 9 94 135 137 142 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 MARK; ISUZU
ISUZU BRAND<7WL> 		8-98097-380-0 01 1 1006- ● ●
9 DECAL 8-97867-887-1 01 1 9704-1005 ● ●
9 DECAL
EXC. ISUZU BRAND<7WL> 		8-97867-887-1 01 1 1006- ● ●
94 MARK; STRG WHEEL
DARK BEIGE 		8-97158-006-0 01 1 9704-0307 ● ●
94 MARK; STRG WHEEL
DARK GRAY 		8-97394-931-0 01 1 0308-1005 ● ●
94 MARK; STRG WHEEL
EXC. ISUZU BRAND<7WL> DARK GRAY 		8-97394-931-0 01 1 1006- ● ●
110 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) DECAL-ISUZU TAIL GATE<EX9> BLACK 		8-94350-624-1 01 1 9704-0307 ● ●
110 EMBLEM; "ISUZU",RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) DECAL-ISUZU TAIL GATE<EX9> BLACK 		8-94350-624-1 01 1 0308- ● ●
110 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> WHITE 		8-94350-623-1 01 1 9704-0307 ● ●
135 DECAL; CAB FRT
ISUZU BRAND<7WL> 		8-97868-261-0 01 1 1006- ● ●
135 DECAL; CAB FRT 8-97857-426-0 01 1 9704-1005 ● ●
135 DECAL; CAB FRT
EXC. ISUZU BRAND<7WL> 		8-97857-426-0 01 1 1006- ● ●
137 DECAL; DOOR
4.3 DIESEL 		8-94262-884-1 02 1 9704-1005 ● ●
137 DECAL; DOOR
4HF1 ENG(RLS) EXC. ISUZU BRAND<7WL> 4.3 DIESEL 		8-94262-884-1 02 1 1006- ● ●
142 DECAL; "DIRECT INJECTION" 8-94272-302-1 02 1 9704-1005 ● ●
142 DECAL; "DIRECT INJECTION"
4HF1 ENG(RLS) EXC. ISUZU BRAND<7WL> 		8-94272-302-1 02 1 1006- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
