Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#7246) — 457 parça

58 12 12 12 55 2 2 2 211 5 5 12 12 55 12 12 4 4 12 12 138 108 10 52 1 58 108 7 108 12 95 2 10 9 10 8 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

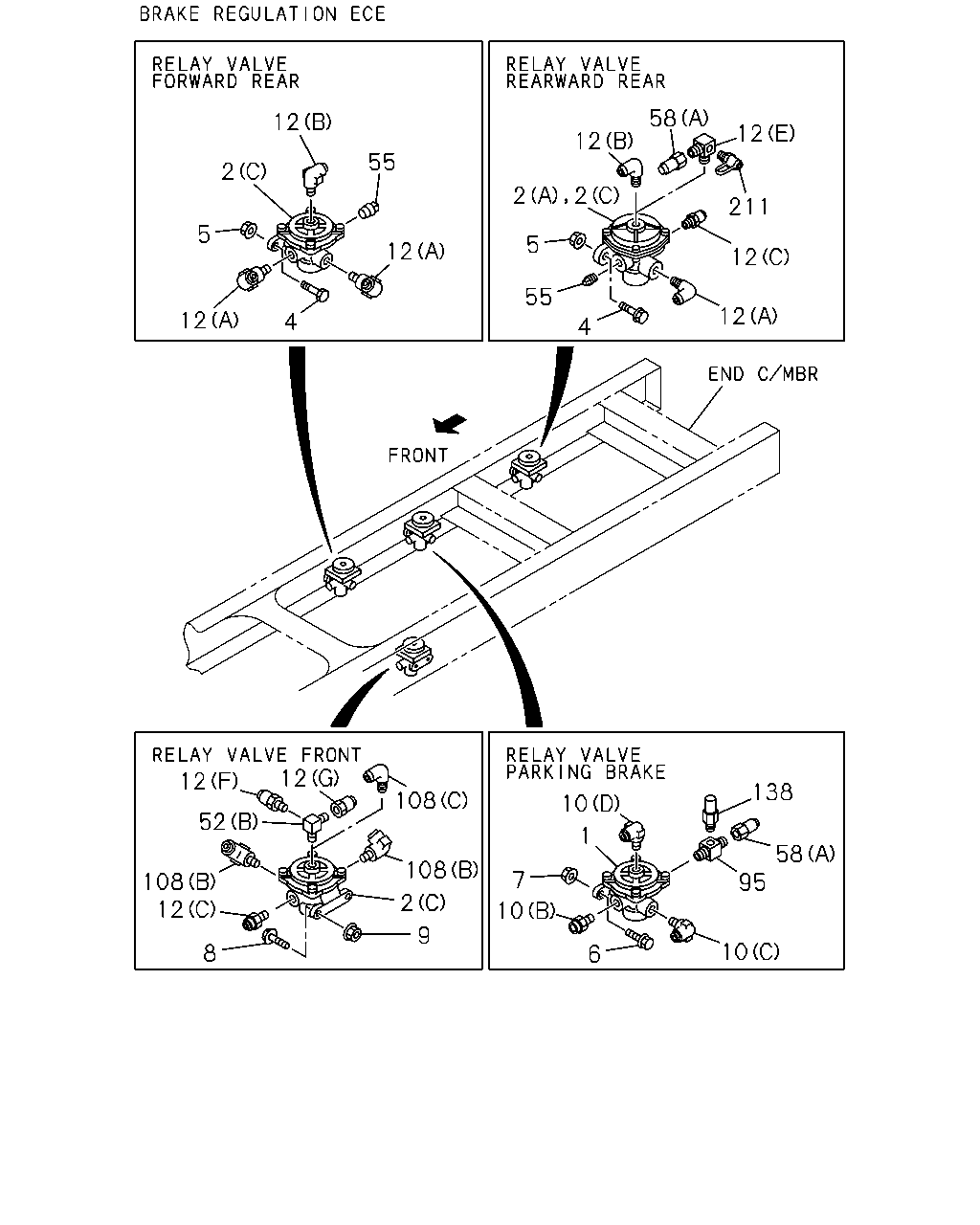

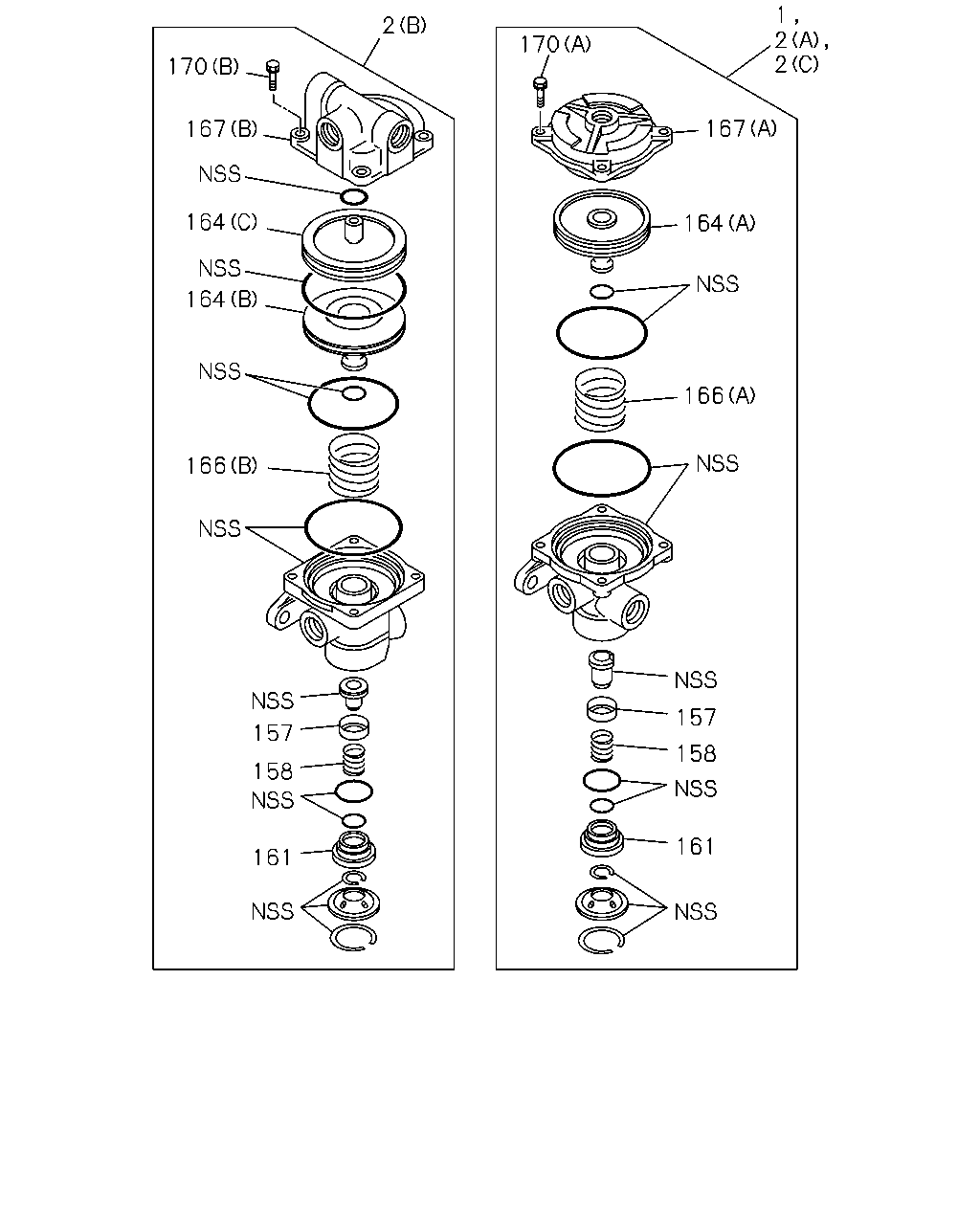

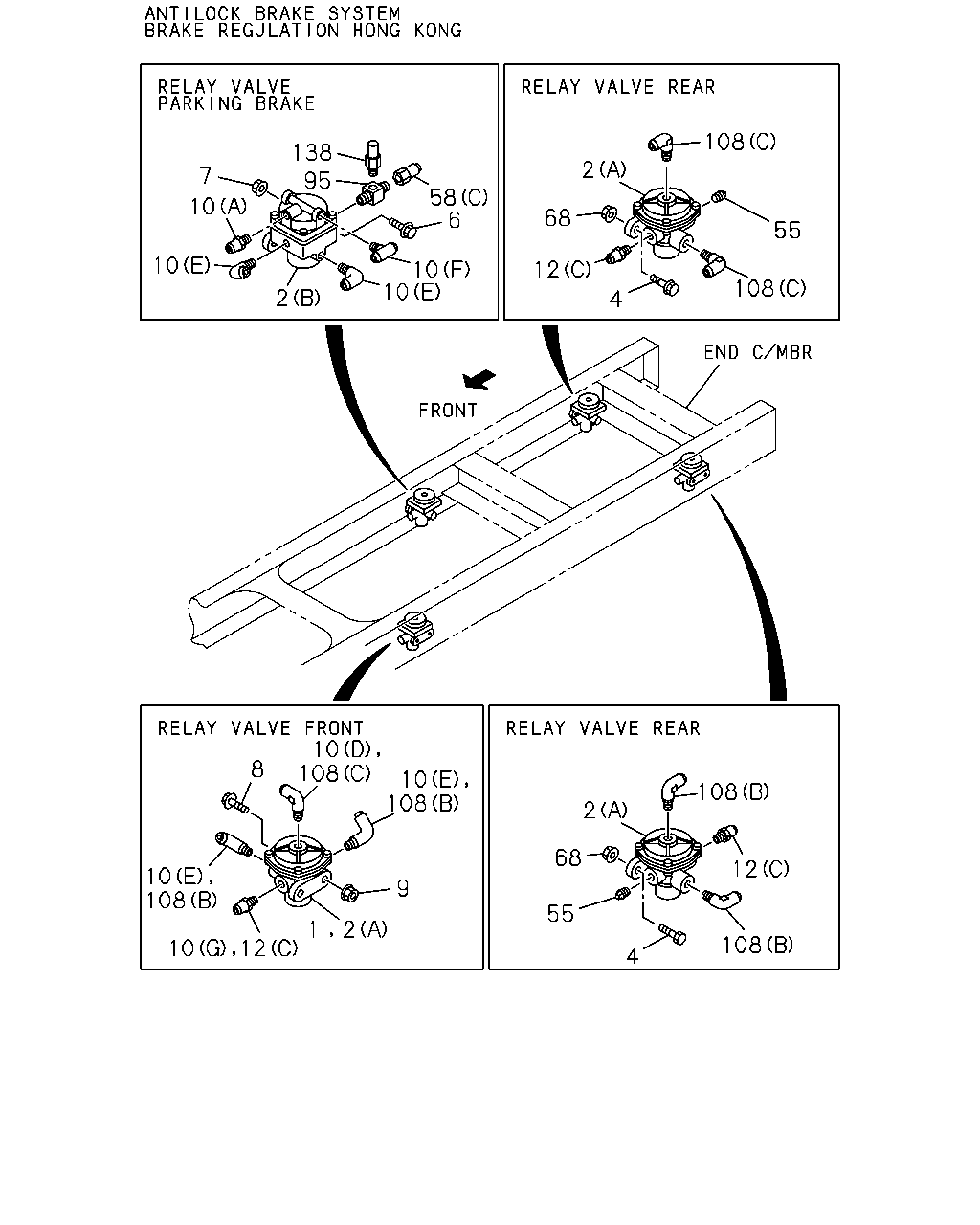

1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-48210-278-0	01	1	0103-
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV>	1-48210-500-0	01	1	0001-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	03	1	9906-0102

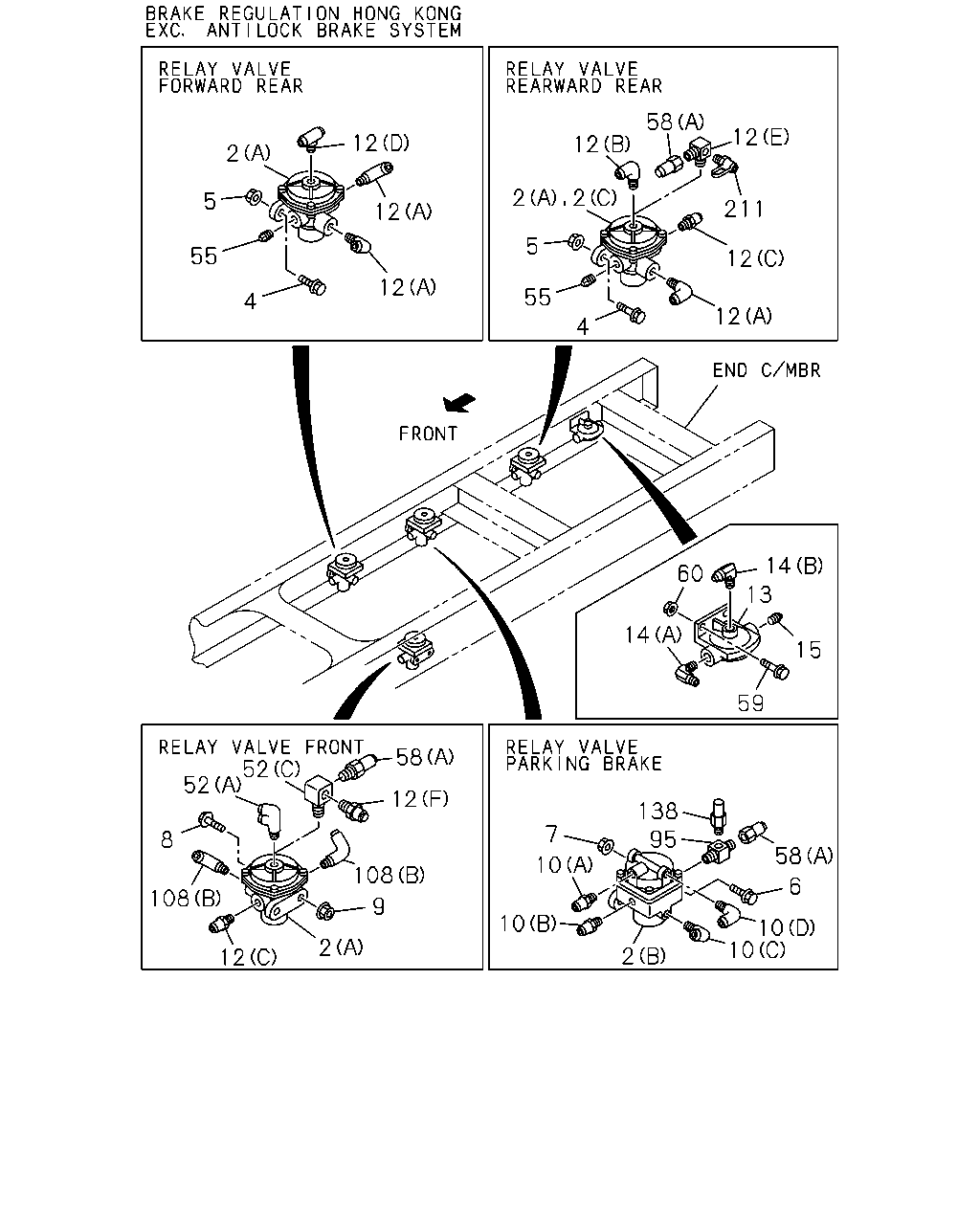

2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	02	1	0103-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-143-0	01	1	9906-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	9906-0102
2	VALVE; RELAY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	01	1	9906-
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	9906-9912
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	9906-
5	NUT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91150-210-0	04	1	9906-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9906-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9906-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9906-
9	NUT M10 FLANGE	0-91150-210-0	02	1	9906-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-0102
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0103-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0103-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-0102
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-0102
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0103-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09661-126-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (B)	1-09661-126-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09661-126-0	01	1	0001-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	03	1	9906-0102
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0103-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-0003
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (G) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (G) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0001-0003
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0004-
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9906-0003
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0004-
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> PT1/2	9-09204-521-0	02	1	9906-
55	PLUG; SUPPLY WHEEL BASE 4700MM(47W) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY WHEEL BASE 4700MM(47W) PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0001-
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
58	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (B)	1-09660-778-1	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	0004-0007
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>	1-09656-446-0	01	1	9906-9912
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-09656-446-0	01	1	0001-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	9906-0102
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0103-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9906-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0103-
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-0	01	1	9906-9912
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48340-057-1	01	1	0001-
211	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9906-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

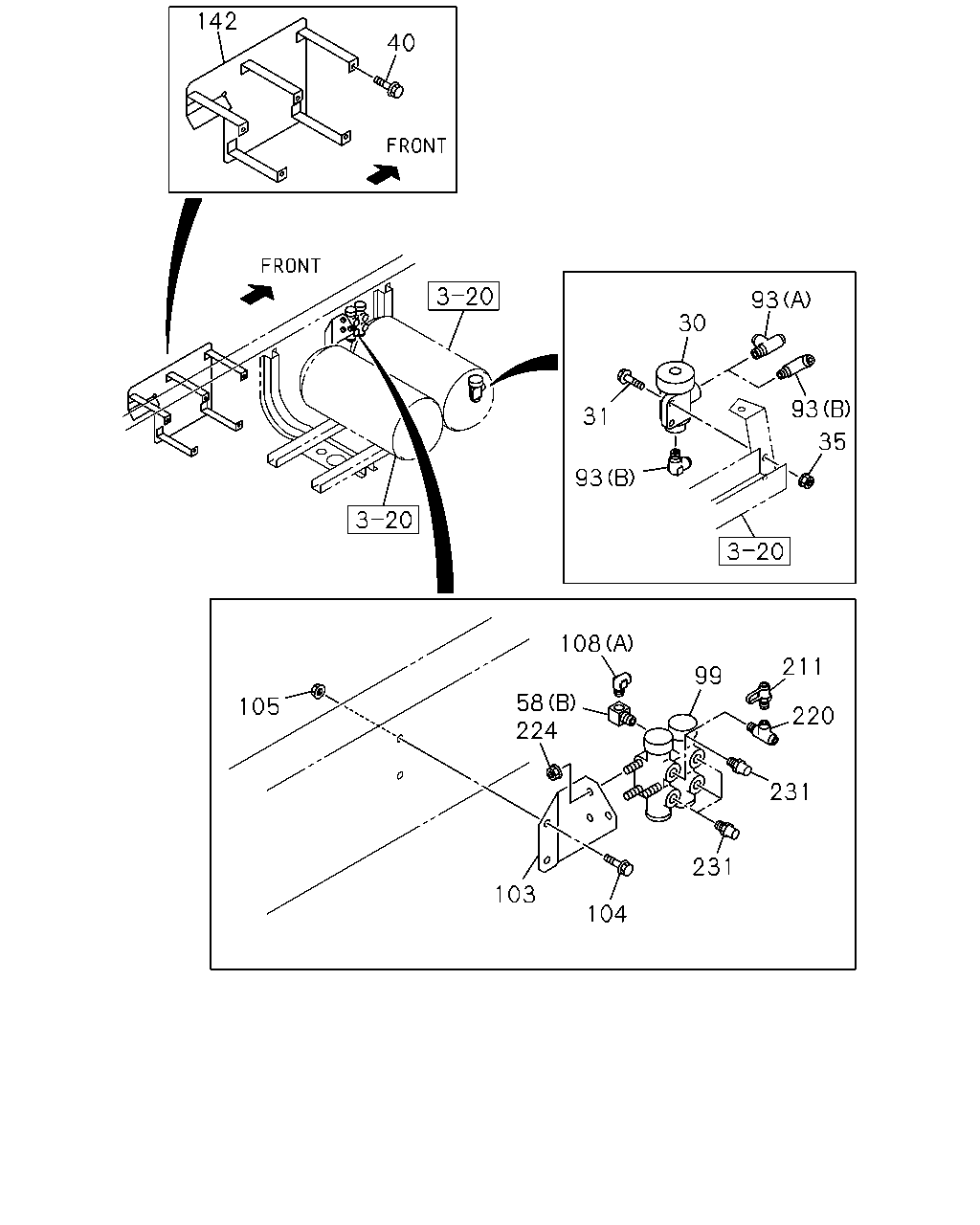

	240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	9906-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	9906-

58 12 12 12 2 2 2 5 211 12 5 55 12 12 55 4 12 4 14 60 13 14 15 59 52 58 52 12 138 95 7 8 108 58 10 108 6 9 10 10 10 2 2 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	03	1	9906-0102
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	02	1	0103-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-143-0	01	1	9906-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	9906-0102
2	VALVE; RELAY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	01	1	9906-
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	9906-9912
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	9906-
5	NUT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91150-210-0	04	1	9906-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9906-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9906-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9906-
9	NUT M10 FLANGE	0-91150-210-0	02	1	9906-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-0102
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0103-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0103-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-0102
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-0102
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0103-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09661-126-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (B)	1-09661-126-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09661-126-0	01	1	0001-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	03	1	9906-0102
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0103-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-0003
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (G) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (G) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9906-9912
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	9906-9912
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	0001-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9906-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
15	PLUG; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	01	1	9906-
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0001-0003
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0004-
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9906-0003
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0004-
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> PT1/2	9-09204-521-0	02	1	9906-
55	PLUG; SUPPLY WHEEL BASE 4700MM(47W) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY WHEEL BASE 4700MM(47W) PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0001-
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
58	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (B)	1-09660-778-1	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	0004-0007
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	9906-
60	NUT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9906-
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>	1-09656-446-0	01	1	9906-9912
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-09656-446-0	01	1	0001-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	9906-0102
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0103-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9906-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0103-
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-0	01	1	9906-9912
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48340-057-1	01	1	0001-
211	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9906-

108 138 95 2 7 58 6 10 68 55 10 10 10 12 108 2 4 10 108 8 10 108 108 2 68 12 10 108 9 55 2 1 108 10 12 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-48210-278-0	01	1	0103-
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV>	1-48210-500-0	01	1	0001-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	03	1	9906-0102
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	02	1	0103-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-143-0	01	1	9906-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	9906-0102
2	VALVE; RELAY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	01	1	9906-
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	9906-9912
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28681-040-0	04	1	9906-
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	9906-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9906-
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9906-
9	NUT M10 FLANGE	0-91150-210-0	02	1	9906-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-0102
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0103-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (F) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-
10	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0103-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-0102
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-0102
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0103-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09661-126-0	01	1	9906-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (B)	1-09661-126-0	01	1	0001-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-09661-126-0	01	1	0001-
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	03	1	9906-0102
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0103-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0001-0003
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (G) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (G) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> EXC. TRAILER BRAKE CONTROL<J91> (G) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9906-
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9906-9912
12	CONNECTOR; RELAY VLV WHEEL BASE 4700MM(47W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
12	CONNECTOR; RELAY VLV WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> PT1/2	9-09204-521-0	02	1	9906-
55	PLUG; SUPPLY WHEEL BASE 4700MM(47W) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	9906-9912
55	PLUG; SUPPLY WHEEL BASE 4700MM(47W) PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0001-
55	PLUG; SUPPLY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) PT1/2	9-09204-521-0	01	1	0001-
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
58	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (B)	1-09660-778-1	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	0004-0007
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
68	NUT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> M10 FLANGE	0-91150-210-0	04	1	9906-
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>	1-09656-446-0	01	1	9906-9912
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-09656-446-0	01	1	0001-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	9906-0102
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0103-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9906-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0103-
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-0	01	1	9906-9912
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48340-057-1	01	1	0001-

142 40 93 30 93 31 35 93 108 211 99 58 224 105 220 231 231 103 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	9906-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9906-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9906-
40	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	05	1	9906-
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9906-0007
58	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
58	ADAPTER WHEEL BASE 4500MM(45W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (B)	1-09660-778-1	01	1	9906-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9906-9912
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0003
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	0004-0007
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0004-0007
58	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
93	CONNECTOR; GOV WHEEL BASE 4500MM(45W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
93	CONNECTOR; GOV WHEEL BASE 4500MM(45W) (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	02	1	9906-0002
93	CONNECTOR; GOV WHEEL BASE 4500MM(45W) (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0003-
93	CONNECTOR; GOV WHEEL BASE 4700MM(47W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9906-
99	VALVE; PROTECTION	1-48110-114-5	01	1	9906-
103	BRACKET; PROTECTION VALVE WHEEL BASE 4500MM(45W)	1-47478-351-1	01	1	9906-
103	BRACKET; PROTECTION VALVE WHEEL BASE 4700MM(47W)	1-47478-407-0	01	1	9906-
104	BOLT; BRKT,VALVE M8X30 FLANGE	0-28680-830-0	02	1	9906-
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	9906-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9906-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	9906-0102
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0103-
108	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	9906-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0103-
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9906-9912
108	CONNECTOR; ELBOW BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-0102
108	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0004-
142	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48219-143-0	01	1	9906-
211	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9906-
220	CONNECTOR; 3WAY WHEEL BASE 4700MM(47W)	1-09661-027-0	01	1	9906-
224	NUT; PROTECTION VALVE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91150-108-0	03	1	9906-
231	CONNECTOR; NYLON TUBE WHEEL BASE 4500MM(45W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	9906-
231	CONNECTOR; NYLON TUBE WHEEL BASE 4700MM(47W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9906-

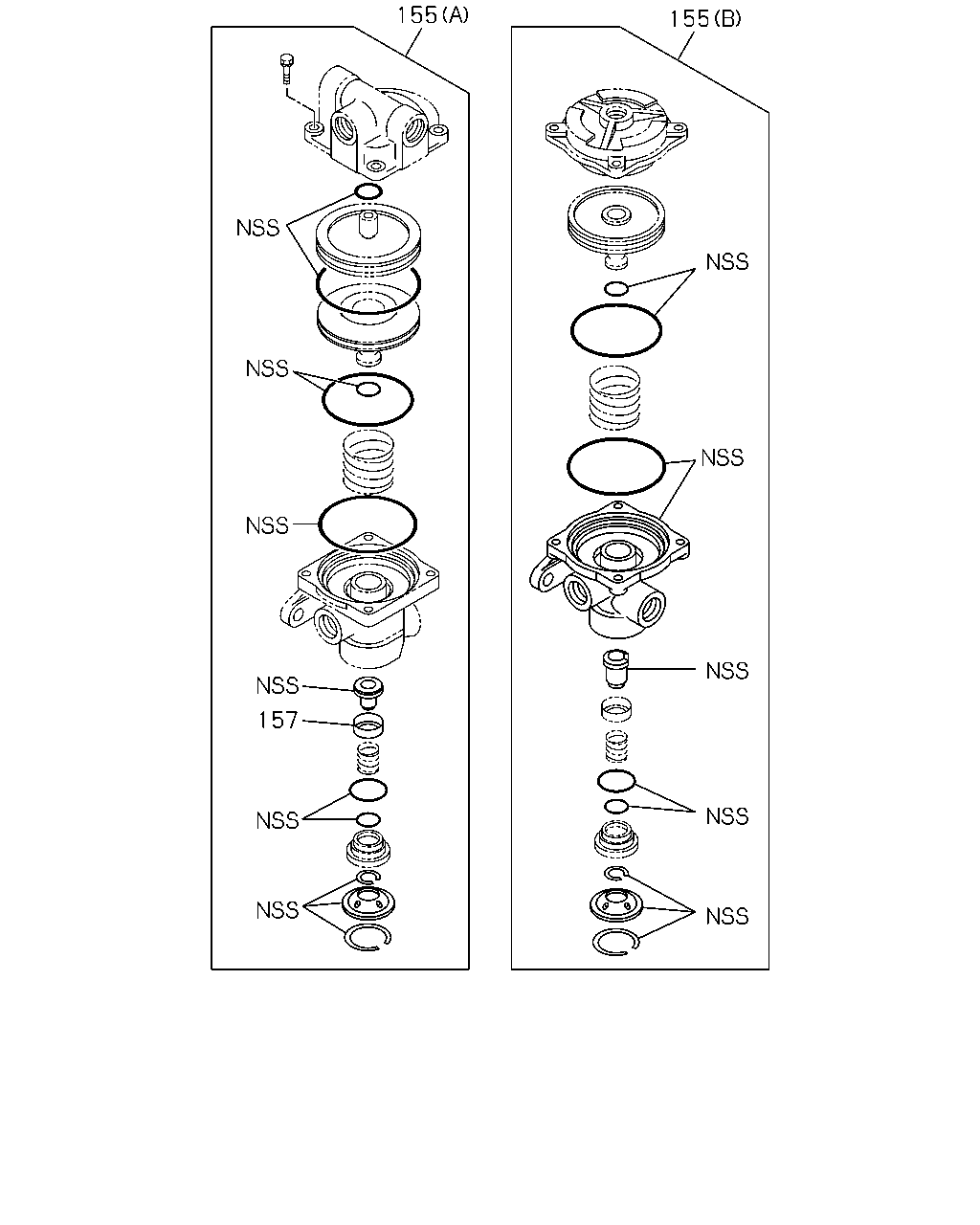

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	03	1	9906-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-85576-035-0	01	1	9906-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-85576-033-0	02	1	9906-9912
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	02	1	0001-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-85576-033-0	02	1	0001-
155	REPAIR KIT; RELAY VALVE WHEEL BASE 4700MM(47W) (B)	1-85576-033-0	01	1	9906-9912
155	REPAIR KIT; RELAY VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-85576-033-0	01	1	9906-9912
155	REPAIR KIT; RELAY VALVE WHEEL BASE 4700MM(47W) (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B)	1-85576-033-0	01	1	0001-
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	04	1	9906-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48213-002-0	03	1	9906-
157	RETAINER; VALVE WHEEL BASE 4700MM(47W)	1-48213-002-0	01	1	9906-9912
157	RETAINER; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48213-002-0	01	1	9906-9912
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	02	1	0001-
157	RETAINER; VALVE WHEEL BASE 4700MM(47W)	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48213-002-0	01	1	0001-

1 2 2 2 170 170 167 167 164 164 164 166 166 157 157 158 158 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-48210-278-0	01	1	0103-
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV>	1-48210-500-0	01	1	0001-
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	03	1	9906-0102
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-278-0	02	1	0103-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-143-0	01	1	9906-
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	02	1	9906-0102
2	VALVE; RELAY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-278-0	01	1	9906-
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	9906-9912
2	VALVE; RELAY WHEEL BASE 4700MM(47W) (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (C)	1-48210-500-0	01	1	0001-
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	04	1	9906-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48213-002-0	03	1	9906-
157	RETAINER; VALVE WHEEL BASE 4700MM(47W)	1-48213-002-0	01	1	9906-9912
157	RETAINER; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48213-002-0	01	1	9906-9912
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	02	1	0001-
157	RETAINER; VALVE WHEEL BASE 4700MM(47W)	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48213-002-0	01	1	0001-
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-47819-089-0	04	1	9906-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47819-089-0	03	1	9906-
158	SPRING; VALVE WHEEL BASE 4700MM(47W)	1-47819-089-0	01	1	9906-9912
158	SPRING; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47819-089-0	01	1	9906-9912
158	SPRING; VALVE BRAKE REGULATION ECE<TDV>	1-47819-089-0	02	1	0001-
158	SPRING; VALVE WHEEL BASE 4700MM(47W)	1-47819-089-0	01	1	0001-
158	SPRING; VALVE BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	0001-
158	SPRING; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47819-089-0	01	1	0001-
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ>	1-48129-014-0	04	1	9906-
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	03	1	9906-
161	GUIDE; VALVE WHEEL BASE 4700MM(47W)	1-48129-014-0	01	1	9906-9912
161	GUIDE; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	9906-9912
161	GUIDE; VALVE BRAKE REGULATION ECE<TDV>	1-48129-014-0	02	1	0001-
161	GUIDE; VALVE WHEEL BASE 4700MM(47W)	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	01	1	0001-
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	03	1	9906-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	9906-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	9906-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	02	1	9906-9912
164	PISTON; RELAY VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-071-0	02	1	0001-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	02	1	0001-
164	PISTON; RELAY VALVE WHEEL BASE 4700MM(47W) (A)	1-48219-071-0	01	1	9906-9912
164	PISTON; RELAY VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	9906-9912
164	PISTON; RELAY VALVE WHEEL BASE 4700MM(47W) (A)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-071-0	01	1	0001-
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	03	1	9906-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	9906-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-090-0	02	1	9906-
166	SPRING; PISTON WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-090-0	01	1	9906-
166	SPRING; PISTON WHEEL BASE 4700MM(47W) (A)	1-47819-165-0	01	1	9906-9912
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	02	1	0001-
166	SPRING; PISTON WHEEL BASE 4700MM(47W) (A)	1-47819-165-0	01	1	0001-
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	01	1	0001-
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	03	1	9906-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	9906-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	9906-9912
167	COVER; VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	02	1	0001-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	0001-
167	COVER; VALVE WHEEL BASE 4700MM(47W) (A)	1-48219-070-0	01	1	9906-9912
167	COVER; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	9906-9912
167	COVER; VALVE WHEEL BASE 4700MM(47W) (A)	1-48219-070-0	01	1	0001-
167	COVER; VALVE BRAKE REGULATION ECE<TDV> (A)	1-48219-070-0	01	1	0001-
167	COVER; VALVE WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	01	1	0001-
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	12	1	9906-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	9906-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-039-0	08	1	9906-9912
170	SCREW; COVER TO BODY BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	08	1	0001-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-039-0	08	1	0001-
170	SCREW; COVER TO BODY WHEEL BASE 4700MM(47W) (A)	1-48219-039-0	04	1	9906-9912
170	SCREW; COVER TO BODY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-039-0	04	1	9906-9912
170	SCREW; COVER TO BODY WHEEL BASE 4700MM(47W) (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-039-0	04	1	0001-

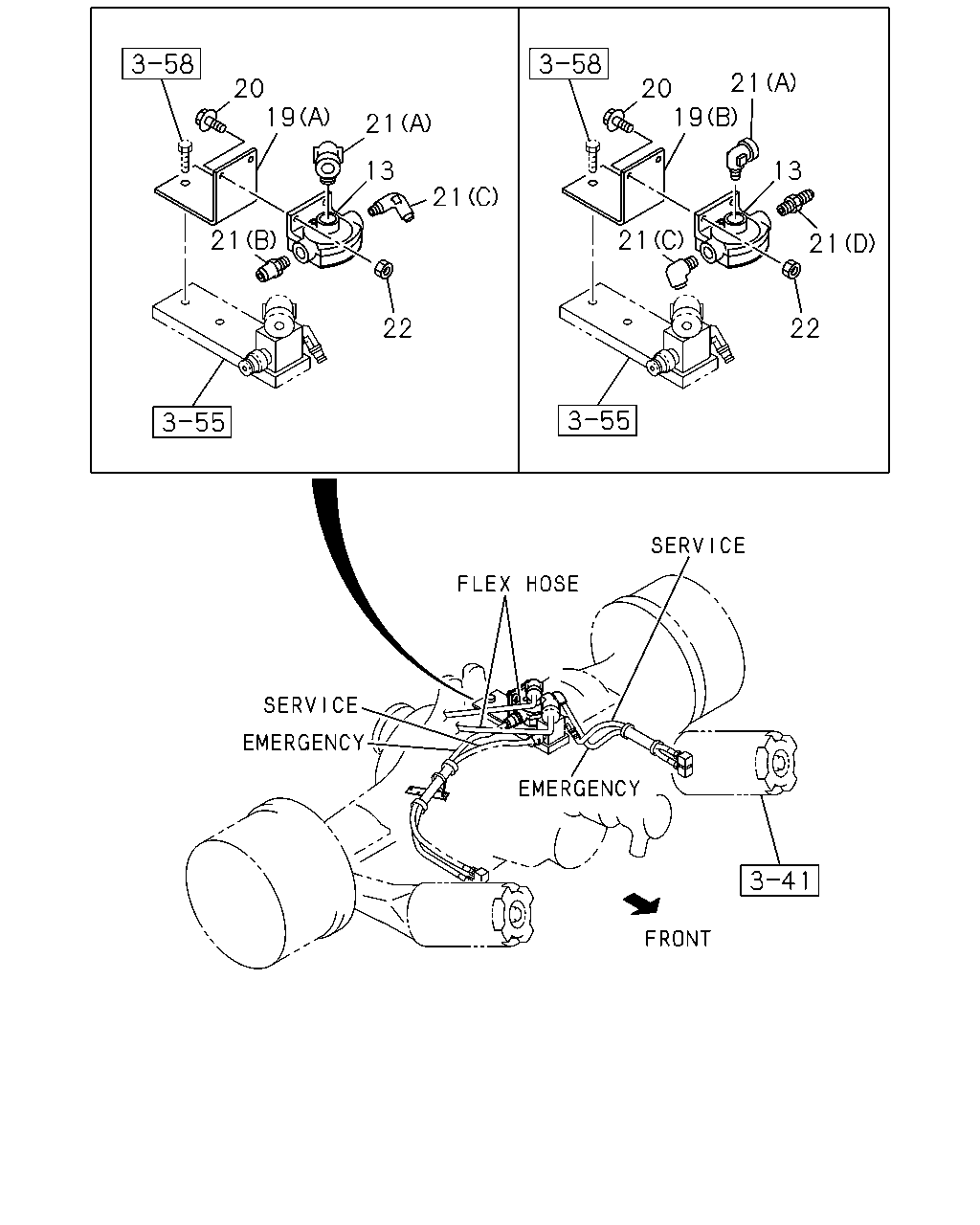

21 20 19 20 19 21 13 13 21 21 21 21 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9906-9912
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	9906-9912
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48410-320-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48410-320-0	01	1	0001-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (B)	1-47477-702-0	01	1	0001-
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-47475-199-1	01	1	9906-9912
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-47475-199-1	01	1	0001-
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE	0-28680-825-0	02	1	9906-9912
20	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0001-
20	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0001-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (D) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0001-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9906-9912
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0001-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0001-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-9912
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-9912
21	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0001-
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	02	1	9906-9912
22	NUT; BRKT BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	0001-
22	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	0001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
