Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

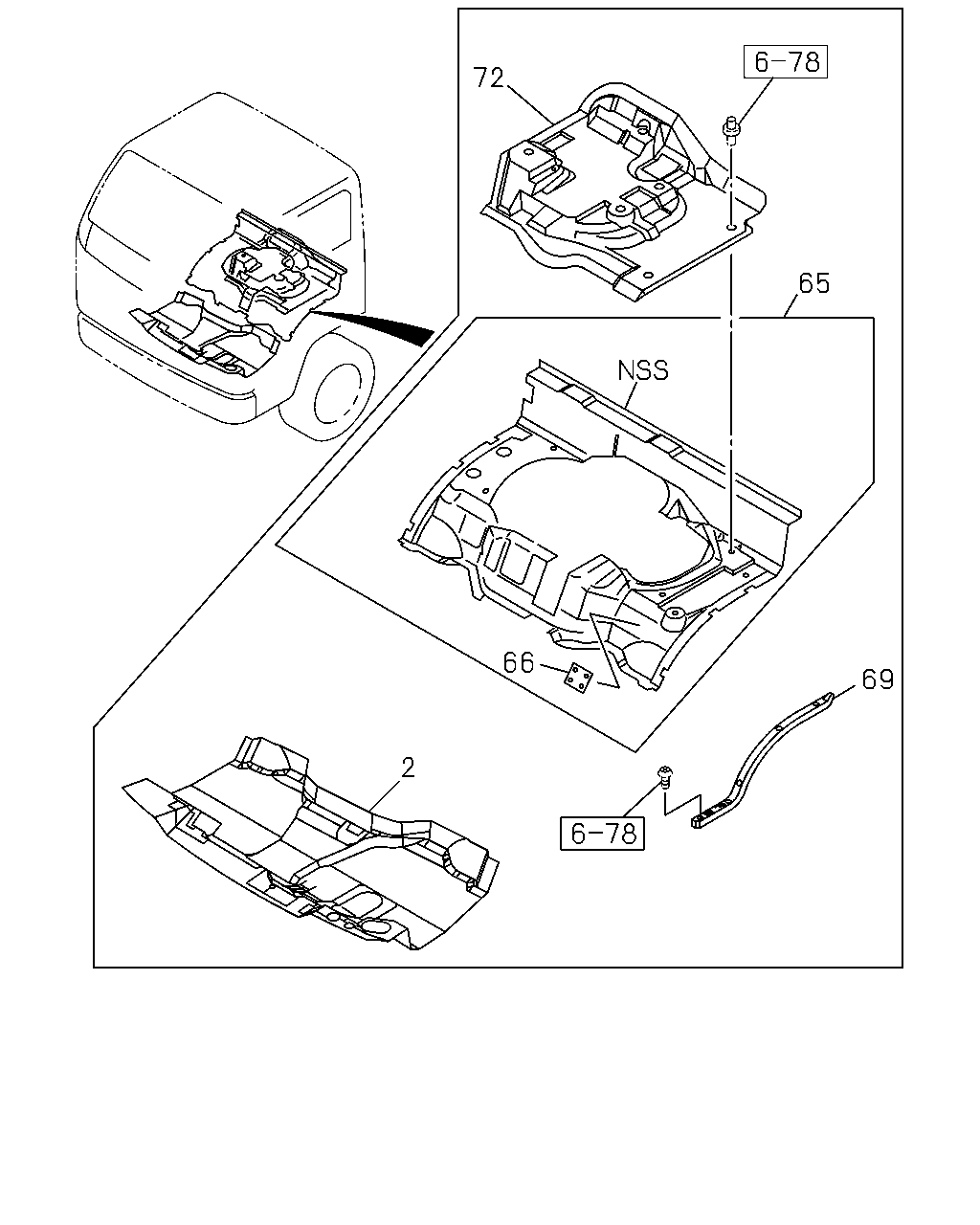

6-75 — MAT AND CARPET (#72456) — 16 parça

72 65 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR DARK BEIGE	8-97097-211-5	01	1	9704-0203	●	●
2	MAT; FLOOR DARK BEIGE	8-97996-657-1	01	1	0204-0307	●	●
2	MAT; FLOOR DARK GRAY	8-97996-658-4	01	1	0308-	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97856-169-7	01	1	9704-0203	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-686-0	01	1	0204-0307	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-687-1	01	1	0308-	●	●
66	HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9704-0203	●	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0204-0307	●	●
66	HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9704-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-1	01	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9704-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-1	01	1	0308-	●	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97856-175-3	01	1	9704-0203	●	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-688-0	01	1	0204-0307	●	●
72	MAT; SILENCER,ENG COVER DARK GRAY	8-97996-731-1	01	1	0308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
