◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#72455) — 84 parça

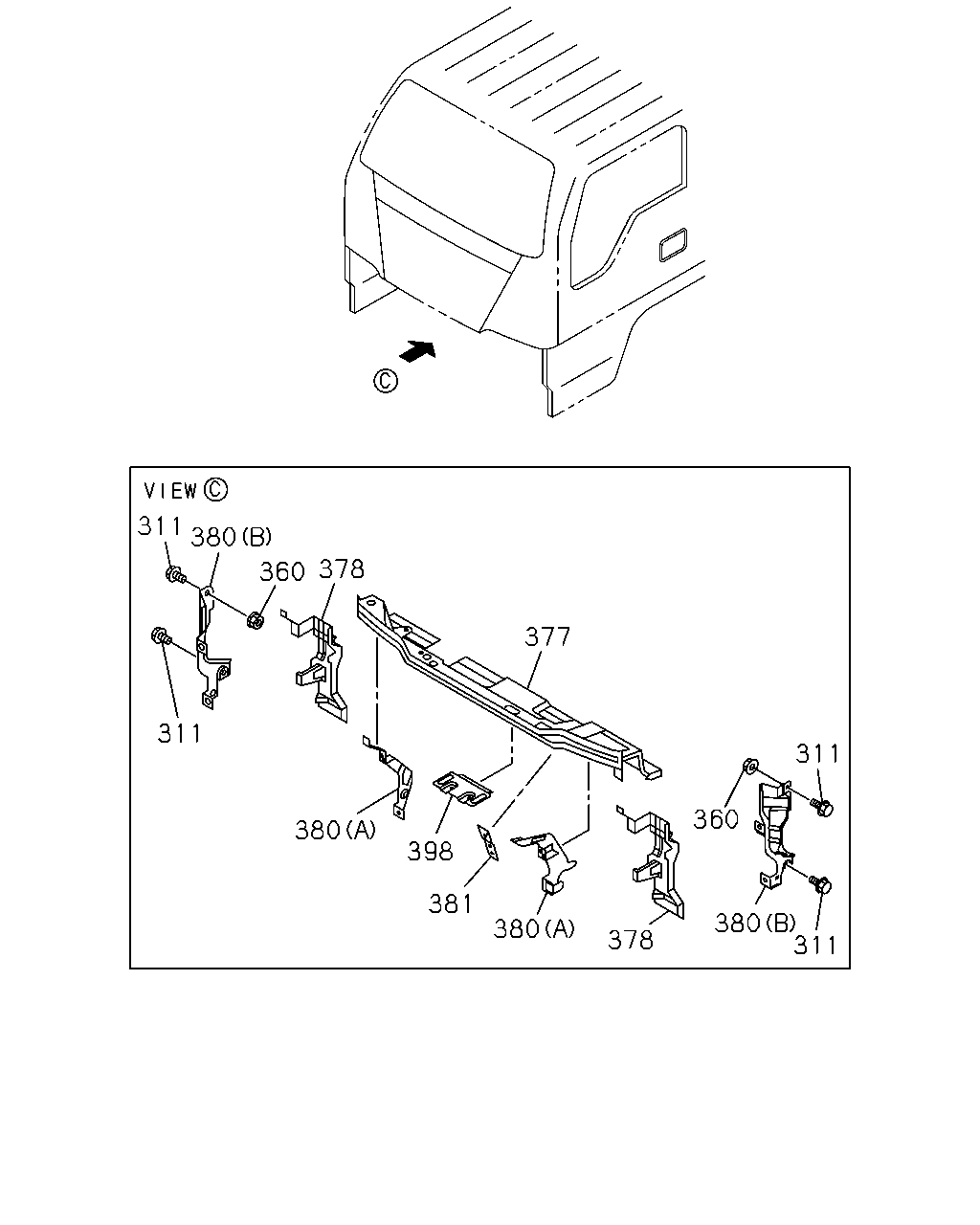

çizim 131885
311 380 378 360 377 311 311 360 380 398 381 380 311 380 378
BalonParca AdiParca NoAdetTipApplied Date A B
311 BOLT; BRKT
FACE LIFT MODEL<TX7> M6X16 FLANGE 		0-28650-616-0 04 1 1006- ● ●
360 NUT; BRKT
FACE LIFT MODEL<TX7> M6 POP NUT 		8-98013-752-0 02 1 1006- ● ●
377 RAIL ASM; MTG,FRT 8-97850-128-8 01 1 9704-9708 ● ●
377 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 9709-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304- ● ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-827-2 01 1 1006- ● ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-828-2 01 1 1006- ● ●
378 GASSET; LWR 8-97867-916-1 01 1 9704-0305 ● ●
378 GASSET; LWR 8-97581-834-0 01 1 0306-1005 ● ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-834-0 01 1 1006- ● ●
378 GASSET; LWR 8-97867-915-1 01 1 9704-0305 ● ●
378 GASSET; LWR 8-97581-833-0 01 1 0306-1005 ● ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-833-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-090-2 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-705-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-087-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-088-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-924-0 01 1 9704-1005 ● ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97867-924-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 9704-1005 ● ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97867-921-1 01 1 1006- ● ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9711- ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9704- ● ●

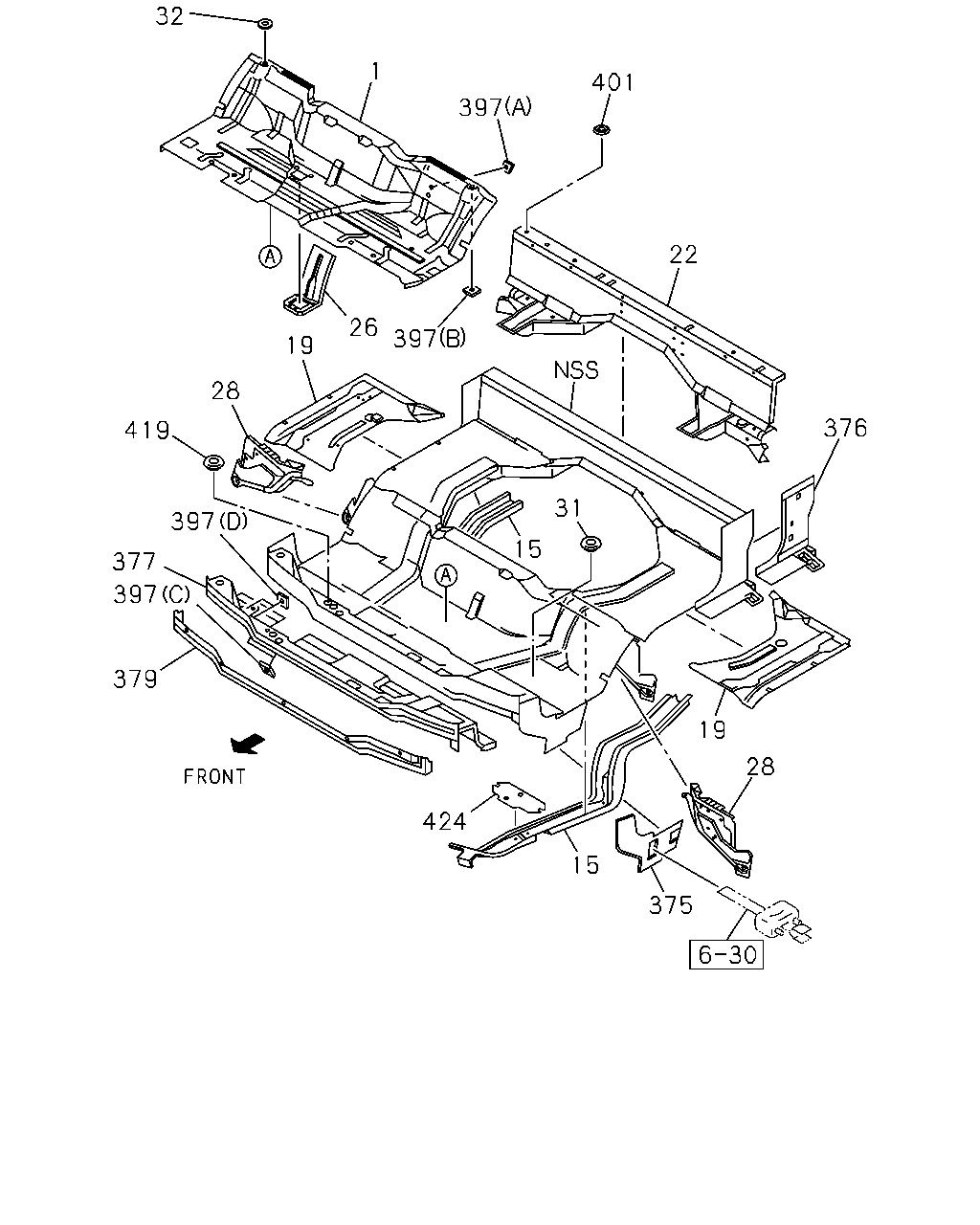

çizim 132264
32 1 401 397 22 26 397 19 28 376 419 31 397 15 377 397 379 19 28 424 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97850-117-8 01 1 9704-0303 ● ●
1 PANEL; FLOOR 8-97581-801-0 01 1 0304- ● ●
15 FRAME; UNDER 8-97850-060-9 01 1 9704- ● ●
15 FRAME; UNDER 8-97850-059-9 01 1 9704-0505 ● ●
15 FRAME; UNDER 8-98013-405-0 01 1 0506- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-118-7 01 1 9704- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 9704- ● ●
22 FRAME; FLOOR REAR 8-97850-657-9 01 1 9704-1510 ● ●
22 FRAME; FLOOR REAR 8-98309-341-0 01 1 1511- ● ●
26 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 9704- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9704-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9704-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 9704- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 9704- ● ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 9704- ● ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 9704- ● ●
376 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9704-9811 ● ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812- ● ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9704- ● ●
377 RAIL ASM; MTG,FRT 8-97850-128-8 01 1 9704-9708 ● ●
377 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 9709-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304- ● ●
379 PANEL 8-97850-129-2 01 1 9704-0307 ● ●
379 PANEL 8-97581-640-0 01 1 0308- ● ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9704- ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9704- ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 9704-9804 ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 02 1 9805-9805 ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 9805-9805 ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 02 1 9806-9807 ● ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 9704- ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 04 1 9805-9805 ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 04 1 9806-9807 ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 06 1 9808- ● ●
401 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9704-9902 ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 9903- ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) OD=36 		1-09983-092-0 01 1 9704- ● ●
424 PLATE; FLOOR 8-97850-625-1 01 1 9704- ● ●
çizim 190522
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B
377 RAIL ASM; MTG,FRT 8-97850-128-8 01 1 9704-9708 ● ●
377 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 9709-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304- ● ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-827-2 01 1 1006- ● ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-828-2 01 1 1006- ● ●
378 GASSET; LWR 8-97867-916-1 01 1 9704-0305 ● ●
378 GASSET; LWR 8-97581-834-0 01 1 0306-1005 ● ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-834-0 01 1 1006- ● ●
378 GASSET; LWR 8-97867-915-1 01 1 9704-0305 ● ●
378 GASSET; LWR 8-97581-833-0 01 1 0306-1005 ● ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-833-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-090-2 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-705-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-087-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-088-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-924-0 01 1 9704-1005 ● ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97867-924-0 01 1 1006- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 9704-1005 ● ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97867-921-1 01 1 1006- ● ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9711- ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9704- ● ●
