6-68 — ROOF VENTILATOR (#72454) — 69 parça

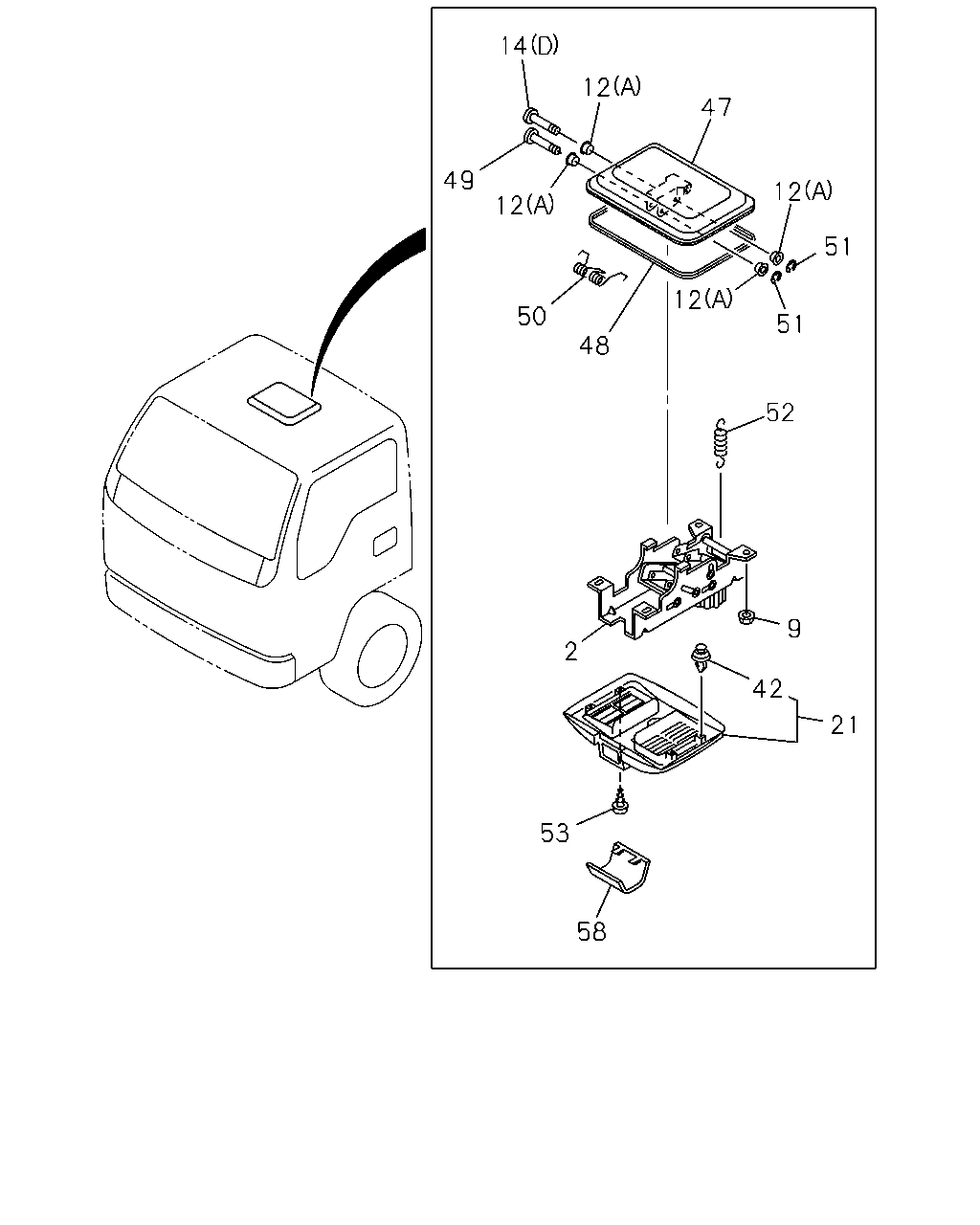

14 12 47 49 12 12 51 12 50 51 48 52 9 2 42 21 53 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	FRAME; ROOF VENTILATOR ROOF VENTILATOR<C55> DARK BEIGE	8-97867-694-2	01	1	9704-0307	●	●
2	FRAME; ROOF VENTILATOR ROOF VENTILATOR<C55> DARK GRAY	8-97892-088-2	01	1	0308-	●	●
9	NUT; HOOD ROOF VENTILATOR<C55> M8 FLANGE	0-91150-108-0	04	1	9704-0602	●	●
9	NUT; HOOD ROOF VENTILATOR<C55> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
12	BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (A) OD=9.9	8-94279-701-3	04	1	9704-	●	●
12	BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (B) OD=8.0	8-94279-908-1	02	1	9704-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (D)	8-94279-023-2	01	1	9704-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	03	1	9704-9704	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	04	1	9704-9709	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	03	1	9710-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (C)	8-94279-094-0	01	1	9704-9704	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (C)	8-94279-086-0	01	1	9704-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (B)	8-94279-095-0	01	1	9704-9704	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (B)	8-97890-589-0	01	1	9710-	●	●
21	GRILLE ASM; ROOF VENT ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> DARK BEIGE	8-97866-638-1	01	1	9704-0307	●	●
21	GRILLE ASM; ROOF VENT ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97892-089-1	01	1	0308-	●	●
21	GRILLE ASM; ROOF VENT ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> DARK BEIGE	8-97866-639-0	01	1	9704-0307	●	●
21	GRILLE ASM; ROOF VENT ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97997-876-0	01	1	0308-	●	●
42	CLIP; GRILLE,ROOF VENT ROOF VENTILATOR<C55>	1-09987-119-1	04	1	9704-	●	●
47	LID; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-109-5	01	1	9704-	●	●
48	SEAL; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-329-2	01	1	9704-	●	●
49	PIN; LINK TO LID ROOF VENTILATOR<C55>	8-94279-026-2	01	1	9704-	●	●
50	SPRING; SUB LINK ROOF VENTILATOR<C55>	8-94279-027-0	01	1	9704-	●	●
51	RING; SNAP,ROOF VENT ROOF VENTILATOR<C55> ID=6	9-09185-406-0	02	1	9704-0604	●	●
51	RING; SNAP,ROOF VENT ROOF VENTILATOR<C55> ID=6	0-91805-506-0	02	1	0605-	●	●
52	SPRING; LID,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94279-024-1	02	1	9704-	●	●
53	SCREW; GRILLE,ROOF VENTILATOR ROOF VENTILATOR<C55> M6X16 W/LK&PL WASHER	1-09981-426-0	01	1	9704-	●	●
58	COVER; GRILLE,ROOF VENT ROOF VENTILATOR<C55> DARK BEIGE	8-97866-642-1	01	1	9704-0307	●	●
58	COVER; GRILLE,ROOF VENT ROOF VENTILATOR<C55> DARK GRAY	8-97892-090-1	01	1	0308-	●	●

2 40 38 25 36 30 35 24 37 25 14 26 26 26 14 12 26 14 26 45 12 14 45 26 26 45 45 14 14 34 26 41 33 45 28 28 32 31 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	FRAME; ROOF VENTILATOR ROOF VENTILATOR<C55> DARK BEIGE	8-97867-694-2	01	1	9704-0307	●	●
2	FRAME; ROOF VENTILATOR ROOF VENTILATOR<C55> DARK GRAY	8-97892-088-2	01	1	0308-	●	●
12	BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (A) OD=9.9	8-94279-701-3	04	1	9704-	●	●
12	BUSHING; FRAME,ROOF VENTILATOR ROOF VENTILATOR<C55> (B) OD=8.0	8-94279-908-1	02	1	9704-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (D)	8-94279-023-2	01	1	9704-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	03	1	9704-9704	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	04	1	9704-9709	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (A)	8-94279-034-0	03	1	9710-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (C)	8-94279-094-0	01	1	9704-9704	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (C)	8-94279-086-0	01	1	9704-	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (B)	8-94279-095-0	01	1	9704-9704	●	●
14	PIN; FRAME ROOF VENTILATOR<C55> (B)	8-97890-589-0	01	1	9710-	●	●
24	GUIDE; SUB LINK ROOF VENTILATOR<C55>	8-94272-119-3	01	1	9704-	●	●
25	TUBE; INSULATOR ROOF VENTILATOR<C55>	8-94272-332-1	02	1	9704-	●	●
26	ROLLER; GUIDE ROOF VENTILATOR<C55> (B) OD=8	8-94279-022-2	06	1	9704-	●	●
26	ROLLER; GUIDE ROOF VENTILATOR<C55> (A) OD=9.9	8-94279-701-3	02	1	9704-	●	●
27	SWITCH; SELECT,VENTILATOR ROOF VENTILATOR<C55> DARK BEIGE	8-97866-636-1	01	1	9704-0307	●	●
27	SWITCH; SELECT,VENTILATOR ROOF VENTILATOR<C55> DARK GRAY	8-97892-125-1	01	1	0308-	●	●
28	CUSHION; RUBBER,SWITCH ROOF VENTILATOR<C55>	8-94272-333-0	02	1	9704-	●	●
29	SPRING; SELECT SWITCH ROOF VENTILATOR<C55>	8-94279-028-1	02	1	9704-	●	●
30	SCREW; FRAME ROOF VENTILATOR<C55>	8-94279-309-0	02	1	9704-	●	●
31	KNOB ASM; ROOF VENTILATOR ROOF VENTILATOR<C55> DARK BEIGE	8-97866-637-2	01	1	9704-0307	●	●
31	KNOB ASM; ROOF VENTILATOR ROOF VENTILATOR<C55> DARK GRAY	8-97892-126-2	01	1	0308-	●	●
32	WASHER; KNOB ROOF VENTILATOR<C55> ID=21.2 OD=36.0	8-94279-632-0	01	1	9704-	●	●
33	WASHER; TUBE,KNOB ROOF VENTILATOR<C55> ID=15.2 OD=23.0	8-94279-605-0	01	1	9704-	●	●
34	WASHER; WAVE,KNOB ROOF VENTILATOR<C55> ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	01	1	9704-	●	●
35	WASHER; PL,KNOB ROOF VENTILATOR<C55> ID=15	9-09160-514-0	01	1	9704-0605	●	●
35	WASHER; PL,KNOB ROOF VENTILATOR<C55> ID=15	0-91610-514-0	01	1	0606-	●	●
36	RING; SNAP,PIN ROOF VENTILATOR<C55> ID=12	9-09185-412-0	01	1	9704-0604	●	●
36	RING; SNAP,PIN ROOF VENTILATOR<C55> ID=12	0-91805-512-0	01	1	0605-	●	●
37	LINK; MAIN,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-114-2	01	1	9704-9704	●	●
37	LINK; MAIN,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-97868-057-0	01	1	9704-	●	●
38	BOSS; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94279-065-2	01	1	9704-9704	●	●
38	BOSS; ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94279-074-0	01	1	9704-	●	●
40	LINK; SUB,ROOF VENTILATOR ROOF VENTILATOR<C55>	8-94272-115-3	01	1	9704-	●	●
41	PIN; SNAP,FRAME ROOF VENTILATOR<C55> ID=6	9-09185-406-0	02	1	9704-9704	●	●
45	NUT; ROOF VENTILATOR ROOF VENTILATOR<C55> (B) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9704-9709	●	●
45	NUT; ROOF VENTILATOR ROOF VENTILATOR<C55> (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9710-	●	●
45	NUT; ROOF VENTILATOR ROOF VENTILATOR<C55> (A) ID=5.9 PUSH NUT	8-97015-036-0	03	1	9704-9704	●	●
45	NUT; ROOF VENTILATOR ROOF VENTILATOR<C55> (A) ID=5.9 PUSH NUT	8-97015-036-0	04	1	9704-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
