6-47 — MUD GUARD AND INSULATOR (#72451) — 83 parça

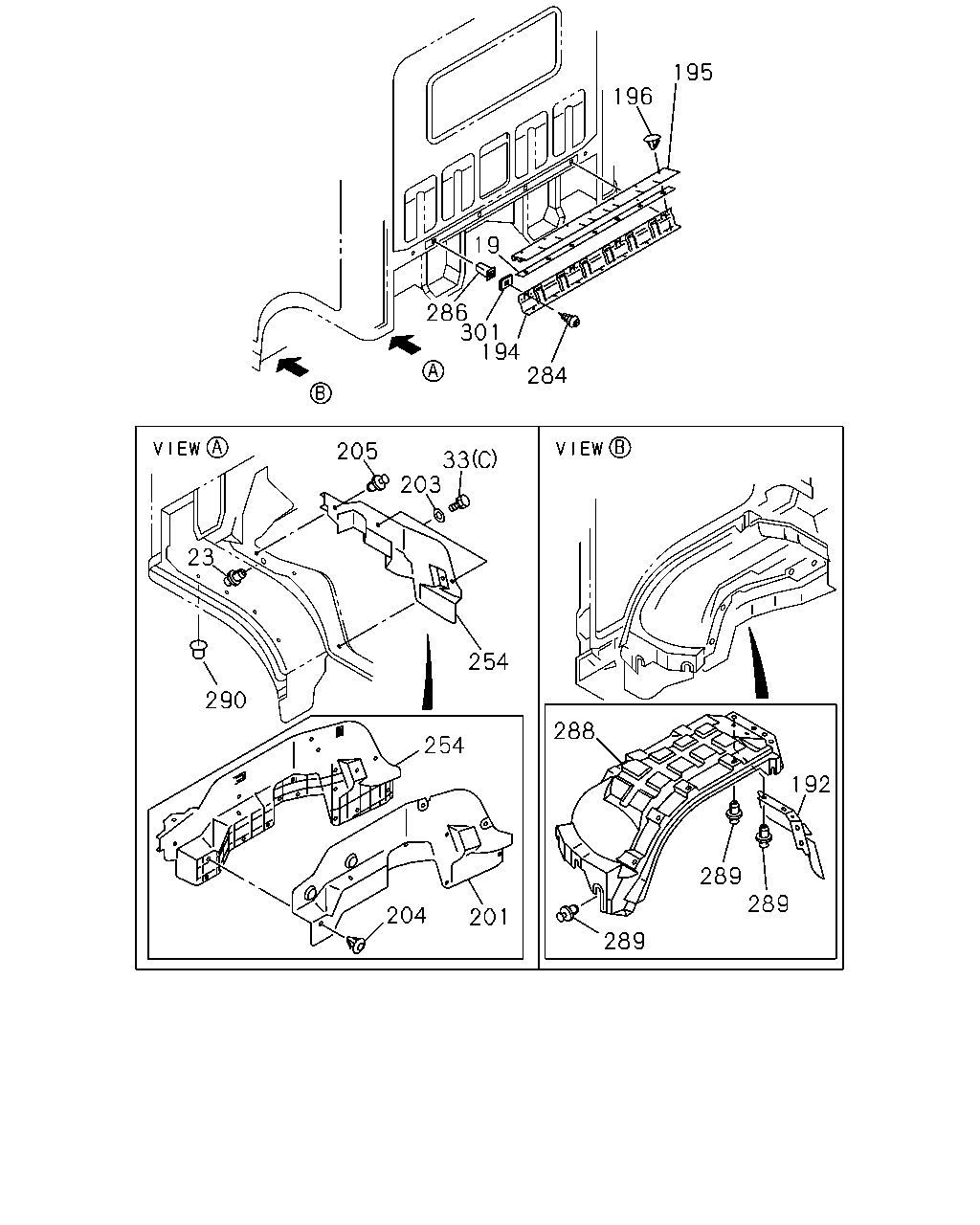

195 196 19 286 301 194 284 205 33 203 23 254 290 288 254 192 289 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SHEET; HEAT PROTECTOR,CAB BACK 4HF1 ENG(RLS)	8-97856-016-0	01	1	9704-1005	●	●
19	SHEET; HEAT PROTECTOR,CAB BACK 4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>	8-97856-016-0	01	1	1006-	●	●
23	FASTENER; MUD COVER OD=8.3	8-94279-989-0	10	1	9704-9907	●	●
23	FASTENER; MUD COVER OD=8.3	8-94279-989-0	06	1	9908-0207	●	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	0208-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	9704-0512	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	9704-0512	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	9704-0512	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9704-0805	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●
192	SEAL; MUD COVER	8-97857-297-4	02	1	9704-1106	●	●
192	SEAL; MUD COVER	8-98192-031-0	02	1	1107-	●	●
194	BRACKET; HEAT PROTECTOR 4HF1 ENG(RLS)	8-97853-797-1	01	1	9704-1005	●	●
194	BRACKET; HEAT PROTECTOR 4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>	8-97853-797-1	01	1	1006-	●	●
195	PROTECTOR; HEAT 4HF1 ENG(RLS)	8-97856-386-2	01	1	9704-1005	●	●
195	PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>	8-97856-386-2	01	1	1006-	●	●
196	CLIP; HEAT PROTECTOR 4HF1 ENG(RLS)	8-94244-922-0	07	1	9704-1005	●	●
196	CLIP; HEAT PROTECTOR 4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7>	8-94244-922-0	07	1	1006-	●	●
201	INSULATOR; VALANCE	8-97853-631-3	01	1	9704-	●	●
201	INSULATOR; VALANCE	8-97853-630-3	01	1	9704-	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9704-0604	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	9704-0308	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-	●	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9704-	●	●
254	COVER; MUD,VALANCE	8-97853-359-3	01	1	1006-	●	●
254	COVER; MUD,VALANCE	8-97853-358-3	01	1	9704-	●	●
254	COVER; MUD,VALANCE	8-97853-359-3	01	1	9704-1005	●	●
284	SCREW; HEAT PROTECTOR 4HF1 ENG(RLS) M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9704-1005	●	●
284	SCREW; HEAT PROTECTOR 4HF1 ENG(RLS) EXC. FACE LIFT MODEL<TX7> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	1006-	●	●
286	GROMMET; SCREW,HEAT PROTECTOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9704-0101	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●	●
288	LINER; TIRE HOUSE	8-97853-716-6	01	1	9704-9803	●	●
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	9804-0212	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●
288	LINER; TIRE HOUSE	8-97853-715-6	01	1	9704-9803	●	●
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	9804-0212	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	9704-0212	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0301-	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9704-	●	●
301	HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9704-0101	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●	●

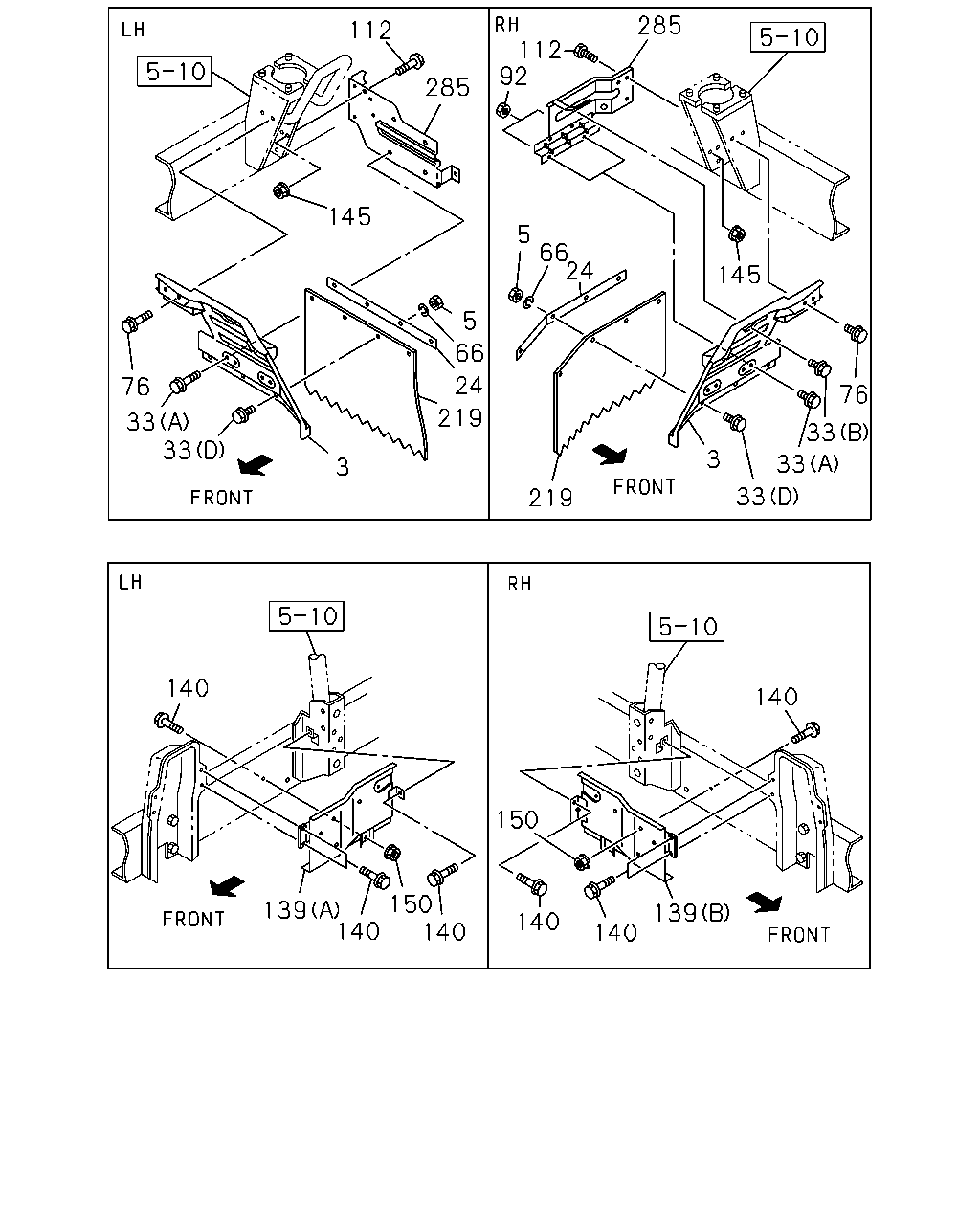

285 112 92 112 285 145 5 66 24 145 5 66 24 76 76 219 33 33 33 3 33 3 33 219 140 140 150 150 140 139 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR	8-97048-729-1	01	1	9704-0312	●	●
3	GUARD; MUD,RR	8-97366-988-1	01	1	0401-	●	●
3	GUARD; MUD,RR	8-97048-728-3	01	1	9704-	●	●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	9704-0512	●	●
5	NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●
24	PLATE; MUD COVER	8-97095-186-0	02	1	9704-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	9704-0512	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	9704-0512	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	9704-0512	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9704-0805	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	9704-0603	●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	9704-0512	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	9704-0602	●	●
92	NUT; MUD COVER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	9704-0512	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
139	PANEL; SIDE (A)	8-97092-020-1	01	1	9704-	●	●
139	PANEL; SIDE (B)	8-97021-164-0	01	1	9704-	●	●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	06	1	9704-0307	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	02	1	9704-0307	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	08	1	0308-0512	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	08	1	0601-	●	●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	9704-0602	●	●
145	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	9704-0602	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
219	FLAP; MUD GUARD	8-97040-218-1	02	1	9704-9903	●	●
219	FLAP; MUD GUARD	8-97218-080-0	02	1	9904-	●	●
285	BRACKET; MUD COVER	8-97092-037-2	01	1	9704-	●	●
285	BRACKET; MUD COVER	8-97035-778-4	01	1	9704-	●	●
