Sayfa 6-43 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶

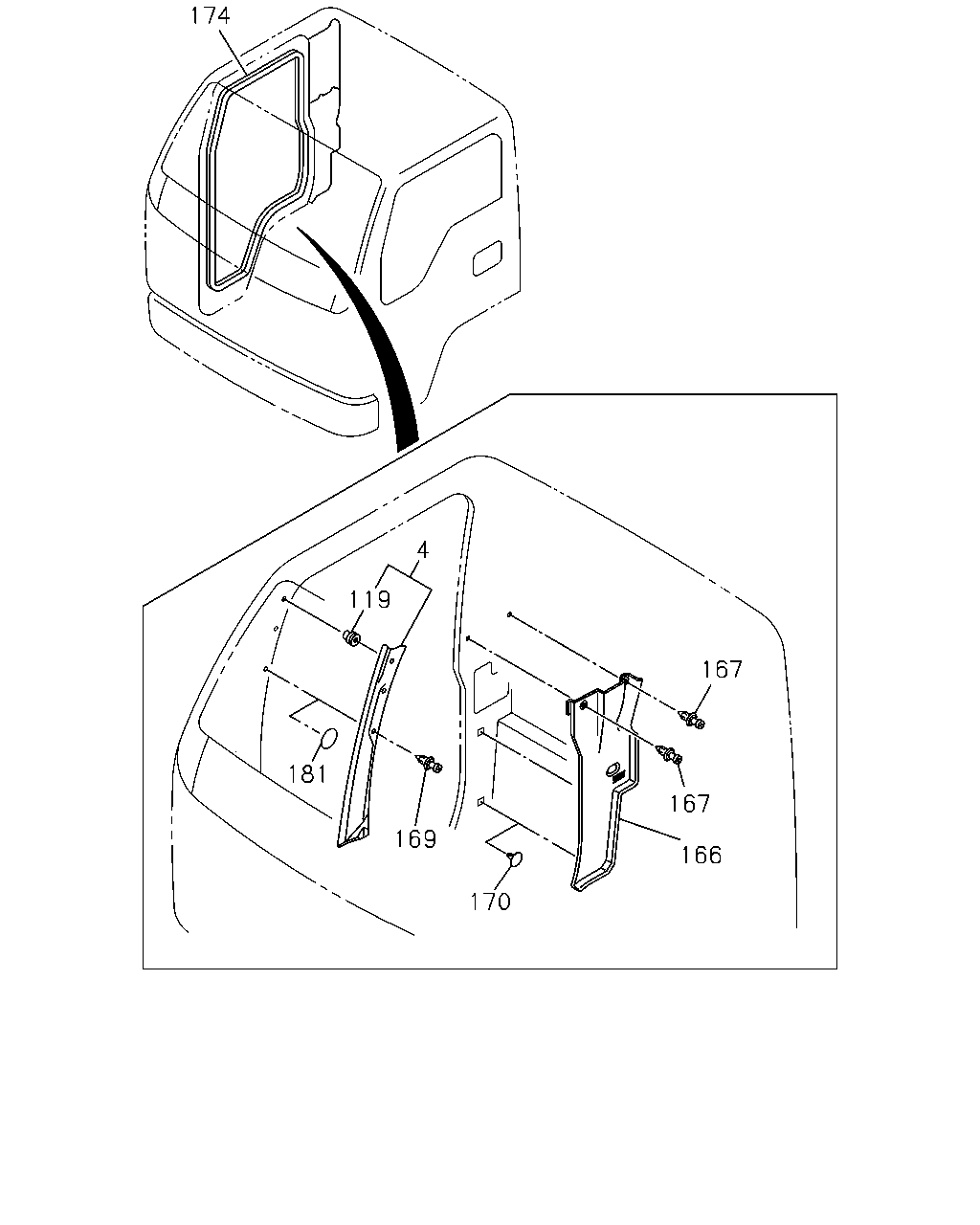

6-43 — SIDE TRIM (#72450) — 26 parça

174 119 167 181 167 169 166 170 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	COVER; TRIM,FRT SIDE TRAY ROOF HEAD<7EJ> DARK BEIGE	8-97856-695-3	01	1	9704-0307	●	●
4	COVER; TRIM,FRT SIDE TRAY ROOF HEAD<7EJ> DARK GRAY	8-97859-853-3	01	1	0308-	●	●
4	COVER; TRIM,FRT SIDE TRAY ROOF HEAD<7EJ> DARK BEIGE	8-97856-694-3	01	1	9704-0307	●	●
4	COVER; TRIM,FRT SIDE TRAY ROOF HEAD<7EJ> DARK GRAY	8-97859-852-3	01	1	0308-	●	●
119	CLIP; FRT PILLAR TRAY ROOF HEAD<7EJ>	1-73318-278-0	02	1	9704-0307	●	●
119	CLIP; FRT PILLAR TRAY ROOF HEAD<7EJ>	1-73318-278-0	04	1	0308-1005	●	●
119	CLIP; FRT PILLAR TRAY ROOF HEAD<7EJ>	1-73318-278-0	02	1	1006-	●	●
166	TRIM; RR PILLAR DARK BEIGE	8-97857-800-0	01	1	9704-0208	●	●
166	TRIM; RR PILLAR DARK BEIGE	8-97853-920-5	01	1	0209-0307	●	●
166	TRIM; RR PILLAR DARK GRAY	8-97859-870-5	01	1	0308-	●	●
166	TRIM; RR PILLAR DARK BEIGE	8-97857-795-0	01	1	9704-0208	●	●
166	TRIM; RR PILLAR DARK BEIGE	8-97856-211-3	01	1	0209-0307	●	●
166	TRIM; RR PILLAR DARK GRAY	8-97868-653-3	01	1	0308-	●	●
167	CLIP; TRIM,RR PILLAR DARK BEIGE	8-97853-925-0	04	1	9704-0307	●	●
167	CLIP; TRIM,RR PILLAR DARK GRAY	8-97857-211-0	04	1	0308-	●	●
169	CLIP; TRIM COVER,FRT PILLAR TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET	8-97856-751-0	02	1	9704-0307	●	●
169	CLIP; TRIM COVER,FRT PILLAR TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET	8-97857-210-0	02	1	0308-	●	●
170	CLIP; HOLE EXC. TRAY ROOF HEAD<7EJ>	8-94244-922-0	02	1	9704-	●	●
174	FINISHER; BODY SIDE L=2982 DARK BEIGE	8-97856-430-4	01	1	9704-0307	●	●
174	FINISHER; BODY SIDE L=2982 DARK GRAY	8-97857-206-5	01	1	0308-	●	●
174	FINISHER; BODY SIDE L=2982 DARK BEIGE	8-97856-429-4	01	1	9704-0307	●	●
174	FINISHER; BODY SIDE L=2982 DARK GRAY	8-97857-205-5	01	1	0308-	●	●
181	SEAL; FRT PILLAR BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9704-0307	●	●
181	SEAL; FRT PILLAR BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0308-	●	●
181	SEAL; FRT PILLAR BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-2	02	1	9704-0610	●	●
181	SEAL; FRT PILLAR BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-98059-421-0	02	1	0611-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
