Sayfa 3-20 - Isuzu EPC

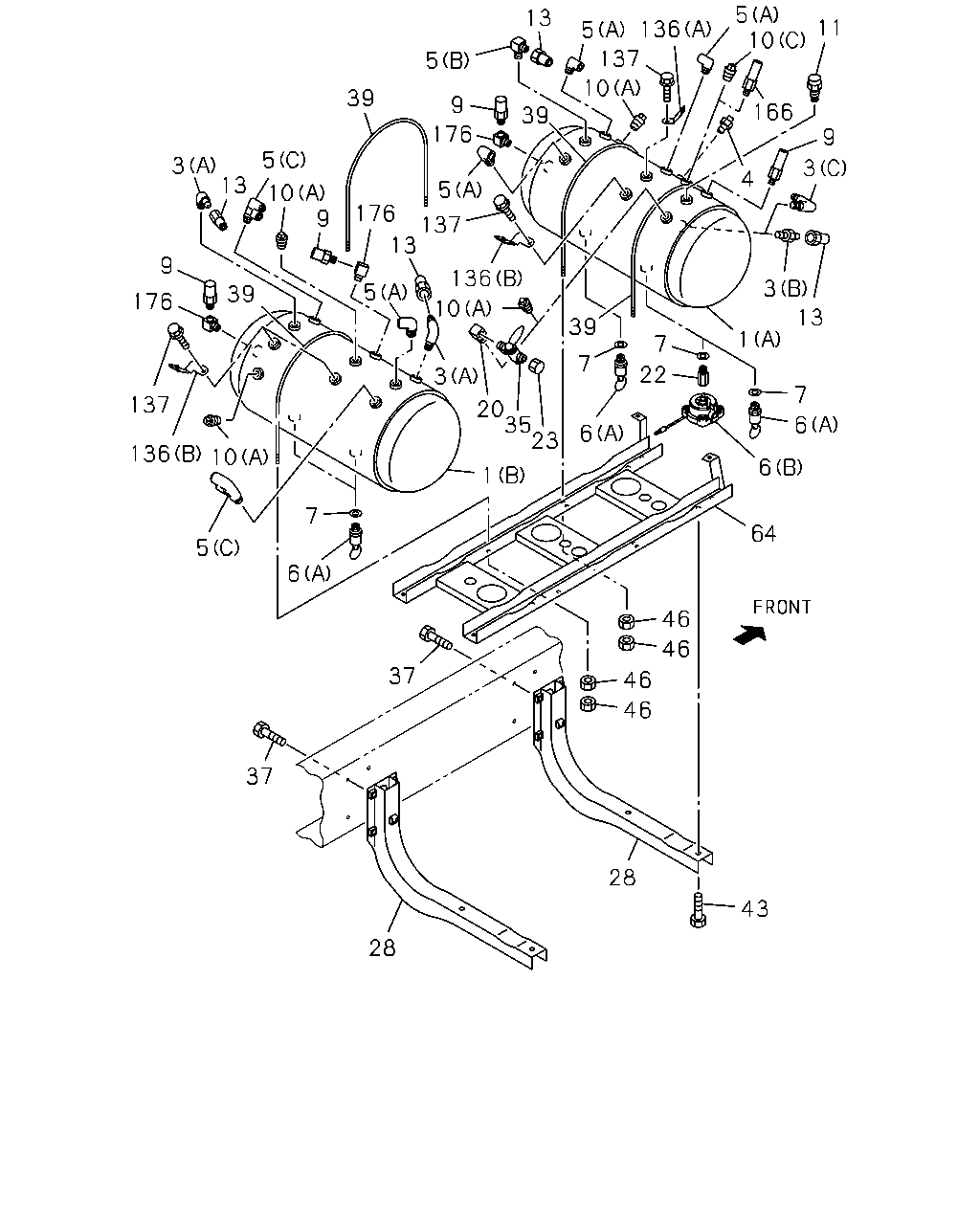

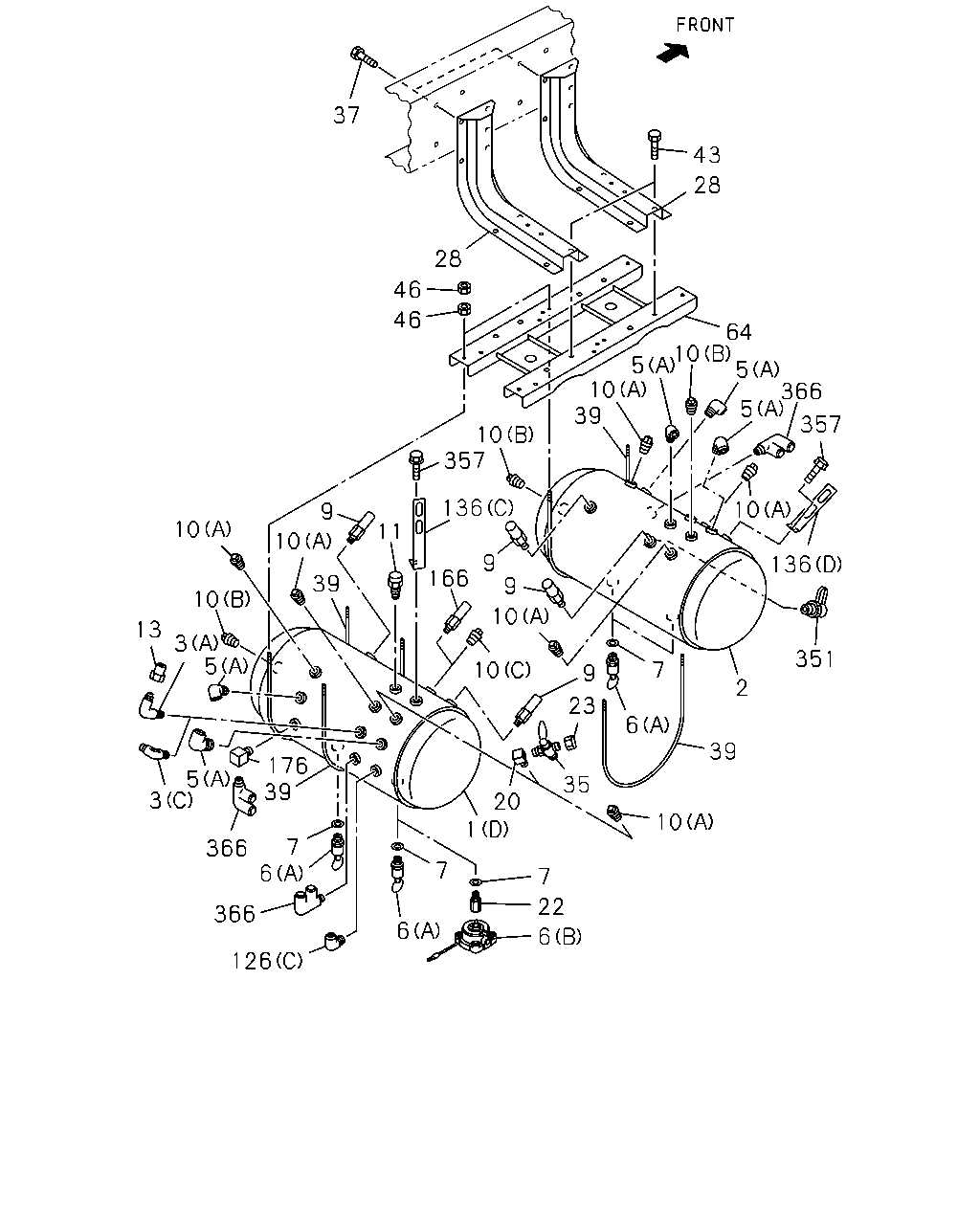

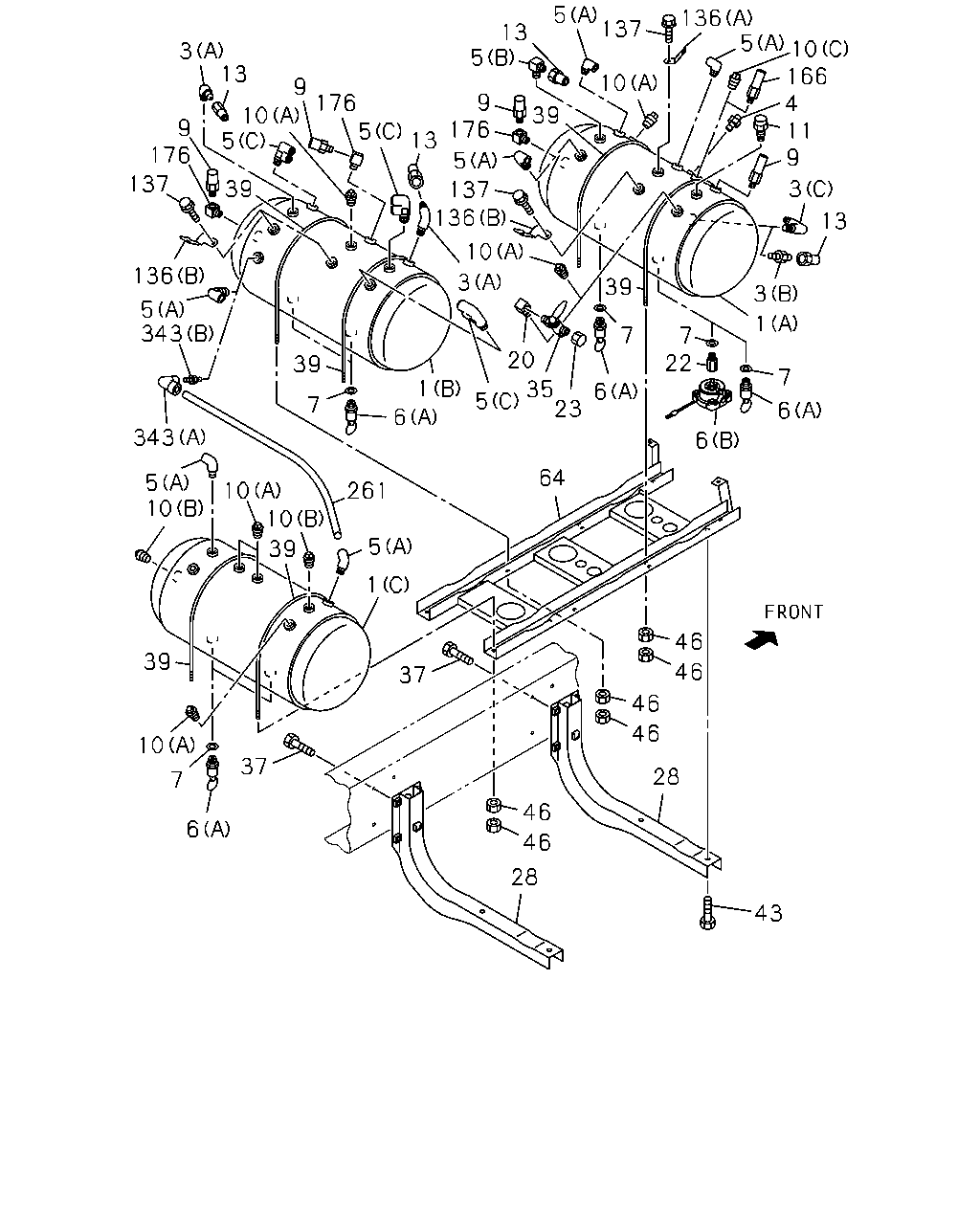

3-20 — AIR TANK (#7245) — 223 parça

37 43 28 28 46 46 64 10 5 5 10 39 366 5 357 10 357 136 10 9 10 11 10 9 9 136 166 39 10 10 13 3 5 351 10 7 9 2 23 6 39 176 39 5 3 35 20 1 10 7 6 366 7 7 2 366 6 126 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (A)	1-48370-626-1	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (B)	1-48370-627-2	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C)	1-48370-482-0	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (D)	1-48370-885-0	01	1	9906-
2	TANK; AIR WHEEL BASE 4700MM(47W)	1-48370-884-0	01	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (B) M20 & PT3/4	1-09650-261-2	01	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-0002
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9906-
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9906-0002
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9906-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	05	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4700MM(47W) (A)	1-48312-015-0	03	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	03	1	9906-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	05	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4700MM(47W) ID=14	1-09630-145-0	03	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	03	1	9906-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	9906-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8	9-09204-517-0	01	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	05	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/4	9-09204-526-0	02	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	03	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (B) PT3/4	9-09204-526-0	03	1	9906-
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9906-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9906-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9906-
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-790-0	02	1	9906-
28	BRACKET; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-826-5	02	1	9906-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9906-0101
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	06	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-675-0	04	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	04	1	9906-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4500MM(45W) M12X25 FLANGE	0-28681-225-0	04	1	9906-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4700MM(47W) M12X30 FLANGE	0-28681-230-0	08	1	9906-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-408-0	24	1	9906-
46	NUT; U-BOLT WHEEL BASE 4700MM(47W) M8	9-09110-408-0	16	1	9906-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-408-0	16	1	9906-
64	STAY; AIR TANK,MAIN WHEEL BASE 4500MM(45W)	1-48317-809-1	01	1	9906-
64	STAY; AIR TANK,MAIN WHEEL BASE 4700MM(47W)	1-48317-801-1	01	1	9906-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9906-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	02	1	9906-
126	CONNECTOR; ELBOW WHEEL BASE 4700MM(47W) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47477-571-3	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47477-943-0	03	1	9906-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (C) L=150 H=30	1-47477-629-2	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (D) L=100 H=30	1-47477-645-2	01	1	9906-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9906-
176	ADAPTER WHEEL BASE 4500MM(45W) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9906-
176	ADAPTER WHEEL BASE 4700MM(47W) PT3/8 ELBOW	1-09660-696-0	01	1	9906-
351	CONNECTOR; TEST WHEEL BASE 4700MM(47W)	1-47459-013-0	02	1	9906-
357	BOLT; BRKT WHEEL BASE 4700MM(47W) M8X20 FLANGE	0-28680-820-0	02	1	9906-
366	CONNECTOR; NYLON TUBE WHEEL BASE 4700MM(47W) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9906-

5 10 13 11 136 5 137 5 10 39 9 166 39 176 9 5 3 13 3 4 5 10 9 176 137 13 9 136 3 5 39 10 176 13 39 1 7 3 7 22 7 137 20 35 23 6 6 136 10 6 1 7 64 5 6 46 46 37 46 46 37 28 43 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (A)	1-48370-626-1	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (B)	1-48370-627-2	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C)	1-48370-482-0	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (D)	1-48370-885-0	01	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9906-
4	CONNECTOR; FLARE WHEEL BASE 4500MM(45W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (B) M20 & PT3/4	1-09650-261-2	01	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-0002
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9906-
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9906-0002
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9906-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	05	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4700MM(47W) (A)	1-48312-015-0	03	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	03	1	9906-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	05	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4700MM(47W) ID=14	1-09630-145-0	03	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	03	1	9906-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	9906-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8	9-09204-517-0	01	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	05	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/4	9-09204-526-0	02	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	03	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (B) PT3/4	9-09204-526-0	03	1	9906-
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9906-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9906-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9906-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9906-
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-790-0	02	1	9906-
28	BRACKET; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-826-5	02	1	9906-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9906-0101
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	06	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-675-0	04	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	04	1	9906-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4500MM(45W) M12X25 FLANGE	0-28681-225-0	04	1	9906-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4700MM(47W) M12X30 FLANGE	0-28681-230-0	08	1	9906-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-408-0	24	1	9906-
46	NUT; U-BOLT WHEEL BASE 4700MM(47W) M8	9-09110-408-0	16	1	9906-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-408-0	16	1	9906-
64	STAY; AIR TANK,MAIN WHEEL BASE 4500MM(45W)	1-48317-809-1	01	1	9906-
64	STAY; AIR TANK,MAIN WHEEL BASE 4700MM(47W)	1-48317-801-1	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47477-571-3	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47477-943-0	03	1	9906-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (C) L=150 H=30	1-47477-629-2	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (D) L=100 H=30	1-47477-645-2	01	1	9906-
137	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28680-820-0	04	1	9906-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9906-
176	ADAPTER WHEEL BASE 4500MM(45W) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9906-
176	ADAPTER WHEEL BASE 4700MM(47W) PT3/8 ELBOW	1-09660-696-0	01	1	9906-

5 137 136 5 13 5 10 166 4 11 9 3 13 10 9 9 176 176 5 10 9 5 176 39 13 5 39 137 3 137 136 13 10 136 3 39 3 5 343 1 7 7 22 39 20 7 1 35 5 23 6 7 6 6 343 6 64 5 10 10 261 10 5 39 1 46 39 46 37 46 46 10 37 28 7 46 6 46 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (A)	1-48370-626-1	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) (B)	1-48370-627-2	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C)	1-48370-482-0	01	1	9906-
1	TANK ASM; AIR WHEEL BASE 4700MM(47W) (D)	1-48370-885-0	01	1	9906-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (C) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	9906-
3	VALVE; CHECK,AIR TANK WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9906-
4	CONNECTOR; FLARE WHEEL BASE 4500MM(45W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) (B) M20 & PT3/4	1-09650-261-2	01	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9906-0002
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9906-
5	UNION; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9906-
5	UNION; AIR TANK WHEEL BASE 4700MM(47W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9906-0002
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9906-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	05	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4700MM(47W) (A)	1-48312-015-0	03	1	9906-
6	COCK; DRAIN,AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	03	1	9906-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	05	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4700MM(47W) ID=14	1-09630-145-0	03	1	9906-
7	GASKET; DRAIN COCK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	03	1	9906-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9906-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	9906-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8	9-09204-517-0	01	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	05	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/4	9-09204-526-0	02	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	03	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (A) PT3/8	9-09204-517-0	06	1	9906-
10	PLUG; AIR TANK WHEEL BASE 4700MM(47W) (B) PT3/4	9-09204-526-0	03	1	9906-
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9906-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9906-0007
13	ADAPTER; NYLON TUBE WHEEL BASE 4700MM(47W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9906-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9906-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9906-
28	BRACKET; AIR TANK WHEEL BASE 4500MM(45W)	1-48317-790-0	02	1	9906-
28	BRACKET; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-826-5	02	1	9906-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9906-0101
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	06	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4700MM(47W)	1-48317-675-0	04	1	9906-
39	U-BOLT; AIR TANK WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	04	1	9906-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4500MM(45W) M12X25 FLANGE	0-28681-225-0	04	1	9906-
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4700MM(47W) M12X30 FLANGE	0-28681-230-0	08	1	9906-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-408-0	24	1	9906-
46	NUT; U-BOLT WHEEL BASE 4700MM(47W) M8	9-09110-408-0	16	1	9906-
46	NUT; U-BOLT WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-408-0	16	1	9906-
64	STAY; AIR TANK,MAIN WHEEL BASE 4500MM(45W)	1-48317-809-1	01	1	9906-
64	STAY; AIR TANK,MAIN WHEEL BASE 4700MM(47W)	1-48317-801-1	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47477-571-3	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4500MM(45W) (B)	1-47477-943-0	03	1	9906-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (C) L=150 H=30	1-47477-629-2	01	1	9906-
136	BRACKET; CLIP WHEEL BASE 4700MM(47W) (D) L=100 H=30	1-47477-645-2	01	1	9906-
137	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X20 FLANGE	0-28680-820-0	04	1	9906-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9906-
176	ADAPTER WHEEL BASE 4500MM(45W) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9906-
176	ADAPTER WHEEL BASE 4700MM(47W) PT3/8 ELBOW	1-09660-696-0	01	1	9906-
261	TUBE; NYLON WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
343	CONNECTOR; SWIVEL WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0003-
343	CONNECTOR; SWIVEL WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (B) R3/8 OD=15.9	1-09661-082-0	01	1	0003-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9906-

101 335 102 109 104 335 100 109 103 335 103 104 100 335 102 101 126 126 107 103 107 100 100 101 126 102 103 102 126 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28080-880-0	08	1	9906-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	12	1	9906-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-092-0	02	1	9906-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47478-094-0	01	1	9906-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-494-0	01	1	9906-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	04	1	9906-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28681-030-0	04	1	9906-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	04	1	9906-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	9906-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	9906-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9906-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	02	1	9906-
126	CONNECTOR; ELBOW WHEEL BASE 4700MM(47W) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9906-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
