◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#72449) — 82 parça

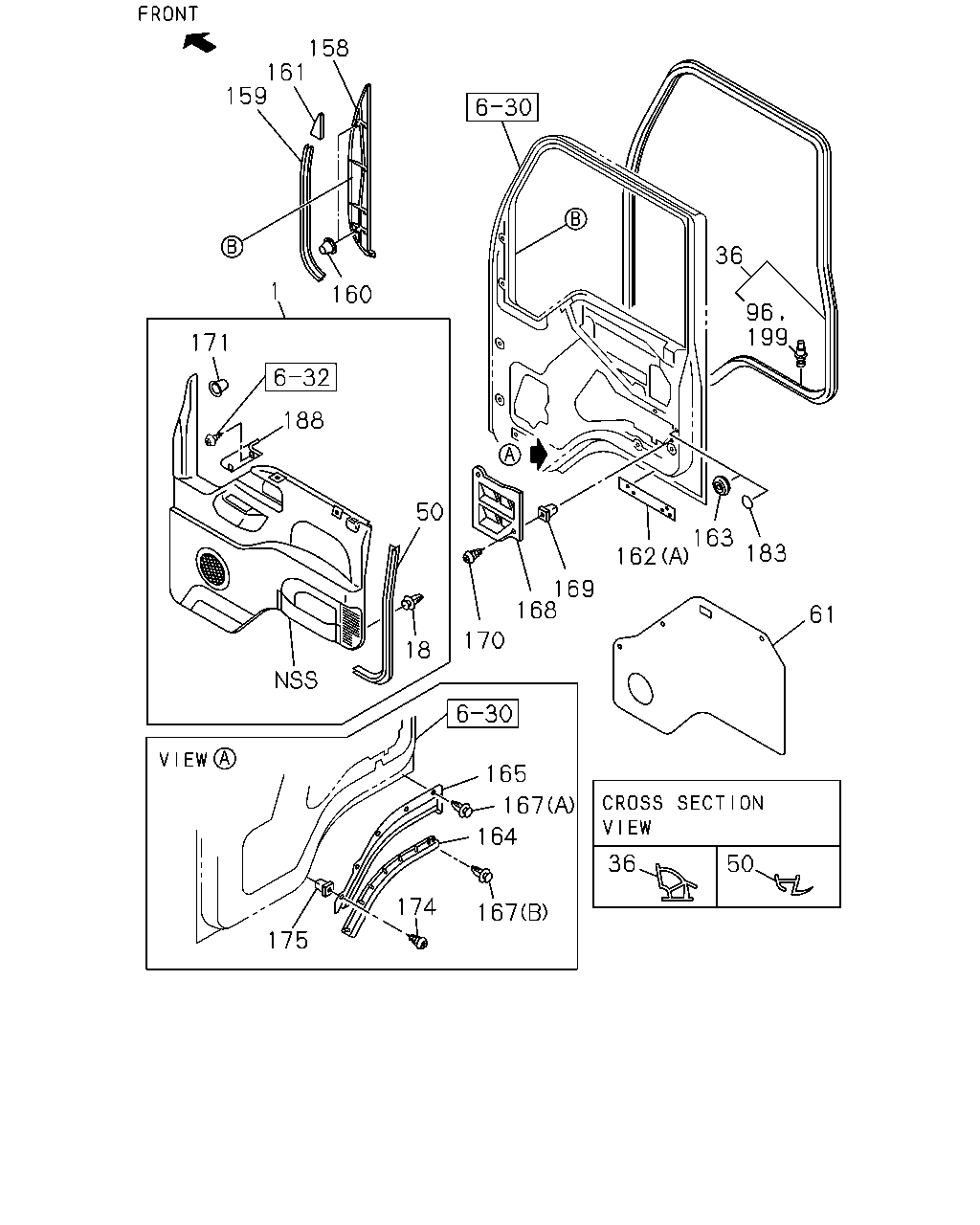

çizim 131146
158 161 159 36 1 160 96 199 171 188 50 163 183 162 169 168 61 170 18 165 167 164 36 50 174 167 175
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-411-5 01 1 9704-0307 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-722-7 01 1 0308- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-410-5 01 1 9704-0307 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-721-6 01 1 0308- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-635-3 01 1 9704-0307 ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-645-4 01 1 0308- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-634-3 01 1 9704-0307 ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-644-4 01 1 0308- ● ●
18 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 9704- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97852-145-9 01 1 9704-9808 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-409-0 01 1 9809-9902 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-3 01 1 9903- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97852-144-9 01 1 9704-9808 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-408-0 01 1 9809-9902 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-3 01 1 9903- ● ●
50 FINISHER; DOOR PAD
DARK BEIGE 		8-97868-179-0 02 1 9704-0307 ● ●
50 FINISHER; DOOR PAD
DARK GRAY 		8-97868-180-0 02 1 0308- ● ●
61 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 9704- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> 		8-97852-328-3 02 1 9704- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 9704- ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> 		8-97852-307-1 02 1 9704- ● ●
96 CLIP; SEAL
FRONT NATURAL 		1-09987-253-1 09 1 0510-1007 ● ●
96 CLIP; SEAL
FRONT YELLOW 		1-09987-254-1 09 1 0510-1007 ● ●
96 CLIP; SEAL
LOWER & BACK PINK 		1-09987-256-0 32 1 0510-1007 ● ●
158 GARNISH; DOOR 8-97852-129-2 01 1 9704- ● ●
158 GARNISH; DOOR 8-97852-128-2 01 1 9704- ● ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 9704- ● ●
160 CLIP; GARNISH 8-97852-058-0 04 1 9704- ● ●
161 FASTENER; GARNISH 8-97134-313-1 01 1 9704- ● ●
161 FASTENER; GARNISH 8-97134-312-1 01 1 9704- ● ●
162 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-2 02 1 9704- ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-478-0 01 1 9704-9802 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-477-0 01 1 9704-9802 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97892-157-0 02 1 9803-0609 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-98056-386-0 02 1 0610- ● ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 9704-0803 ● ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 9704- ● ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 9704- ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-314-7 01 1 9704-0305 ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-079-0 01 1 0306- ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-313-7 01 1 9704-0305 ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-078-0 01 1 0306- ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-374-6 01 1 9704-0305 ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-081-0 01 1 0306- ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-373-6 01 1 9704-0305 ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-080-0 01 1 0306- ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 08 1 9704-0305 ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0306- ● ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 9704- ● ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 9704- ● ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 9704- ● ●
169 GROMMET; SCREW,VALVE
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9704-9705 ● ●
169 GROMMET; SCREW,VALVE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706- ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 9704-0604 ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0605- ● ●
171 RETAINER; DOOR PAD 5-09709-049-0 02 1 9704- ● ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 9704- ● ●
175 GROMMET; SCREW,LINER
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9704-9705 ● ●
175 GROMMET; SCREW,LINER
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0804- ● ●
188 CASE; DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-668-3 02 1 0804-1005 ● ●
188 CASE; DOOR
DARK BEIGE 		8-97852-436-3 01 1 9704-0307 ● ●
188 CASE; DOOR
DARK GRAY 		8-97852-668-3 01 1 0308-0803 ● ●
188 CASE; DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-668-3 01 1 0804-1005 ● ●
188 CASE; DOOR
DARK GRAY 		8-97852-668-3 01 1 1006- ● ●
188 CASE; DOOR
DARK BEIGE 		8-97852-435-3 01 1 9704-0307 ● ●
188 CASE; DOOR
DARK GRAY 		8-97852-667-3 01 1 0308- ● ●
199 CLIP; SEAL
NATURAL 		8-97852-455-0 07 1 0308- ● ●
199 CLIP; SEAL
PINK 		8-97852-456-0 07 1 0308- ● ●
199 CLIP; SEAL
YELLOW 		1-09987-254-1 23 1 9704-9902 ● ●
199 CLIP; SEAL
YELLOW 		1-09987-254-1 09 1 9903-0509 ● ●
199 CLIP; SEAL
YELLOW 		1-09987-254-1 09 1 1008- ● ●
199 CLIP; SEAL
NATURAL 		1-09987-253-1 23 1 9704-9902 ● ●
199 CLIP; SEAL
NATURAL 		1-09987-253-1 09 1 9903-0509 ● ●
199 CLIP; SEAL
NATURAL 		1-09987-253-1 09 1 1008- ● ●
199 CLIP; SEAL
PINK 		1-09987-256-0 32 1 9903-0509 ● ●
199 CLIP; SEAL
PINK 		1-09987-256-0 32 1 1008- ● ●
çizim 190520
162 162
BalonParca AdiParca NoAdetTipApplied Date A B
162 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-2 02 1 9704- ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-478-0 01 1 9704-9802 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-477-0 01 1 9704-9802 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97892-157-0 02 1 9803-0609 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-98056-386-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
