◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#72447) — 71 parça

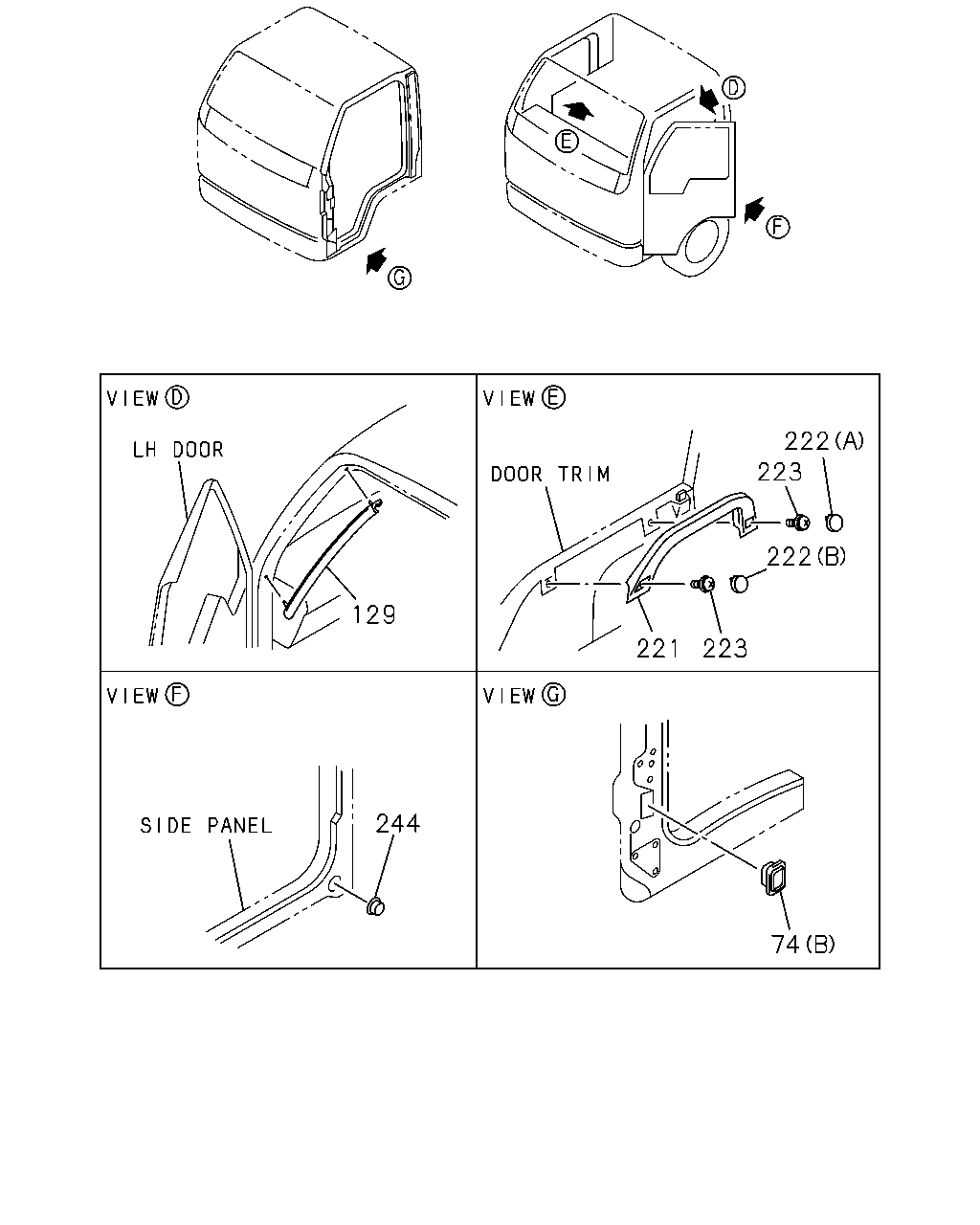

çizim 131024
222 223 222 129 221 223 244 74
BalonParca AdiParca NoAdetTipApplied Date A B
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1 		8-94279-053-0 02 1 9704-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9704-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 1004- ● ●
129 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 9704- ● ●
129 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 9704- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97867-821-1 01 1 9704-0112 ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97995-851-0 01 1 0201-0307 ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-853-1 01 1 0308- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97867-819-1 01 1 9704-0112 ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK BEIGE 		8-97995-848-0 01 1 0201-0307 ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-850-1 01 1 0308- ● ●
222 CAP; GUARD BAR
(B) DARK BEIGE 		8-97867-823-0 02 1 9704-0112 ● ●
222 CAP; GUARD BAR
(B) DARK BEIGE 		8-97995-854-0 02 1 0201-0307 ● ●
222 CAP; GUARD BAR
(B) DARK GRAY 		8-97995-856-0 02 1 0308- ● ●
222 CAP; GUARD BAR
(A) DARK BEIGE 		8-97867-825-0 02 1 9704-0112 ● ●
222 CAP; GUARD BAR
(A) DARK BEIGE 		8-97995-857-0 02 1 0201-0307 ● ●
222 CAP; GUARD BAR
(A) DARK GRAY 		8-97995-859-0 02 1 0308- ● ●
223 SCREW; GUARD BAR
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9704-0112 ● ●
223 SCREW; GUARD BAR
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0201- ● ●
244 STOPPER; DOOR 8-97857-394-0 02 1 9704-9706 ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 9707- ● ●

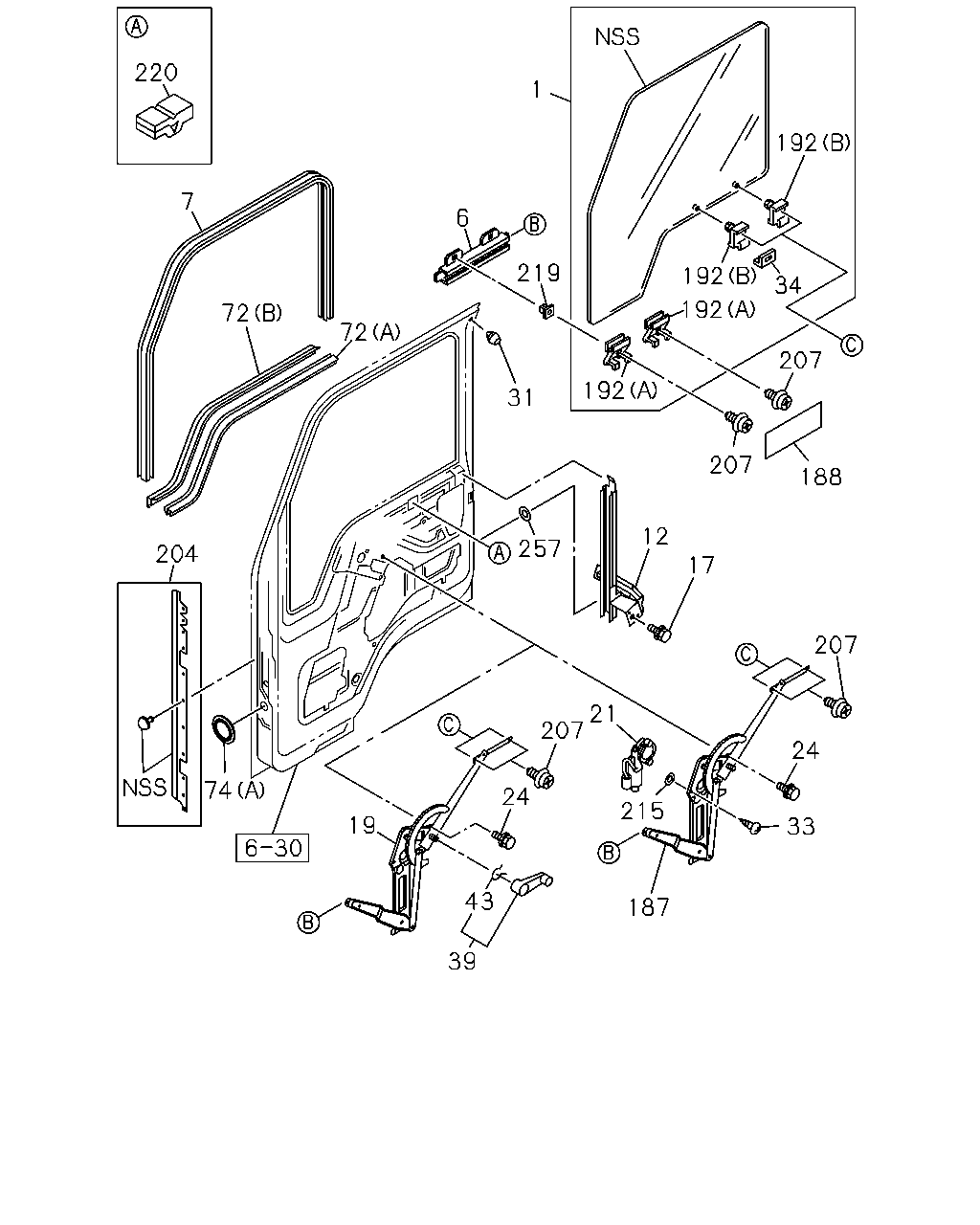

çizim 131086
7 72 72 219 31 1 192 192 192 34 207 207 188 257 192 12 17 204 74 19 24 207 21 207 24 33 215 187 43 39 220 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
ASAHI 		8-97859-955-0 01 1 9704-9708 ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 9709- ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97859-954-0 01 1 9704-9708 ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 9709- ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER 		8-97852-367-0 02 1 9704-0003 ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER 		8-97898-424-1 02 1 0004- ● ●
7 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 9704- ● ●
7 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 9704- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 9704-1212 ● ●
12 CHANNEL; GLASS RUN,FRT 8-97996-046-0 01 1 1301- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9704-1212 ● ●
12 CHANNEL; GLASS RUN,FRT 8-97867-650-0 01 1 1301- ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9704-0305 ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0306- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-8 01 1 9704- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-8 01 1 9704- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97869-079-0 01 1 9704-0002 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0003- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97869-080-0 01 1 9704-0002 ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0003- ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9704- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 9704- ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 0308- ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 9704- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-452-0 02 1 9704-0307 ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 0308- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 9704- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		8-97852-118-6 01 1 9704- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		8-97855-293-6 01 1 9704- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		8-97852-117-6 01 1 9704- ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		8-97855-292-6 01 1 9704- ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1 		8-94279-053-0 02 1 9704-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) OD=48 T=9.1 		8-94279-053-0 02 1 1004- ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 9704-1003 ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) 		8-94279-736-0 02 1 1004- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-3 01 1 9704- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-3 01 1 9704- ● ●
188 PROTECTOR; DOOR SEAL 8-97994-698-1 02 1 0112- ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 9704- ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 9704- ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 9704- ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 9704- ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 08 1 9704-9706 ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9707- ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 9707- ● ●
215 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 		8-97388-942-0 02 1 0308- ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 9704- ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 9704- ● ●
257 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301- ● ●
