◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#72445) — 94 parça

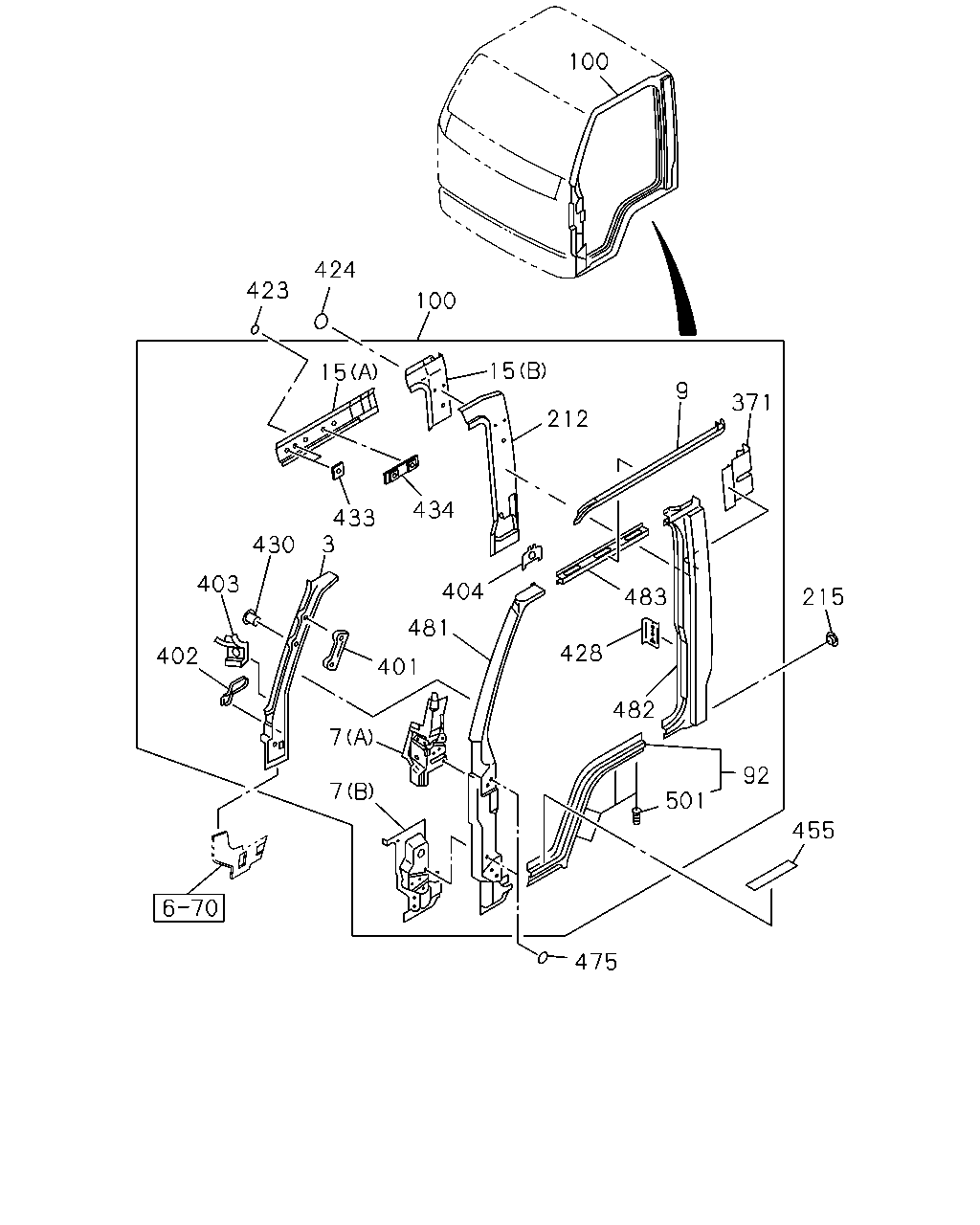

çizim 126557
100 424 423 100 15 15 9 371 212 434 433 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 9704- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 9704- ● ●
7 REINFORCEMENT; HINGE
(A) 		8-97851-072-4 01 1 9704- ● ●
7 REINFORCEMENT; HINGE
(B) 		8-97851-074-5 01 1 9704- ● ●
7 REINFORCEMENT; HINGE
(A) 		8-97851-071-4 01 1 9704- ● ●
7 REINFORCEMENT; HINGE
(B) 		8-97851-073-5 01 1 9704- ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 9704-1106 ● ●
9 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 9704-1106 ● ●
9 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 9704- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 9704- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 9704- ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 9704- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9704- ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9704- ● ●
100 PANEL ASM; BODY SIDE 8-97851-282-1 01 1 9704- ● ●
100 PANEL ASM; BODY SIDE 8-97851-061-1 01 1 9704- ● ●
212 CLOSING; PILLAR 8-97851-032-7 01 1 9704-9709 ● ●
212 CLOSING; PILLAR 8-97890-453-4 01 1 9710- ● ●
212 CLOSING; PILLAR 8-97851-031-8 01 1 9704-9709 ● ●
212 CLOSING; PILLAR 8-97890-452-4 01 1 9710- ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 9812- ● ●
371 PATCH; SEAT BELT 8-97851-049-1 01 1 9704- ● ●
371 PATCH; SEAT BELT 8-97851-048-1 01 1 9704- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 9704- ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 9704- ● ●
402 BRACKET; SUPPORT 8-97851-085-1 01 1 9704- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9704- ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9704- ● ●
404 BRACKET 8-94265-098-2 02 1 9704-9709 ● ●
404 BRACKET 8-97890-317-1 02 1 9710- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9704-0307 ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0308- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 9704-0610 ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ● ●
424 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9704-0307 ● ●
424 SEAL; CLOSING
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0308- ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 9704-0610 ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 9704- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 9704- ● ●
430 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 9704-0805 ● ●
430 NUT; PANEL
M8 POP NUT 		8-98021-404-0 02 1 0806- ● ●
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9704-0805 ● ●
430 NUT; PANEL
M6 POP NUT 		8-98013-752-0 01 1 0806- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 9704- ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9704- ● ●
455 PROTECTOR; STEP 8-97852-863-0 02 1 9704-0511 ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512- ● ●
475 GROMMET; CTR PILLAR
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-1110 ● ●
475 GROMMET; CTR PILLAR
EXC. FACE LIFT MODEL<TX7> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1111- ● ●
481 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 9704- ● ●
481 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 9704- ● ●
482 PANEL; SIDE RR PILLAR 8-97851-522-4 01 1 9704- ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 9704- ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 9704- ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 9704- ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 9704- ● ●

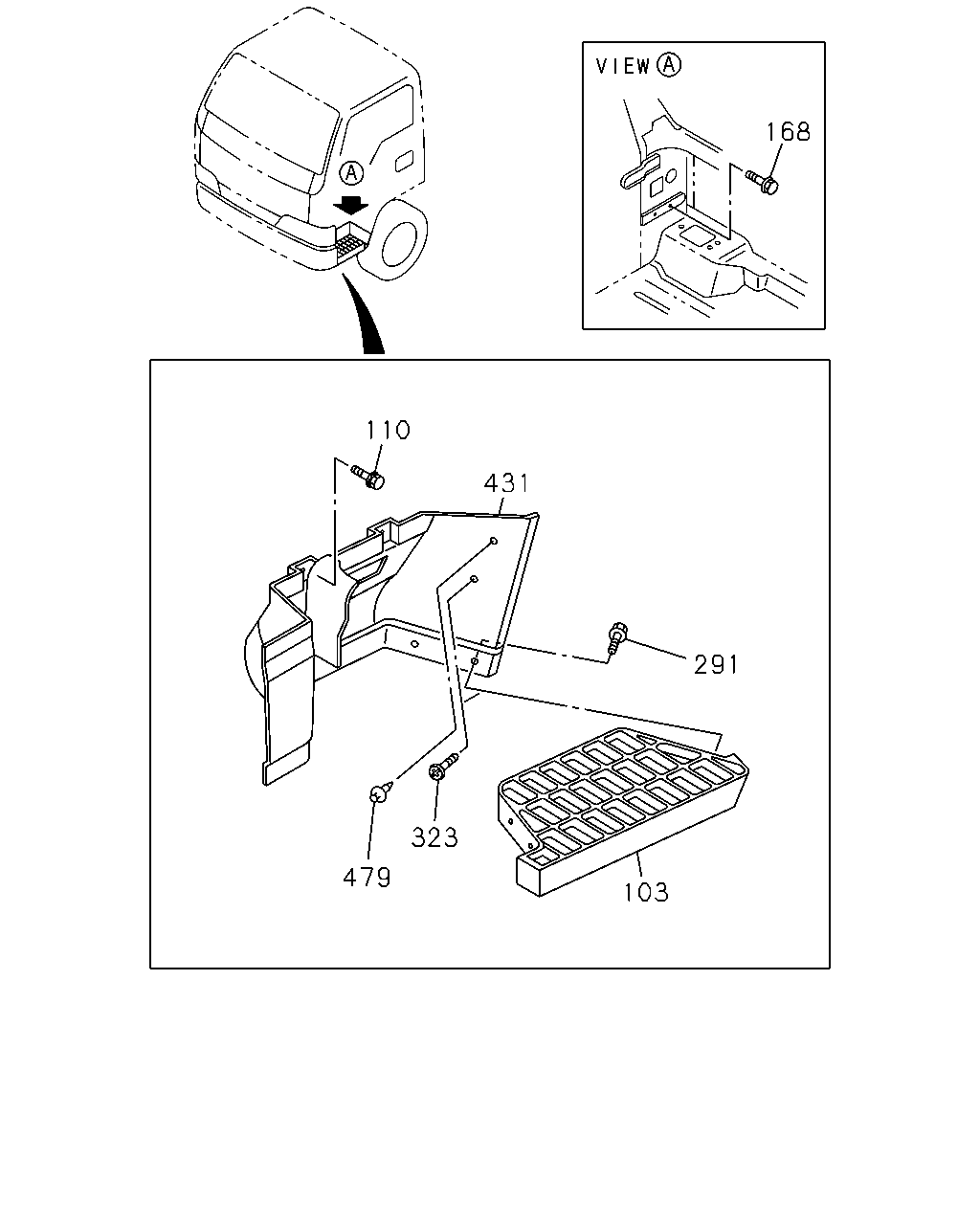

çizim 130603
168 110 431 291 323 479 103
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
FACE LIFT MODEL<TX7> 		8-97997-853-0 01 1 1006- ● ●
103 PLATE; STEP
FACE LIFT MODEL<TX7> 		8-97997-854-0 01 1 1006-1505 ● ●
103 PLATE; STEP
FACE LIFT MODEL<TX7> 		8-98242-608-0 01 1 1506- ● ●
103 PLATE; STEP 8-97867-969-1 01 1 9704-1005 ● ●
103 PLATE; STEP
EXC. FACE LIFT MODEL<TX7> 		8-97867-969-1 01 1 1006- ● ●
103 PLATE; STEP 8-97867-968-1 01 1 9704-1005 ● ●
103 PLATE; STEP
EXC. FACE LIFT MODEL<TX7> 		8-97867-968-1 01 1 1006- ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9704-0908 ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704- ● ●
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9704-0908 ● ●
291 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0909-1005 ● ●
291 BOLT; STEP PLATE
EXC. FACE LIFT MODEL<TX7> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1006- ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 9704- ● ●
431 SUPPORT ASM; STEP 8-97853-584-7 01 1 9704-9910 ● ●
431 SUPPORT ASM; STEP 8-97892-966-1 01 1 9911-1005 ● ●
431 SUPPORT ASM; STEP
EXC. FACE LIFT MODEL<TX7> 		8-97892-966-1 01 1 1006- ● ●
431 SUPPORT ASM; STEP 8-97853-583-7 01 1 9704-9910 ● ●
431 SUPPORT ASM; STEP 8-97892-965-1 01 1 9911-1005 ● ●
431 SUPPORT ASM; STEP
EXC. FACE LIFT MODEL<TX7> 		8-97892-965-1 01 1 1006- ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 9704- ● ●

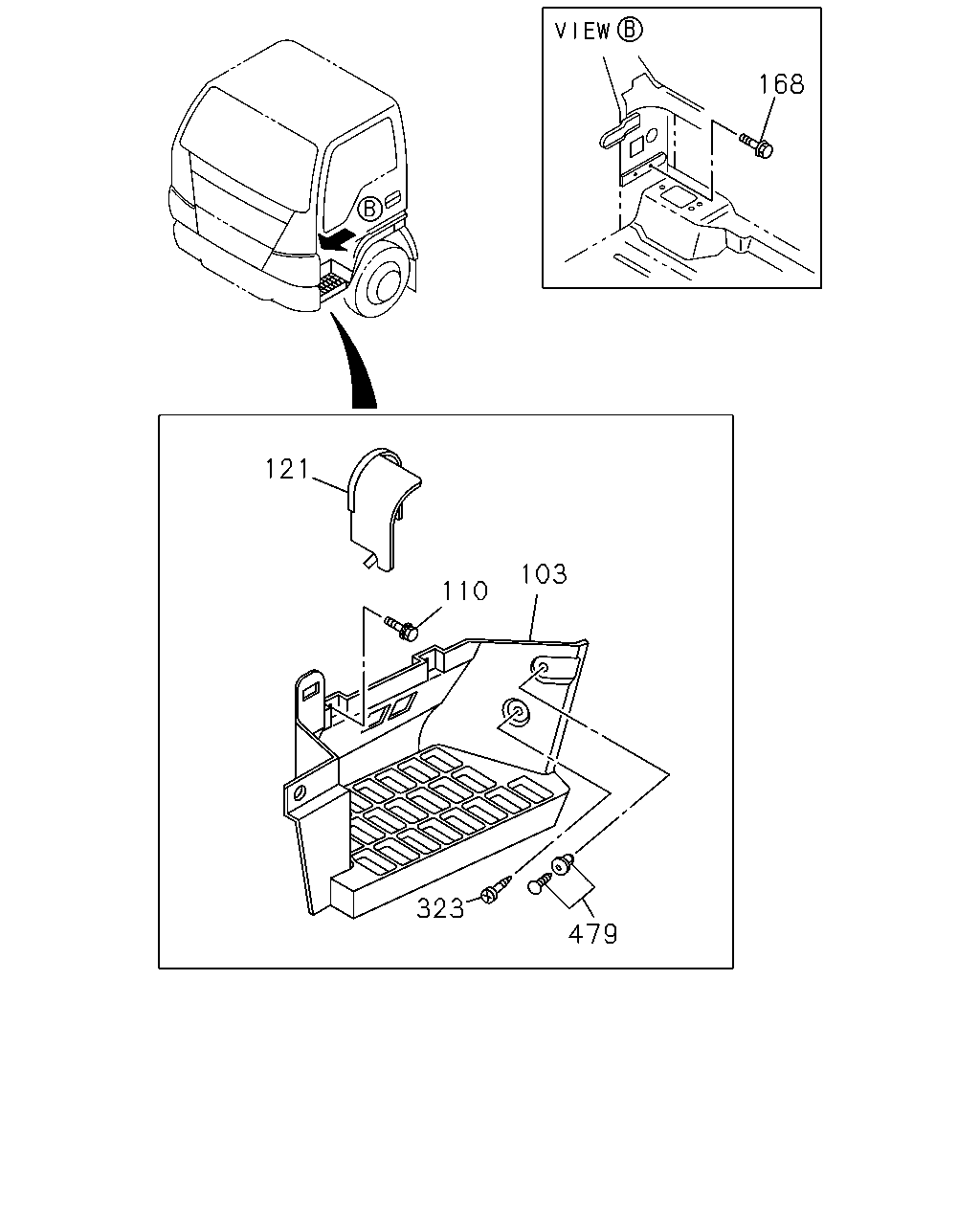

çizim 190521
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
FACE LIFT MODEL<TX7> 		8-97997-853-0 01 1 1006- ● ●
103 PLATE; STEP
FACE LIFT MODEL<TX7> 		8-97997-854-0 01 1 1006-1505 ● ●
103 PLATE; STEP
FACE LIFT MODEL<TX7> 		8-98242-608-0 01 1 1506- ● ●
103 PLATE; STEP 8-97867-969-1 01 1 9704-1005 ● ●
103 PLATE; STEP
EXC. FACE LIFT MODEL<TX7> 		8-97867-969-1 01 1 1006- ● ●
103 PLATE; STEP 8-97867-968-1 01 1 9704-1005 ● ●
103 PLATE; STEP
EXC. FACE LIFT MODEL<TX7> 		8-97867-968-1 01 1 1006- ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9704-0908 ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ●
121 COVER; STEP PLATE
FACE LIFT MODEL<TX7> 		8-97997-855-0 01 1 1006- ● ●
121 COVER; STEP PLATE
FACE LIFT MODEL<TX7> 		8-97997-856-0 01 1 1006- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9704- ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 9704- ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 9704- ● ●
