Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#72442) — 58 parça
Tümü
A - NPC5SF
B - NPC5SK
◀

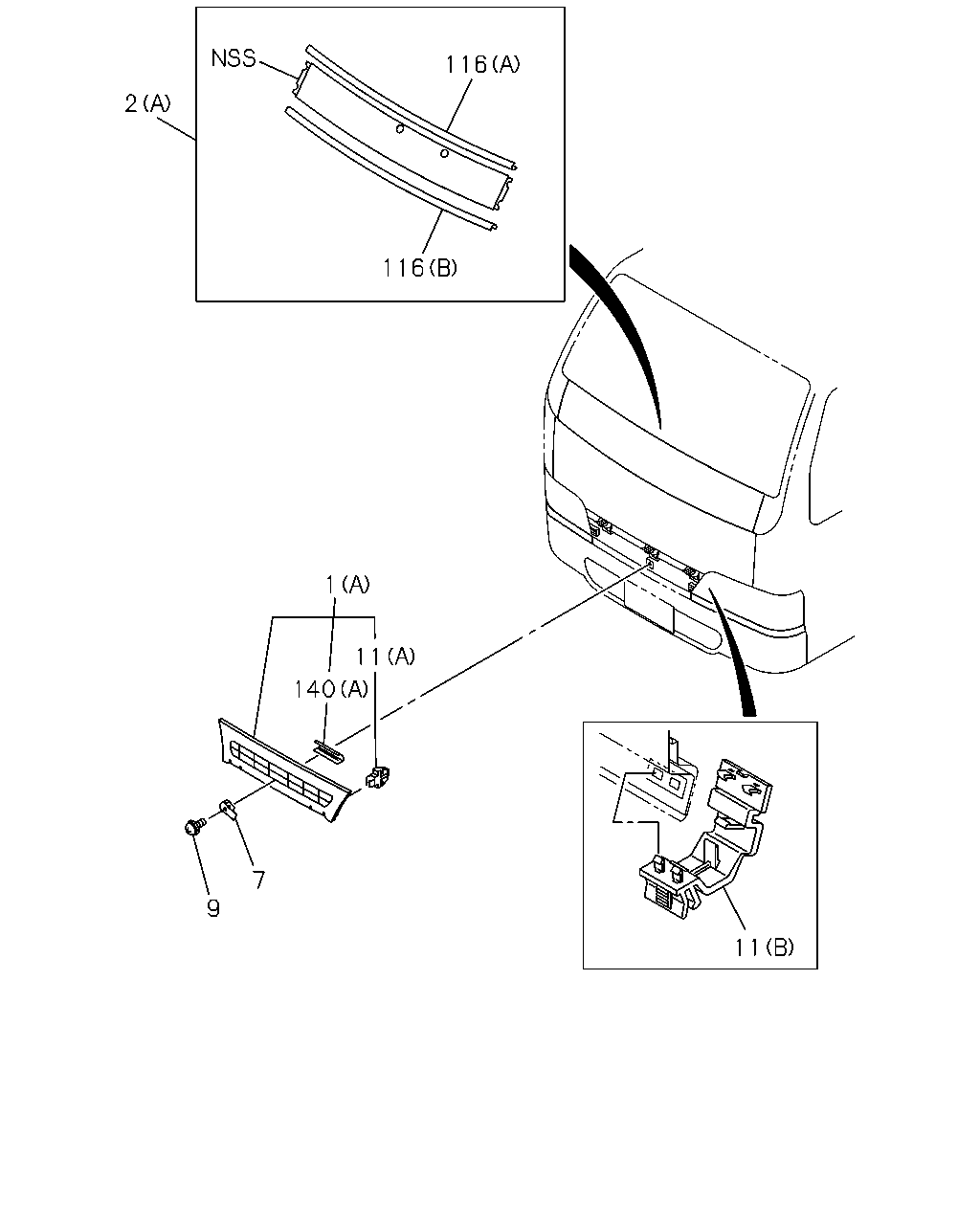

[603A] EXC.FACE LIFT MODEL (27 parça)

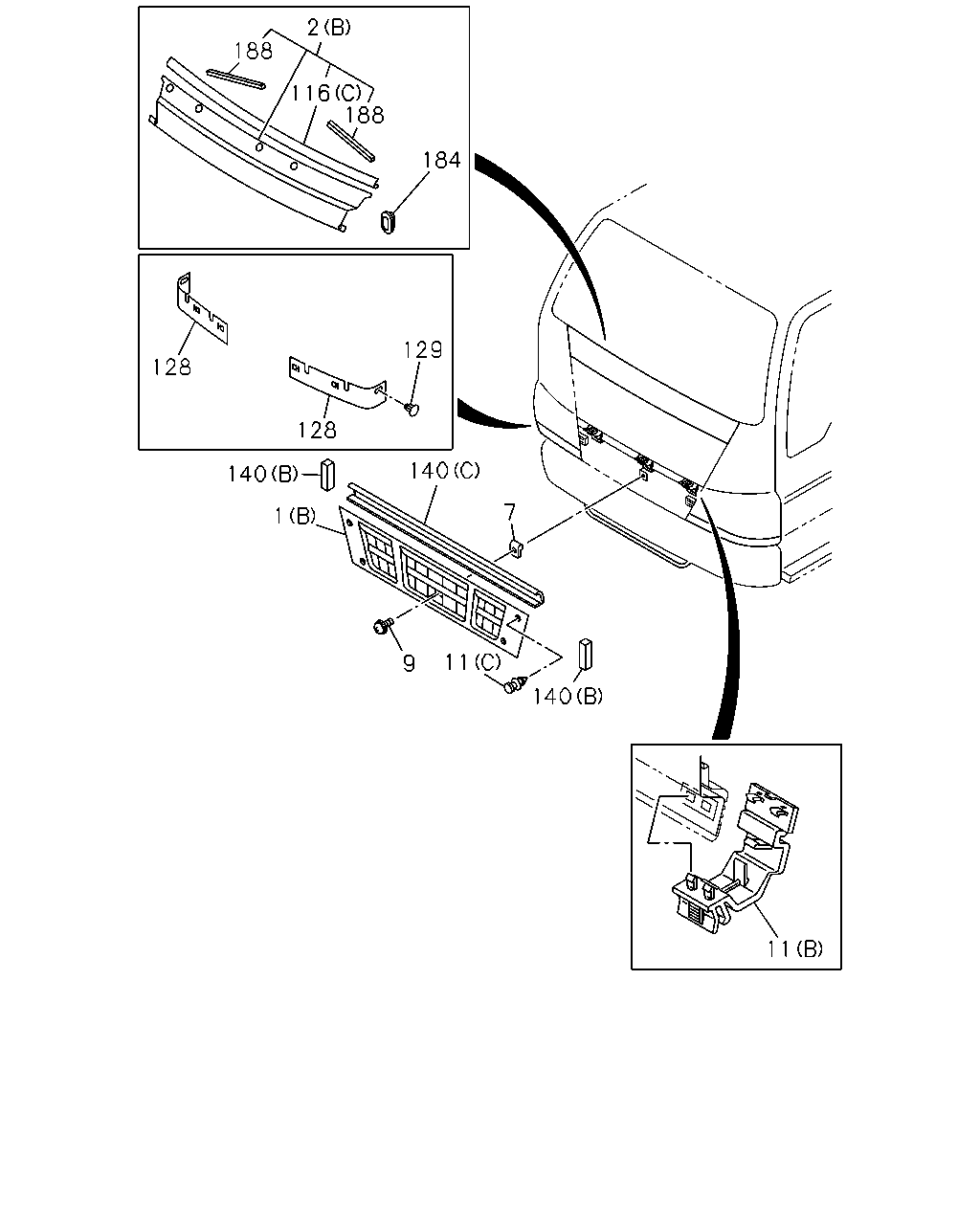

[603A] FACE LIFT MODEL (31 parça)
▶
116
2
116
1
11
140
7
9
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> (B) BLUE
8-97583-048-4
01
1
1006-
●
●
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> (B) WHITE
8-97583-047-4
01
1
1006-
●
●
1
GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR
8-97869-097-0
01
1
9704-1005
●
●
1
GRILLE; RAD
EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR
8-97869-097-0
01
1
1006-
●
●
2
GRILLE; ORNAMENT
FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97583-951-2
01
1
1006-
●
●
2
GRILLE; ORNAMENT
FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97581-680-5
01
1
1006-
●
●
2
GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL
8-97859-610-2
01
1
9704-0307
●
●
2
GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL
8-97859-464-4
01
1
0308-1005
●
●
2
GRILLE; ORNAMENT
EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL
8-97859-464-4
01
1
1006-
●
●
7
NUT; SPIRE,RAD GRILLE
8-97805-829-0
01
1
9704-0505
●
●
7
NUT; SPIRE,RAD GRILLE
8-98014-760-0
01
1
0506-
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING
8-94321-767-1
01
1
9704-0805
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER
8-98059-504-0
01
1
0806-
●
●
11
CLIP; RAD GRILLE
FACE LIFT MODEL<TX7> (C)
8-97581-651-2
04
1
1006-
●
●
11
CLIP; RAD GRILLE
(A)
8-97075-929-2
02
1
9704-1005
●
●
11
CLIP; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (A)
8-97075-929-2
02
1
1006-
●
●
11
CLIP; RAD GRILLE
(B) WHITE
8-97102-415-0
04
1
9704-
●
●
116
MOLDING; ORNAMENT GRILLE
FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)
8-97581-656-1
01
1
1006-
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)
8-97853-096-2
01
1
9704-1005
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)
8-97853-096-2
01
1
1006-
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97853-098-5
01
1
9704-1005
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97853-098-5
01
1
1006-
●
●
140
SEAL; RAD GRILLE
FACE LIFT MODEL<TX7> (C)
8-97581-665-0
01
1
1006-
●
●
140
SEAL; RAD GRILLE
FACE LIFT MODEL<TX7> (B)
8-97583-411-1
02
1
1006-
●
●
140
SEAL; RAD GRILLE
(A)
8-97088-561-2
02
1
9704-9902
●
●
140
SEAL; RAD GRILLE
(A)
8-97088-561-3
01
1
9903-1005
●
●
140
SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (A)
8-97088-561-3
01
1
1006-
●
●
2
188
116
188
184
129
128
128
140
140
7
1
11
9
140
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> (B) BLUE
8-97583-048-4
01
1
1006-
●
●
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> (B) WHITE
8-97583-047-4
01
1
1006-
●
●
1
GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR
8-97869-097-0
01
1
9704-1005
●
●
1
GRILLE; RAD
EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR
8-97869-097-0
01
1
1006-
●
●
2
GRILLE; ORNAMENT
FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97583-951-2
01
1
1006-
●
●
2
GRILLE; ORNAMENT
FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97581-680-5
01
1
1006-
●
●
2
GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL
8-97859-610-2
01
1
9704-0307
●
●
2
GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL
8-97859-464-4
01
1
0308-1005
●
●
2
GRILLE; ORNAMENT
EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL
8-97859-464-4
01
1
1006-
●
●
7
NUT; SPIRE,RAD GRILLE
8-97805-829-0
01
1
9704-0505
●
●
7
NUT; SPIRE,RAD GRILLE
8-98014-760-0
01
1
0506-
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING
8-94321-767-1
01
1
9704-0805
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER
8-98059-504-0
01
1
0806-
●
●
11
CLIP; RAD GRILLE
FACE LIFT MODEL<TX7> (C)
8-97581-651-2
04
1
1006-
●
●
11
CLIP; RAD GRILLE
(A)
8-97075-929-2
02
1
9704-1005
●
●
11
CLIP; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (A)
8-97075-929-2
02
1
1006-
●
●
11
CLIP; RAD GRILLE
(B) WHITE
8-97102-415-0
04
1
9704-
●
●
116
MOLDING; ORNAMENT GRILLE
FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)
8-97581-656-1
01
1
1006-
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)
8-97853-096-2
01
1
9704-1005
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)
8-97853-096-2
01
1
1006-
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97853-098-5
01
1
9704-1005
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)
8-97853-098-5
01
1
1006-
●
●
128
COVER; HEADLAMP GRILLE
FACE LIFT MODEL<TX7>
8-97581-653-3
02
1
1006-
●
●
129
CLIP; COVER HEADLAMP GRILLE
FACE LIFT MODEL<TX7> D=6.5
8-97855-279-0
02
1
1006-
●
●
140
SEAL; RAD GRILLE
FACE LIFT MODEL<TX7> (C)
8-97581-665-0
01
1
1006-
●
●
140
SEAL; RAD GRILLE
FACE LIFT MODEL<TX7> (B)
8-97583-411-1
02
1
1006-
●
●
140
SEAL; RAD GRILLE
(A)
8-97088-561-2
02
1
9704-9902
●
●
140
SEAL; RAD GRILLE
(A)
8-97088-561-3
01
1
9903-1005
●
●
140
SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (A)
8-97088-561-3
01
1
1006-
●
●
184
GROMMET; ORNAMENT
FACE LIFT MODEL<TX7>
8-97581-668-0
02
1
1006-
●
●
188
SEAL; ORNAMENT
FACE LIFT MODEL<TX7>
8-97584-800-0
02
1
1006-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
