Isuzu WW
▶
TRUCKS
▶
NPR
▶
50783 - NPR(MALAYSIA)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

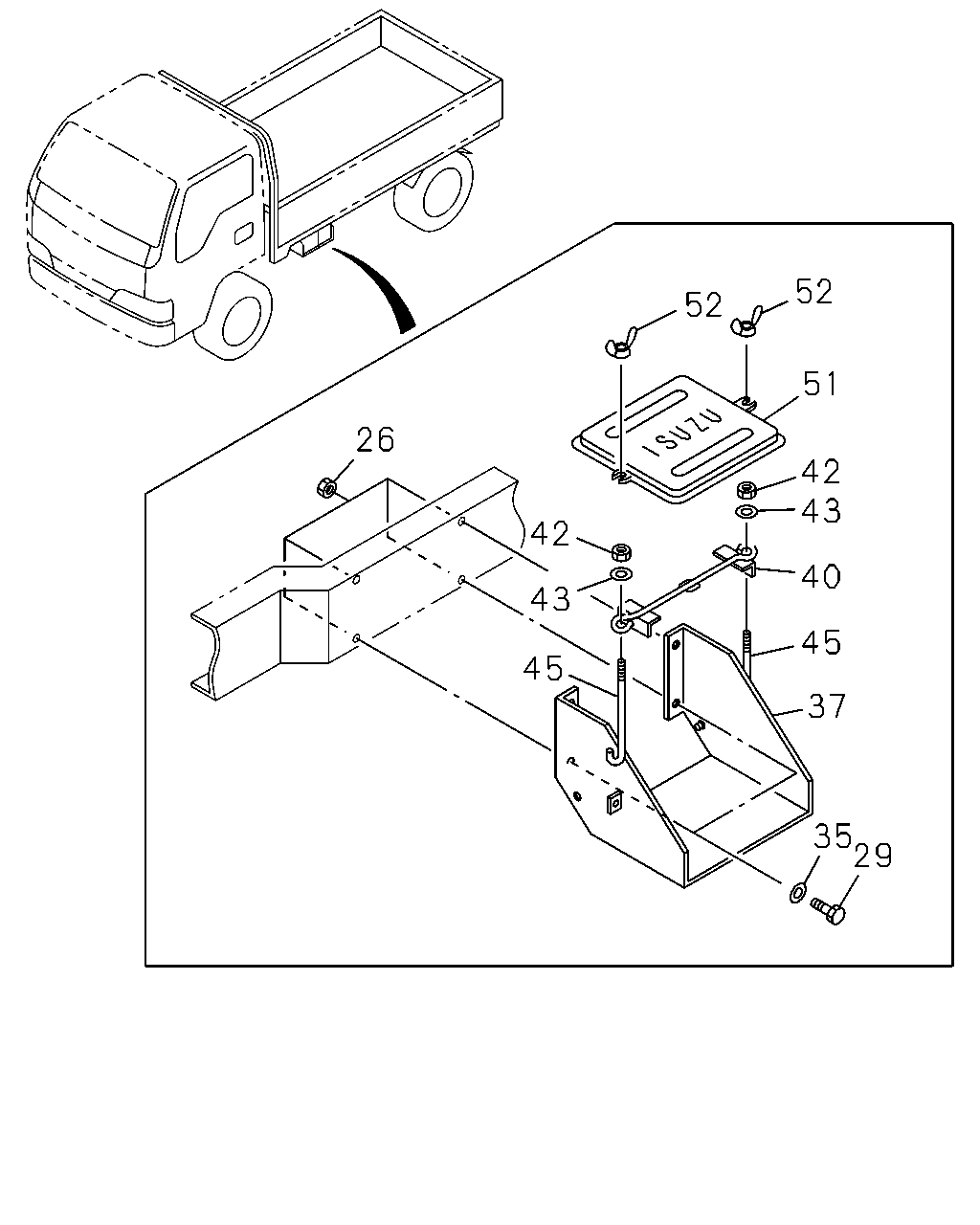

5-20 — BATTERY CARRIER
(#72439) — 23 parça
Tümü
A - NPC5SF
B - NPC5SK
52
52
51
26
42
43
42
40
43
45
45
37
35
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; BRKT
M10 FLANGE
0-91150-210-0
04
1
9704-0602
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
29
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
0-50041-030-0
04
1
9704-0512
●
●
29
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
0-50541-030-0
04
1
0601-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
9-09160-610-0
04
1
9704-0605
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0606-
●
●
37
BRACKET; BATTERY
BATTERY 65D23R<7DQ>
8-97384-068-2
01
1
1111-1111
●
●
37
BRACKET; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>
8-97384-068-2
01
1
1112-
●
●
37
BRACKET; BATTERY
5-53613-009-5
01
1
9704-0203
●
●
37
BRACKET; BATTERY
8-97327-537-0
01
1
0204-0207
●
●
37
BRACKET; BATTERY
8-97356-174-0
01
1
0208-0610
●
●
37
BRACKET; BATTERY
8-97384-068-2
01
1
0611-0612
●
●
37
BRACKET; BATTERY
8-97384-067-2
01
1
0701-1110
●
●
37
BRACKET; BATTERY
BATTERY 75D26R<6DM>,BATTERY 80D26R<6KC>
8-97384-067-2
01
1
1111-
●
●
40
CLAMP; BATTERY
5-53615-004-1
01
1
9704-
●
●
42
NUT; CLAMP
M8
9-09110-408-0
02
1
9704-0512
●
●
42
NUT; CLAMP
M8
0-91110-508-0
02
1
0601-
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22
9-09164-708-0
02
1
9704-0605
●
●
43
WASHER; PL,CLAMP
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
●
●
45
ROD; TENSION,BATTERY
L=120
9-53616-615-0
02
1
9704-
●
●
51
COVER; BATTERY
8-97120-747-0
01
1
9704-
●
●
52
NUT; WING,COVER FIX
M8 WING NUT
9-09118-408-0
02
1
9704-0512
●
●
52
NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0601-
●
●
