5-15 — CAB MOUNTING; CAB SIDE (#72438) — 69 parça

17 275 16 17 275 275 18 275 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	DAMPER; DYNAMIC	8-97031-817-2	01	1	9704-	●	●
17	BOLT; DAMPER M8X35 FLANGE	0-28680-835-0	02	1	9704-0512	●	●
17	BOLT; DAMPER M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
18	NUT; DAMPER M8	9-09110-408-0	02	1	9704-0512	●	●
18	NUT; DAMPER M8	0-91110-508-0	02	1	0601-	●	●
275	BRACKET; DYNAMIC DAMPER (A)	8-97031-818-0	02	1	9704-	●	●
275	BRACKET; DYNAMIC DAMPER (B)	8-97032-026-0	02	1	9704-	●	●

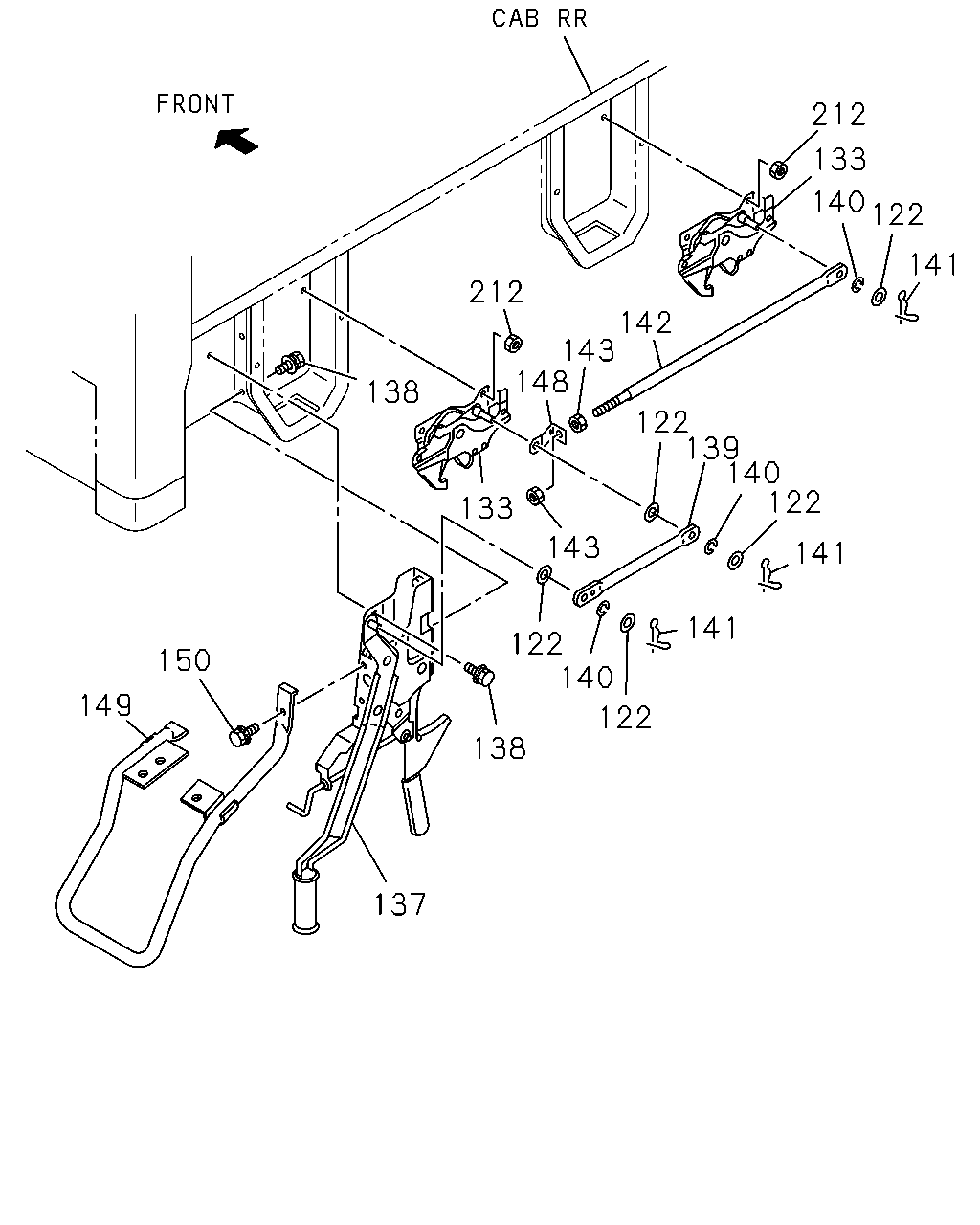

212 133 140 122 141 212 142 143 148 138 122 139 140 122 133 143 141 141 122 140 150 149 122 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
122	WASHER; PL,CAB LOCK ROD ID=12.5 OD=22	8-94279-627-0	05	1	9704-0707	●	●
122	WASHER; PL,CAB LOCK ROD ID=12.5 OD=22	0-91610-512-0	05	1	0708-	●	●
133	LOCK ASM; CAB	8-97853-056-8	01	1	9704-	●	●
133	LOCK ASM; CAB	8-97853-055-9	01	1	9704-	●	●
137	CONTROL UNIT; CAB LOCK	8-97853-051-9	01	1	9704-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9704-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK	8-97853-053-1	01	1	9704-0302	●	●
139	ROD; CAB LOCK,LEVER TO HOOK	8-97997-597-0	01	1	0303-	●	●
140	WASHER; LK,CAB LOCK ROD ID=13 OD=22	8-94279-629-0	03	1	9704-0611	●	●
140	WASHER; LK,CAB LOCK ROD ID=13 OD=22	8-98060-839-0	03	1	0612-	●	●
141	PIN; SNAP,CAB LOCK ROD	1-09987-158-1	03	1	9704-	●	●
142	ROD; HOOK TO HOOK	1-79718-581-0	01	1	9704-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	1-09984-142-0	02	1	9704-0909	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0910-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97856-106-0	01	1	9704-	●	●
149	HANDLE; TILT	8-97853-054-4	01	1	9704-	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE	0-28680-825-0	03	1	9704-0512	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE	0-28650-825-0	03	1	0601-0610	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	03	1	0611-1103	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE	0-28650-825-0	03	1	1104-	●	●
212	NUT; BRKT,CAB LOCK M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	9704-	●	●

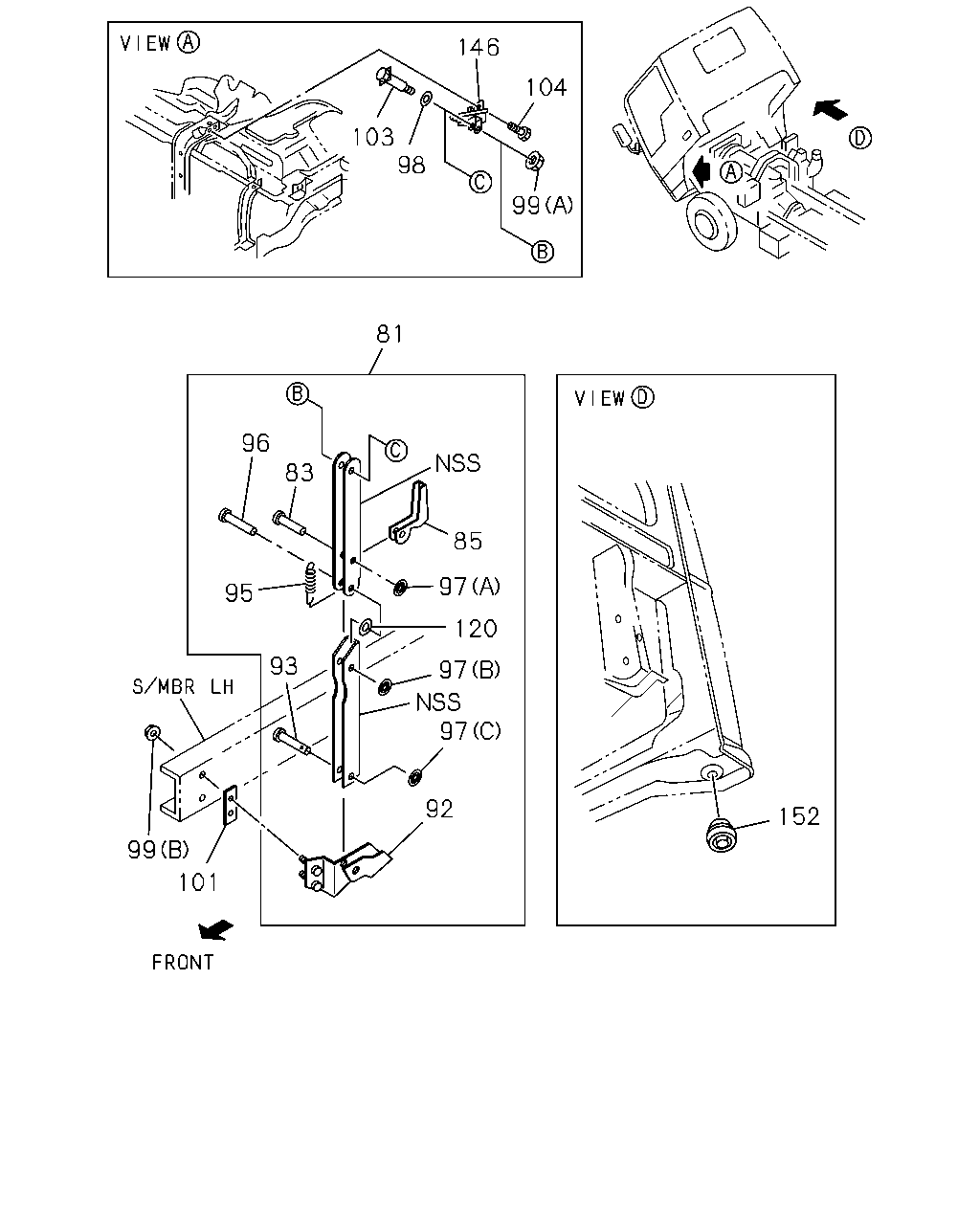

146 104 103 98 99 81 96 83 85 97 95 120 93 97 97 92 152 99 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT	8-97162-698-0	01	1	9704-	●	●
83	PIN; JOINT,CAB STAY OD=8 L=32	8-97039-548-0	01	1	9704-	●	●
85	LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	9704-	●	●
92	BRACKET; CAB STAY TO FRAME	8-97096-653-0	01	1	9704-	●	●
93	PIN; CAB STAY	8-97039-549-0	01	1	9704-9912	●	●
93	PIN; CAB STAY OD=12 L=53	8-97218-926-0	01	1	0001-	●	●
95	SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	9704-	●	●
96	PIN; JOINT OD=10 L=36	8-97096-661-0	01	1	9704-	●	●
97	NUT; CAB STAY PIN (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9704-	●	●
97	NUT; CAB STAY PIN (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9704-	●	●
97	NUT; CAB STAY PIN (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9704-	●	●
98	WASHER; CAB STAY ID=6.5 OD=28.0	8-97076-467-0	01	1	9704-9707	●	●
98	WASHER; CAB STAY ID=10.5 OD=28.0	8-97184-701-0	01	1	9708-	●	●
99	NUT; CAB STAY (B) M10 FLANGE	0-91150-110-0	02	1	9704-0602	●	●
99	NUT; CAB STAY (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
99	NUT; CAB STAY (A) M6 FLANGE	0-91150-106-0	01	1	9704-9707	●	●
99	NUT; CAB STAY (A) M10	8-94317-772-0	01	1	9708-9711	●	●
99	NUT; CAB STAY (A) M10	8-97185-205-1	01	1	9712-	●	●
101	SPACER	8-94121-864-1	01	1	9704-	●	●
103	PIN; JOINT,CAB STAY M6X29.5	8-97076-843-1	01	1	9704-9707	●	●
103	PIN; JOINT,CAB STAY M10X40	8-97184-683-0	01	1	9708-0805	●	●
103	PIN; JOINT,CAB STAY M10X40	8-97359-151-0	01	1	0806-	●	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE	0-28690-820-0	03	1	9704-0512	●	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE	0-28660-820-0	03	1	0601-	●	●
120	WASHER; NYLON ID=10 OD=20	8-97103-223-0	01	1	9704-	●	●
146	BRACKET ASM; CAB STAY UPR	8-97076-588-2	01	1	9704-	●	●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK OD=19	8-94279-055-0	02	1	9704-0210	●	●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK OD=25 BLACK	1-76798-019-0	02	1	0211-	●	●

15 12 1 15 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR	8-97114-077-1	01	1	9704-9802	●	●
1	LEVER; TORSION BAR	8-97188-908-3	01	1	9803-	●	●
3	BOLT; LEVER	8-94401-729-1	06	1	9704-0111	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97326-378-0	06	1	0112-0611	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0612-	●	●
12	BAR; TORSION,UPR	8-97061-818-0	01	1	9704-9802	●	●
12	BAR; TORSION,UPR	8-97180-747-0	01	1	9803-0005	●	●
12	BAR; TORSION,UPR	8-97261-871-0	01	1	0006-	●	●
15	RING; SNAP,TORSION BAR	8-94258-173-0	02	1	9704-0610	●	●
15	RING; SNAP,TORSION BAR	8-97359-034-0	02	1	0611-	●	●

21 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	NUT VIN MODEL YEAR 2014<VZE> M12 FLANGE	0-91180-212-0	04	1	1310-	●	●
320	ANCHOR; CAB RR VIN MODEL YEAR 2014<VZE>	8-97181-722-0	01	1	1310-	●	●
320	ANCHOR; CAB RR VIN MODEL YEAR 2014<VZE>	8-97184-188-0	01	1	1310-	●	●
