◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#72436) — 75 parça
çizim 125217
140 140 142 105 215 215 215 105 215
BalonParca AdiParca NoAdetTipApplied Date A B
105 BRACKET; RR SPR,RR 8-94459-512-1 01 1 9704- ● ●
105 BRACKET; RR SPR,RR 8-94459-511-1 01 1 9704- ● ●
140 BRACKET; S/ABS,RR
(B) 		8-94101-303-0 01 1 9704- ● ●
140 BRACKET; S/ABS,RR
(A) 		8-97012-285-0 01 1 9704- ● ●
142 BRACKET; FLEX HOSE,BRAKE 8-97040-876-3 01 1 9704- ● ●
215 BUSHING; BRKT,RR SPRING
OD=40 L=43.7 		8-94118-588-1 04 1 9704-9712 ● ●
215 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 9801- ● ●

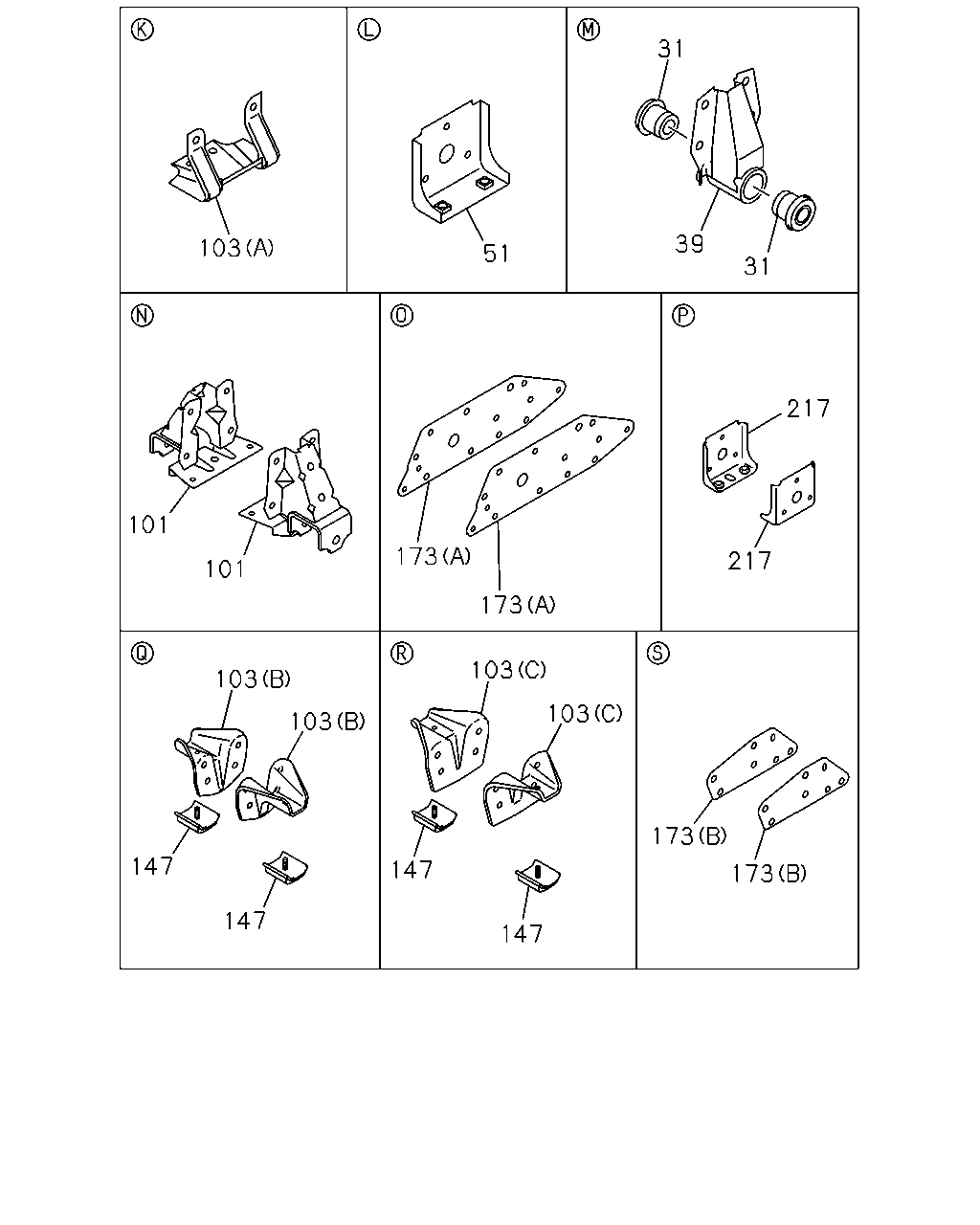

çizim 125253
31 39 103 51 31 217 101 173 217 101 173 103 103 103 103 173 147 147 173 147 147
BalonParca AdiParca NoAdetTipApplied Date A B
31 BUSHING; FRT SPR,RR
OD=40 L=43.7 		8-94118-588-1 04 1 9704-9712 ● ●
31 BUSHING; FRT SPR,RR 8-97184-699-1 04 1 9801- ● ●
39 BRACKET; FRT SPR,RR 8-97046-283-1 02 1 9704- ● ●
51 BRACKET; ENG SUPPORT,OUTER 8-97046-284-1 02 1 9704-0307 ● ●
51 BRACKET; ENG SUPPORT,OUTER 8-97202-415-1 02 1 0308- ● ●
101 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 9704- ● ●
103 STOPPER; SUB SPR
(A) 		8-94101-392-0 02 1 9704- ● ●
103 STOPPER; SUB SPR
(B) 		8-97040-628-0 02 1 9704-9904 ● ●
103 STOPPER; SUB SPR
(B) 		8-97223-748-0 02 1 9905- ● ●
103 STOPPER; SUB SPR
(C) 		8-97040-629-0 02 1 9704-9904 ● ●
103 STOPPER; SUB SPR
(C) 		8-97223-750-0 02 1 9905- ● ●
147 RUBBER; SUB SPRING 8-94119-958-1 04 1 9704-0003 ● ●
147 RUBBER; SUB SPRING 8-97254-387-0 04 1 0004- ● ●
173 STIFFENER; RR SPRING
(B) 		8-94372-324-1 02 1 9704- ● ●
173 STIFFENER; RR SPRING
(A) 		8-94408-191-2 01 1 9704- ● ●
173 STIFFENER; RR SPRING
(A) 		8-94403-508-2 01 1 9704- ● ●
217 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 9704-0307 ● ●
217 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 0308- ● ●

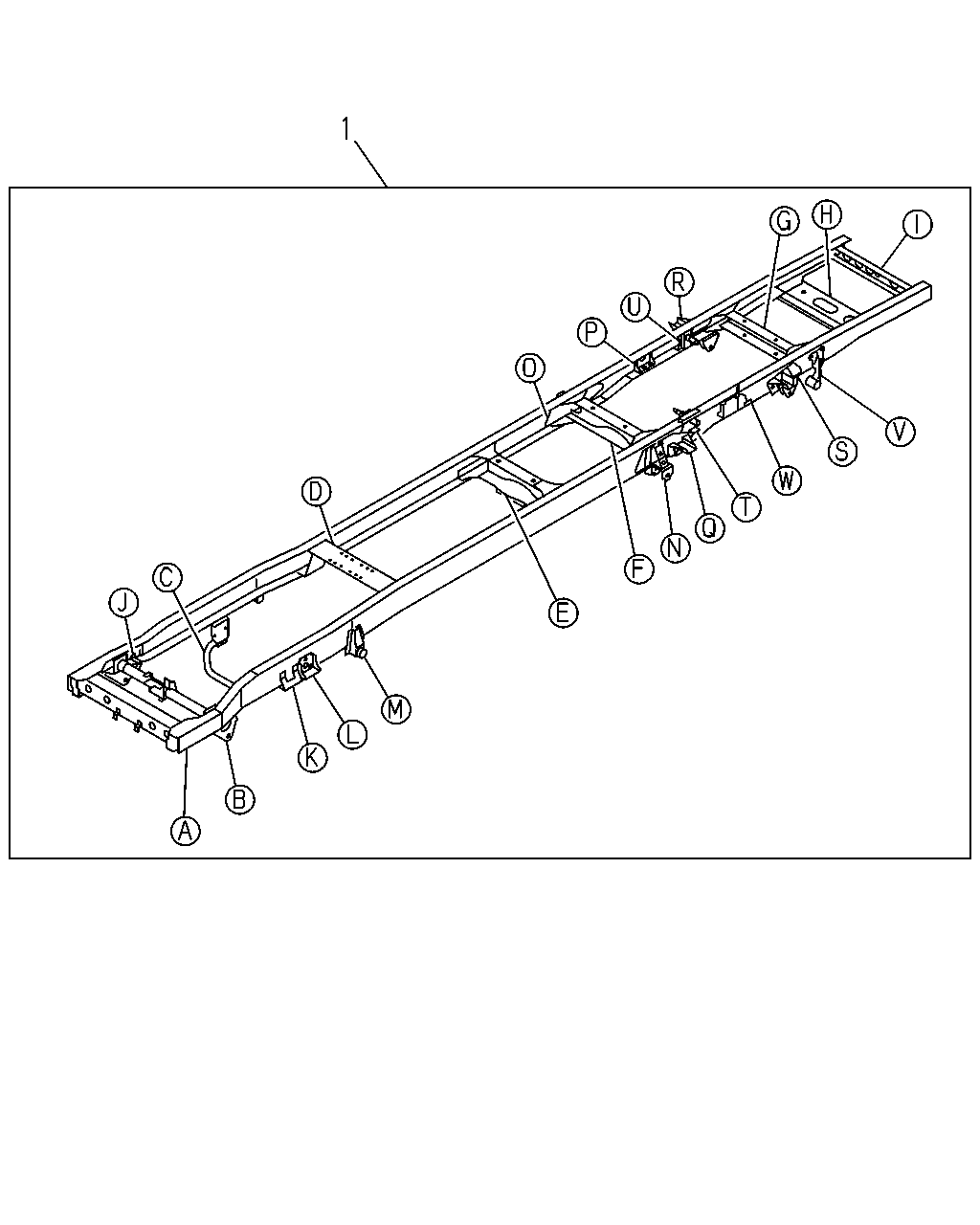

çizim 125506
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM 8-97092-413-3 01 1 9704-0307 ●
1 FRAME ASM 8-97351-005-0 01 1 0308-0703 ●
1 FRAME ASM 8-97360-895-1 01 1 0704- ●
1 FRAME ASM 8-97092-419-2 01 1 9704-0307 ●
1 FRAME ASM 8-97351-014-0 01 1 0308-0703 ●
1 FRAME ASM 8-97360-900-1 01 1 0704- ●

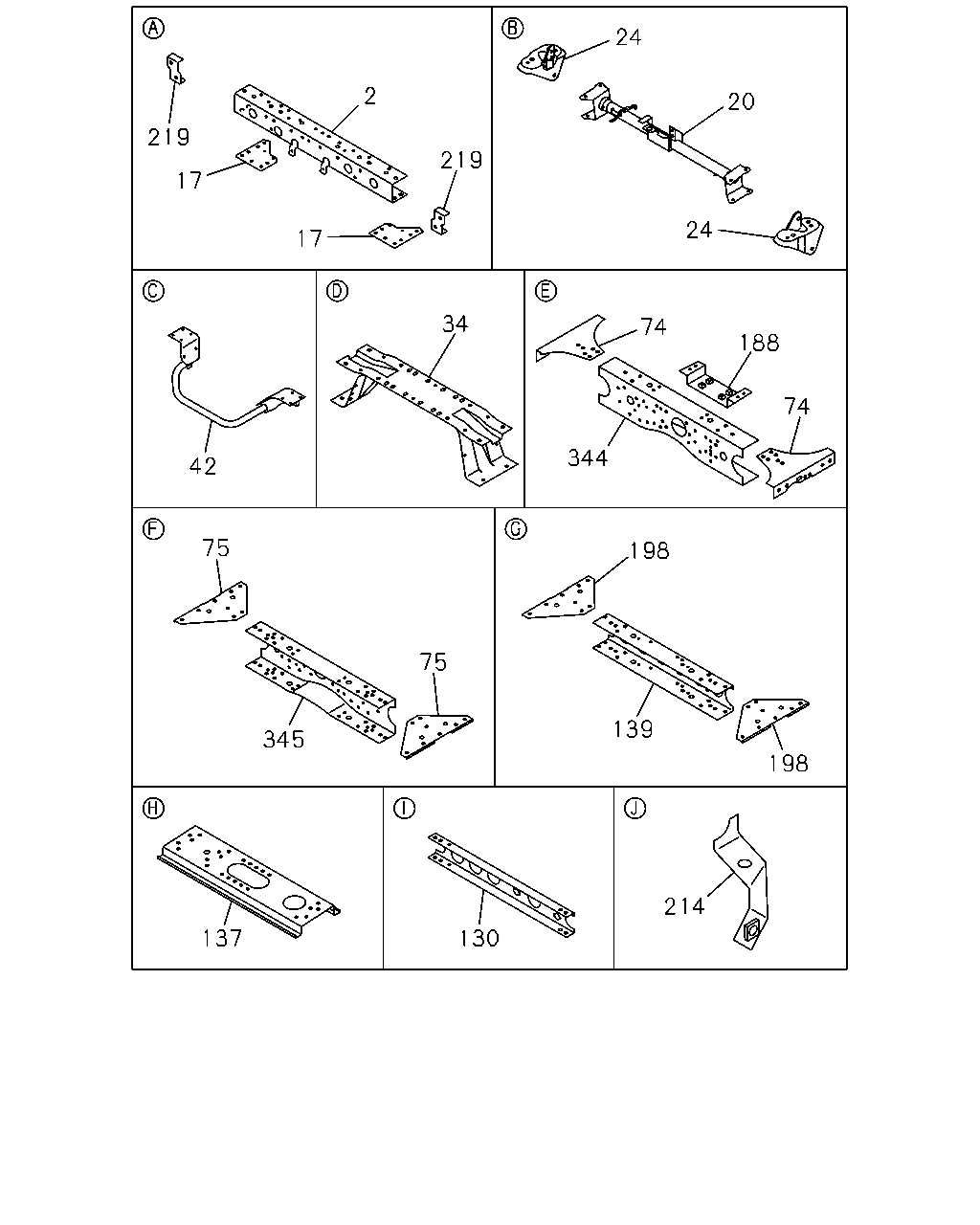

çizim 125681
24 2 20 219 219 17 24 17 34 74 188 74 344 42 75 198 75 139 345 198 214 137 130
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97038-318-5 01 1 9704-0308 ● ●
2 MEMBER; CROSS,1ST 8-97100-041-1 01 1 0309- ● ●
17 GUSSET; 1ST C/MBR 8-97088-205-1 02 1 9704- ● ●
20 MEMBER; CROSS,2ND 8-97136-320-0 01 1 9704- ● ●
24 BRACKET; FRT SPR,FRT 8-97020-865-1 01 1 9704- ● ●
24 BRACKET; FRT SPR,FRT 8-97020-864-1 01 1 9704- ● ●
34 MEMBER; CROSS,3RD 8-97042-818-0 01 1 9704- ● ●
42 MEMBER; CROSS,ENG MTG 8-97165-924-1 01 1 9704- ● ●
74 GUSSET; 4TH C/MBR
RH UPPER,LH LOWER 		8-97083-107-1 02 1 9704- ● ●
74 GUSSET; 4TH C/MBR
RH LOWER,LH UPPER 		8-97083-108-1 02 1 9704- ● ●
75 GUSSET; 5TH C/MBR
RH UPPER,LH LOWER 		8-94258-068-1 02 1 9704- ● ●
75 GUSSET; 5TH C/MBR
RH LOWER,LH UPPER 		8-94258-069-1 02 1 9704- ● ●
130 MEMBER; CROSS,END 8-94101-292-2 01 1 9704-0307 ● ●
130 MEMBER; CROSS,END 8-97179-414-0 01 1 0308-0806 ● ●
130 MEMBER; CROSS,END 8-94101-292-2 01 1 0807- ● ●
137 BRACKET; SPARE TIRE 8-97076-885-1 01 1 9704- ● ●
139 MEMBER; CROSS,6TH 8-94101-290-1 01 1 9704- ● ●
188 BRACKET; SUPPORT,CTR BRG 8-97083-157-1 01 1 9704- ● ●
198 GUSSET; 6TH C/MBR
RH LOWER,LH UPPER 		8-94258-068-1 02 1 9704- ● ●
198 GUSSET; 6TH C/MBR
RH UPPER,LH LOWER 		8-94258-069-1 02 1 9704- ● ●
214 BRACKET; GEAR CONT 8-97065-489-5 01 1 9704-0307 ● ●
214 BRACKET; GEAR CONT 8-97094-811-2 01 1 0308- ● ●
219 BRACKET; BACK BAR,FRT BUMPER,FRAME SID 8-94129-569-1 01 1 9704- ● ●
219 BRACKET; BACK BAR,FRT BUMPER,FRAME SID 8-94129-568-1 01 1 9704- ● ●
344 MEMBER; CROSS,4TH 8-97083-106-3 01 1 9704- ● ●
345 MEMBER; CROSS,5TH 8-97095-654-1 01 1 9704- ● ●
çizim 125722
376 376 376 376 376 376 376 376 376 376 376 376 376 176 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 NUT; STOPPER
M8 FLANGE 		0-91150-108-0 02 1 9704-0109 ● ●
118 NUT; STOPPER
M8 LOCK NUT 		9-09131-508-0 02 1 0110-0603 ● ●
118 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 0604- ● ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28081-025-0 08 1 9704-0512 ● ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
376 RIVET; FRAME
(A) D8X22 TAPER END 		9-06750-822-0 AR 1 9704- ● ●
376 RIVET; FRAME
(B) D8X26 TAPER END 		9-06750-826-0 AR 1 9704- ● ●
376 RIVET; FRAME
(C) D8X30 TAPER END 		9-06750-830-0 AR 1 9704- ● ●
376 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 9704- ● ●
376 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 9704- ● ●
376 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 9704- ● ●
376 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 9704- ● ●
376 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 9704- ● ●
376 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 9704- ● ●
376 RIVET; FRAME
(J) D12X30 TAPER END 		9-06751-230-0 AR 1 9704- ● ●
376 RIVET; FRAME
(K) D12X34 TAPER END 		9-06751-234-0 AR 1 9704- ● ●
376 RIVET; FRAME
(L) D12X36 TAPER END 		9-06751-236-0 AR 1 9704- ● ●
376 RIVET; FRAME
(M) D12X38 TAPER END 		9-06751-238-0 AR 1 9704- ● ●
