◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50783 - NPR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#72435) — 56 parça

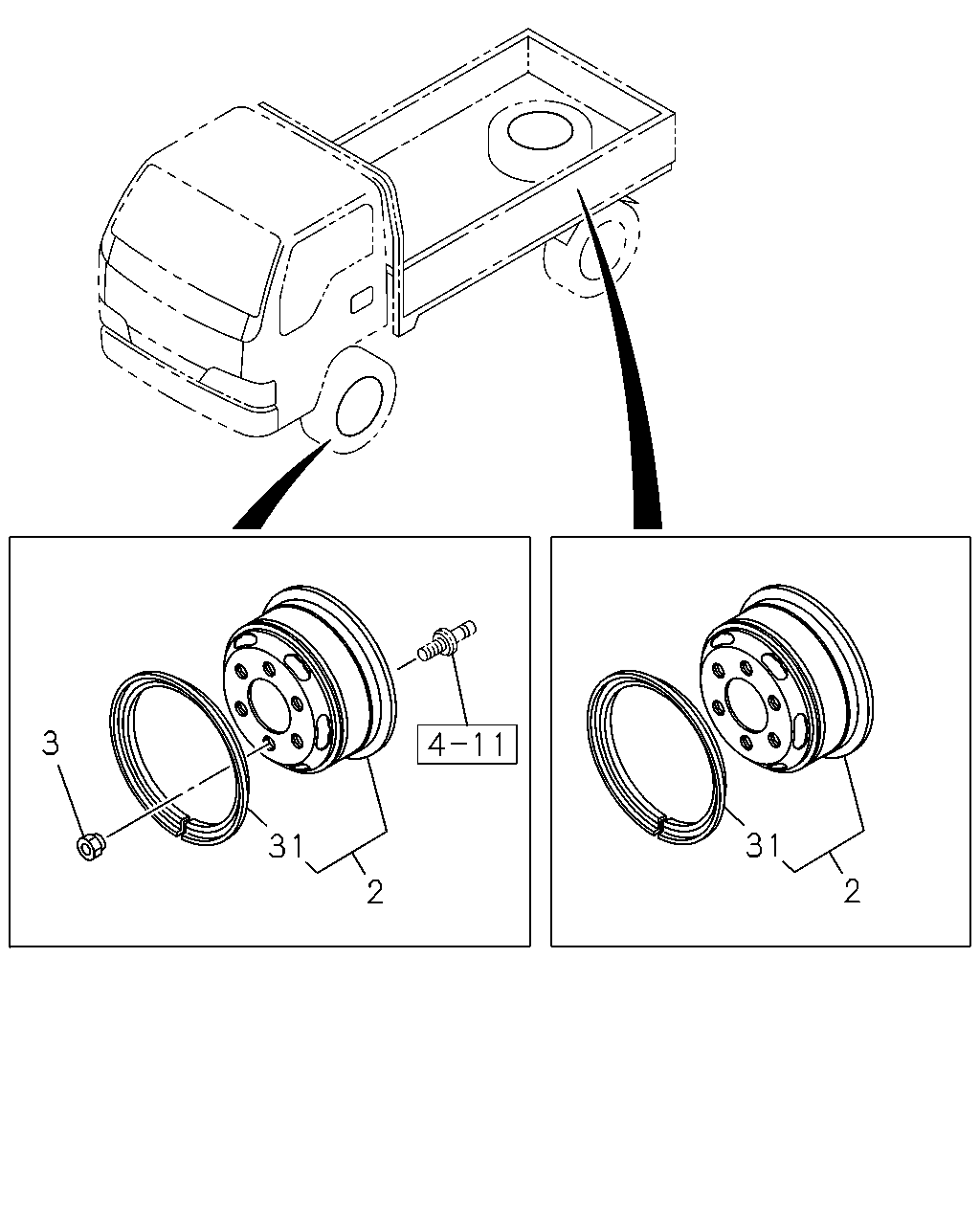

3 31 31 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	9704-	●
2	WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	9704-	●
2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	9704-		●
2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	9704-		●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	9704-0610	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	9704-0610	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-	●
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-94427-549-1	06	1	9704-0610		●
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0611-		●
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-94427-548-1	06	1	9704-0610		●
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0611-		●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	9704-9904	●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-97227-056-0	01	1	9905-0203	●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0204-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	9704-9904	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-97227-056-0	06	1	9905-0203	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0204-	●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	9704-9904		●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-97227-057-0	01	1	9905-0203		●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0204-		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	9704-9904		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-97227-057-0	06	1	9905-0203		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0204-		●

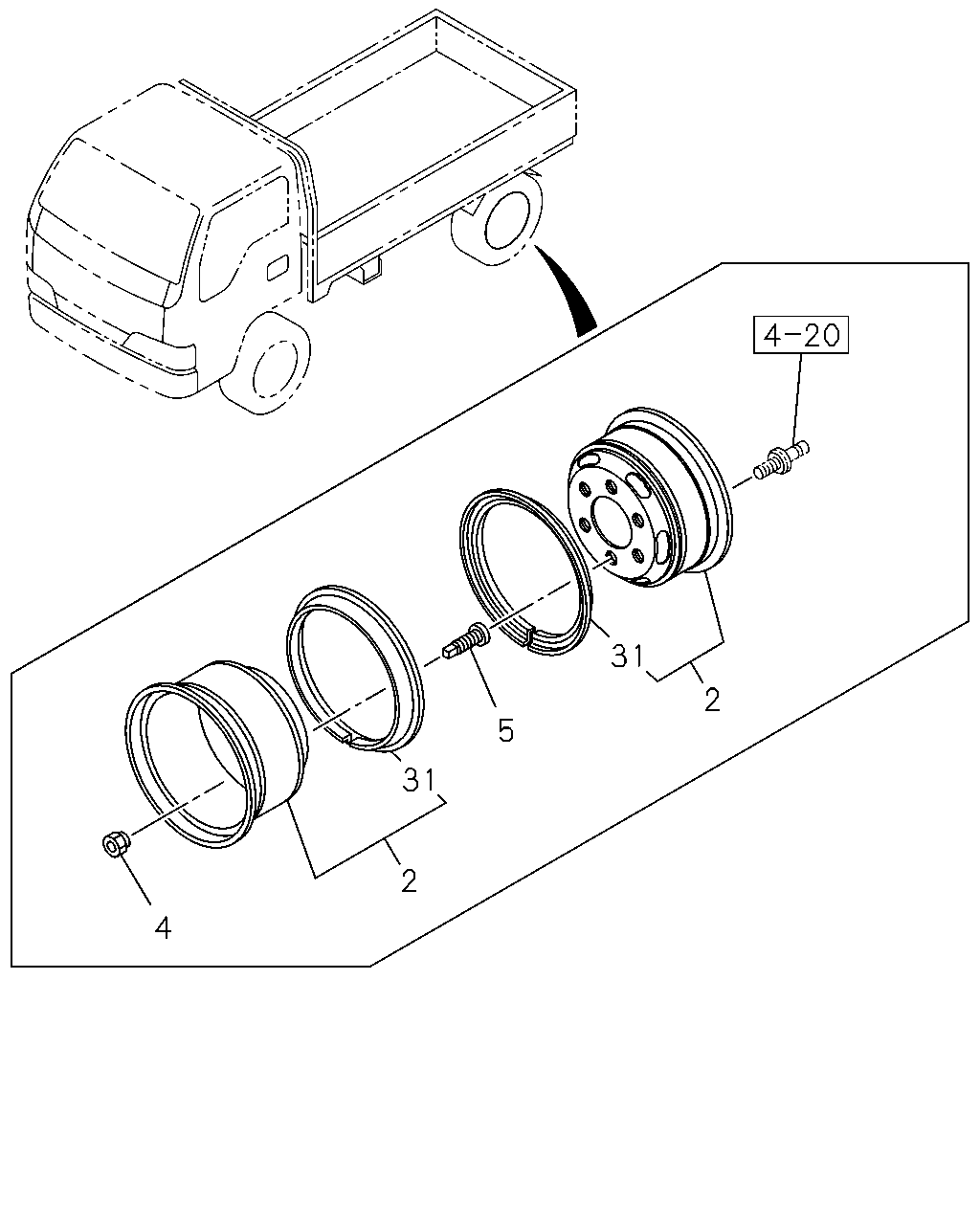

31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	9704-	●
2	WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	9704-	●
2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	9704-		●
2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	9704-		●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	9704-0610	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	9704-0610	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	06	1	9704-0610		●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0611-		●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	06	1	9704-0610		●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	9704-0610	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	9704-0610	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	9704-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	9704-0610		●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-		●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	9704-9904	●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-97227-056-0	01	1	9905-0203	●
31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0204-	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	9704-9904	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-97227-056-0	06	1	9905-0203	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0204-	●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	9704-9904		●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-97227-057-0	01	1	9905-0203		●
31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0204-		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	9704-9904		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-97227-057-0	06	1	9905-0203		●
31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0204-		●
